Part 2

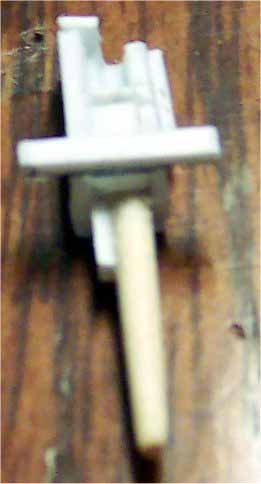

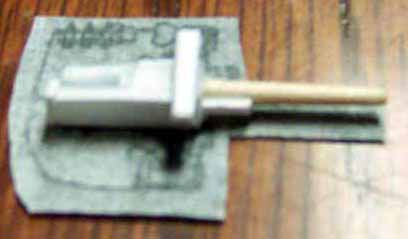

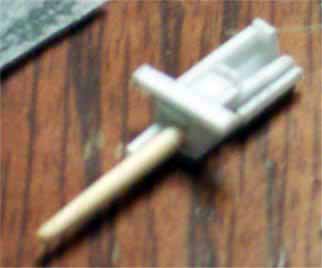

After completing the Navigation Bridge and the 5” broadside I needed something else to build.  I decided the 5”/25 AA gun was my best choice.  I used the same technique for the 5” broadside.  I cut out the patterns for the base and cut it out of the plastic. I then proceeded to use anything I could find; yes I know that sounds bad, but the end product looks amazing, at least I think so.  I then built the gun and breech assembly and set it aside.

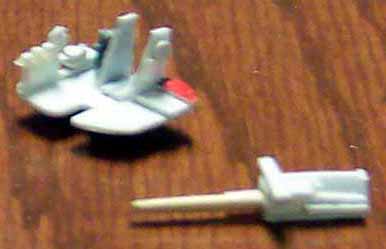

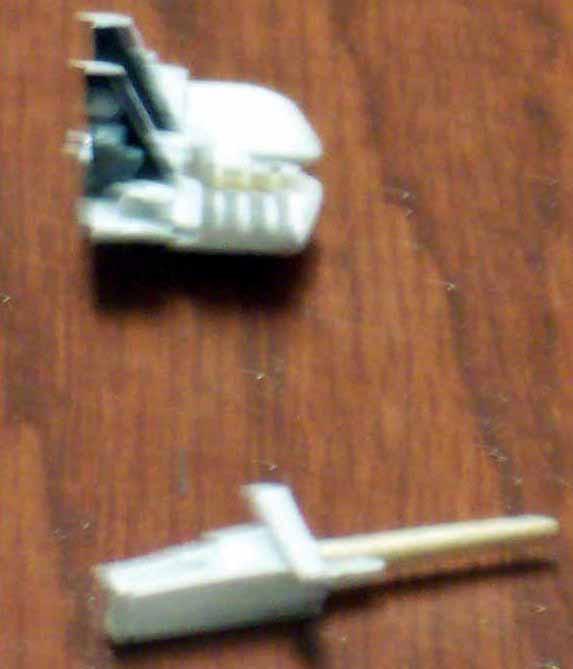

With that completed I started work on the base.  Looking at a 1/96 scale mount on the web, along with some reference photos of the actual mount I added two platforms on either side of the front.  I then added a few details and decided how I was going to make the fuse setter racks and the seat.  This task had me stumped for a while, I just couldn’t figure out how to do it.  Then I finally had a stroke of genius.  In front of me was a piece of a left over sprue with a small dimple in the center.  Looking at it I realized it looked pretty close to a seat.  I cut it especially thin so it didn’t look too out of scale then I added the assembly.  Next was the fuse setter racks;  I cut three equal length pieces of plastic, glued them on the base, then took a small, thin resin wafer left from another project and cut a small rectangular shape.  I glued that over the three pieces, then cut three smaller pieces and applied those to the top. Lo and behold I had my fuse setter racks!

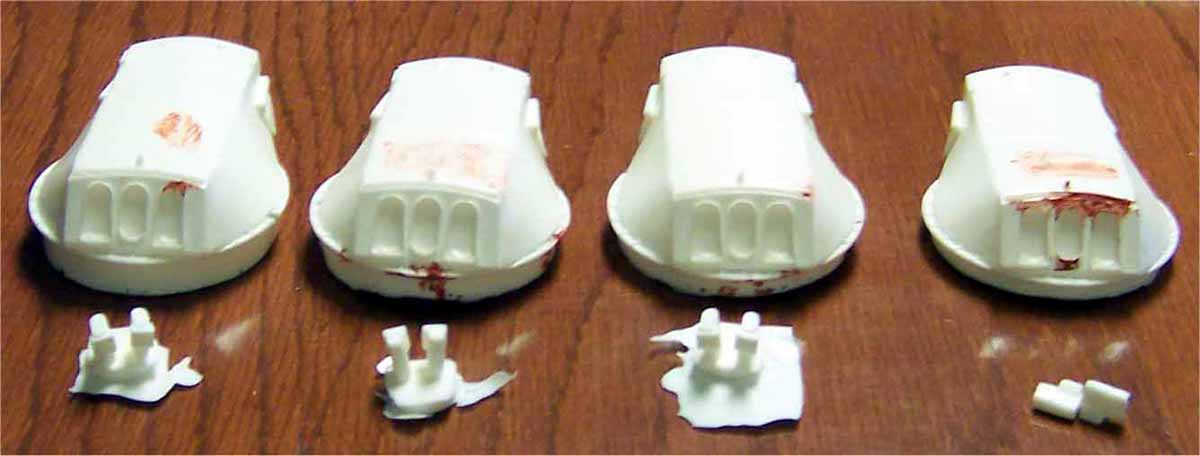

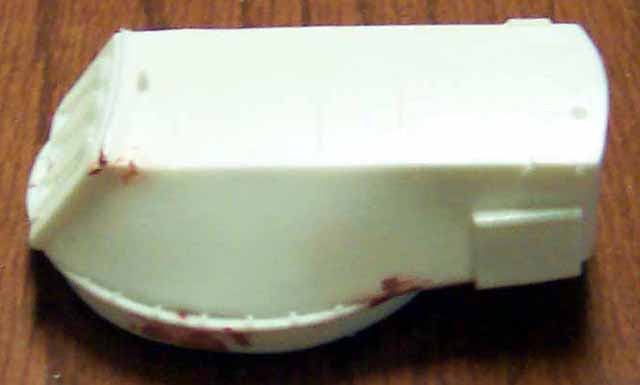

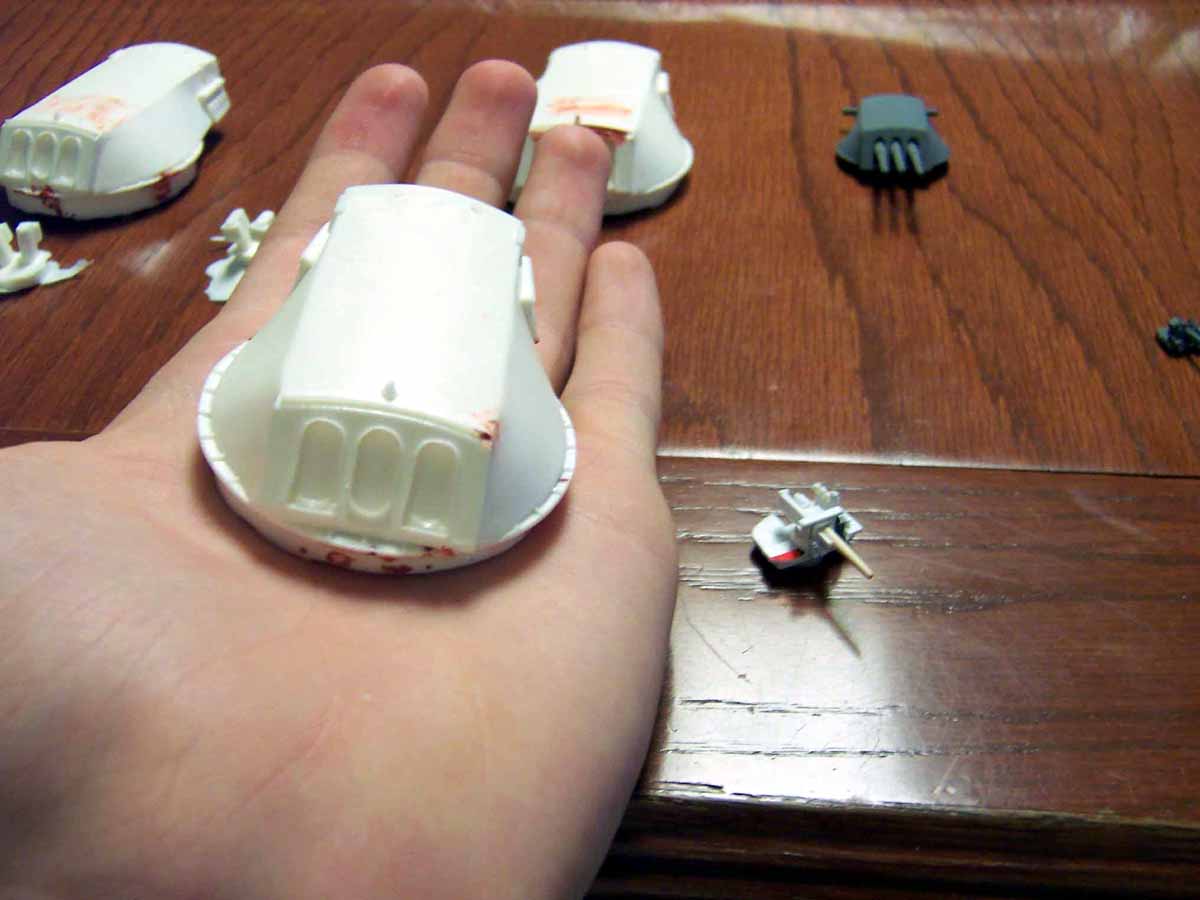

At the beginning of the project I was daunted with the idea of having to make the main 14 inch turrets.  I looked around to see if any were available and had no such luck.  I had been conversing with Steve Larsen through the forums and knew of his capabilities, seeing his scratch built turrets for his 1/192 USS Missouri.  I asked if he would try making the 14 inch turrets as well and he accepted.  I sent him the information necessary to make the master.  Not too long after finishing the 5”/25 I received a package, it was my main turrets.  All four were beautifully cast and there wasn’t much cleanup needed, besides the usual small pits or bubbles in the resin curing process.  These turrets are simply amazing, and I’ll be using them again for future projects.

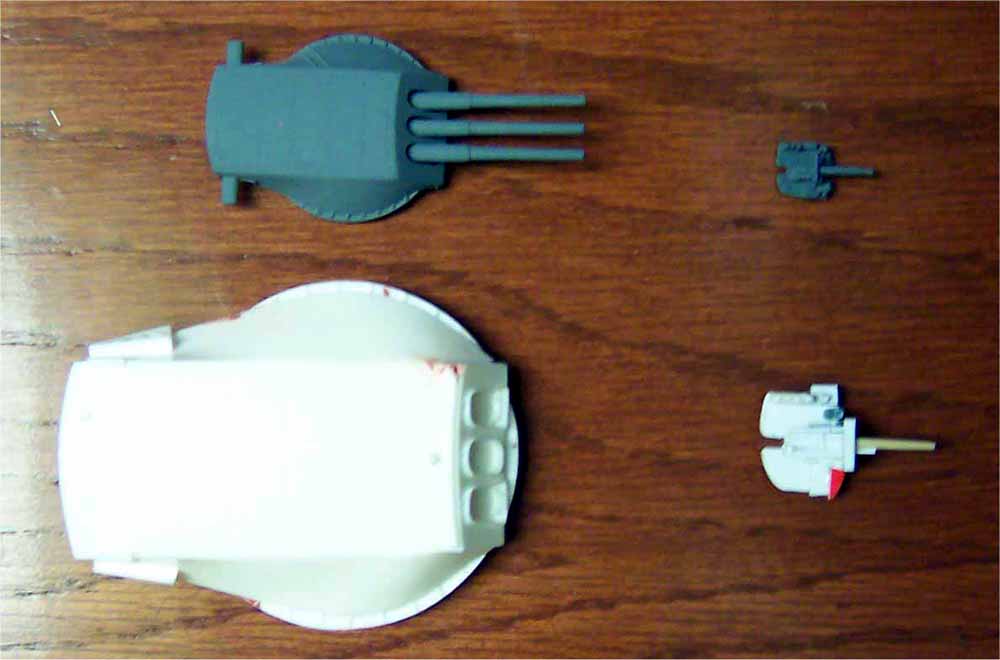

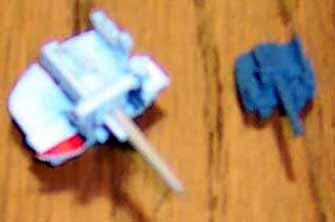

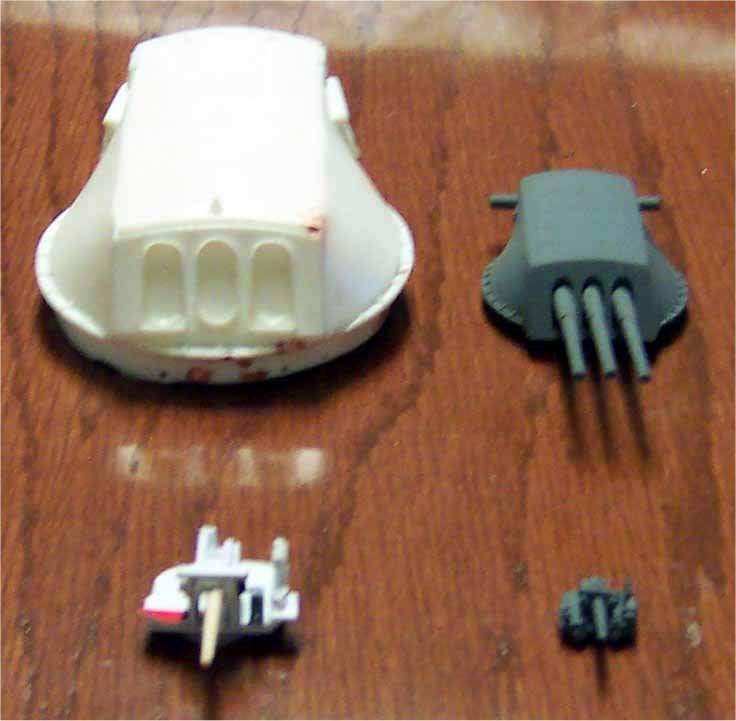

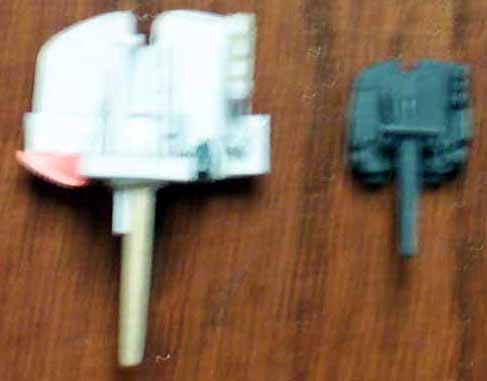

Included in a few of the pictures are the 1/192 scale parts alongside their 1/350 scale counterparts.

Previous   Menu    Next
 Abram Joslin
