Atlantic Models
1/350 Scale Tynedale Hunt Class Destroyer Escort Type 1




Reviewed June 2025
by Felix Bustelo

HISTORY
In the years leading up to World War II, the Royal Navy recognized the need for a type of destroyer suitable for convoy escort duties. Fleet destroyers were designed with higher speeds to keep up with larger vessels in task forces and thus equipped with heavy gun and torpedo armaments and were not really ideal for slower escort duties. Older fleet destroyers could be used for escort work; however, they were also not really designed for such a task. It was apparent that a new design was needed for this specific task. This new design became the Hunt class of “fast escort vessel” which was later reclassified as an “escort destroyer”.

The first Hunt class escort destroyers were ordered in 1939 and were based on the Bittern class escort sloop, which measured 266 feet overall and were armed with 4-inch Mark XVI guns in three twin Mark XIX mounts. The original Hunt design was slightly larger at length of 278 feet 10 inches overall but with a narrower beam by approximately 8 feet when compared to the Bittern, or 28 feet 10 inches. The Hunts were originally to be armed with six 4-inch Mark XVI guns in three twin Mark XIX mounts. In addition, a quadruple QF 2-pounder Mark VII Pom Pom was fitted aft of the funnel. They also had a depth charge stowage of 40. Twenty ships were ordered in March and April of 1939.

It quickly became apparent that the Hunts had limitations. They were too short and narrow and with a limited range that made them unsuitable for the open oceans. So, they were restricted to convoy escort duties in the North Sea and the Mediterranean. In addition, the narrow beam resulted in the ships to be about 70 tons overweight, making them top heavy and very unstable. The first 20 ships were too far advanced in construction, so to compensate the “X” twin 4-inch gun mount was removed and 50 tons of ballast added. The quad Pom Pom was also relocated to the “X” position. These initial batch of ships became the Hunt Type I group.

HMS Tynedale was laid down at Alexander Stephen and Sons on July 27, 1939 and launched on June 5, 1940. She was commissioned on November 5, 1940 and was initially was used as an escort ship around the United Kingdom based out of Portsmouth and later Plymouth.

Tynedale took part in the famous St. Nazaire Raid on March 27, 1942 as one of the escorts for the converted destroyer HMS Campbeltown and the small craft which were to enter the harbor. While undergoing this operation, Tynedale sighted U-593 and attacked her first with depth charges. This forced the U-Boat to surface and Tynedale then used a deck gun to shoot at the submarine. U-593 managed to dive again and escape the attack, which would ultimately prove to be fateful. Subsequently, Tynedale and another Type I Hunt, HMS Atherstone, engaged five German torpedo boats.

After returning to Plymouth, Tynedale underwent repairs and resumed escort duties on April 18, 1942. A little over a month later, she was part of the task force that encountered and sank the German auxiliary cruiser Stier.

In March 1943, Tynedale was deployed to the Mediterranean, where she escorted convoys between Gibraltar and Algeria and participated in the Allied invasion of Sicily. October 1943 was an eventful month for Tynedale. She aided in the rescuing of 218 passengers from the Dutch freighter Felix Jan Van Manix which was torpedoed and later participated in a support role in the sinking of the German auxiliary cruiser Komet

During convoy escorts on December 12, 1943, Tynedale was torpedoed off the coast of Algeria by U-593, the same submarine it had damaged during the St. Nazaire raid. She broke in two and sank with the loss 73 crewmen. U-593 then sank HMS Holcombe, a Type III Hunt. The next day, U-593 was captured and sunk by the USS Wainwright and HMS Calpe. The entire submarine crew survived.

Atlantic Models HMS Tynedale

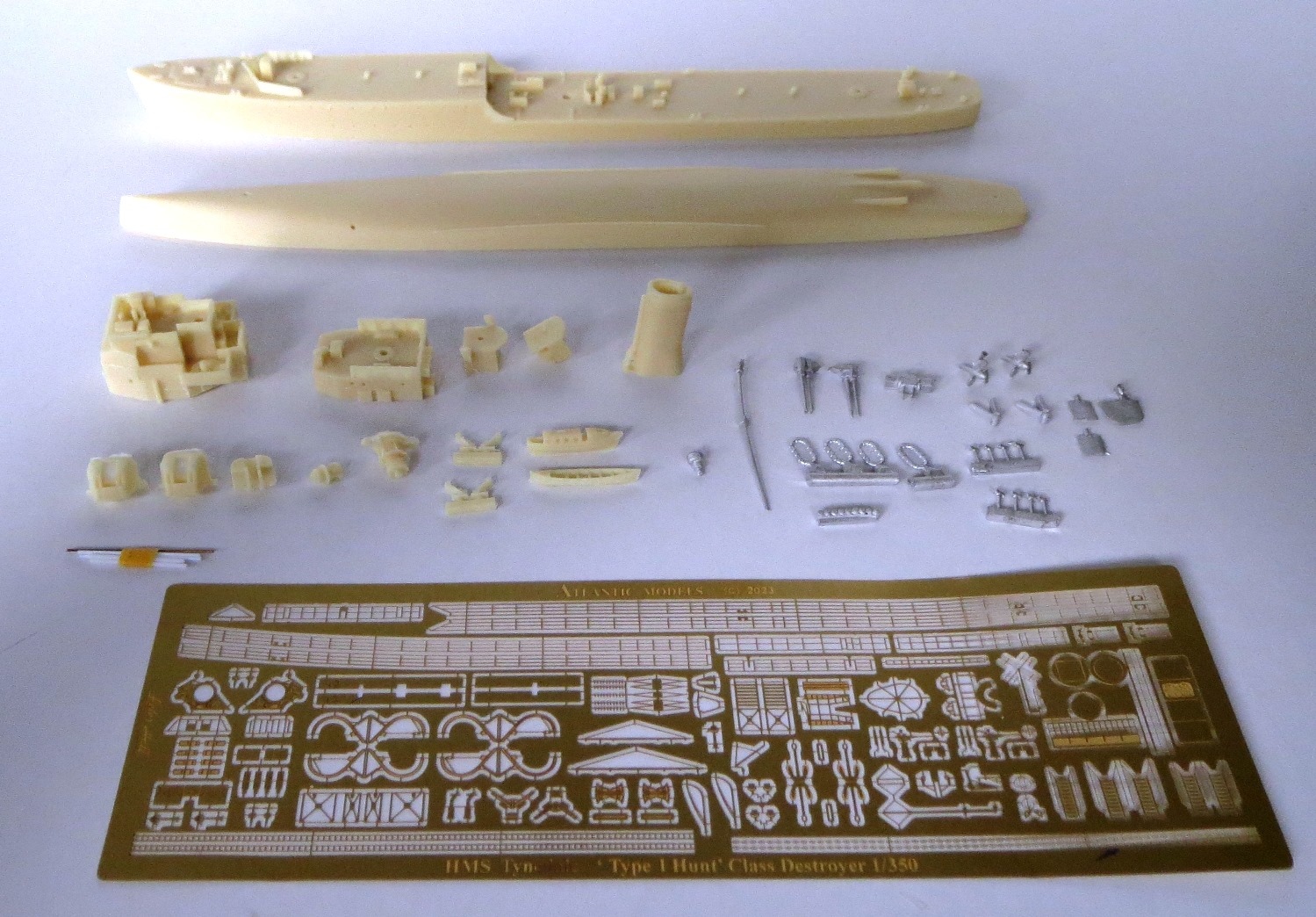

This kit is a follow-up release to the HMS Badsworth Type II Hunt kit. The kit is typical of what you will get with an Atlantic Models kit, a mix of resin, white metal and photoetch parts.
HULL

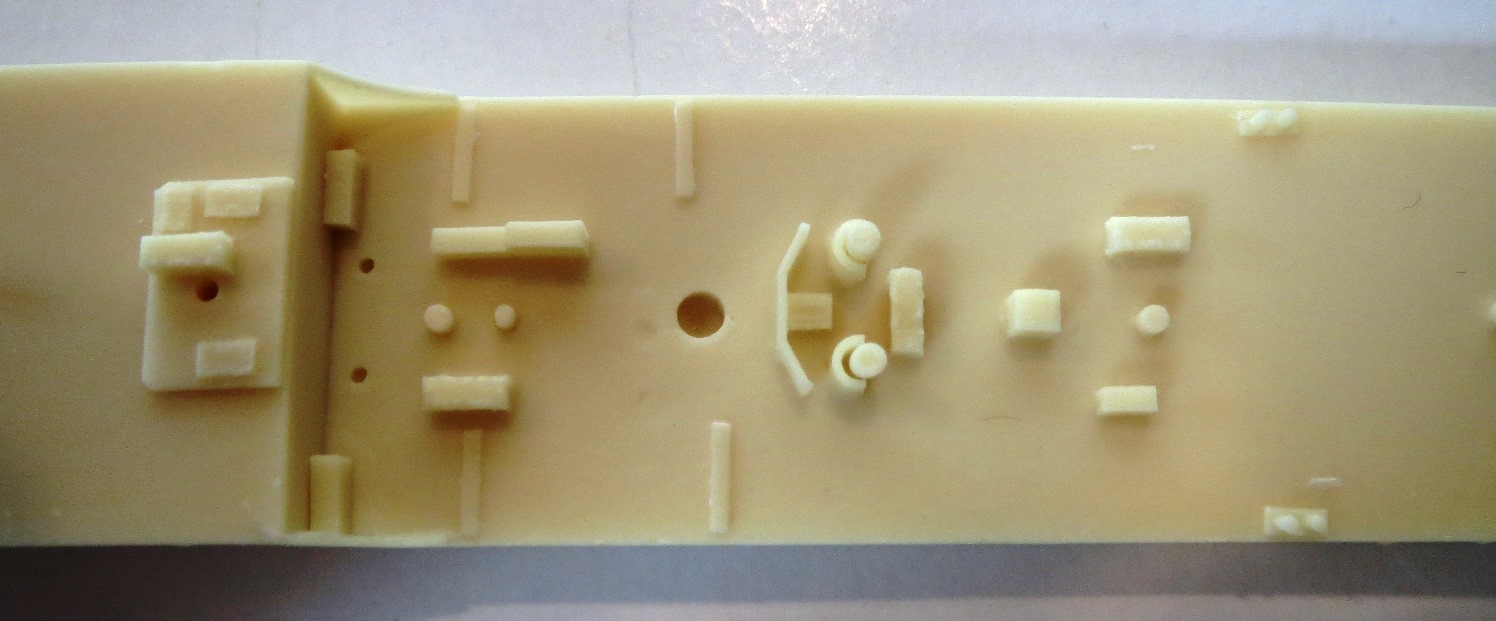

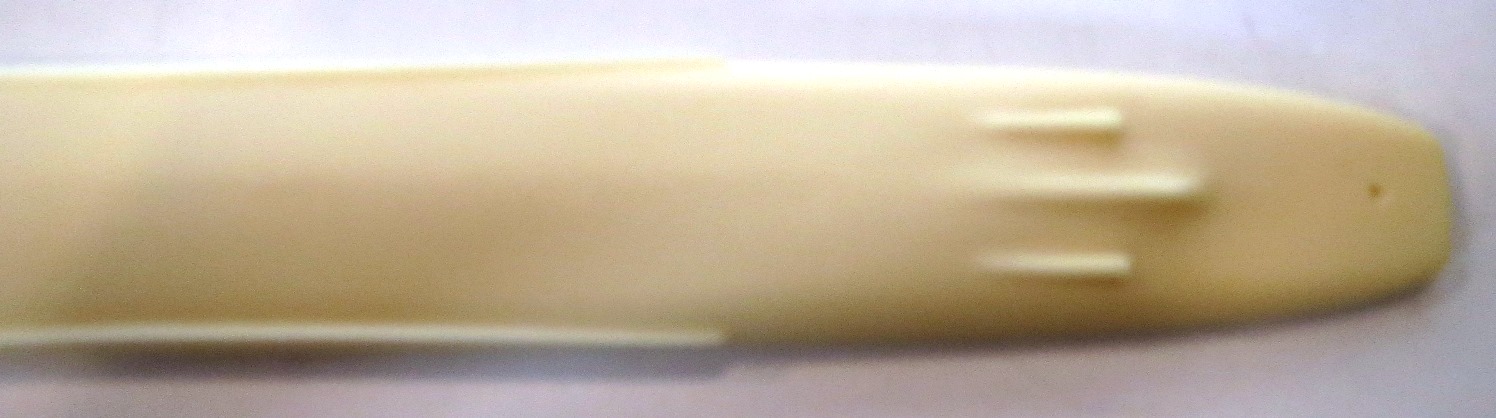

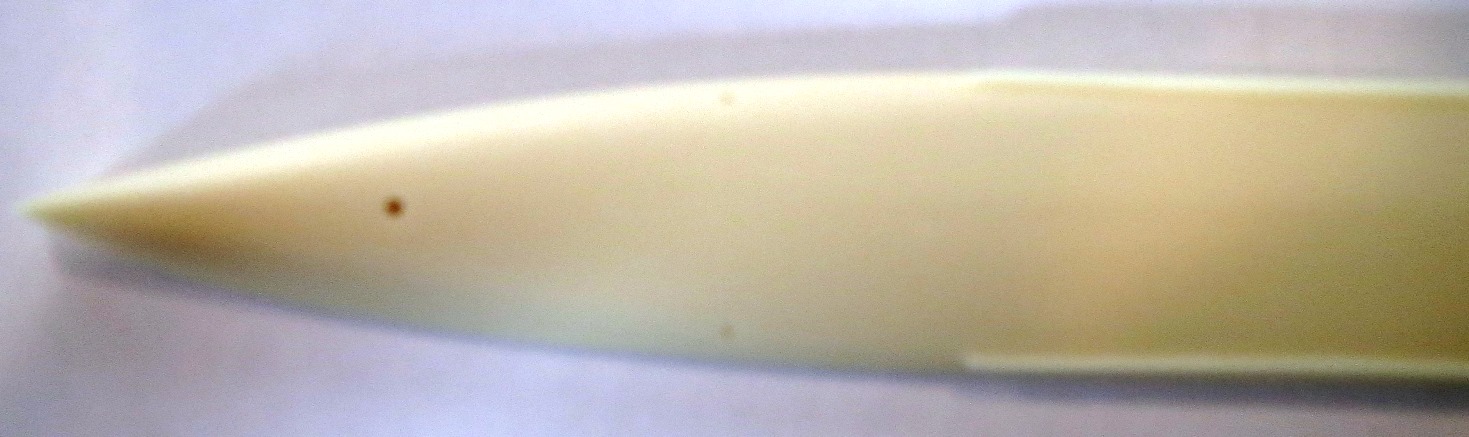

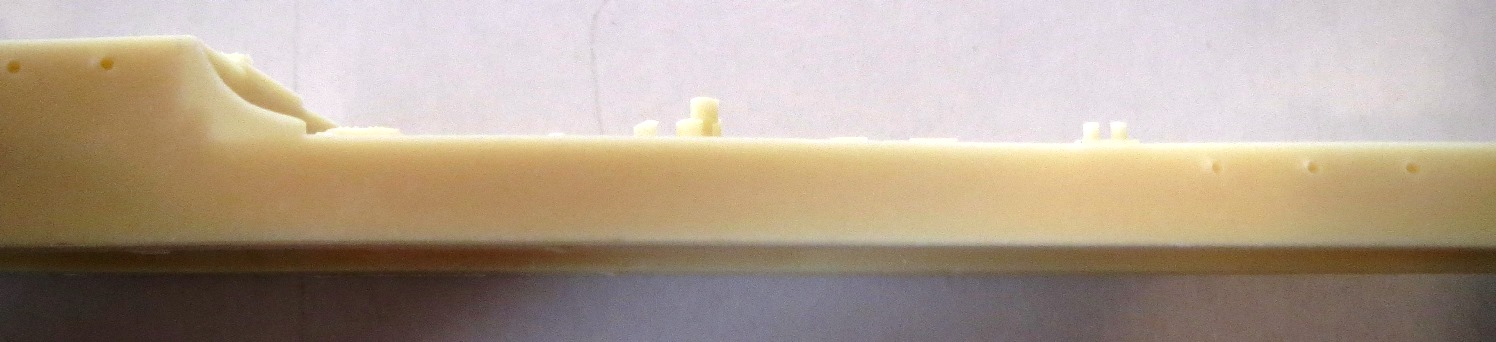

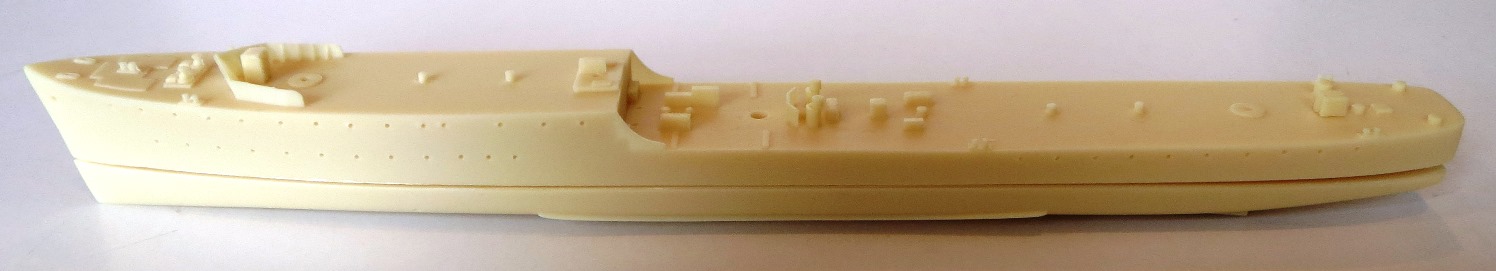

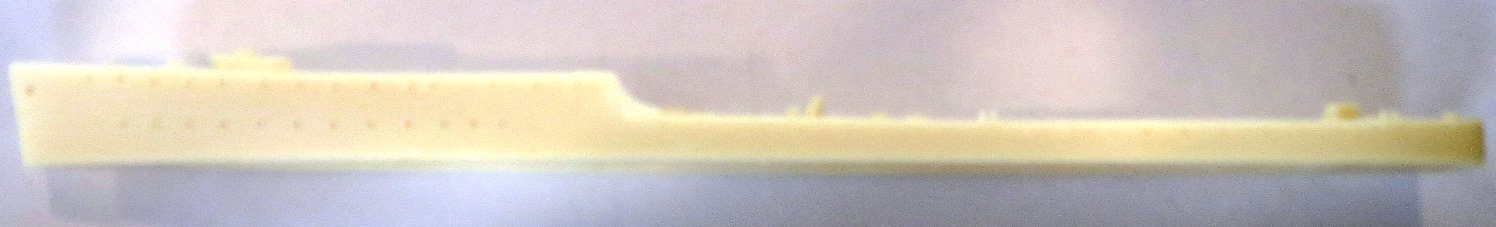

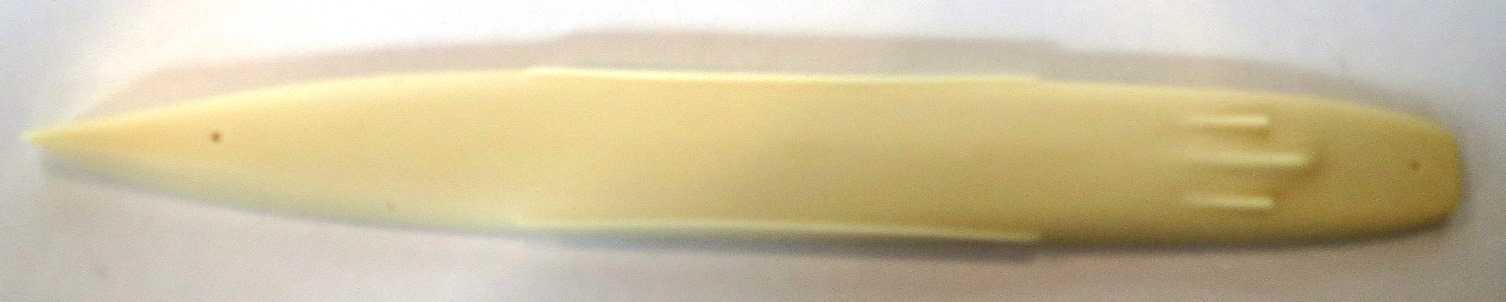

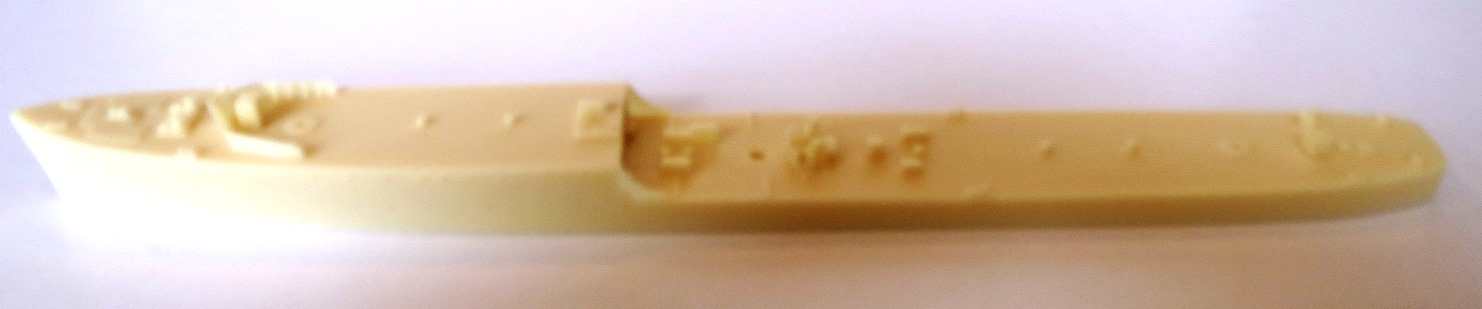

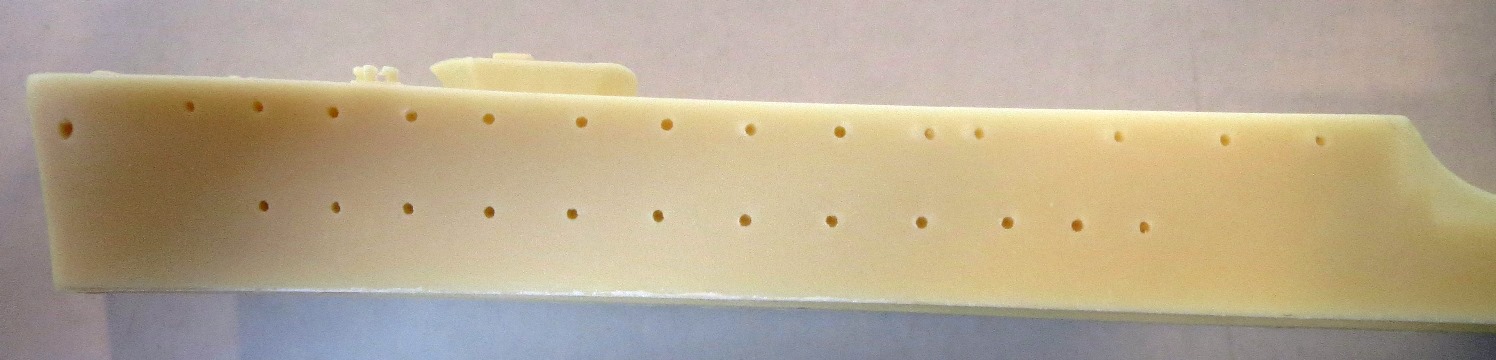

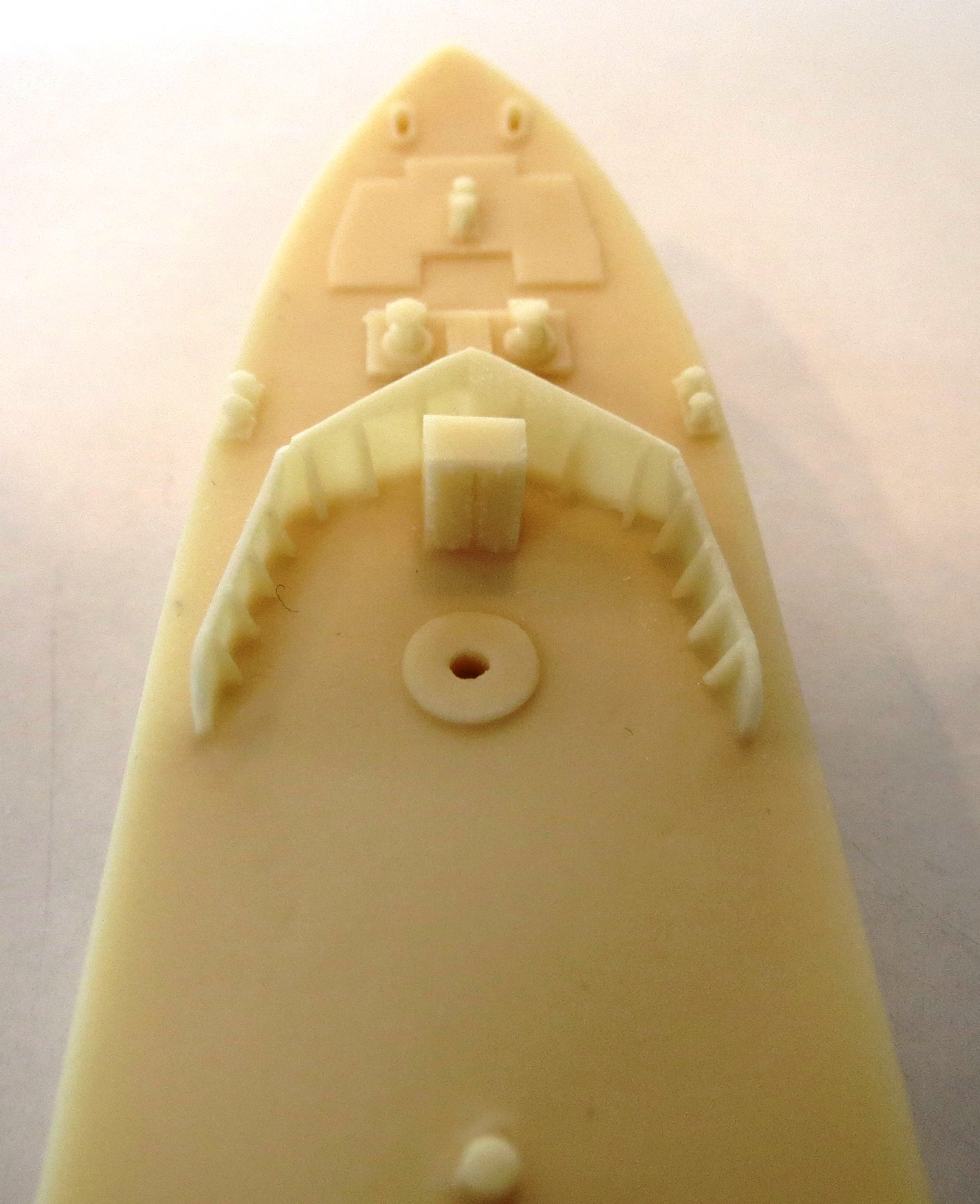

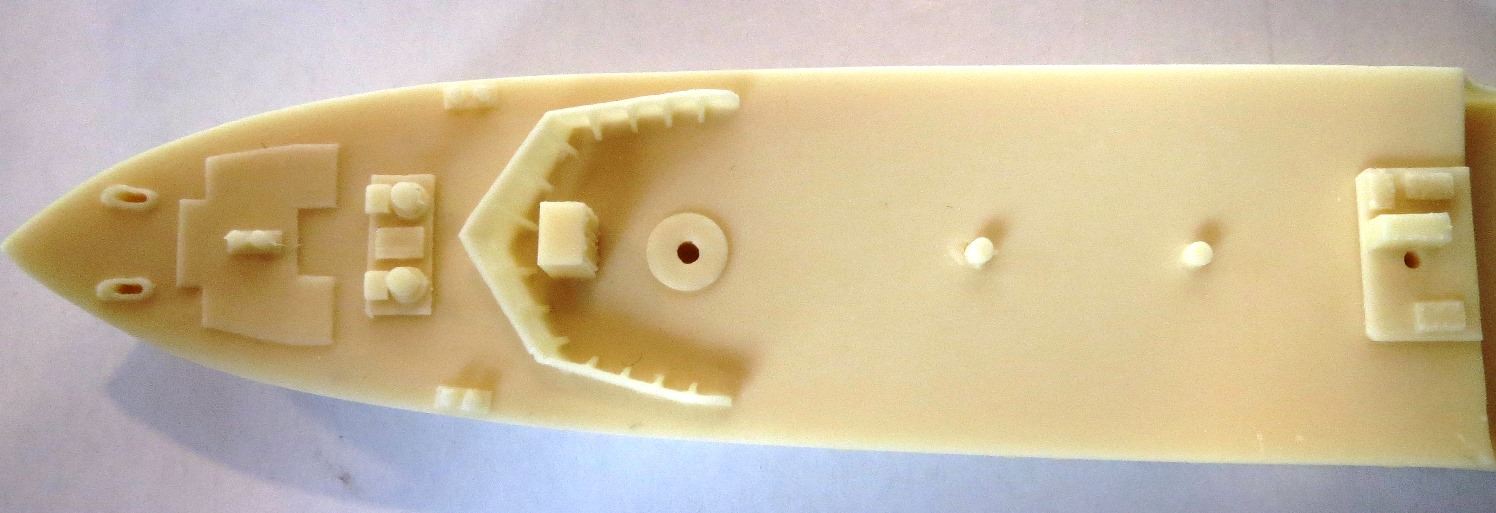

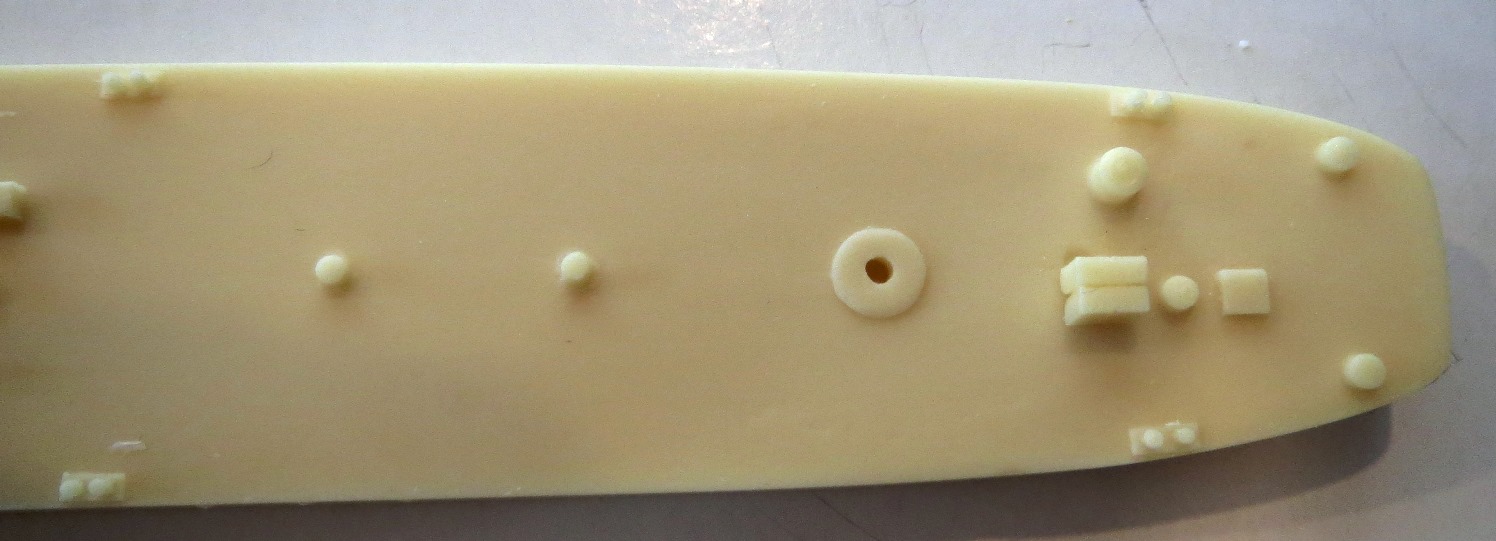

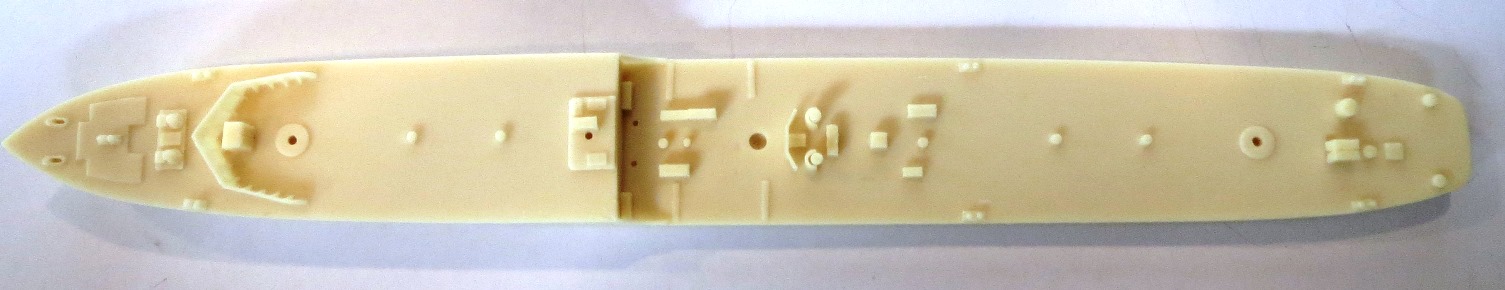

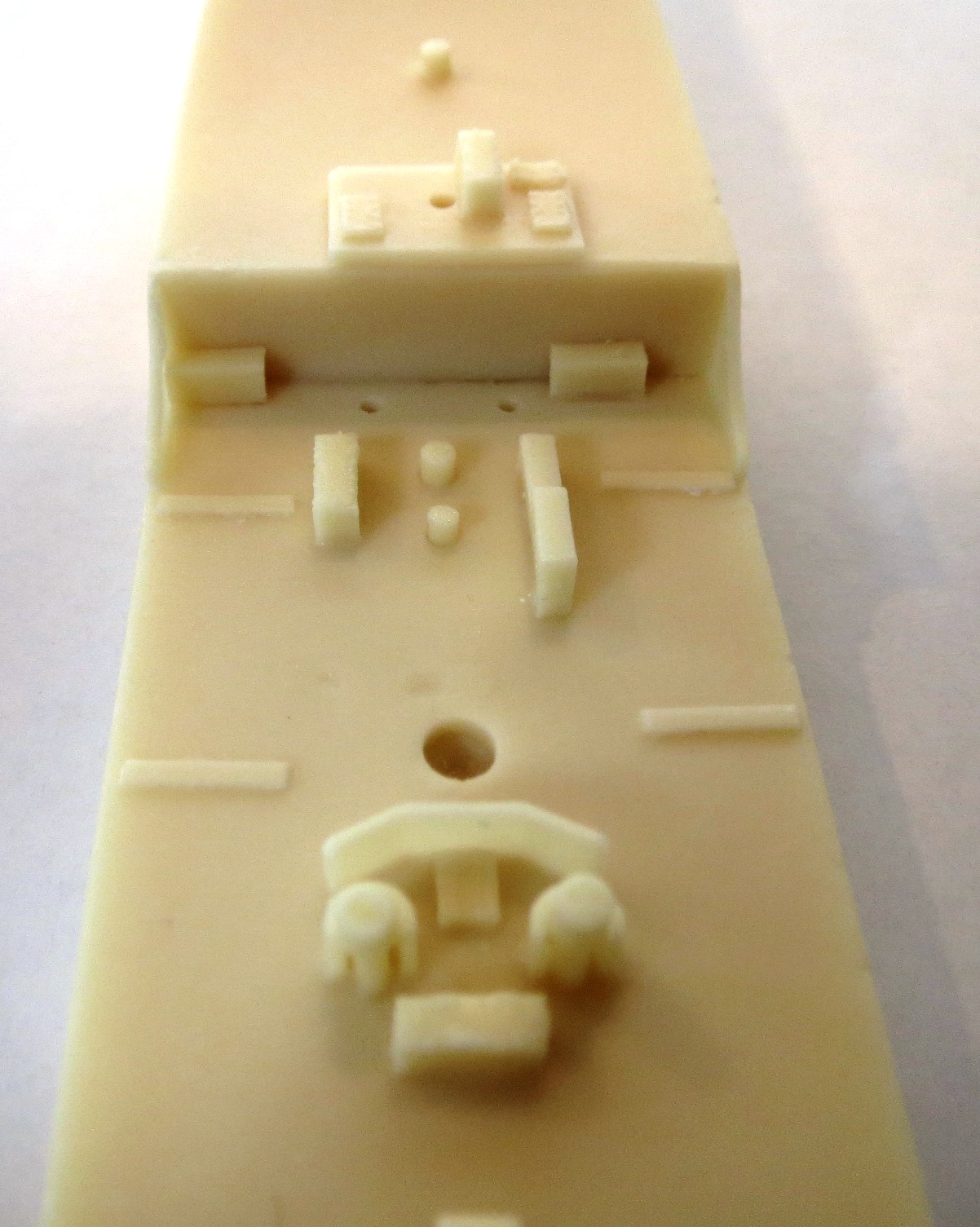

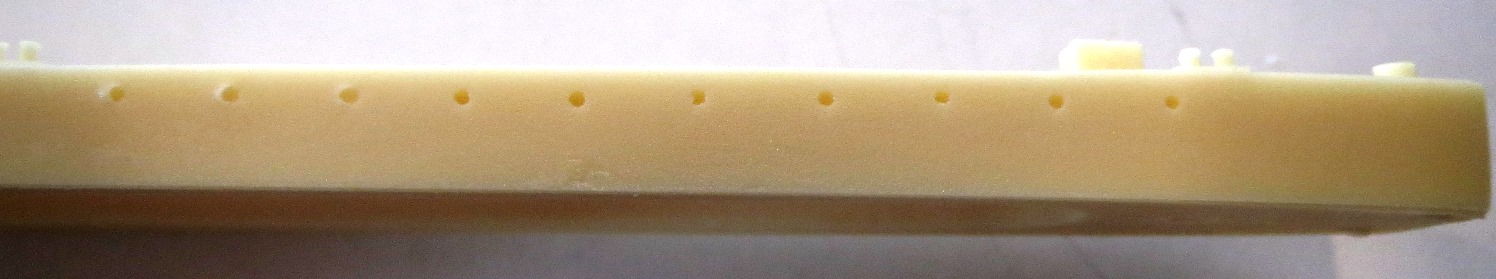

The two hull sections are clean semi-hollow cream-colored castings with very good details. The upper hull has such items as bitts, capstans, the breakwater, several storage lockers and a couple of large mushroom vents cast into it. The hull sides have numerous portholes and the openings for the anchors. Locator pins and hole are present to accommodate the superstructures, funnel, boiler room vent platform and searchlight platform. The lower hull is nicely done with the bilge keels and shaft fairings cast into the part. Openings are also provided to attach the rudder, stabilizer fins and ASDIC dome.

If you plan to build a full-hull model you will see corresponding pins and holes at the bow and stern and midway on the lower hull you will see tabs to help align the upper and lower hulls when gluing the two parts together. Before joining the two halves you will have to sand down several bumps which appear to be the resin equivalent injector pin marks. Some putty will probably be required to fill in the joint. With an overall length 279 ft and 10 inches, in 1:350 that would measure out to about 9.6 inches. The kit hull length measures spot on as well as in the beam.

RESIN PARTS

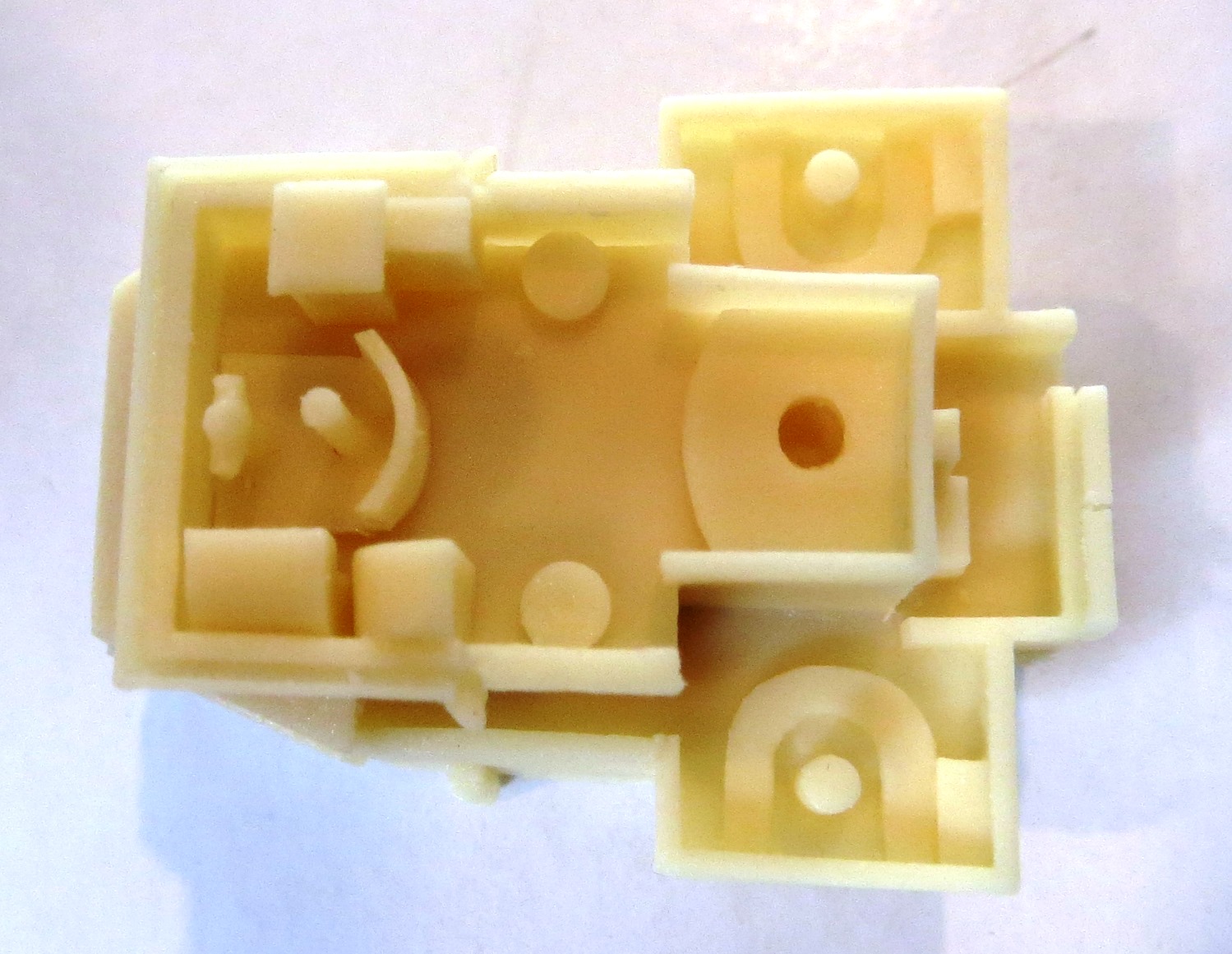

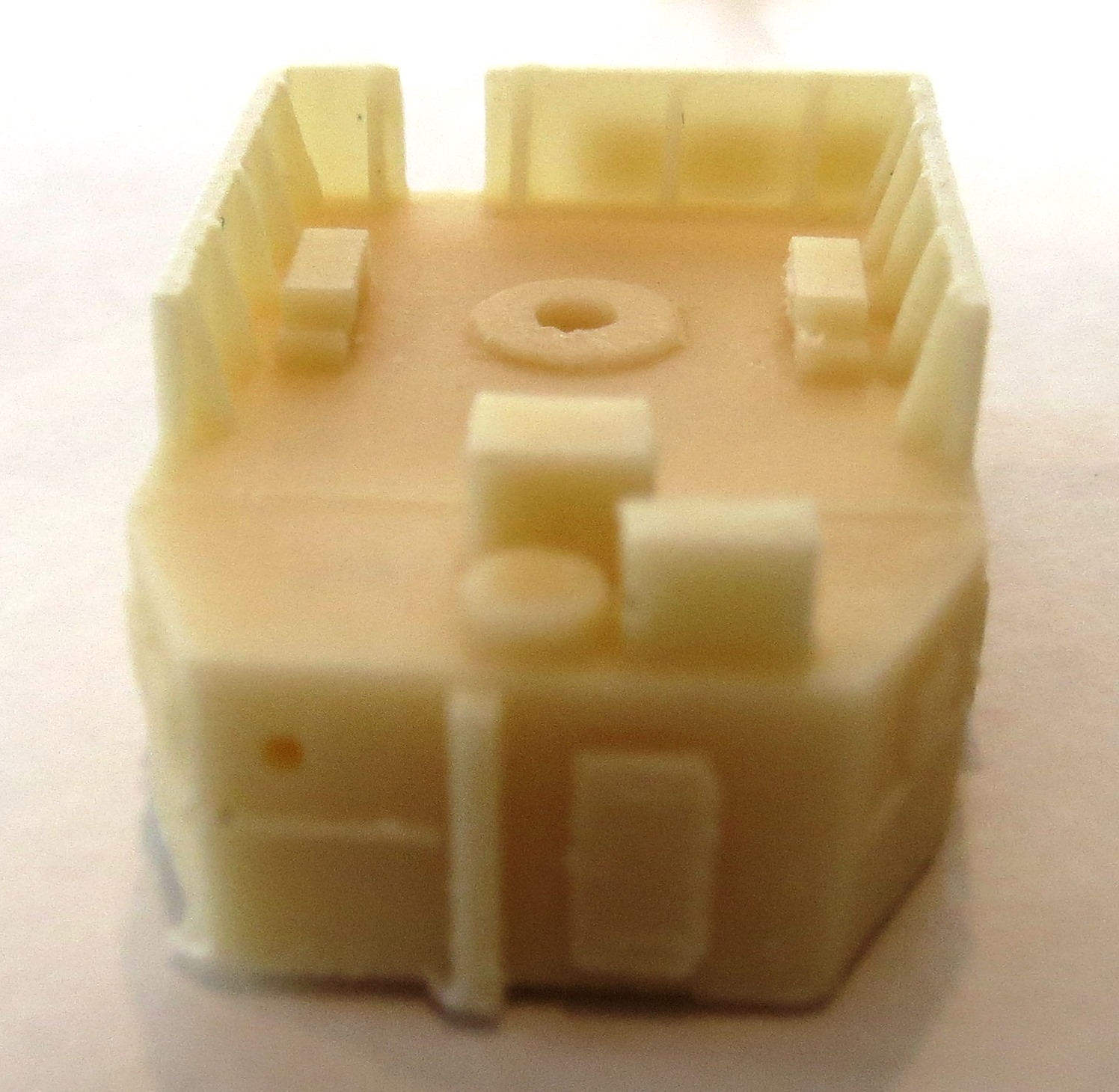

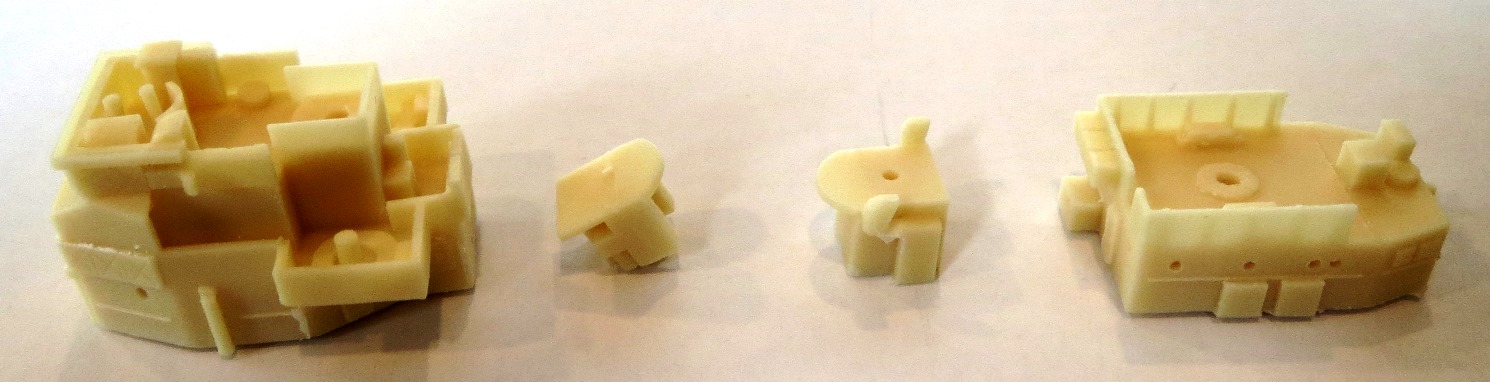

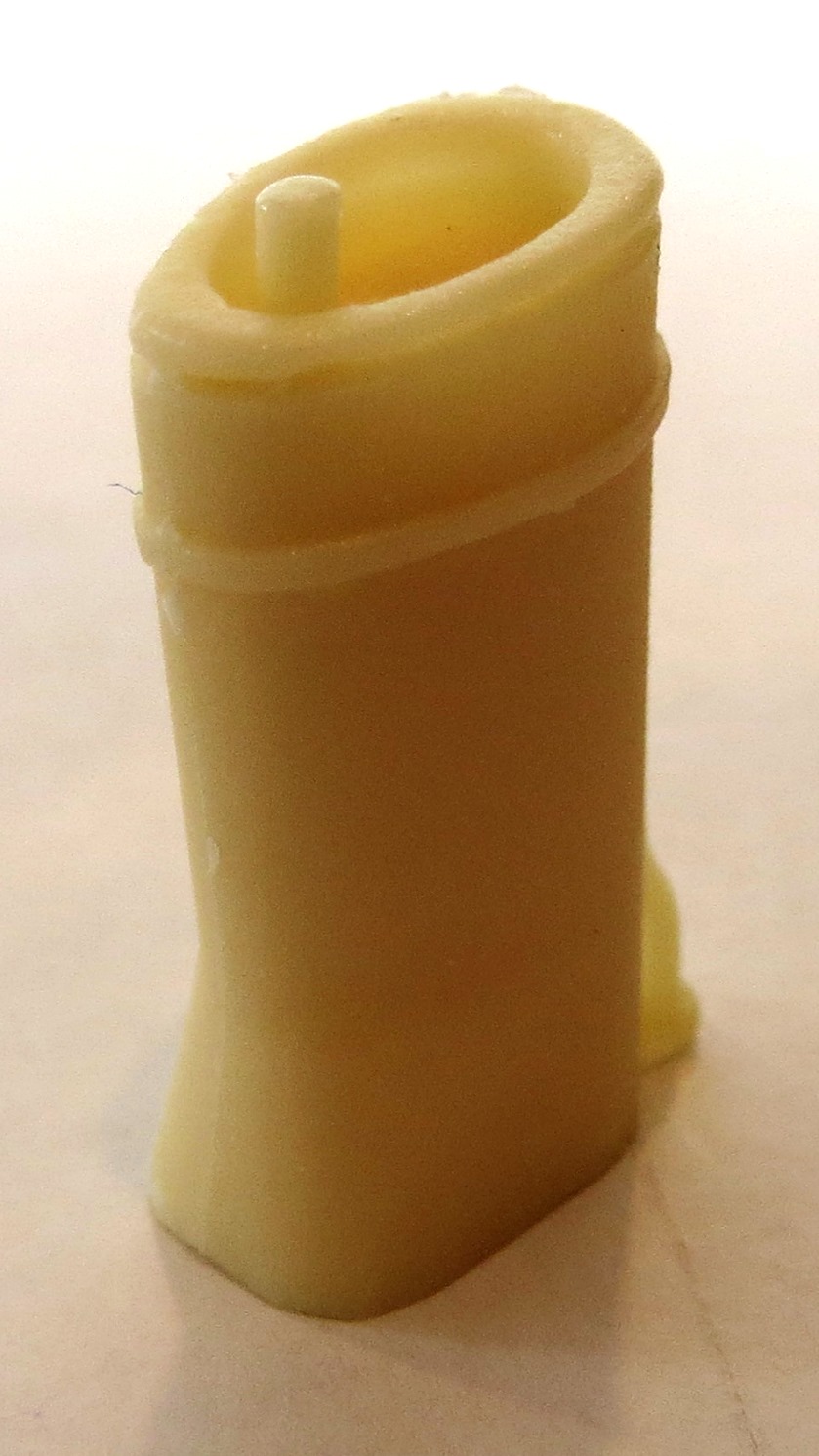

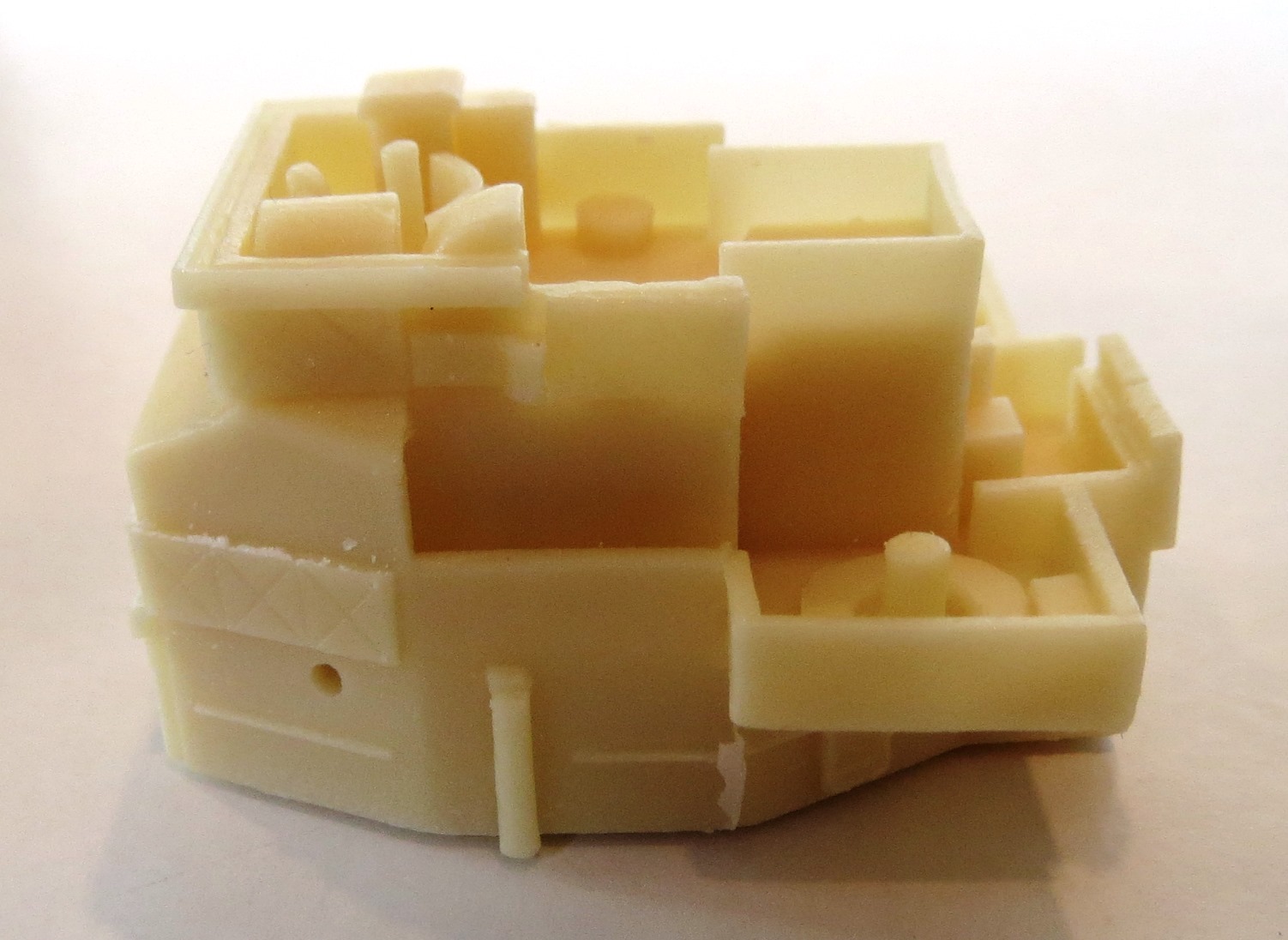

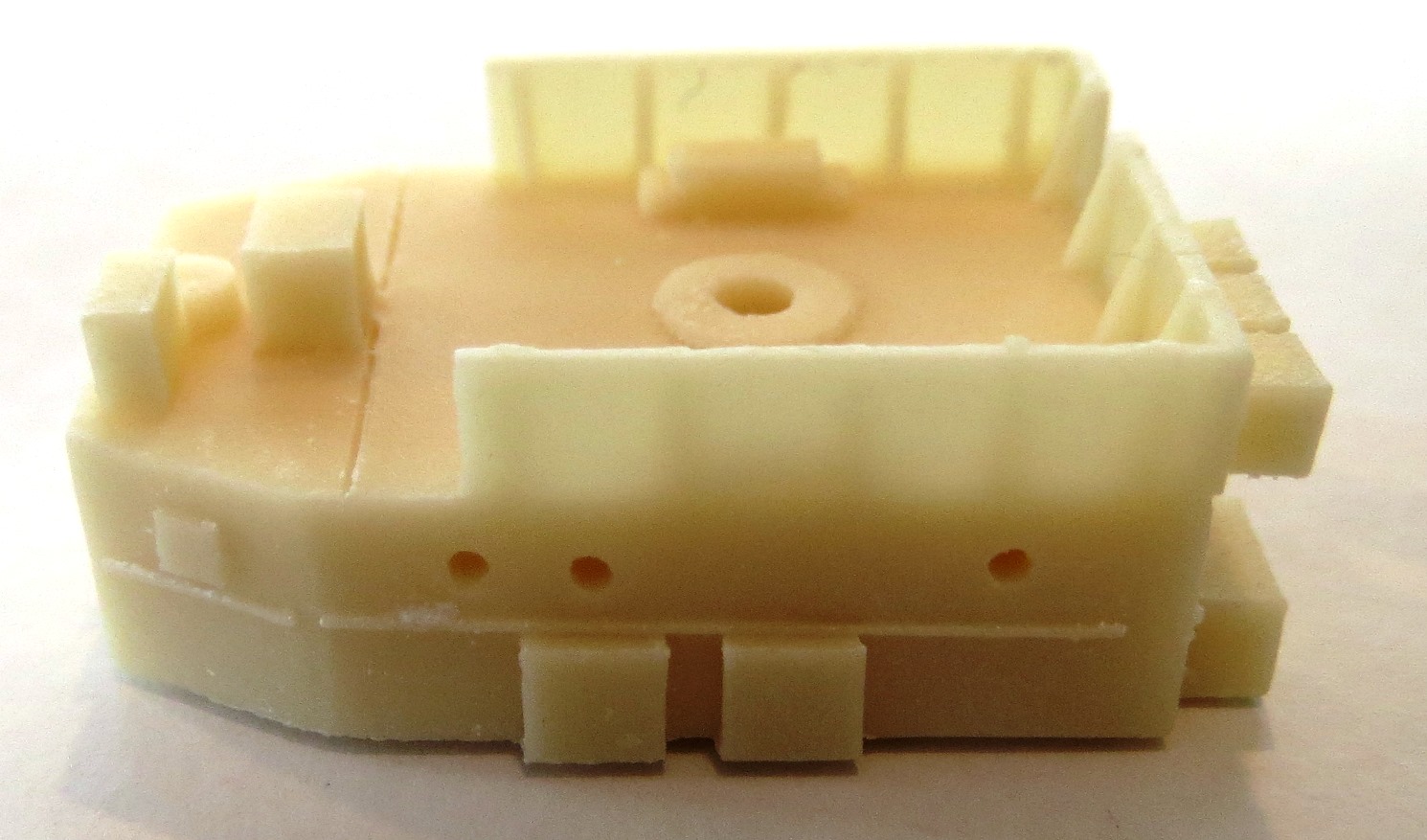

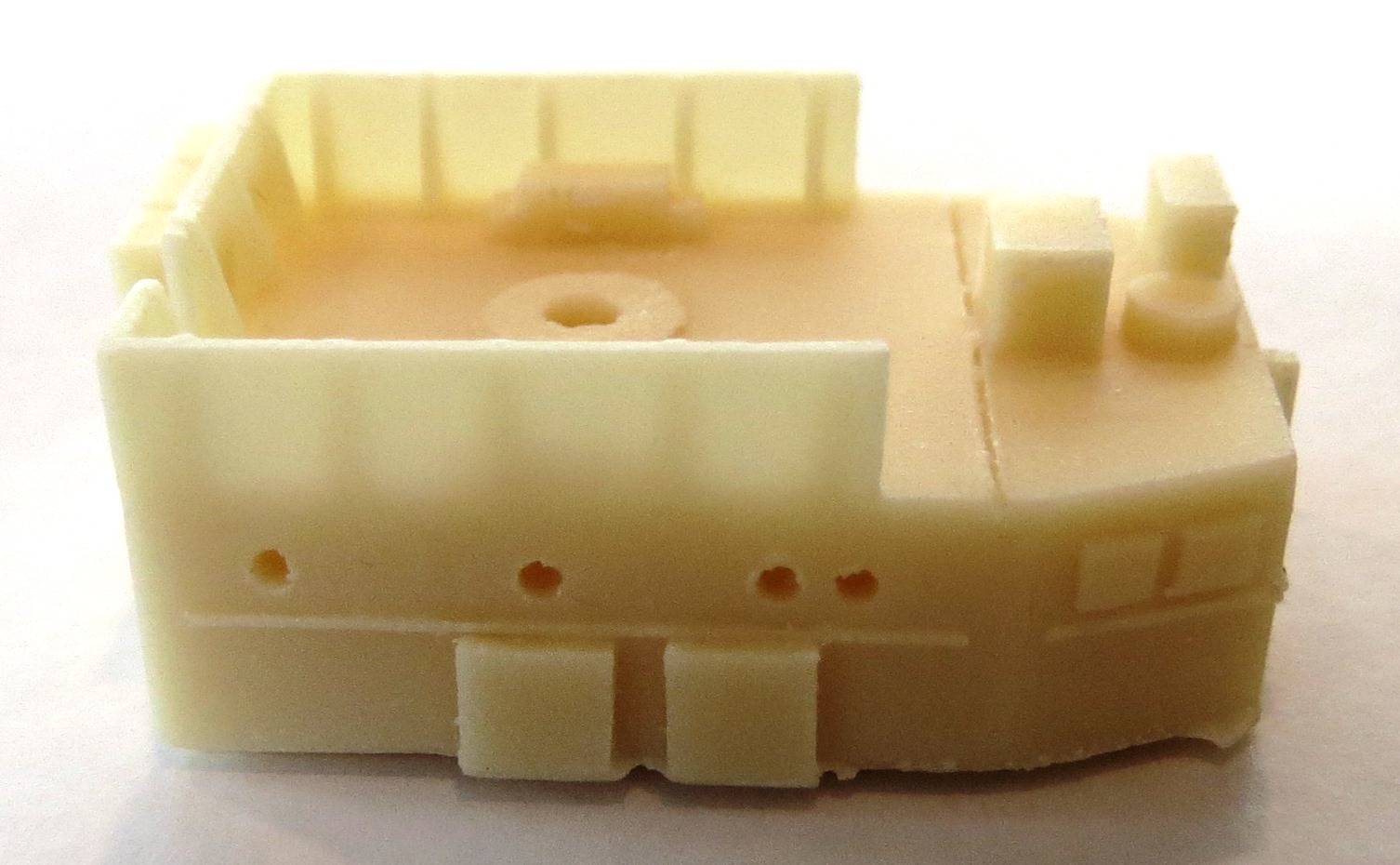

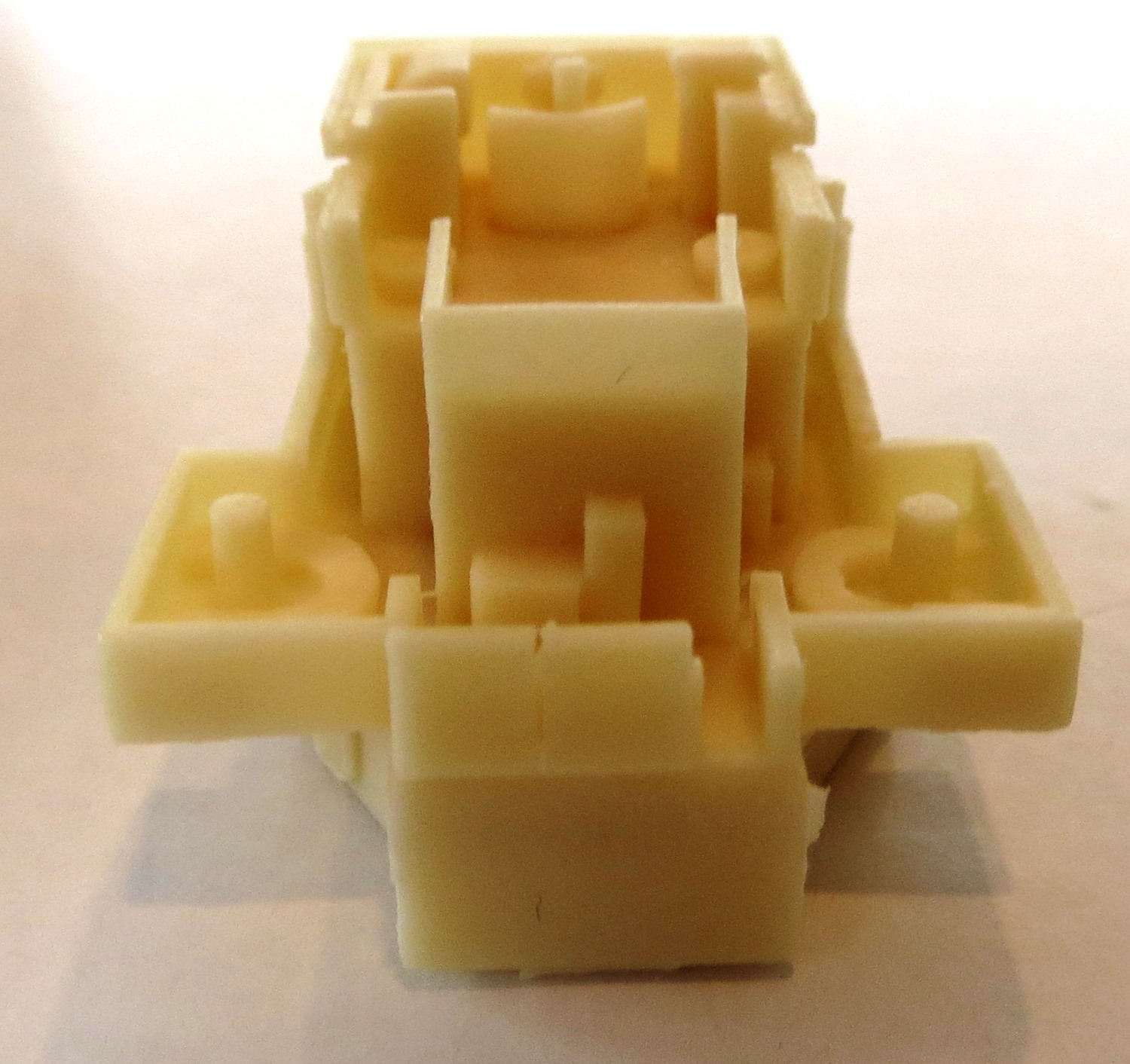

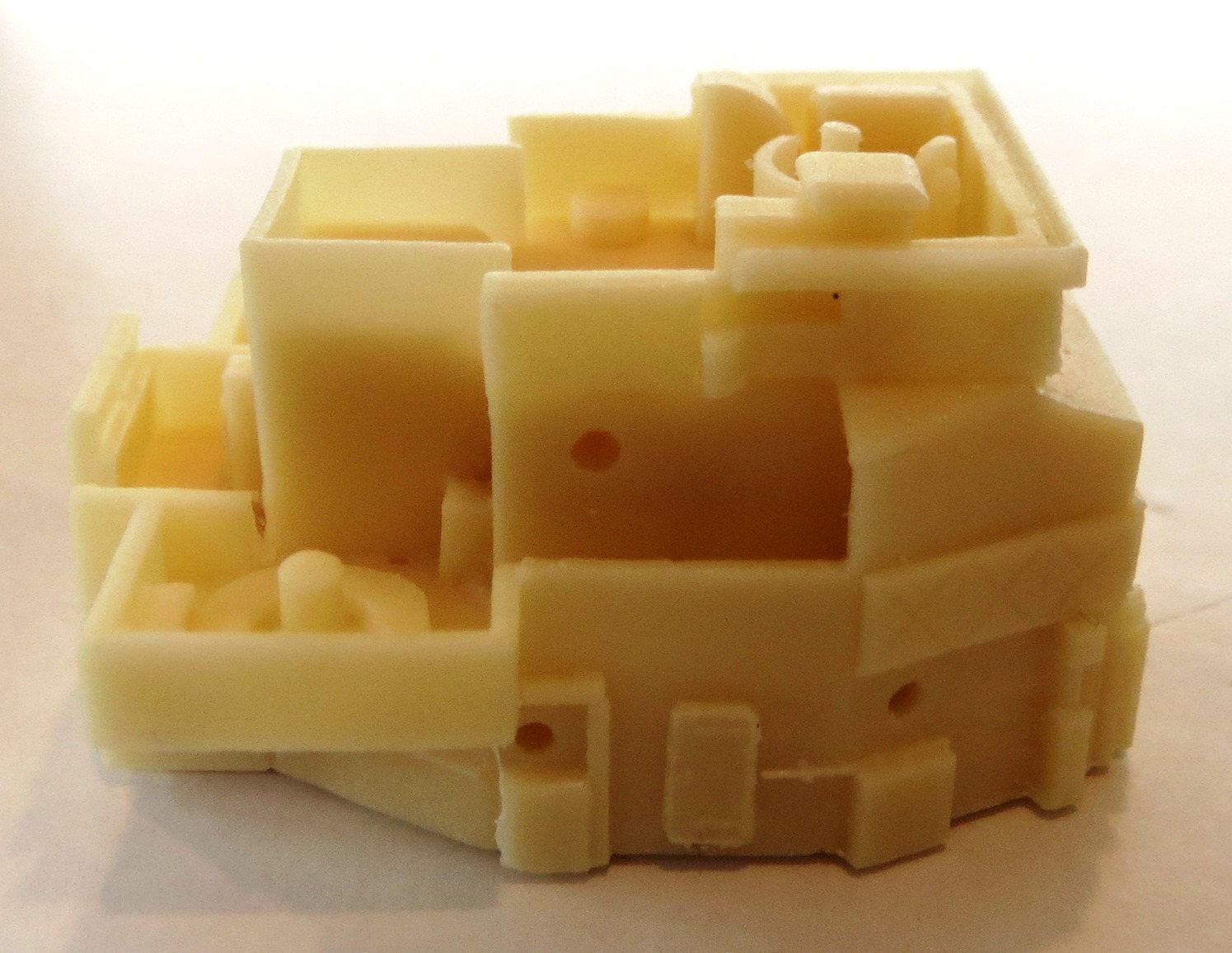

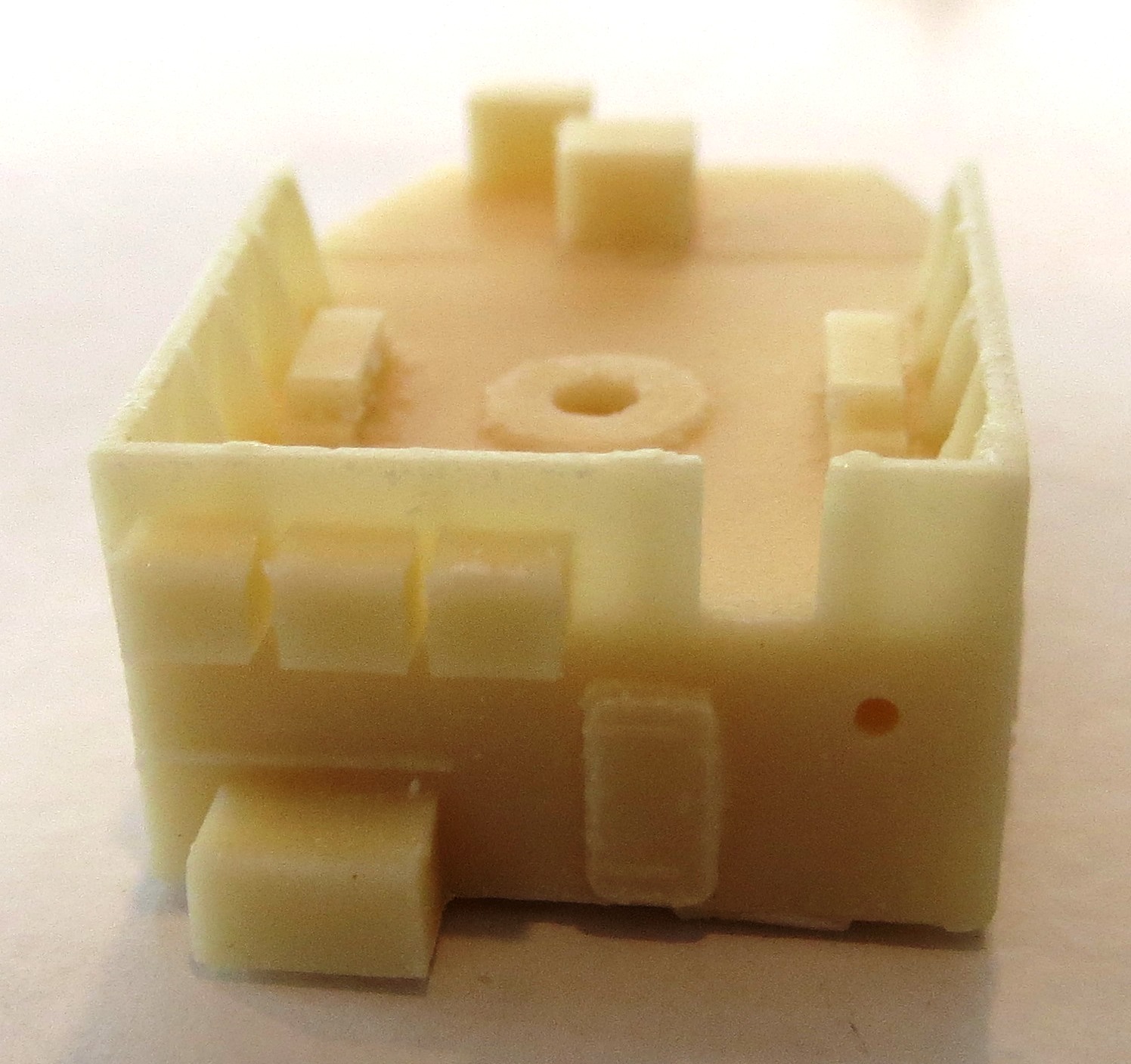

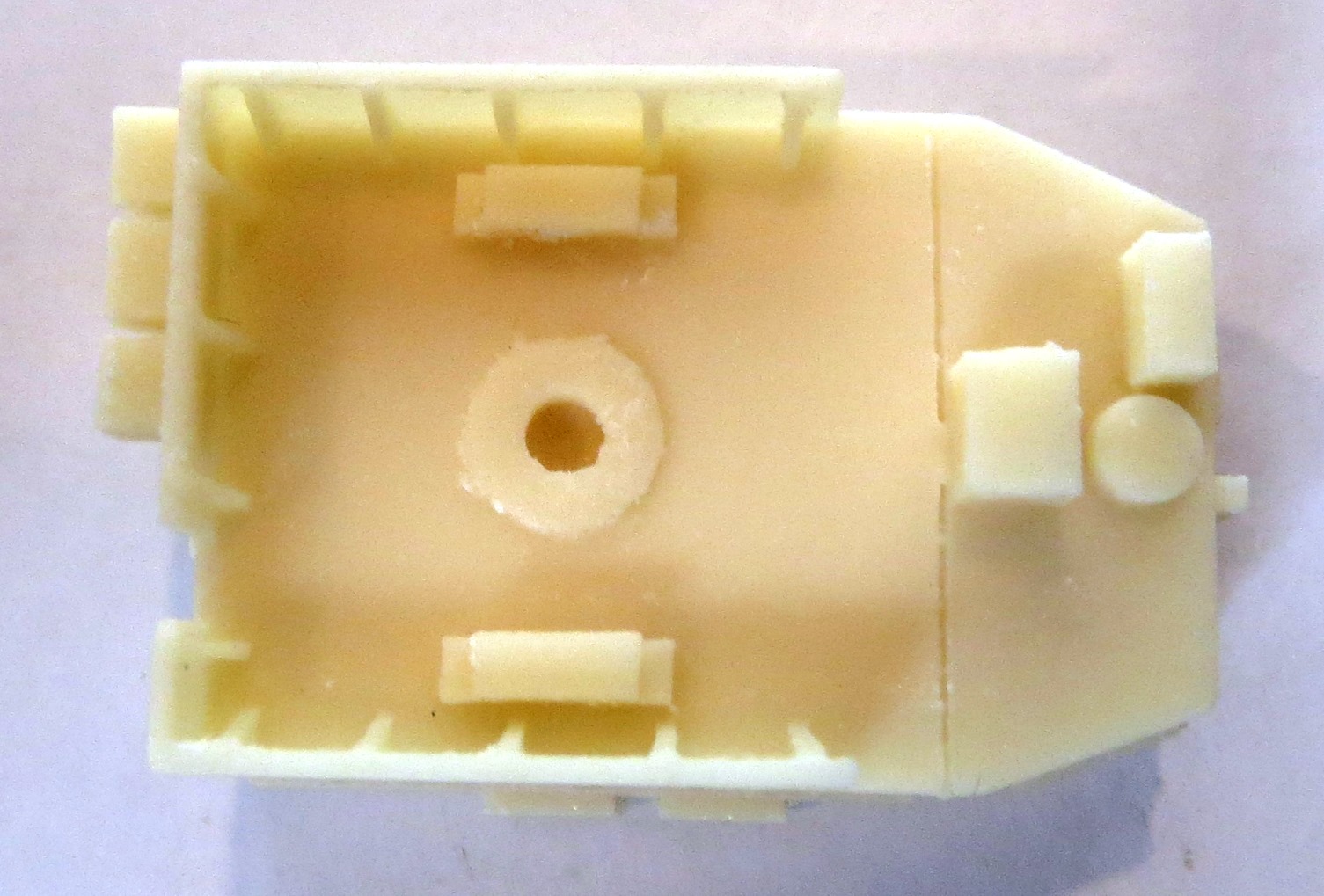

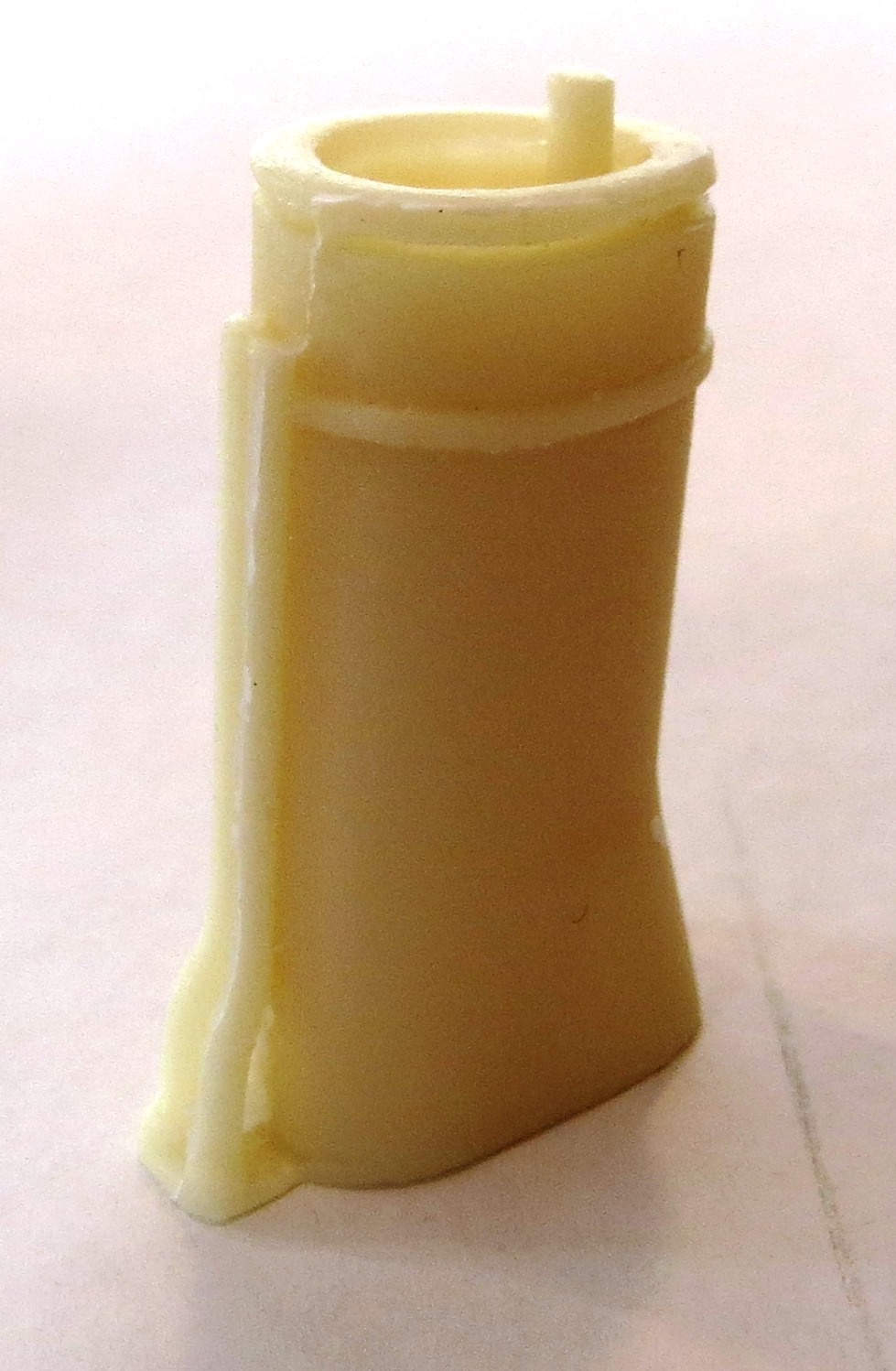

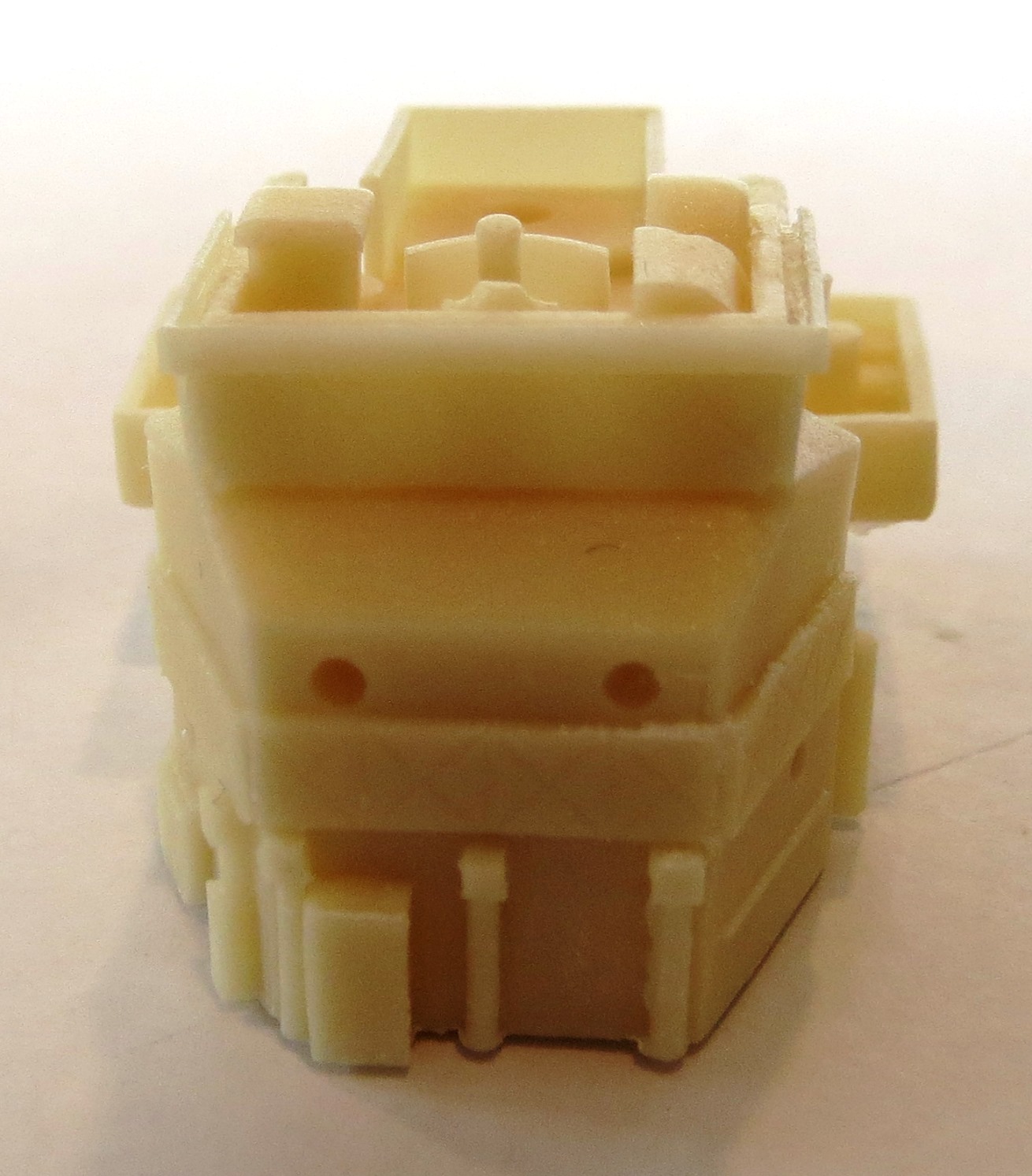

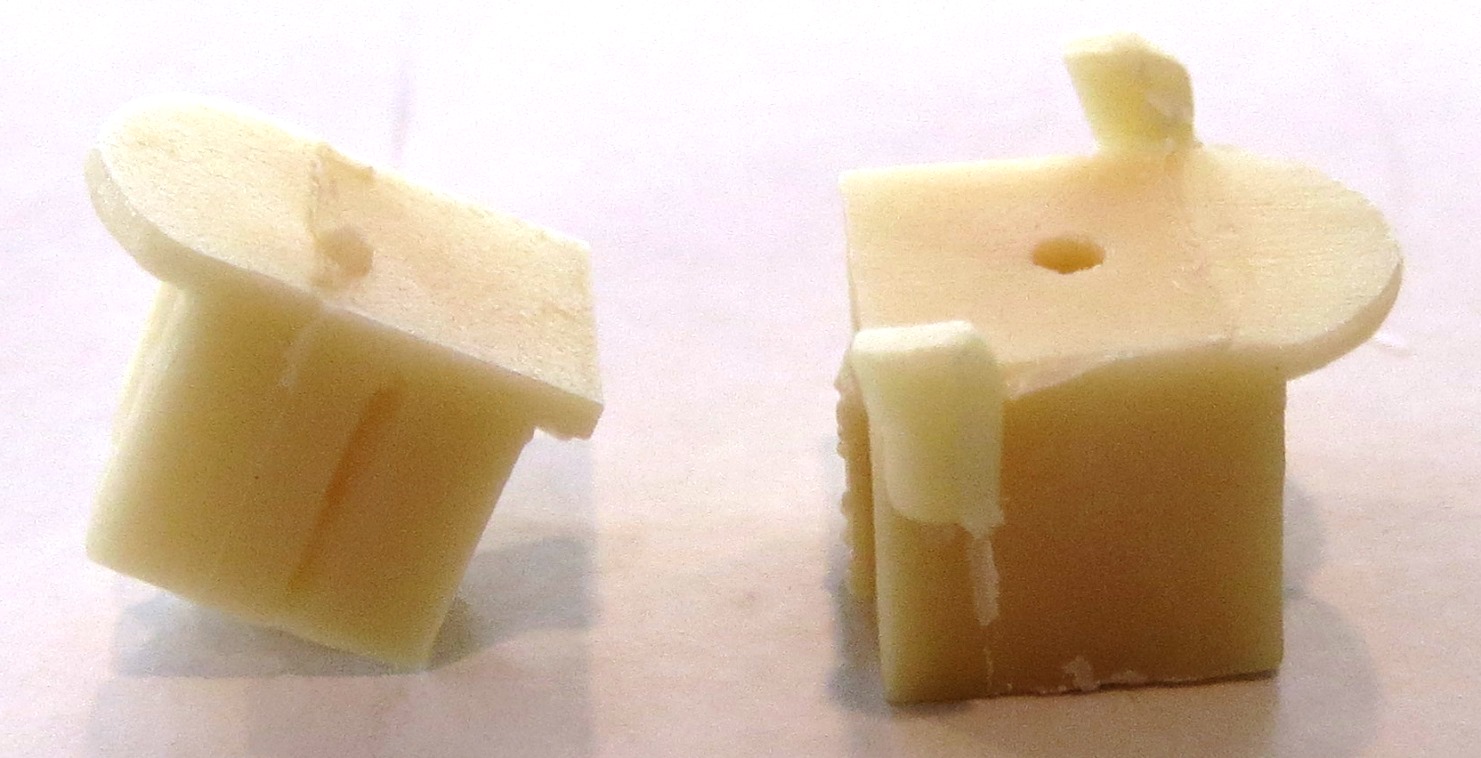

The larger resin parts include the forward superstructure with bridge, aft superstructure, funnel, and boiler room vent and searchlight platforms. The casting is excellent with a minimal amount of excess resin needing removal on some of the parts. Watertight doors, lockers and other details, such as splinter matting on the bridge, are cast into these parts, eliminating the need to apply photoetch parts.

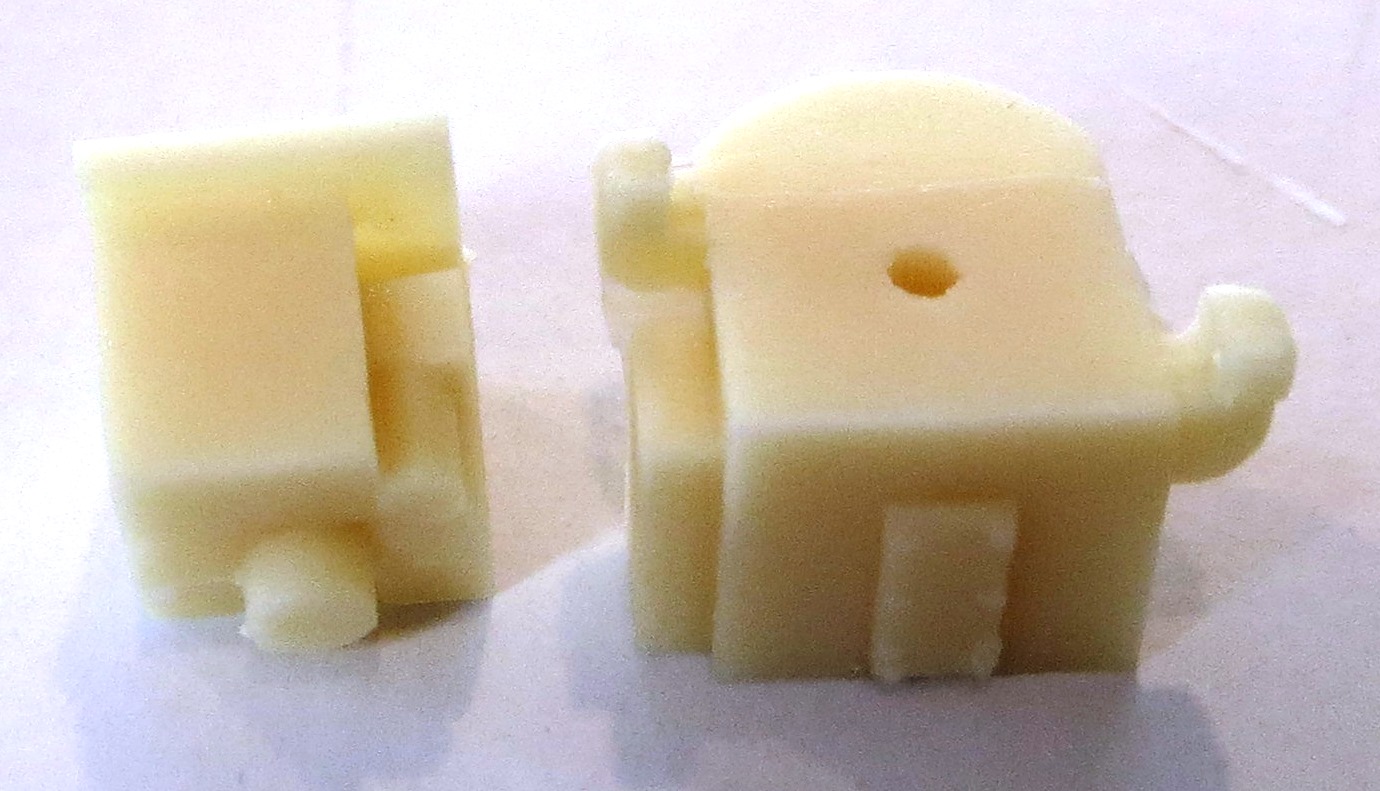

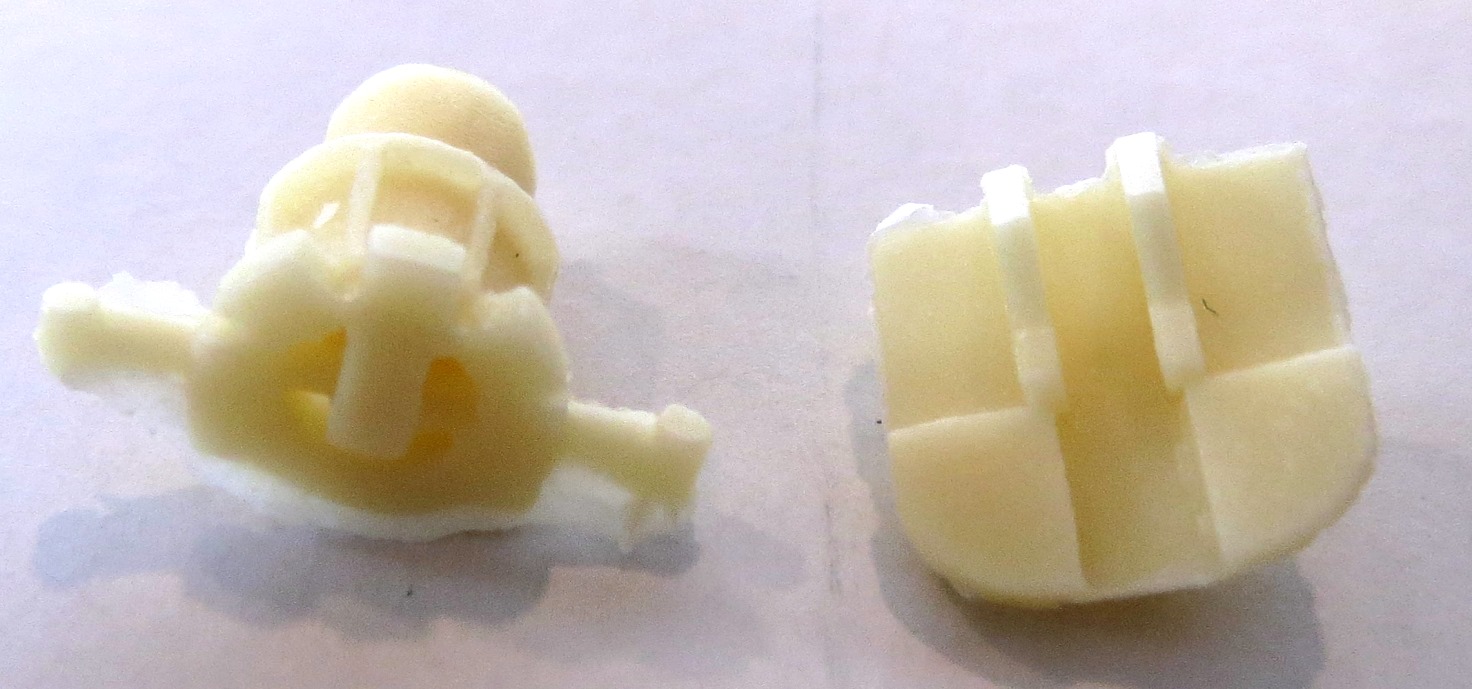

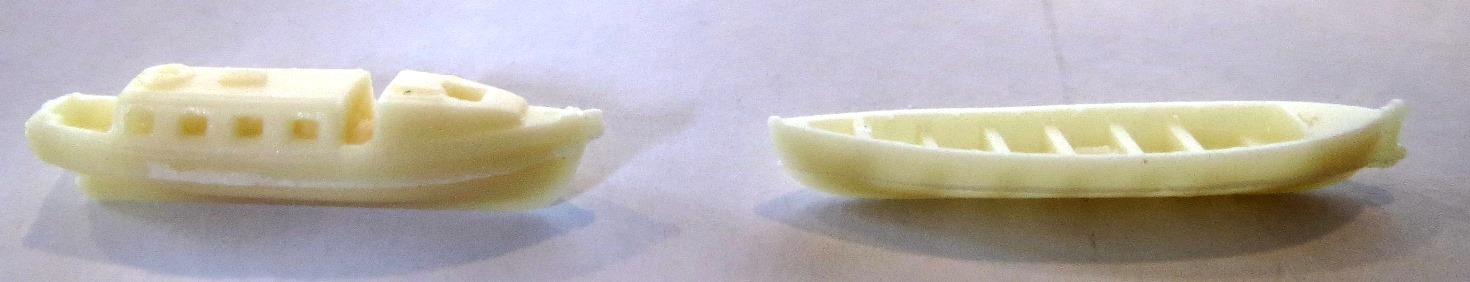

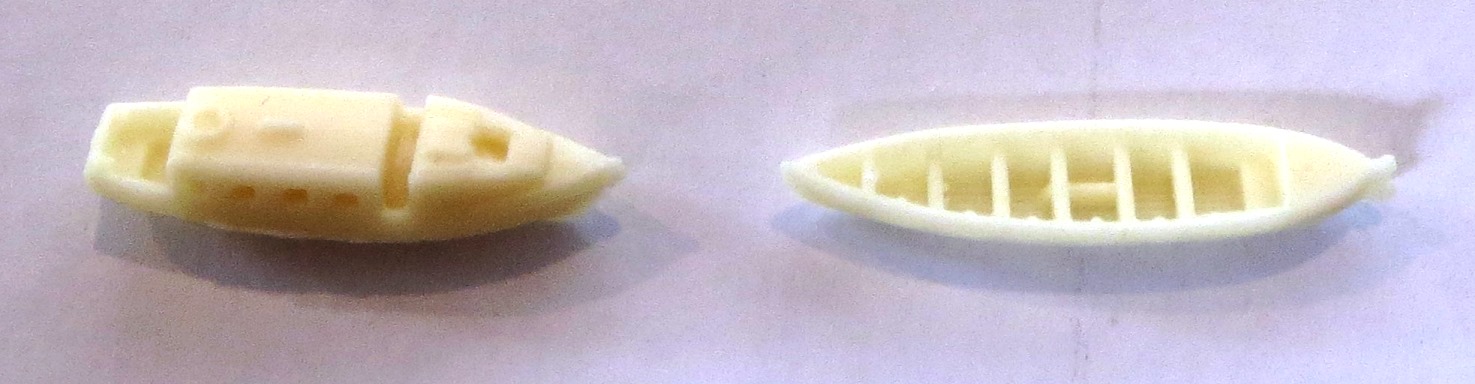

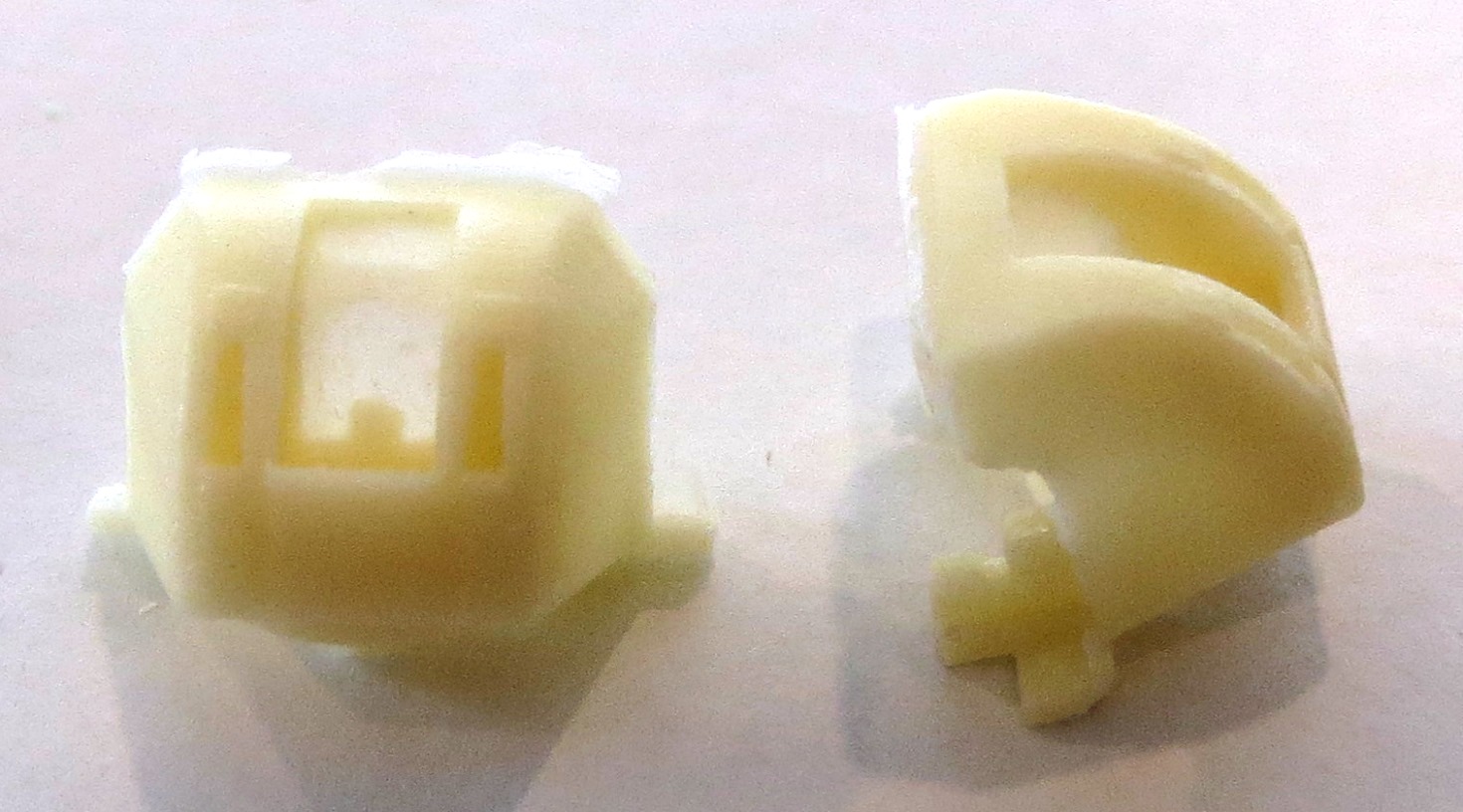

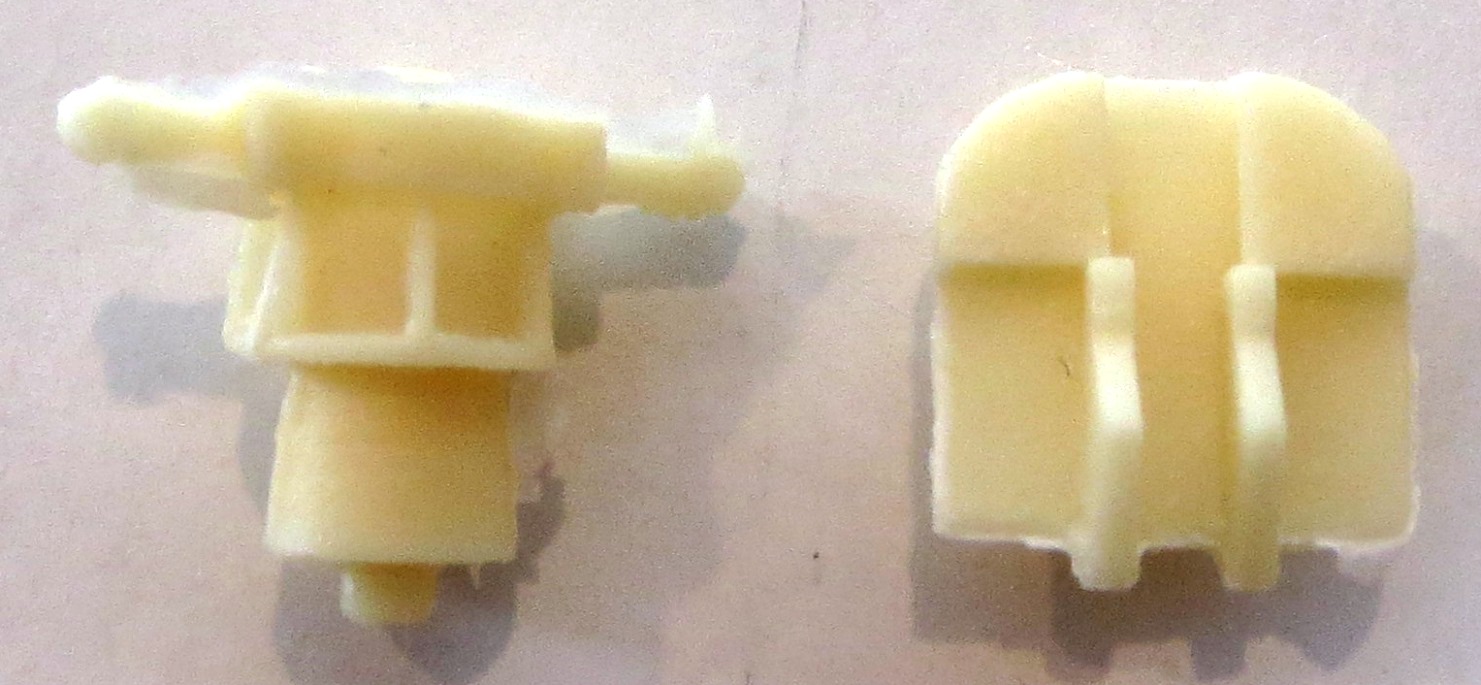

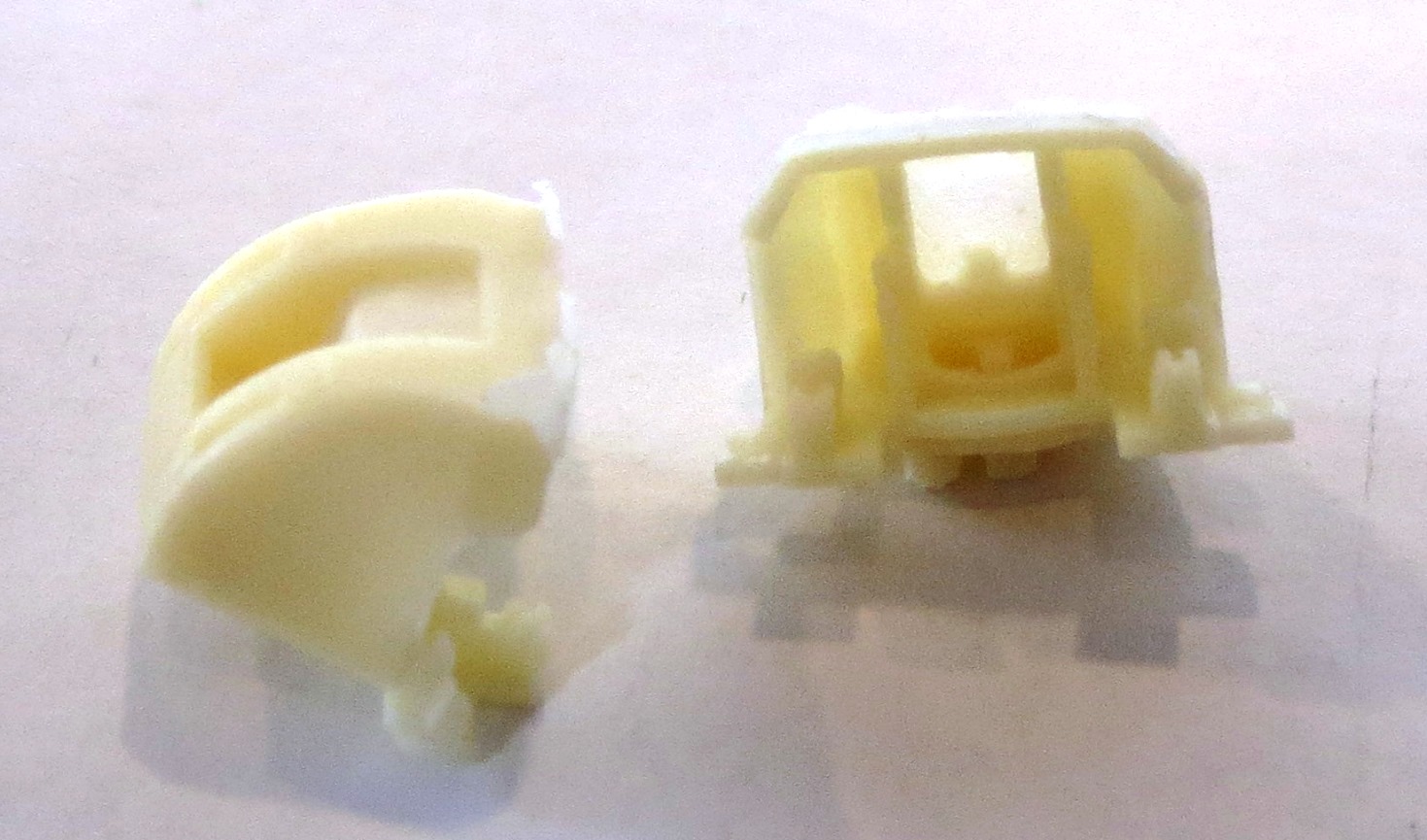

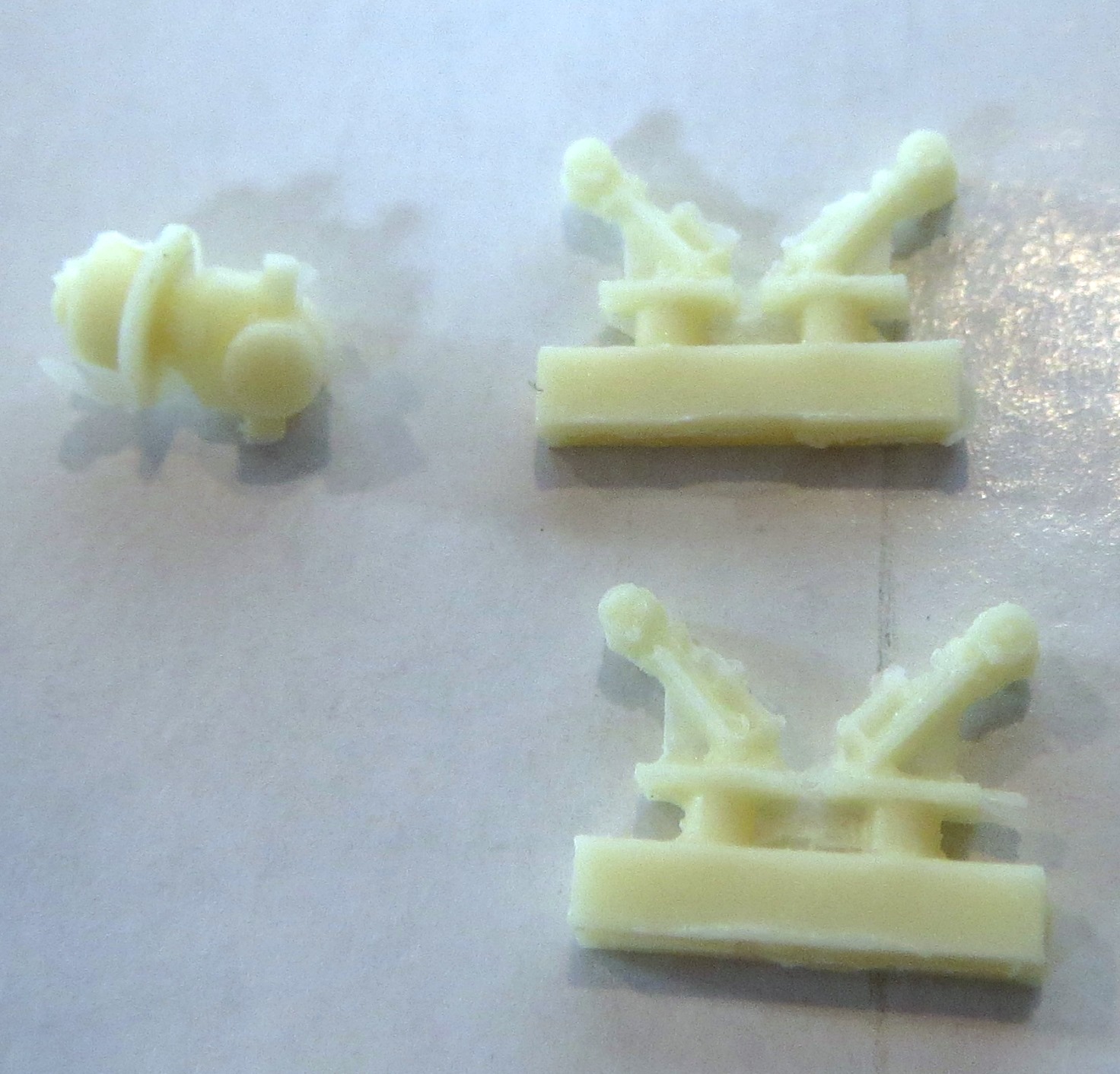

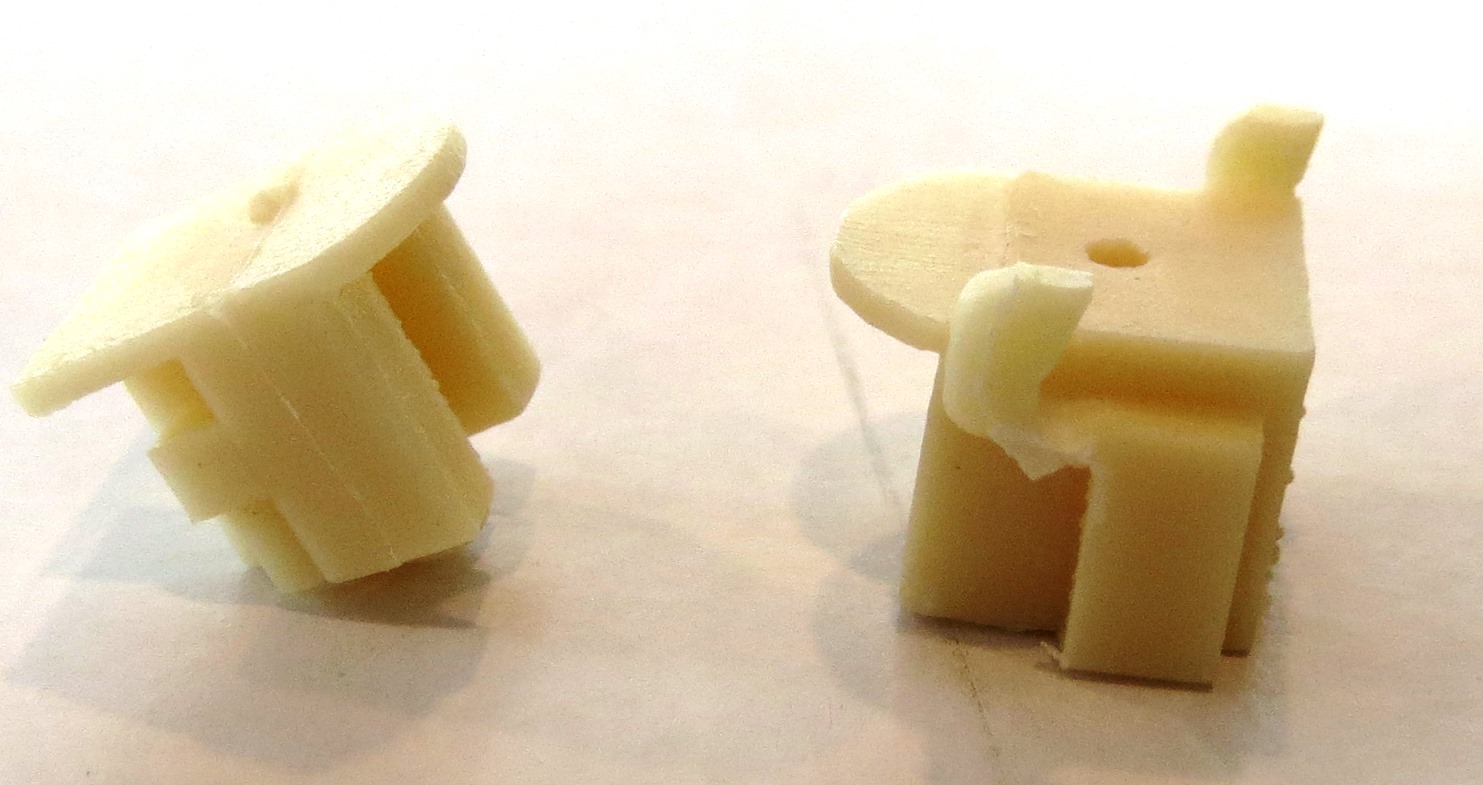

The smaller resin parts include the 4-inch gun shields, searchlight, rangefinder director, 4-barreled Pom Pom base, 27’ whaler, 25’ Admiral motor cutter and depth charge throwers. The casting is very good with some minor cleanup of excess resin in some spots.

WHITE METAL PARTS

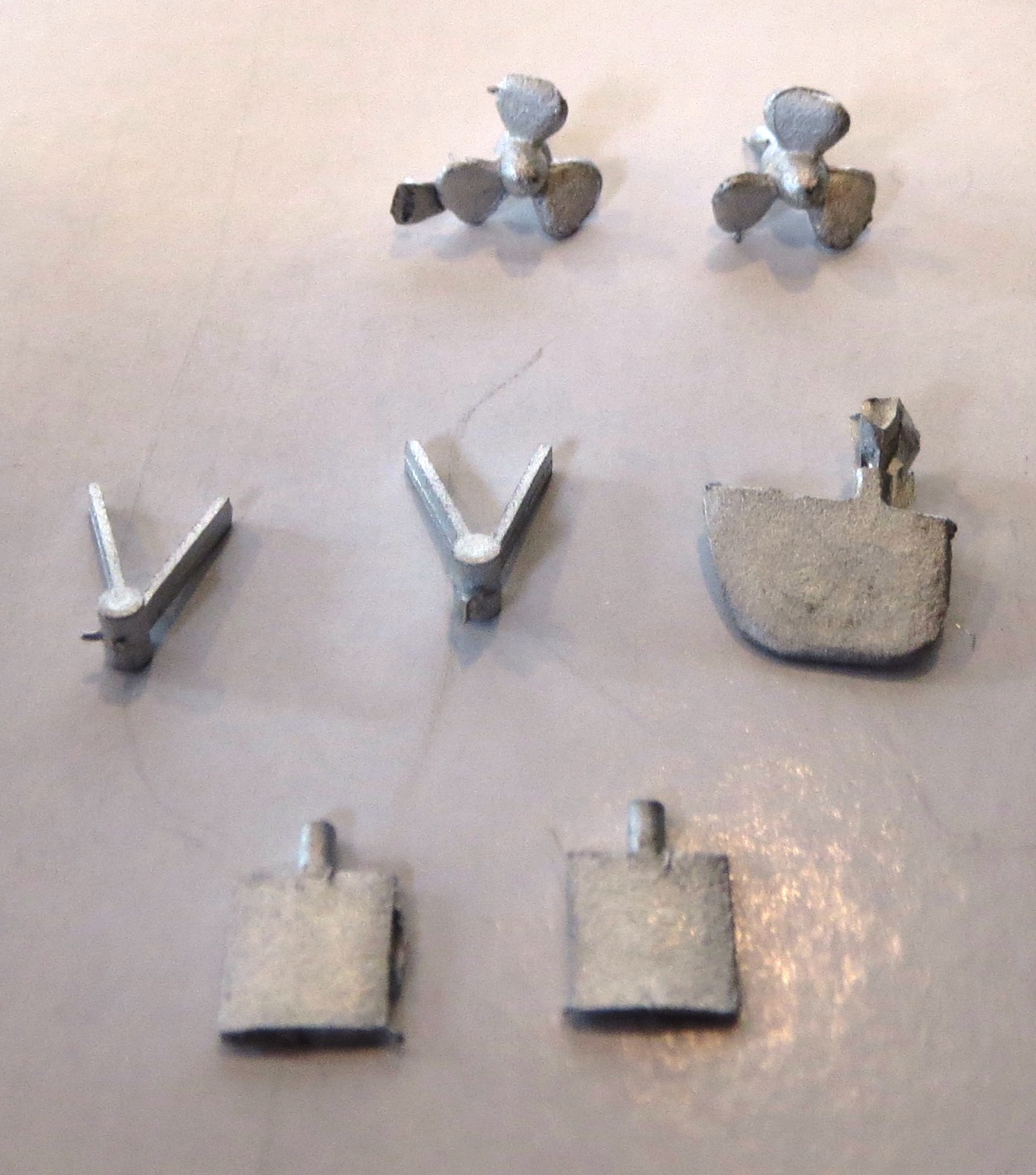

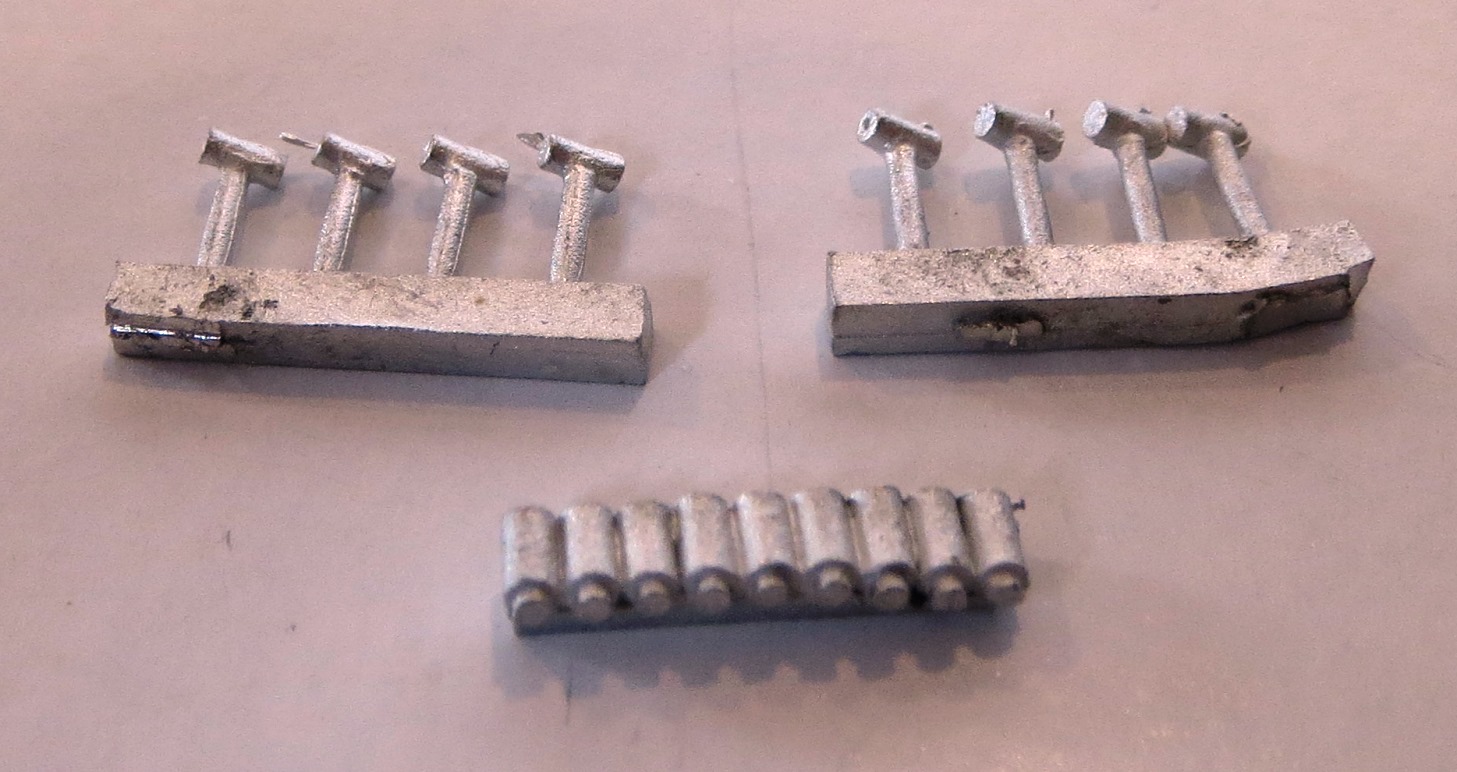

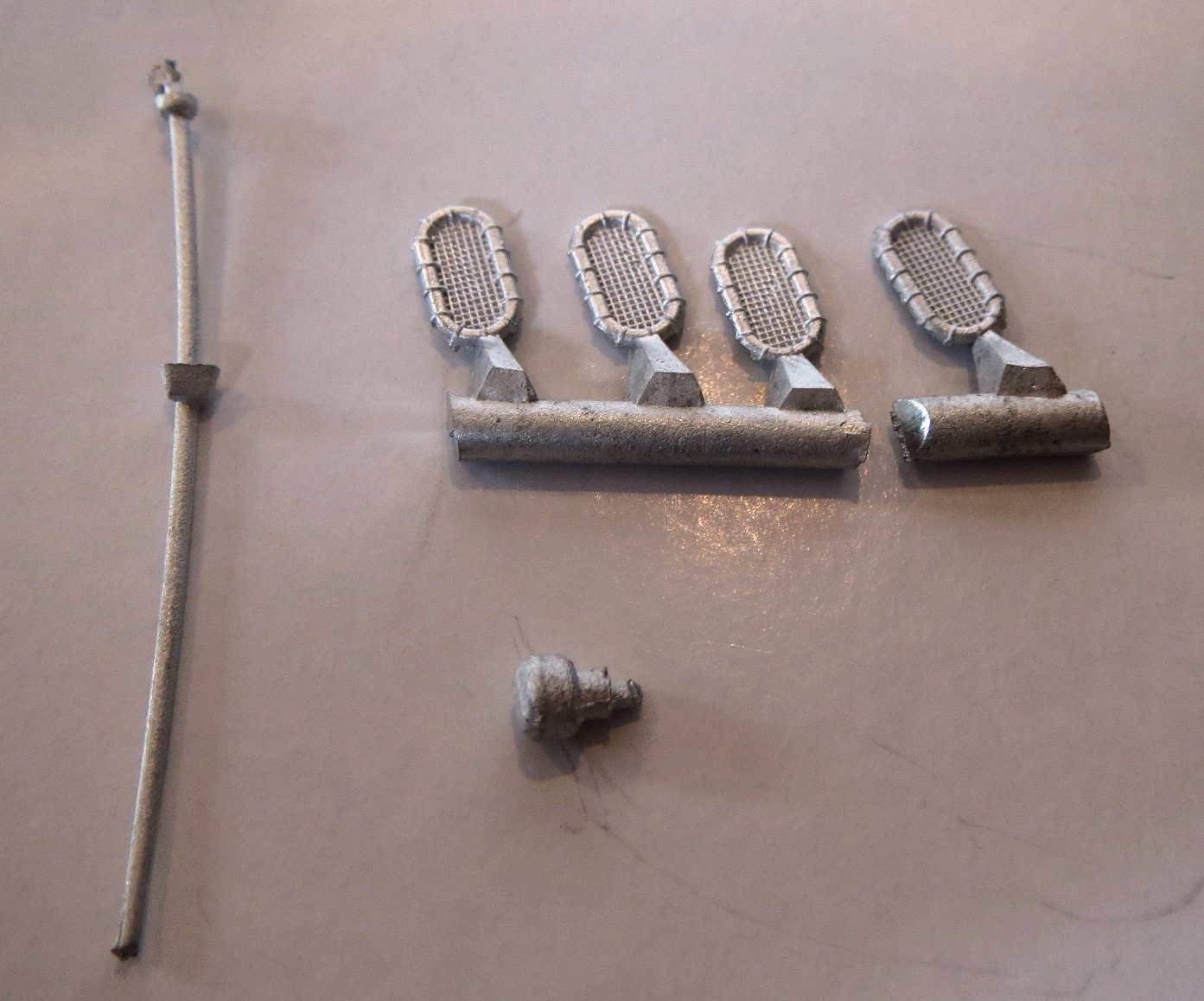

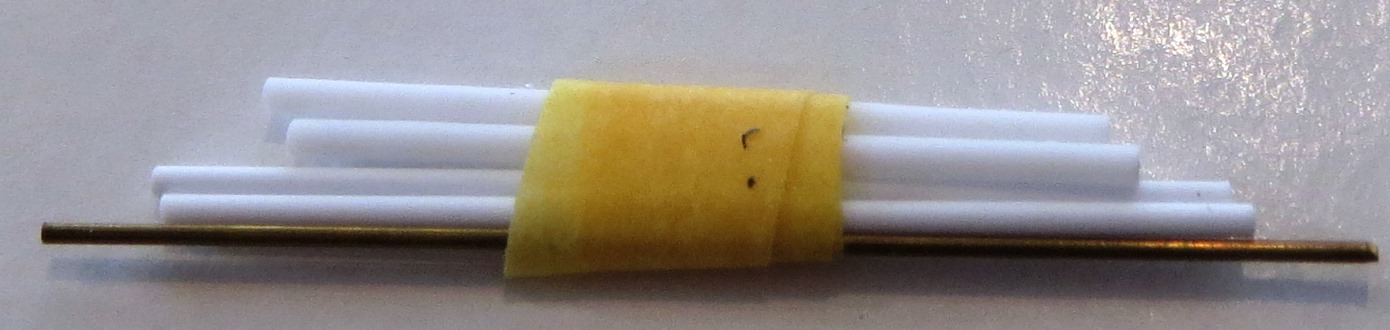

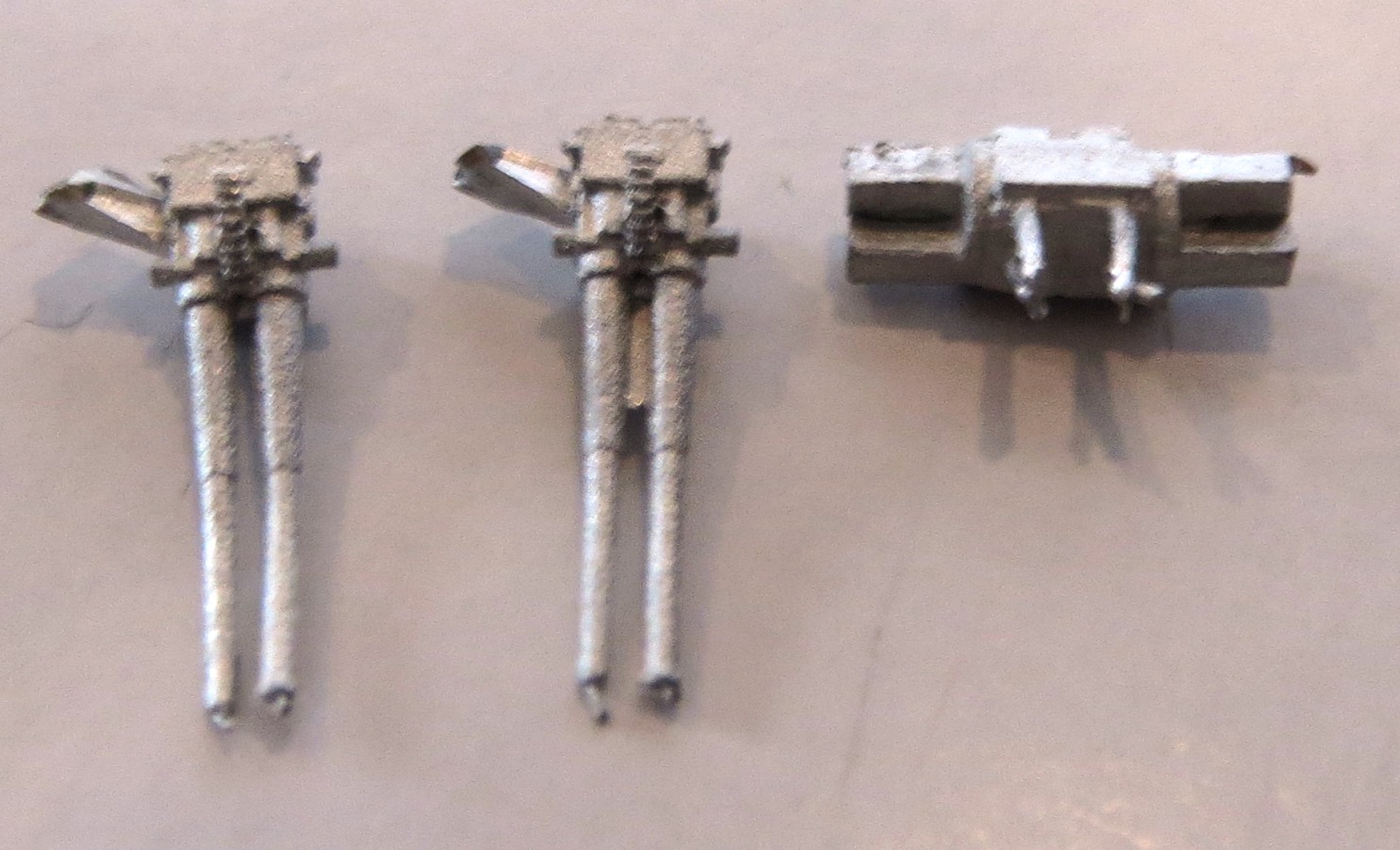

White metal parts are a familiar feature in Atlantic Models kits. The white metal parts I include the 4-inch twin gun barrels/mountings, 4-barreled Pom Pom, Carley rafts, fore mast, depth charge rail load and reloads, rudder, fin stabilizers, ASDIC dome, propeller shaft “A” frames and the propellers. The white metal parts require a little more cleanup and are not as refined in my opinion when compared to the small resin parts but they are usable. White metal is malleable so be careful when handling any of the gun barrels and the mast which can be easily bent. A replacement turned brass barrel set for the 4-inch guns is available separately from Atlantic Models (ATBAR 35002). However, in this day and age of 3D printed parts, white metal parts are really old tech and up to current standards. Several of the white metal parts have 3D printed alternatives available though many of the accessory producers out there if you wish to go that route. I would also use the white metal mast as a template to scratch build one using brass rod. Several lengths of plastic rod in different diameters and one length of brass rod are included with the kit parts to use for the propeller shafts and the main mast.

PHOTO-ETCH

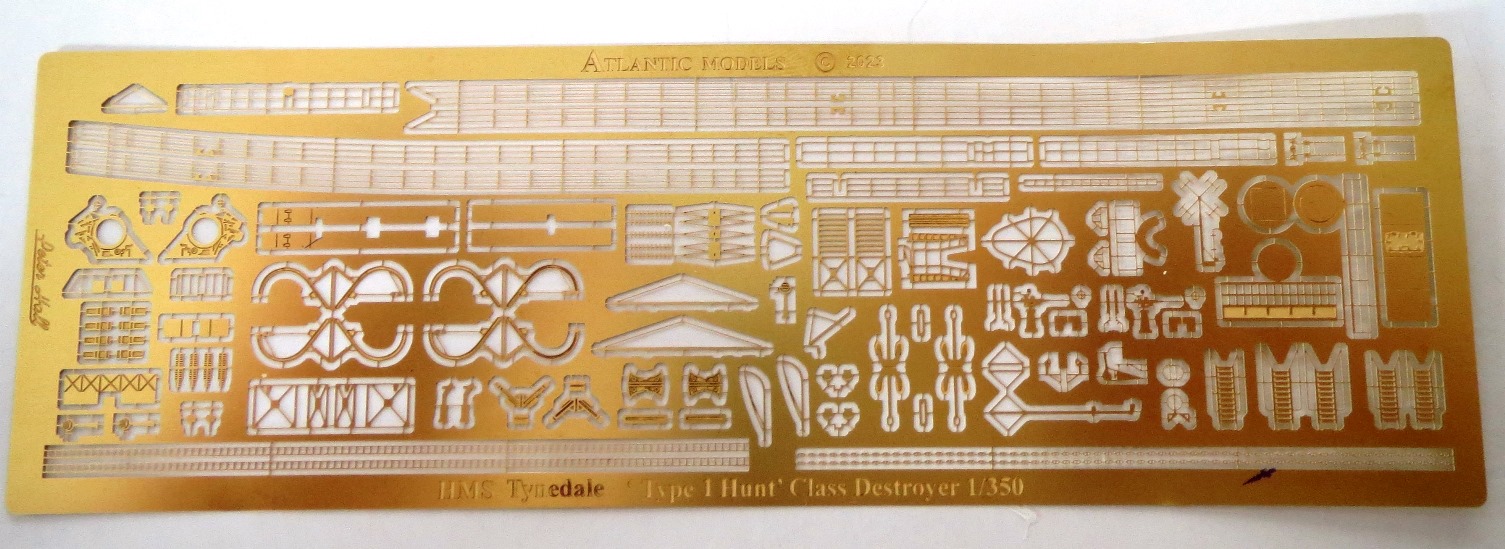

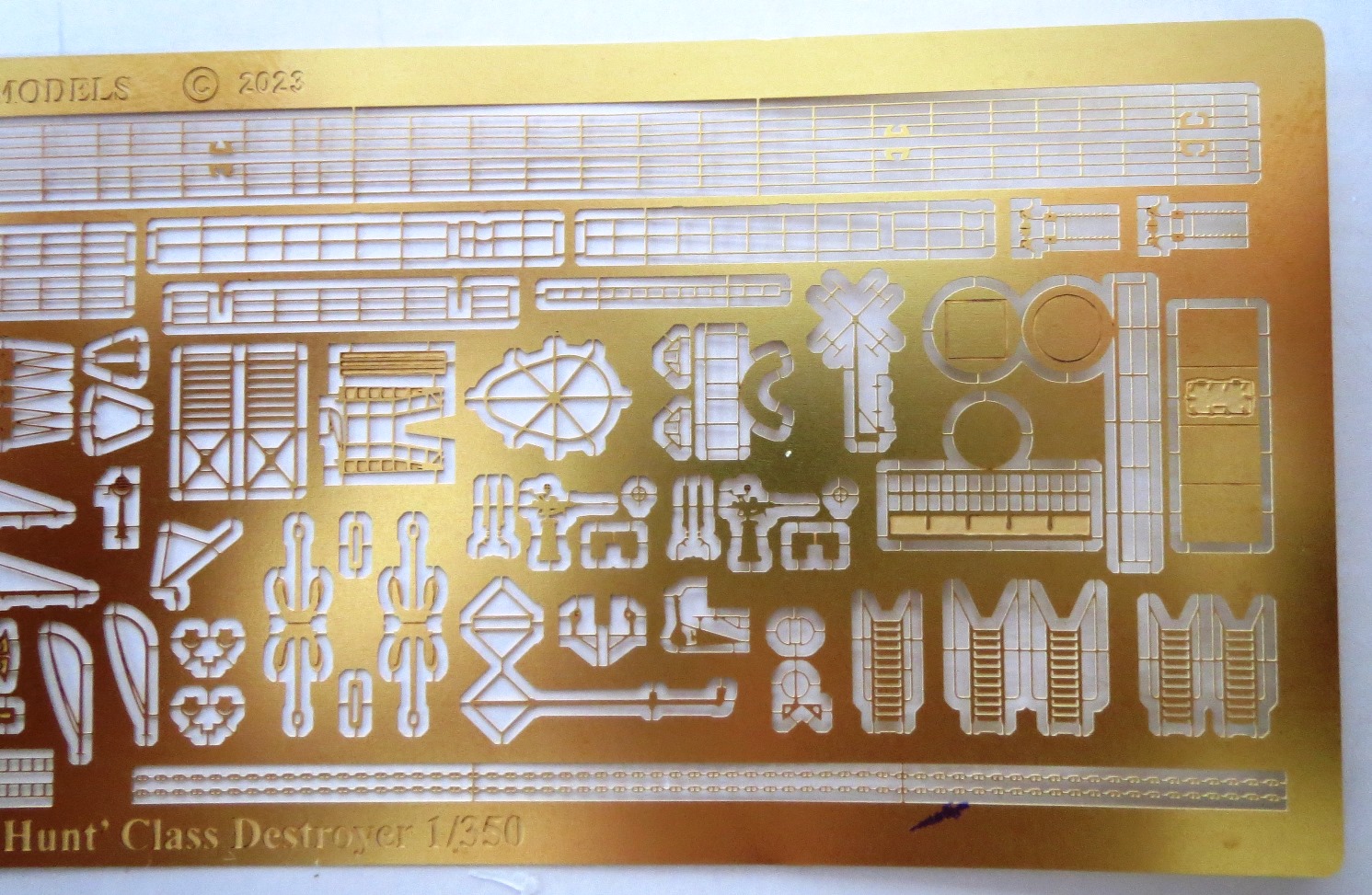

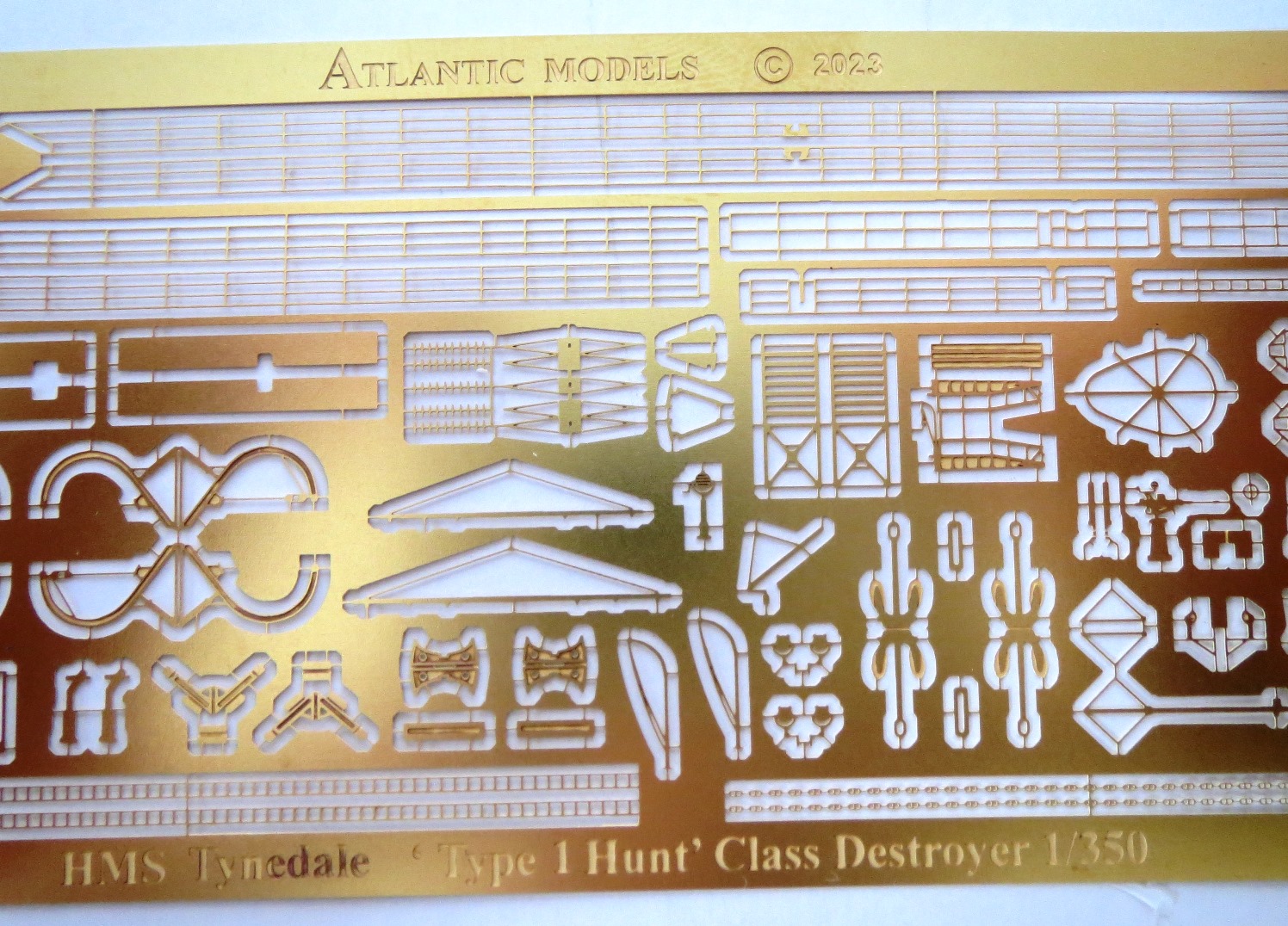

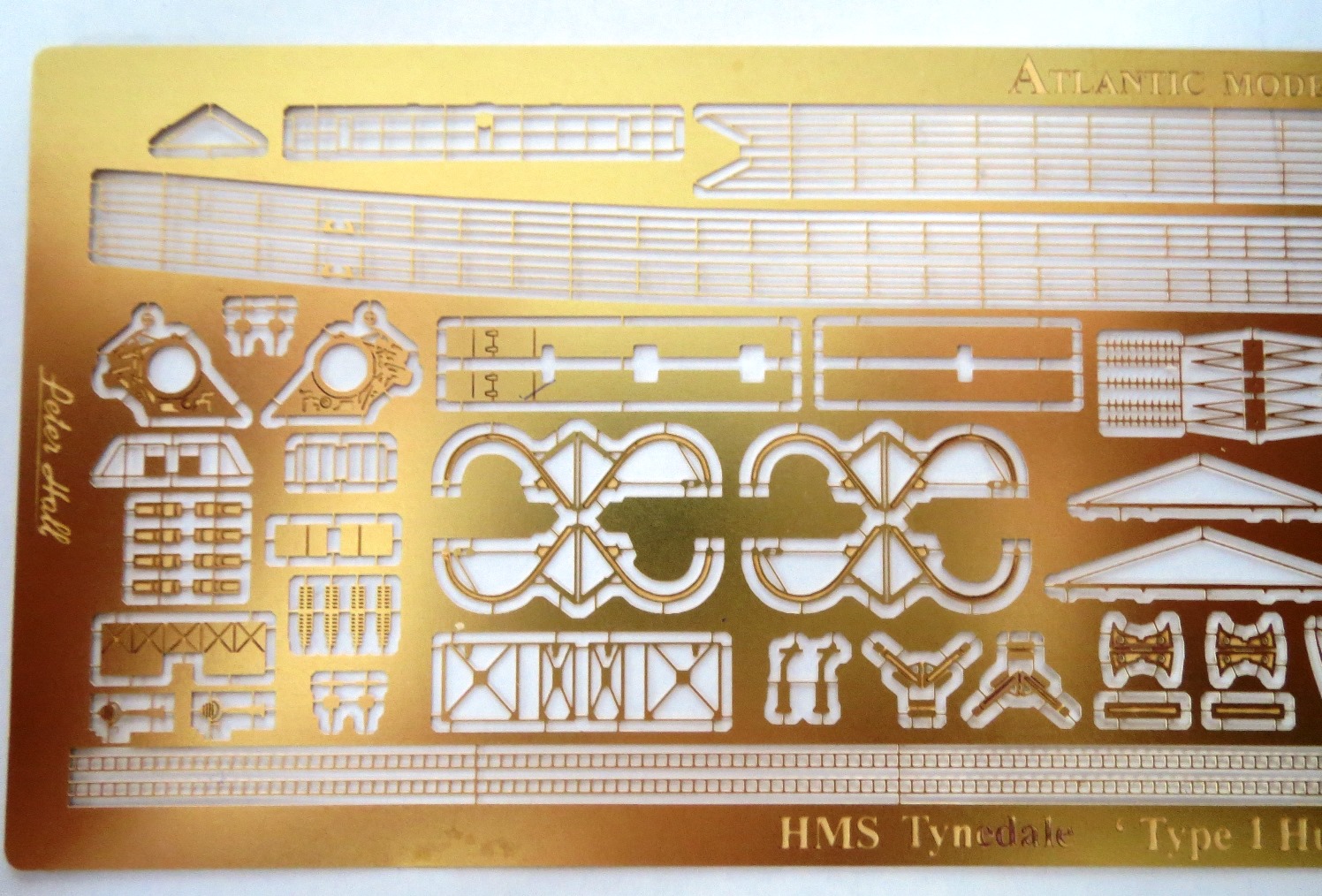

AAs with all Peter Hall designs, the photoetch brass is excellent with beautiful relief etching. The brass includes several lengths of pre-measured railings including a section for the foc’sle deck with an upsweep curve. Other parts include inclined and vertical ladders, various radar antennas, boat davits, boat details, parts for the quad Pom Pom, anchors and chain, funnel cap grill and siren platform, 20mm Oerlikons, depth charge racks and throwers, Carley float racks, several platforms supports and other smaller detail parts. The photoetch provides optional parts for early war versions and a 276 radar lantern for Hunt Type I ships that were fitted with it.
DECALS
No decals are provided with this kit, however a separate British Destroyer and Escort decal sheet with pennant numbers and draft markings is available from Atlantic Models (ATDec 02). Unfortunately, this decal sheet does not provide any jacks or ensigns, so you will need to find another source for those.
INSTRUCTIONS

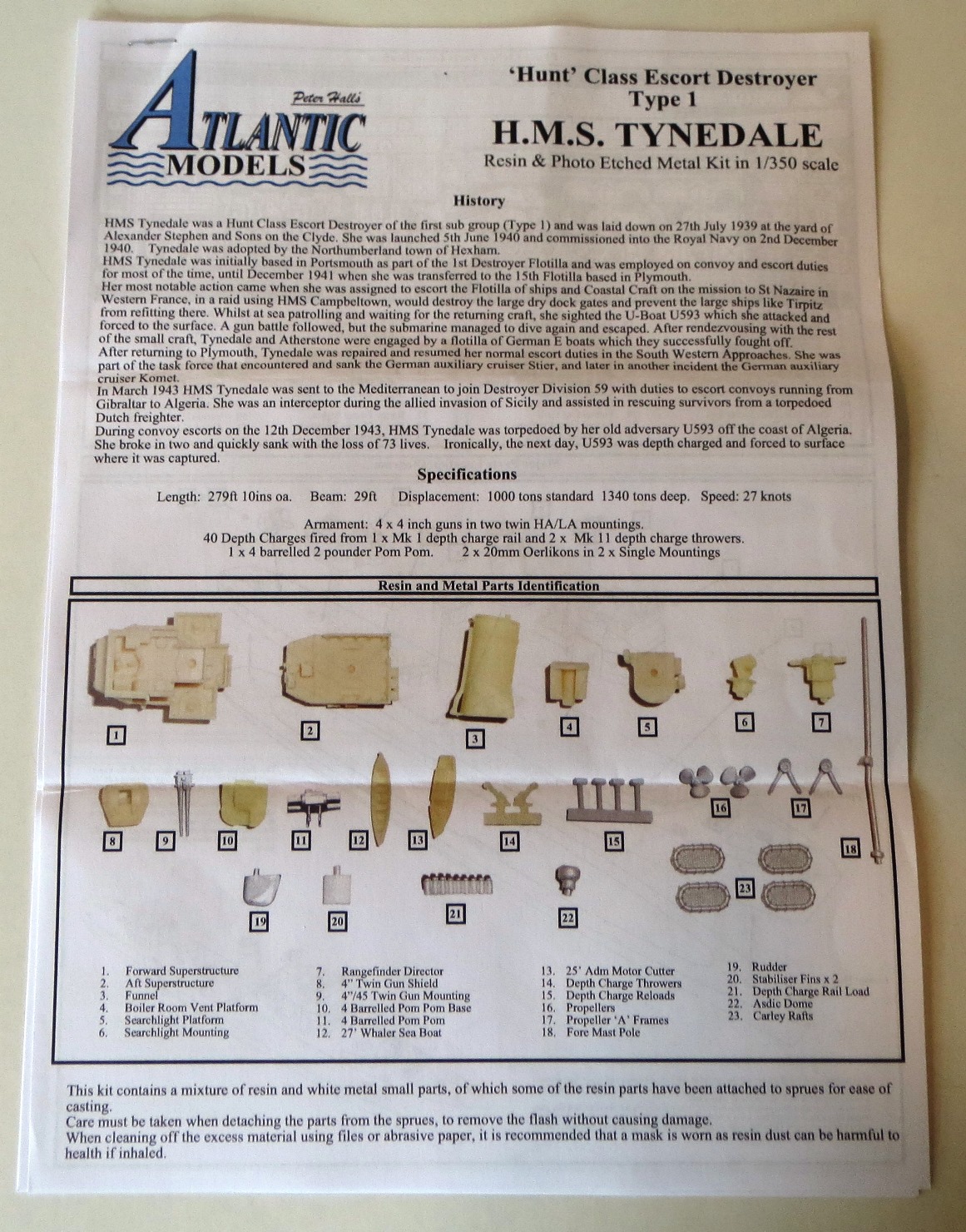

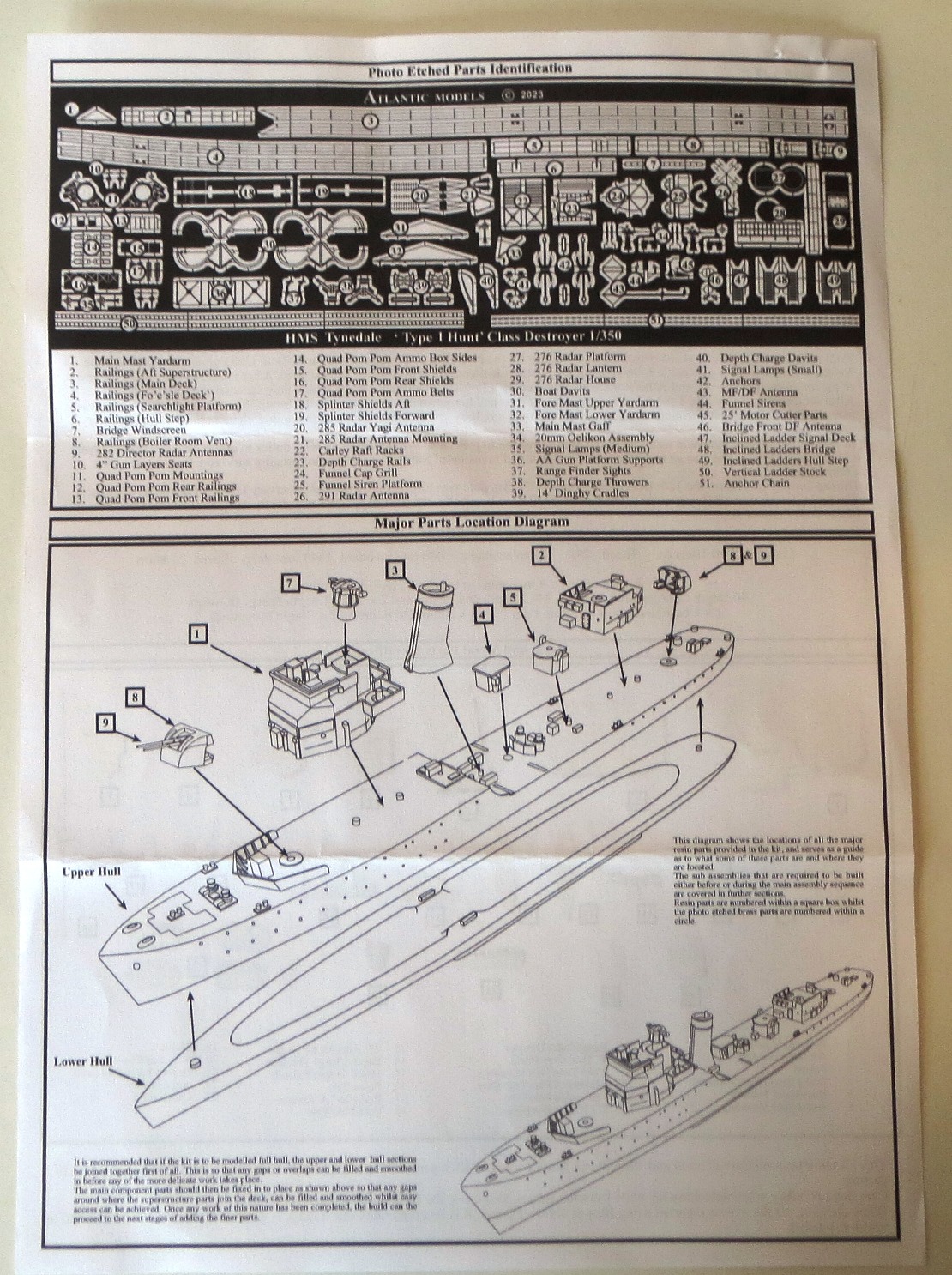

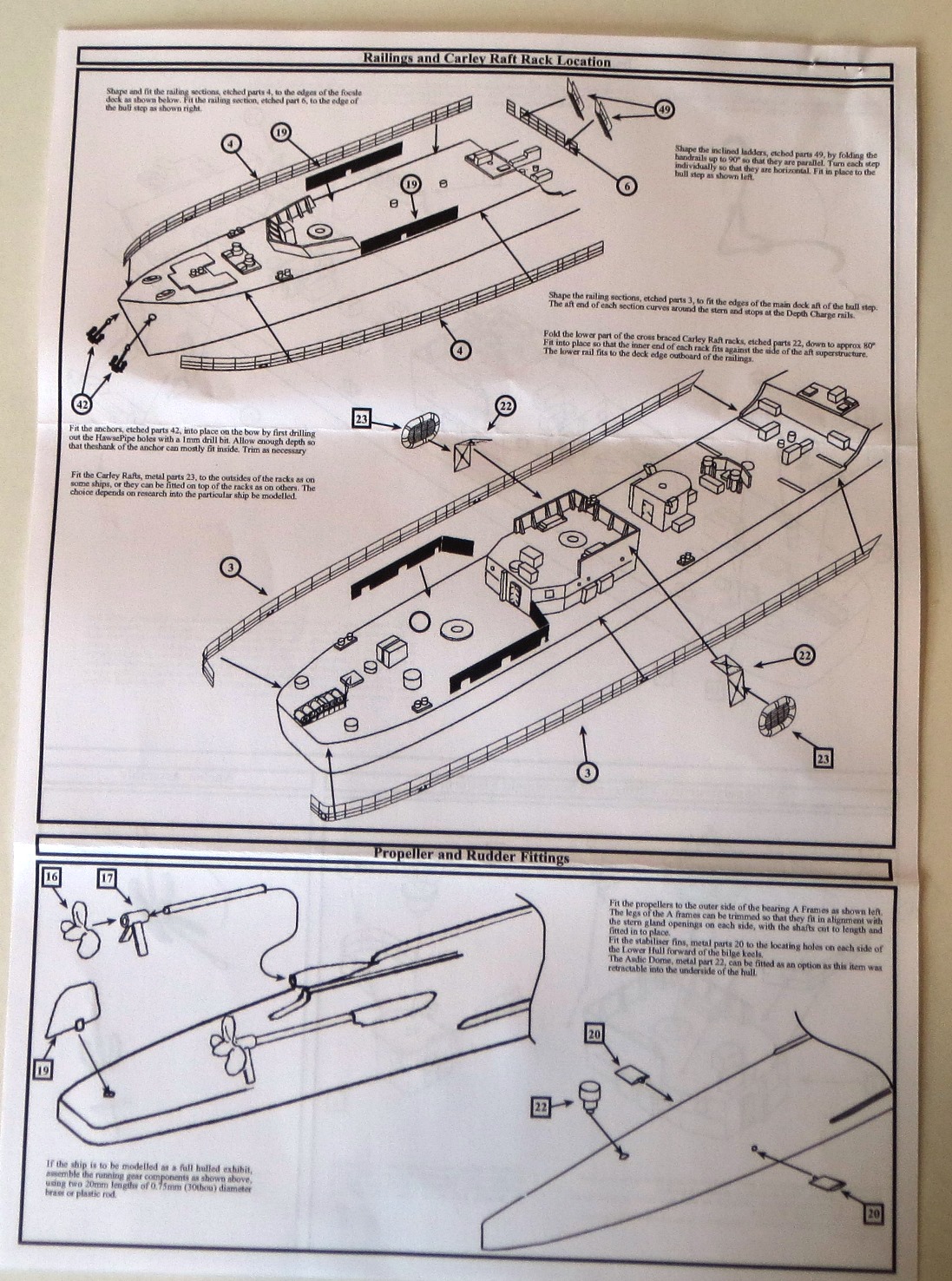

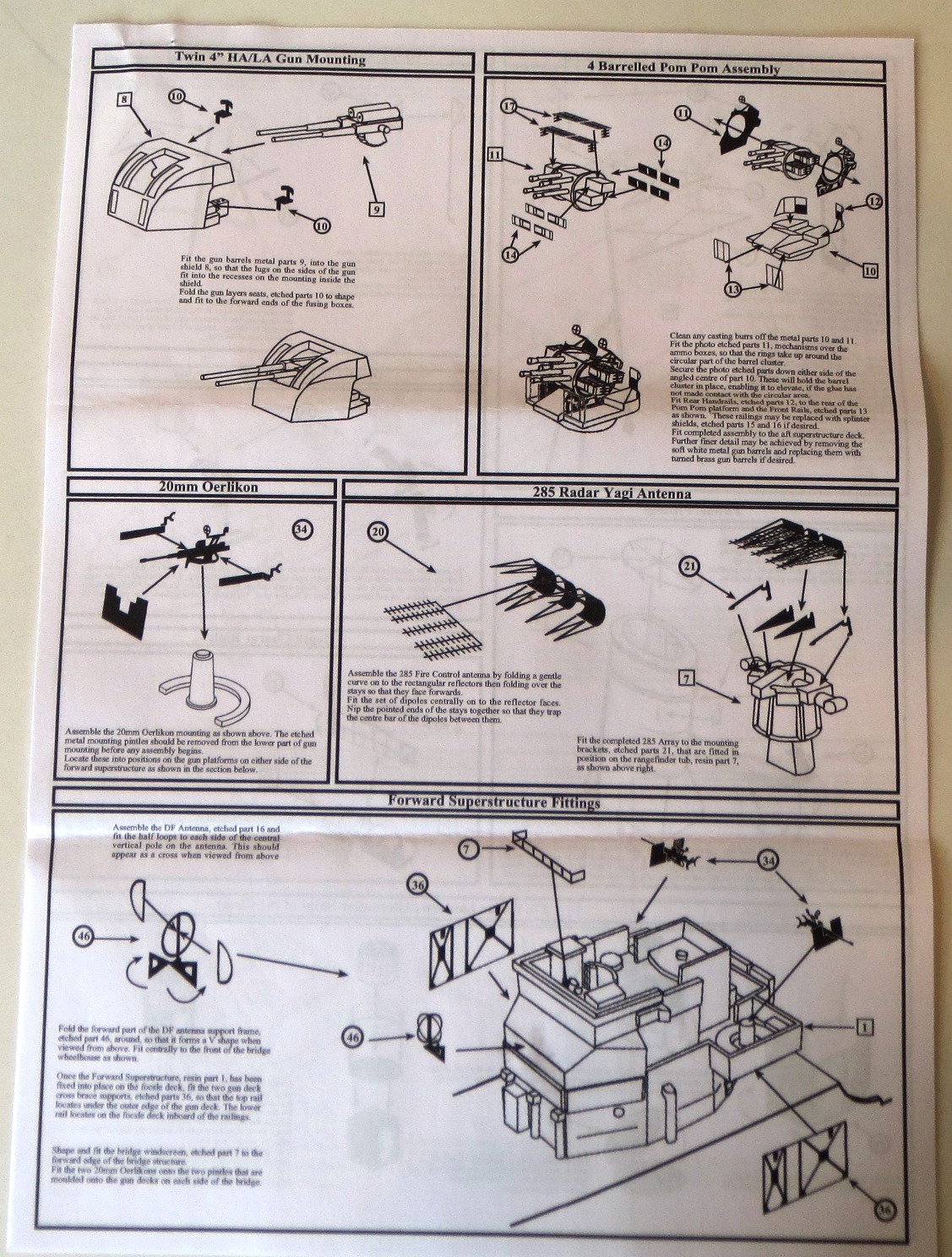

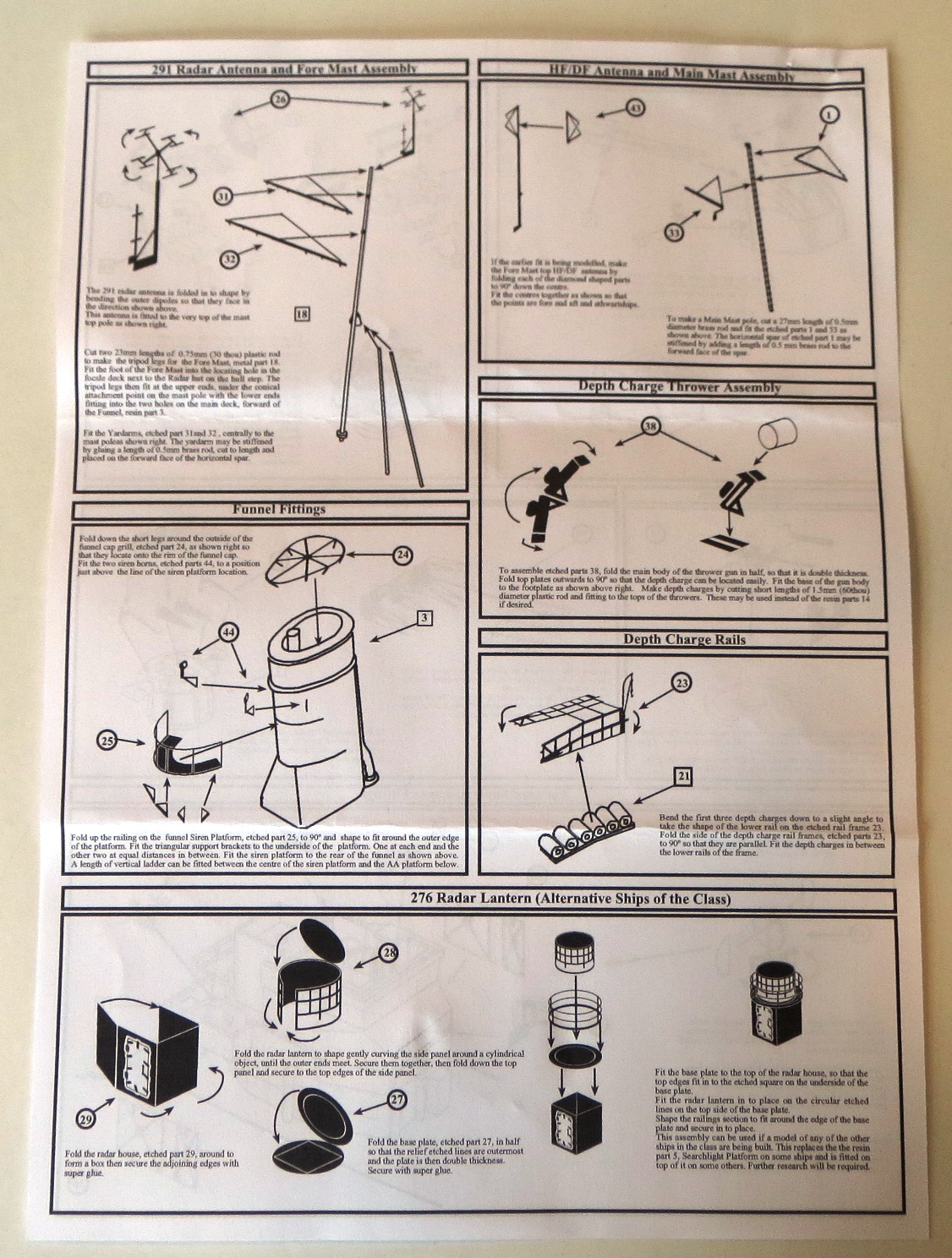

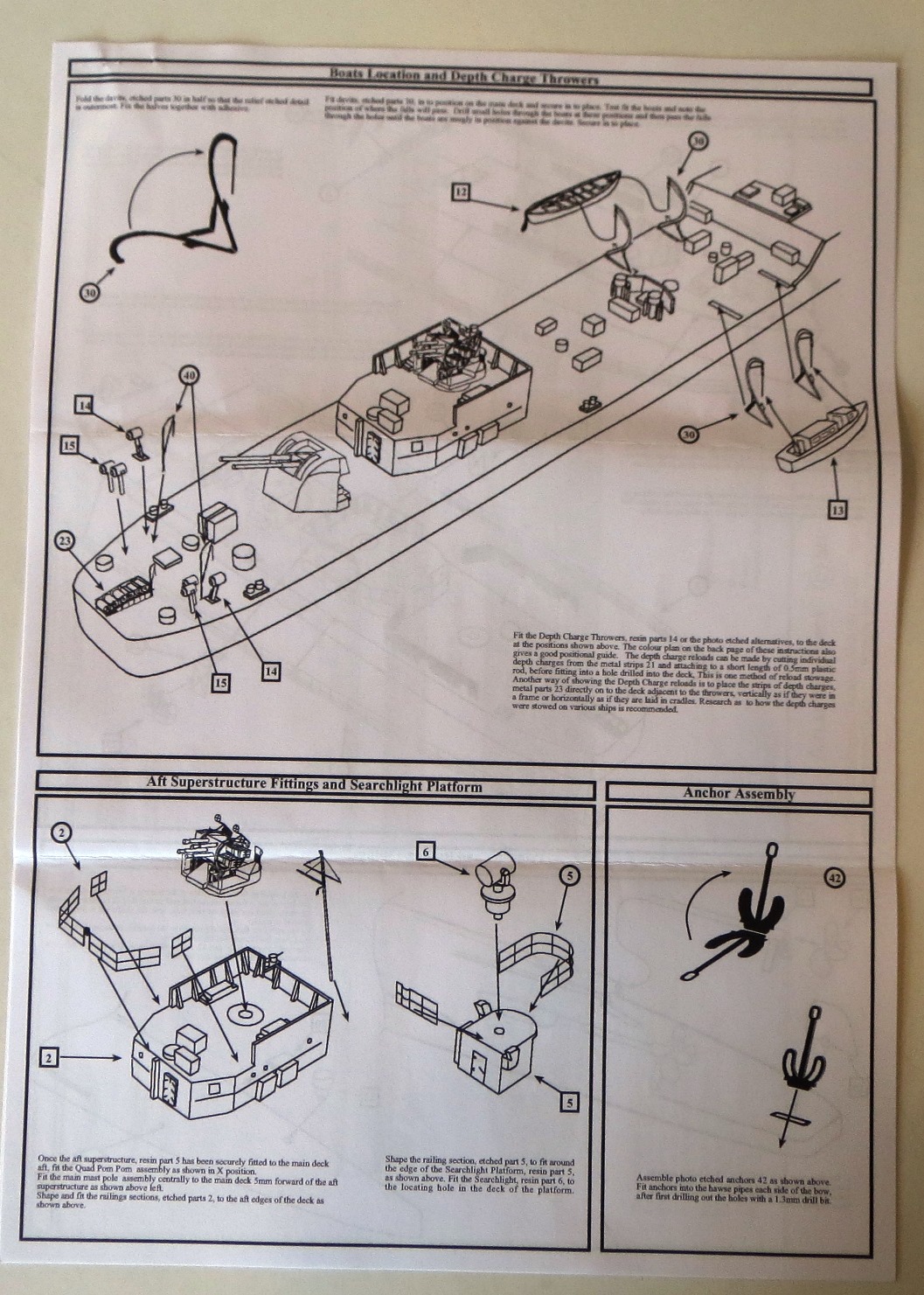

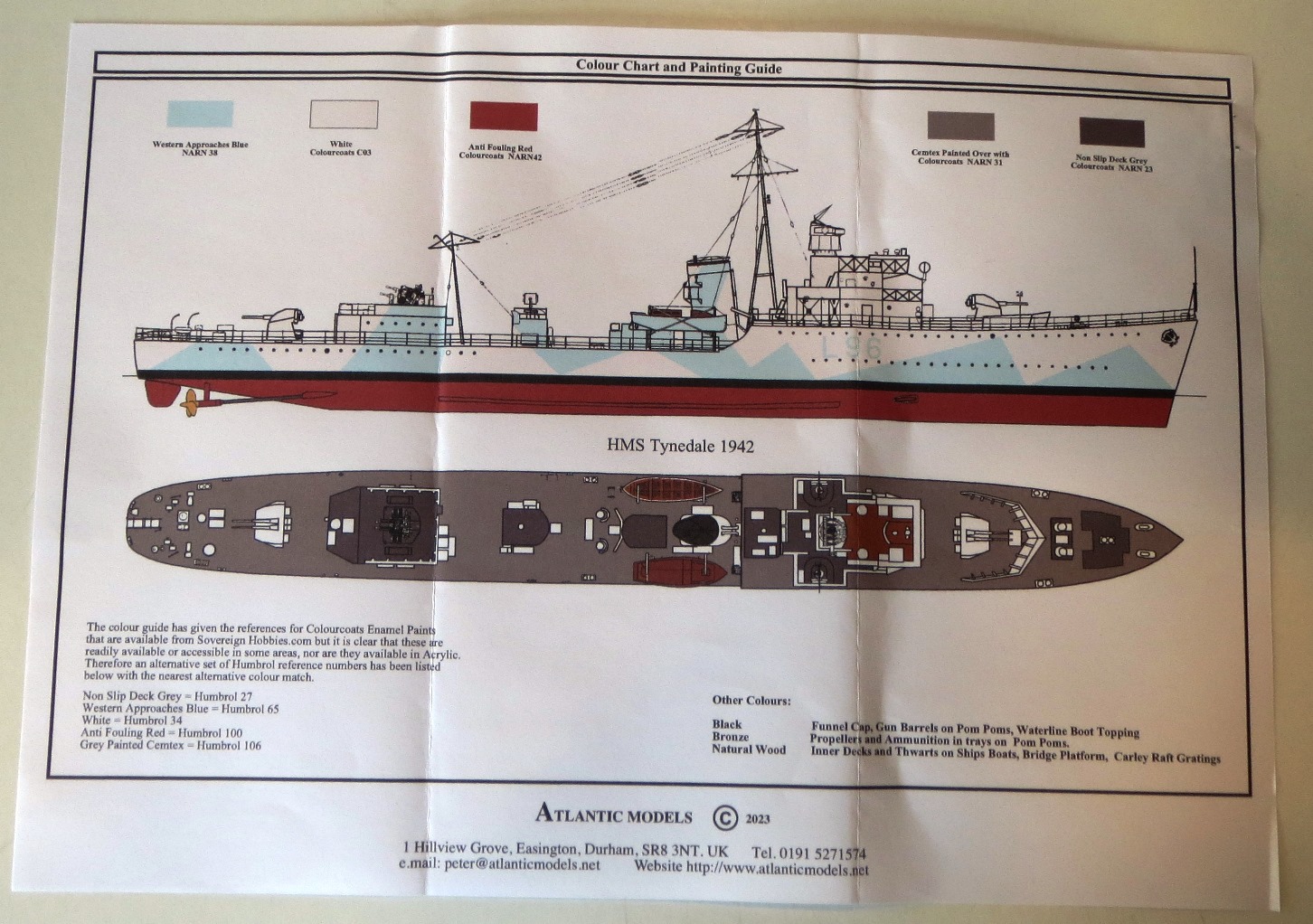

AA total of seven pages of assembly instructions are provided in the familiar format seen with Atlantic Models and White Ensign products. The instructions continue to be among the best out there and provide numerous illustrations to aid in assembling this model. The first page provides a brief history of this ship and an inventory of the smaller resin and white metal parts. The following page has an inventory and keyed image of the photoetch fret. The remaining pages cover the various assemblies and sub-assemblies. The last page has a guide in color for the camouflage scheme worn by Tynedale in 1942, with references to Colourcoats paints and Humbrol equivalents as well as generic colors for some of the smaller details.


FINAL THOUGHTS
The HMS Tynedale kit is another excellent release from Atlantic Models that will build into an excellent model of a Hunt Type I ship. It is a worthy follow up to the HMS Badsworth kit that was released prior. With additional research and references will be needed to build a different Type I Hunt, but the necessary parts are provided to realize that. This kit is available from Atlantic Models directly for £77.95 or approximately $104.00 US at the exchange rate at the time of this review. This kit is highly recommended, especially for Royal Navy enthusiasts.
