Imperial Hobby Productions
1/700 HMS Triumph



Reviewed July 2022
by Martin J Quinn


HISTORY
HMS Triumph, a member of the Colossus-class light fleet carriers, was laid down in January 1943, launched in October 1944, but not commissioned into service until May, 1946.    After service with the Mediterranean Fleet, Triumph was on a cruise to Japan, with the Far East Fleet, when war broke out on the Korean peninsula in June, 1950.   After provisioning in Japan and at Okinawa, she headed to Korean waters, where, on July 3, 1950, in consort with the American carrier Valley Forge, she participated in the first carrier air strikes of the war.

Triumph continued operation off both coasts of Korea for the next several months, in between frequent visits to Sasebo, Japan, for refit, replenishment or new aircraft.  In September, operating as part of the "northern group", she participated in the landings at Inchon, providing air cover, air strikes, anti-submarine sorties and spotting operations for cruisers supporting the landings.    Shortly after the Inchon landings, she was replaced in theater by the sister ship Theseus, while she returned home, assuming duties as a cadet training ship.

In 1952, Triumph was used for trials to determine the viability of using an angled flight deck, which allow for simultaneous aircraft launch and recovery operations.  According to Wikipedia:

The angled flight deck was first tested in 1952 on HMS Triumph by painting angled deck markings onto the centerline of the flight deck for touch-and-go landings. This was also tested on USS Midway the same year.

Despite the new markings, in both cases the arresting gear and barriers were still aligned with the centerline of the original deck. From September to December 1952, USS Antietam had a rudimentary sponson installed for true angled-deck tests, allowing for full arrested landings, which proved during trials to be superior. In 1953, Antietam trained with both U.S. and British naval units, proving the worth of the angled-deck concept. HMS Centaur was modified with overhanging angled flight deck in 1954.

After her time as a cadet ship ended in 1955, Triumph was converted to a heavy repair ship, subsequently being stationed in Singapore.   In 1975, she was place in reserve, and was scrapped in Spain, in 1981.

For more information, see her Wikipedia page here, which is where this information was taken from.

The IHP HMS Triumph

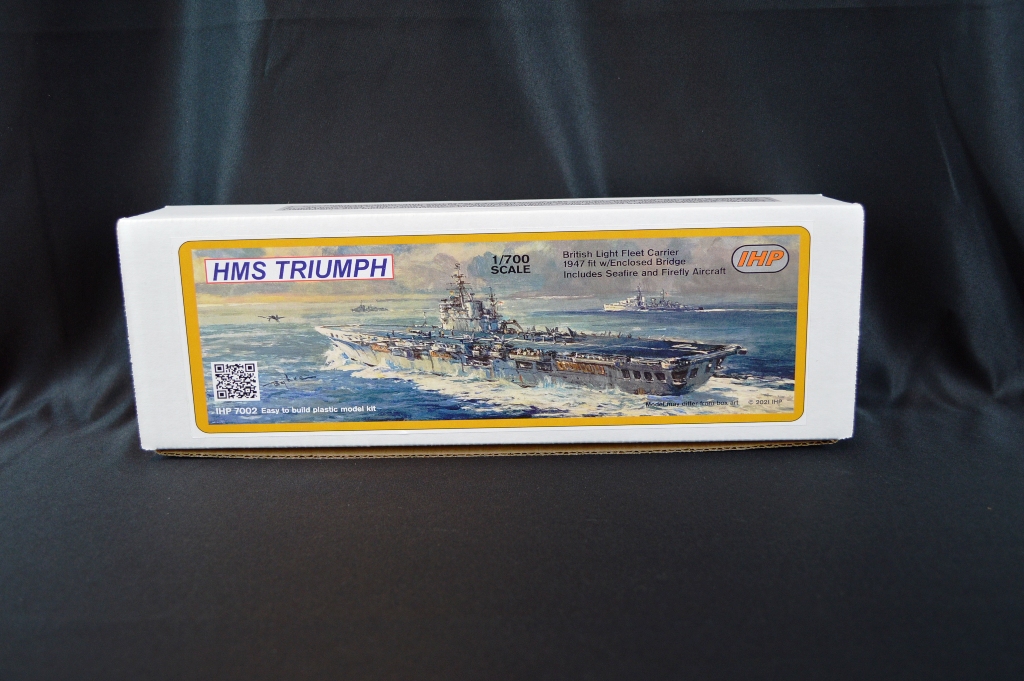

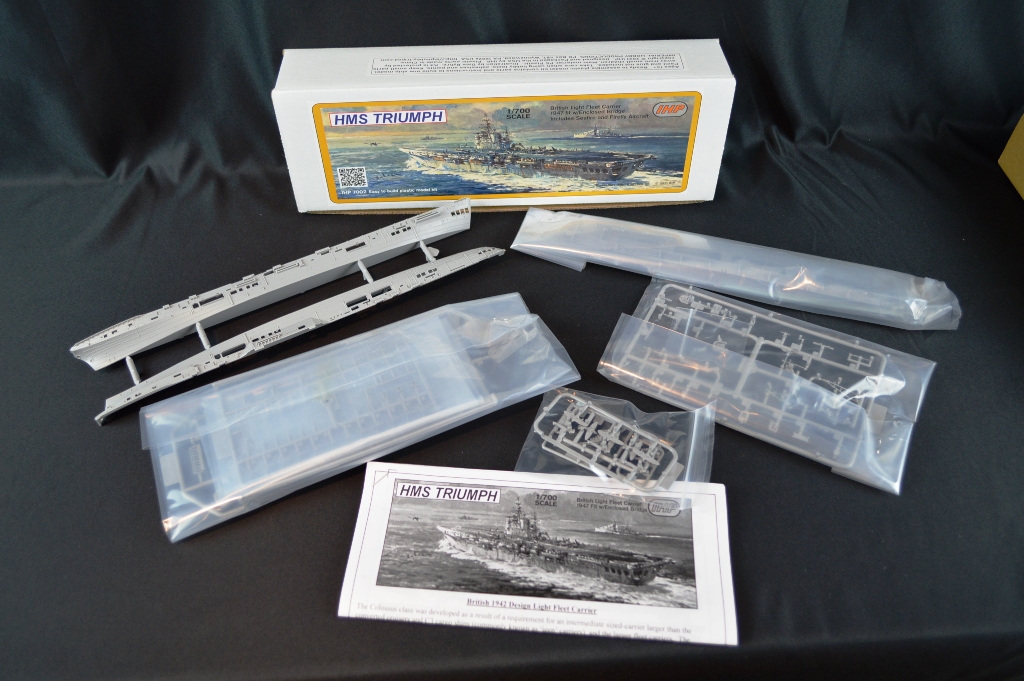

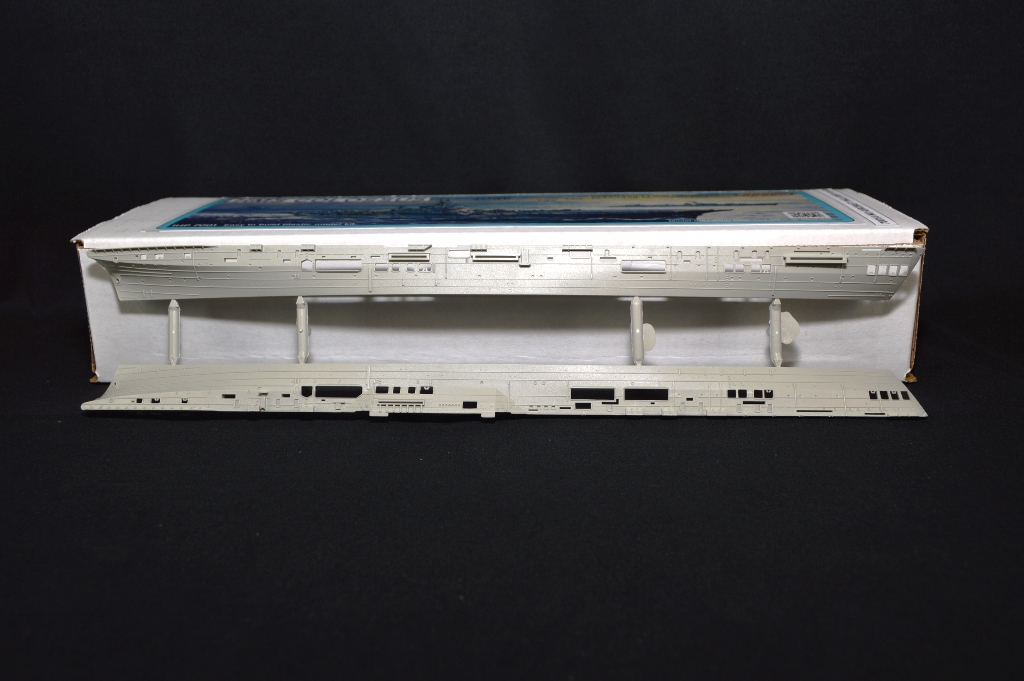

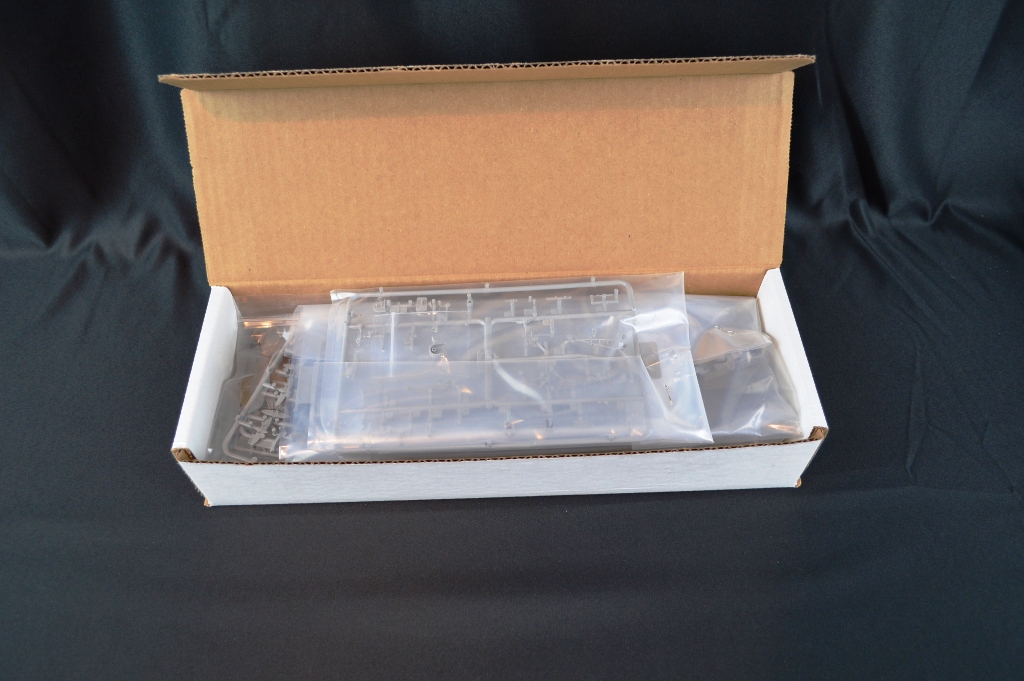

The Imperial Hobby Production (IHP) HMS Triumph comes in sturdy white cardboard box, with a very nice painting of Triumph and escorts on the box top.   The box is reminiscent of the type of box resin models come in, which isn't surprising, given IHP's roots.

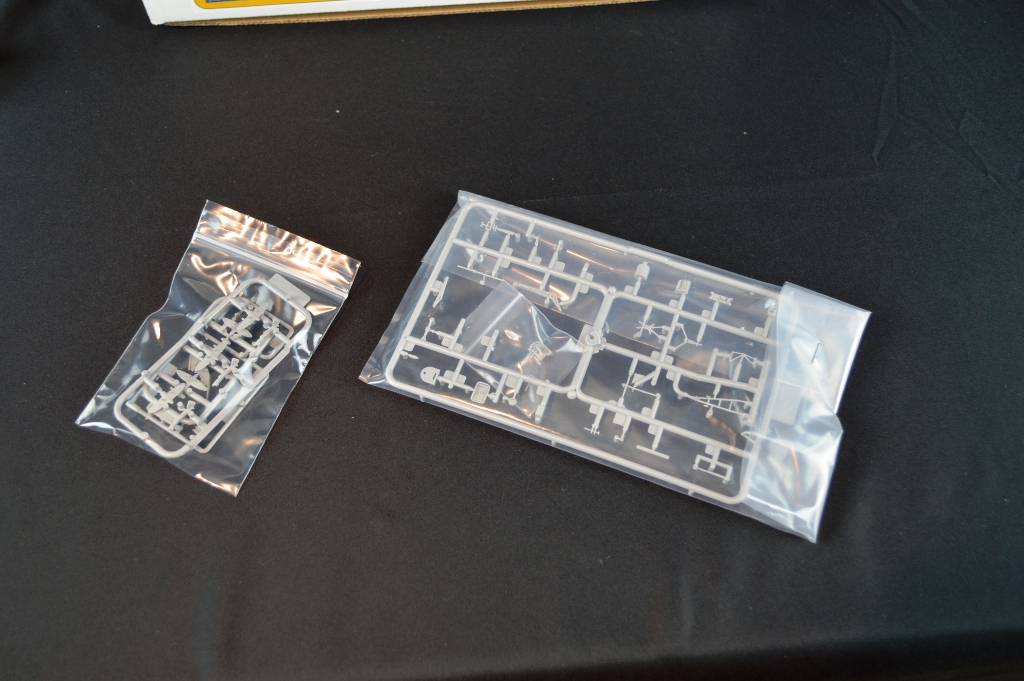

Inside the box is the two part hull, flight deck and four sprues, for a total of about 150 parts, along with a set of decals and instructions.  The flight deck (with decals) and parts sprues are packaged in a few plastic bags.   Inside one of the bags was the island and the stern of the ship, which is molded as a separate piece.  The model represents Triumph during the Korean War, with an enclosed bridge.

As most of the components are the same as those in original HMS Colossus release, the photos and texts of those parts are the same as that review.

Here are the common sprues and sprues between the Colossus and Triumph kits:

  • Hull
  • Decks (boat/fo'c·'sle)
  • Stern plate
  • Flight deck
  • Sprue B
  • Sprue C
  • Sprue D (x2)
  • Island (part B8)
Parts new to the Triumph:
  • Sprue C (smaller and different than the aforementioned C)
  • Sprue F
  • Different insert for bridge (closed vs open in original release)
  • Two sprues of aircraft (1 each Seafires & Fireflys)

COMMON COLOSSUS CLASS KIT SPRUES

THE HULL

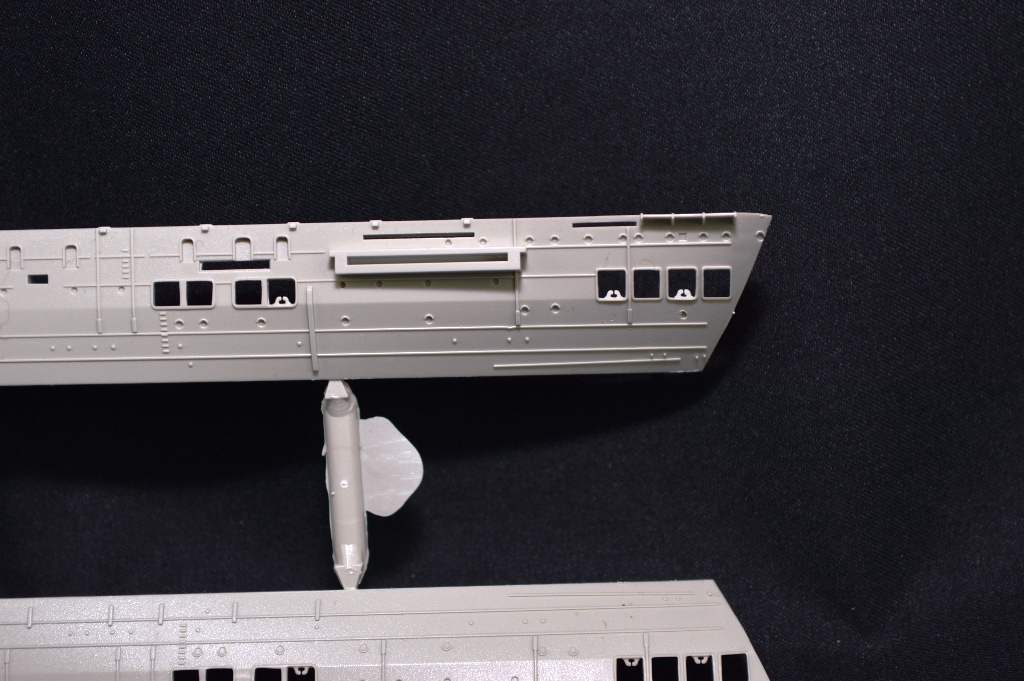

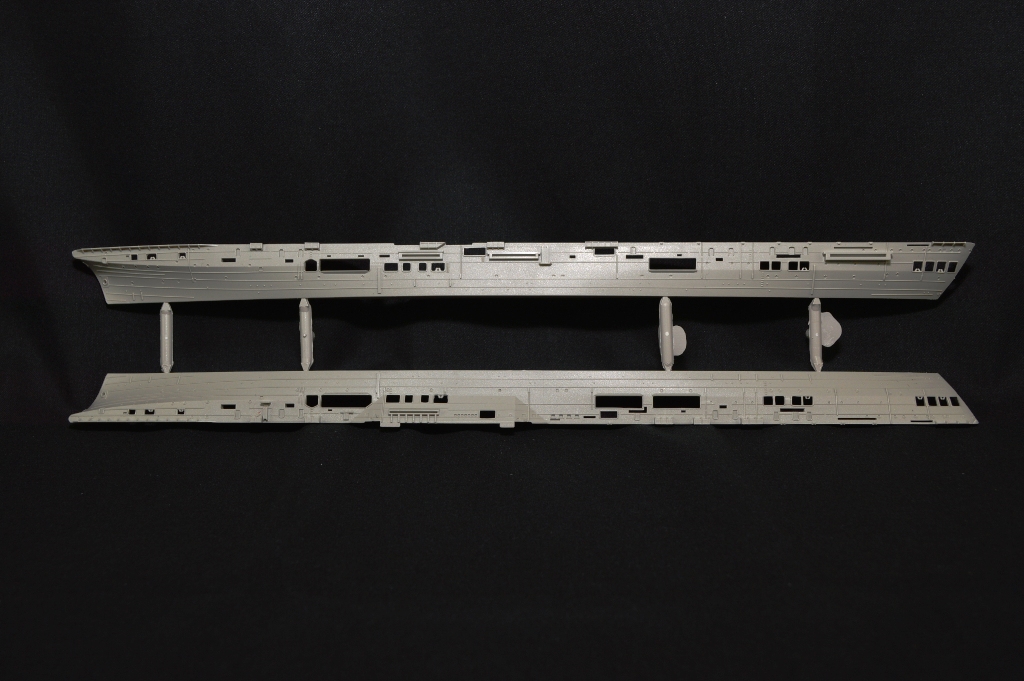

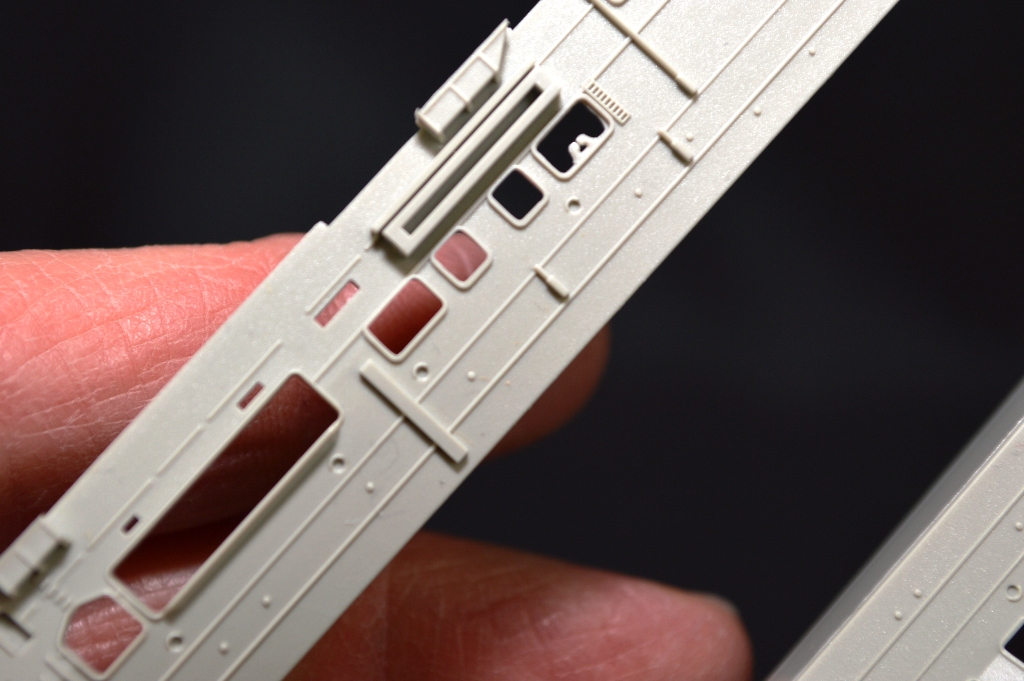

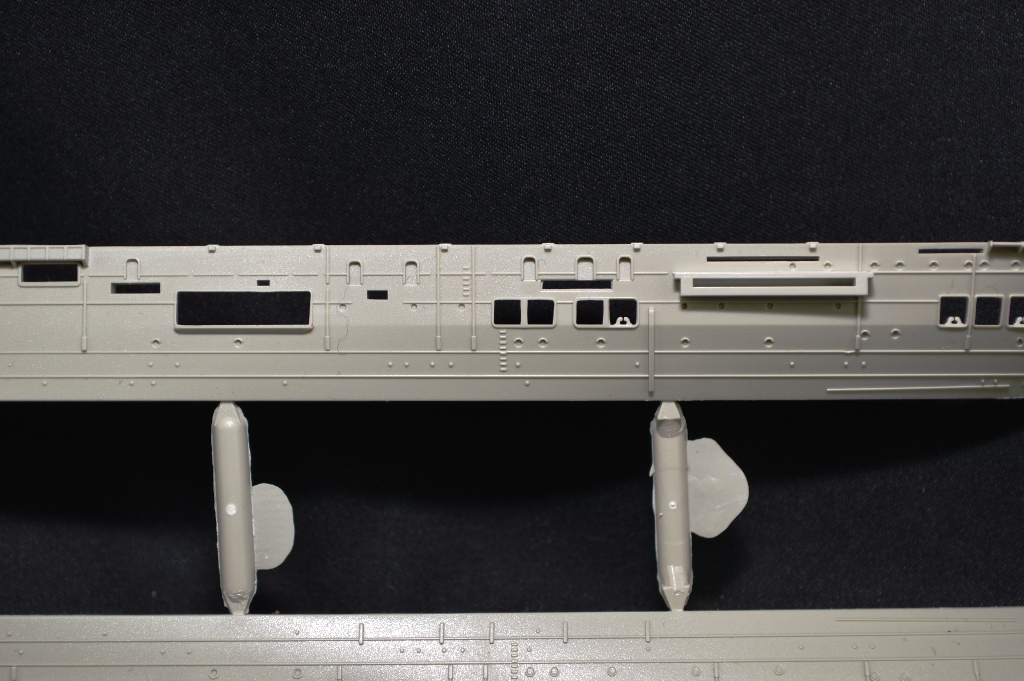

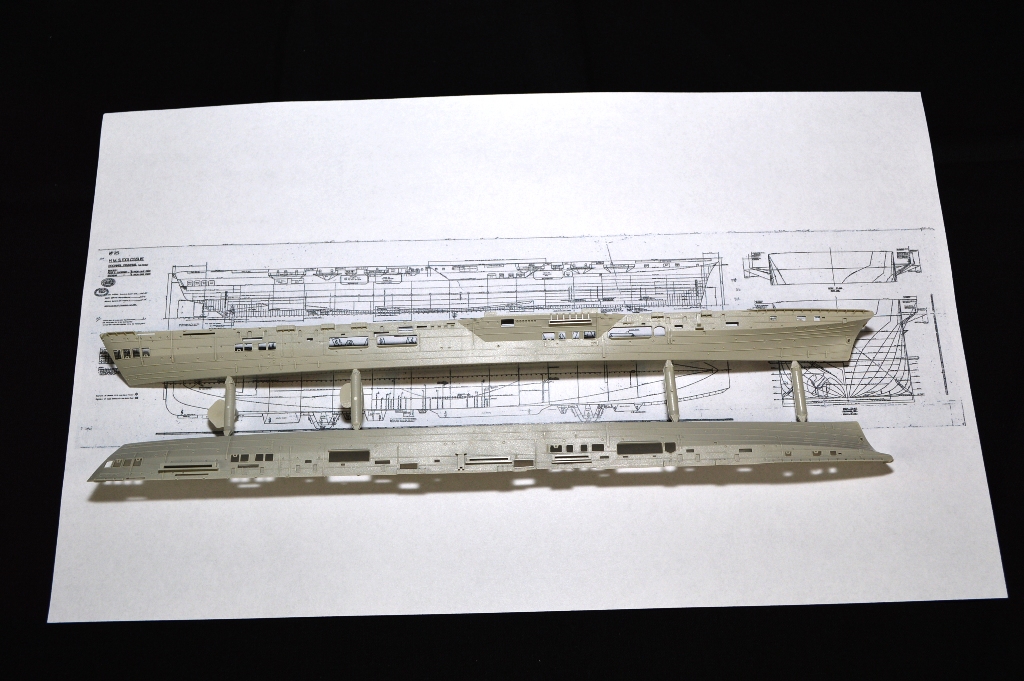

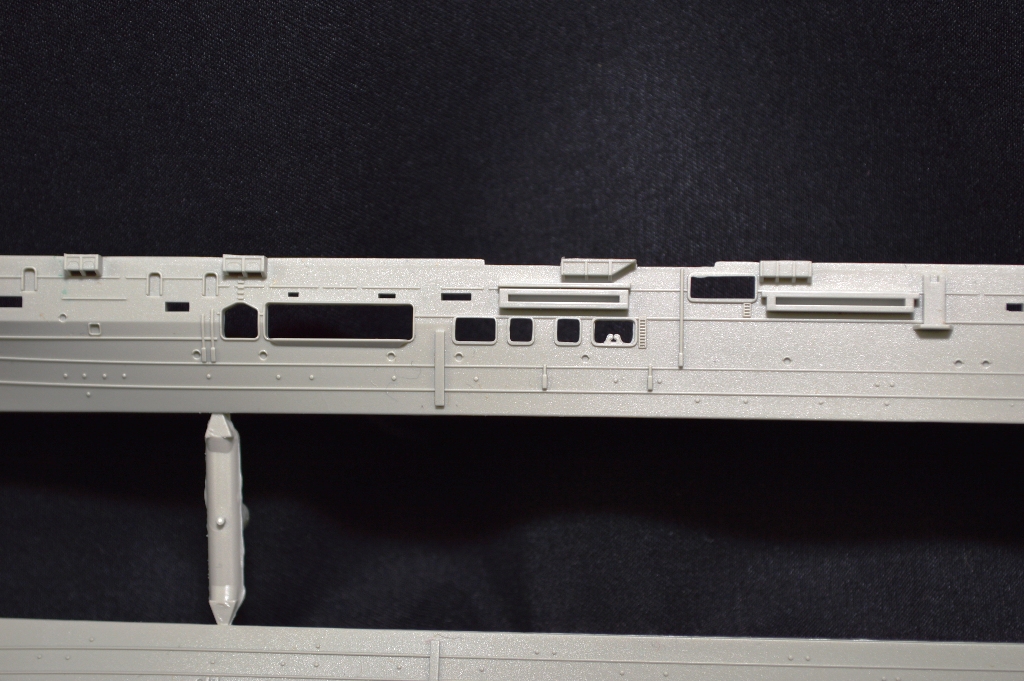

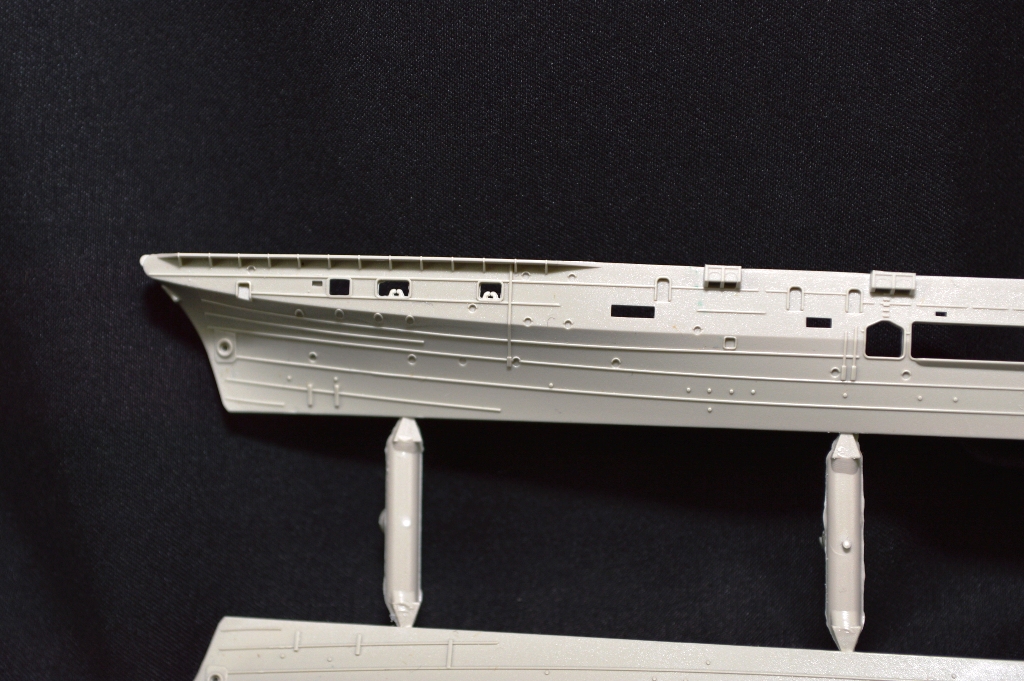

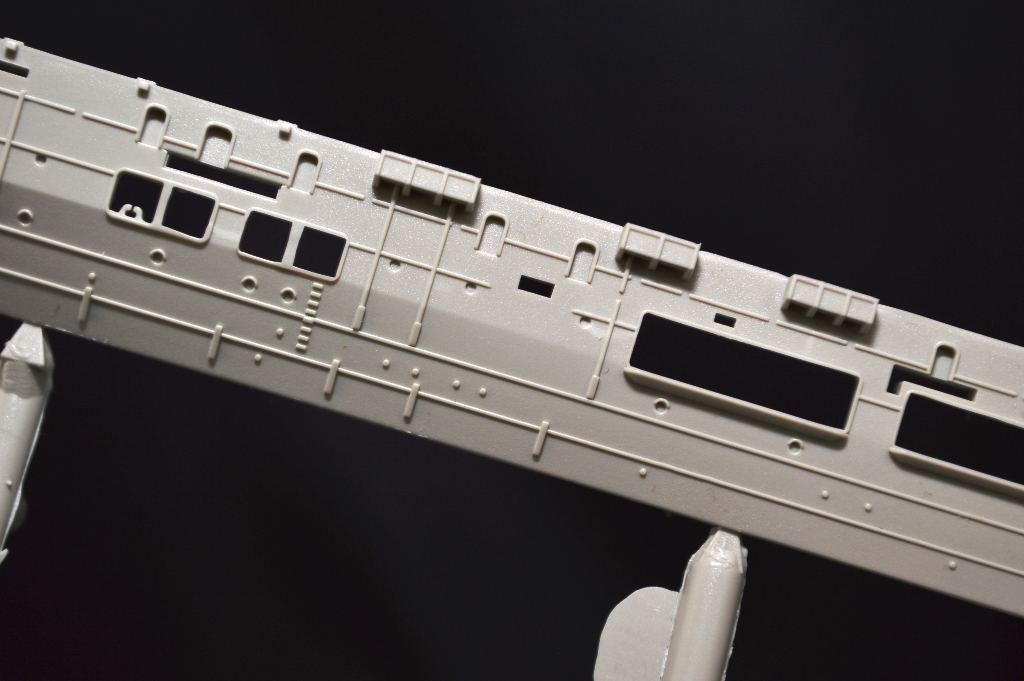

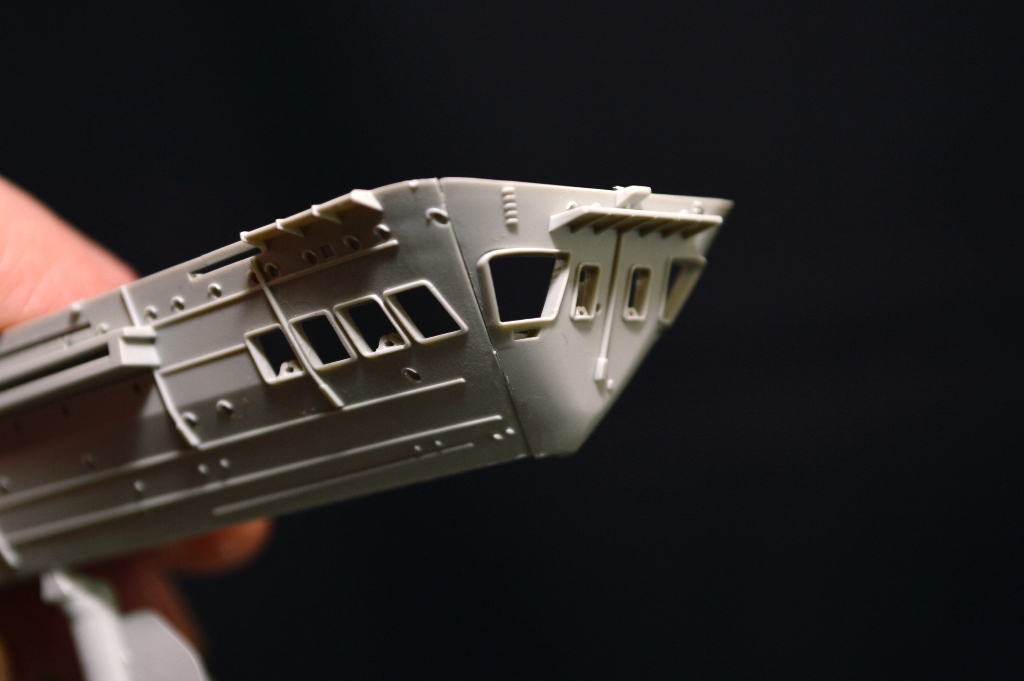

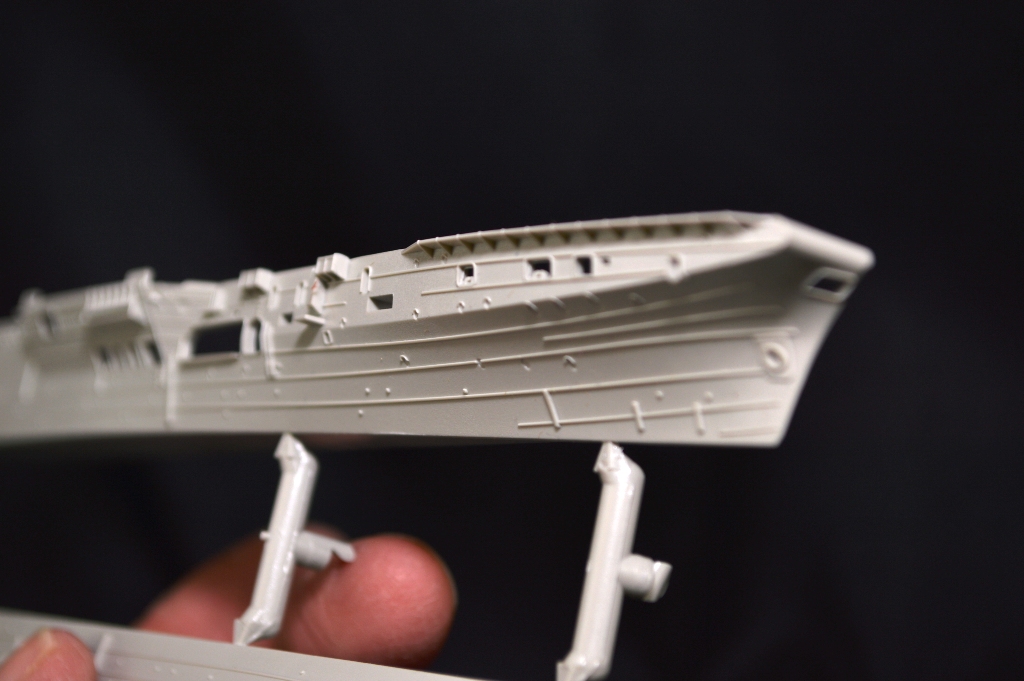

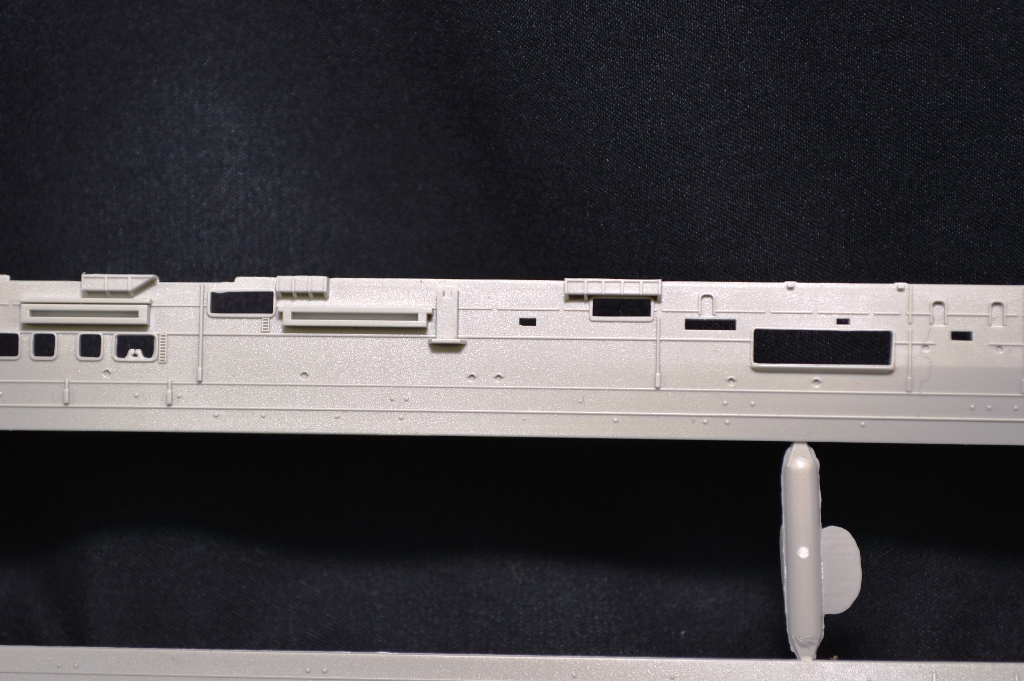

The hull is split into three pieces - two halves and a cleverly designed stern section.    The hull scales out very close to the real thing in length and beam.  There is good detail on the hull, like eyebrows over the portholes, ladders, chocks, combing around the boat pockets and other openings in the hull.   As mentioned in the Colossus review, I think the strakes on the hull are a bit overstated, but should look more subdued under a coat of paint.

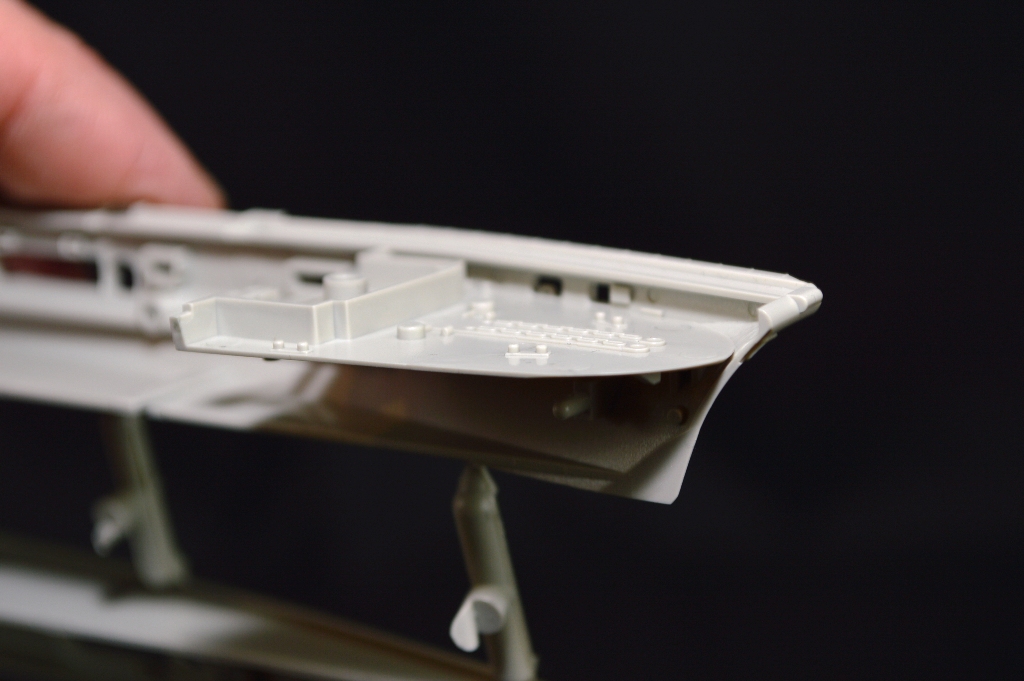

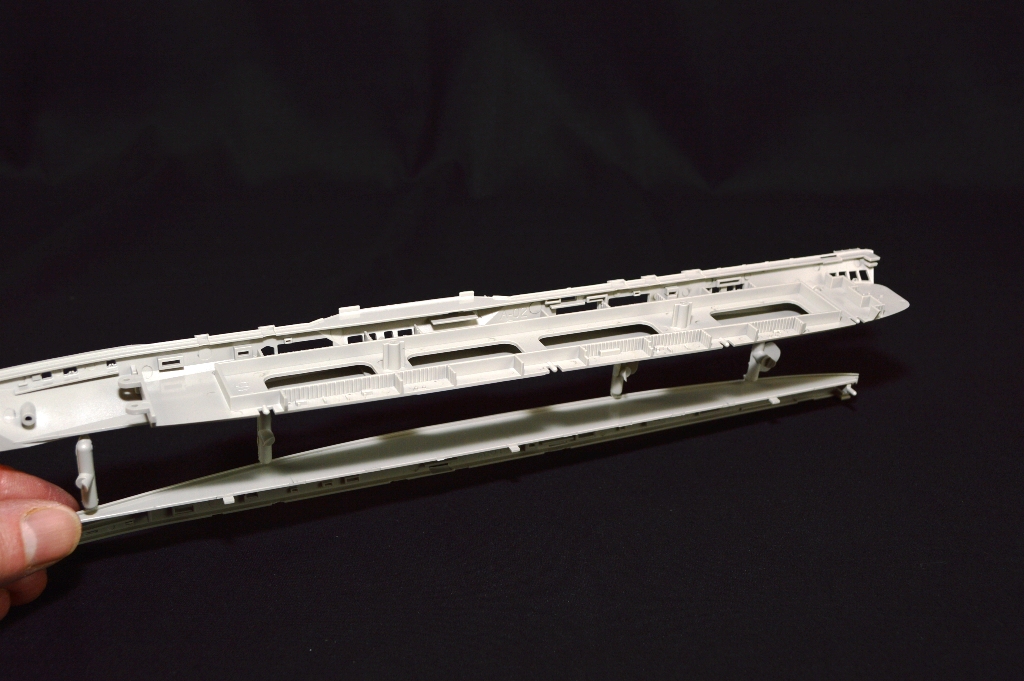

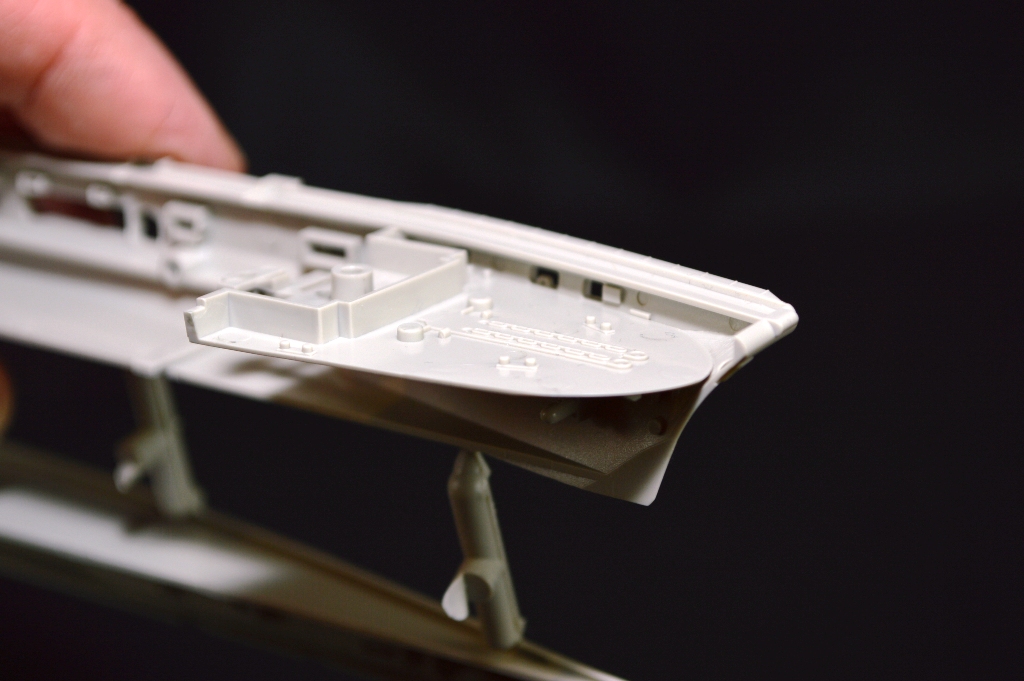

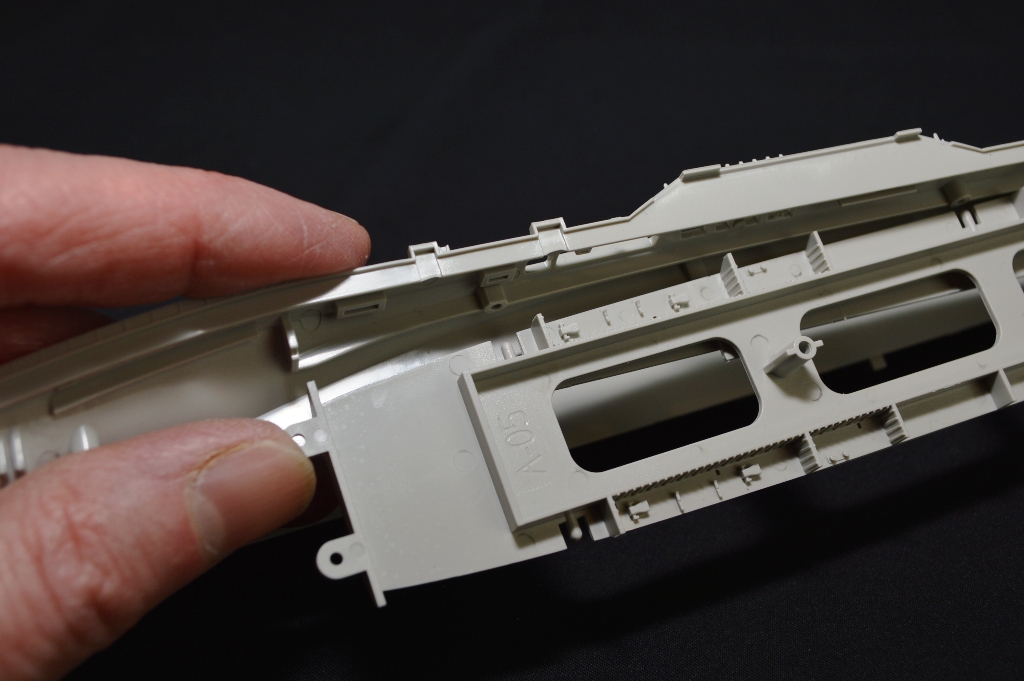

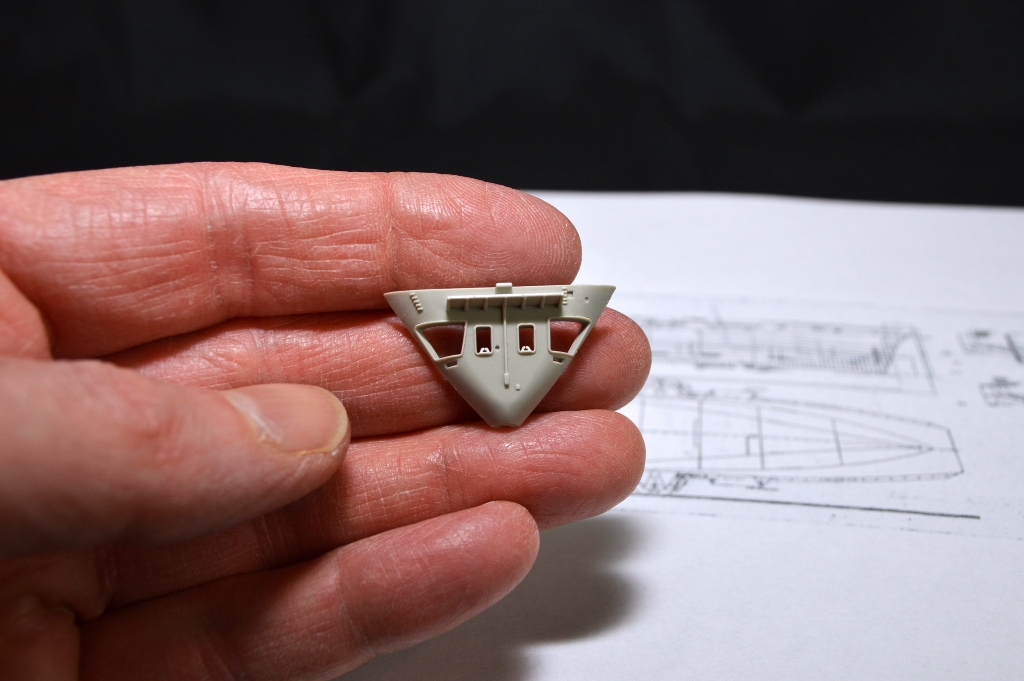

The two part hull is engineered with the "waterline plate" integral to the hull, with tabs that help with alignment.  Very clever.  I also like IHP designed the stern to be a separate piece, eliminating an ugly seam down the center of the stern.  You will, however, probably have to be careful not to lose any detail when you blend the stern into the main hull.   The foc'sle and boat decks are engineered to fit into the hull before the halves are joined together.


DECKS
There are three decks in the kit - flight deck, boat deck and foc'sle deck.

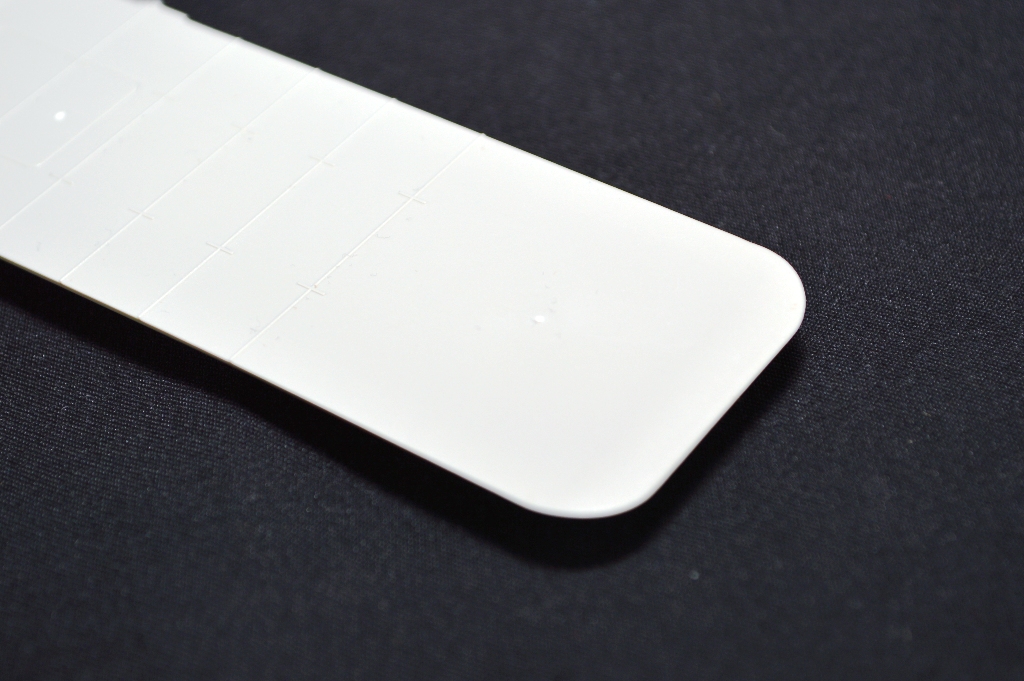

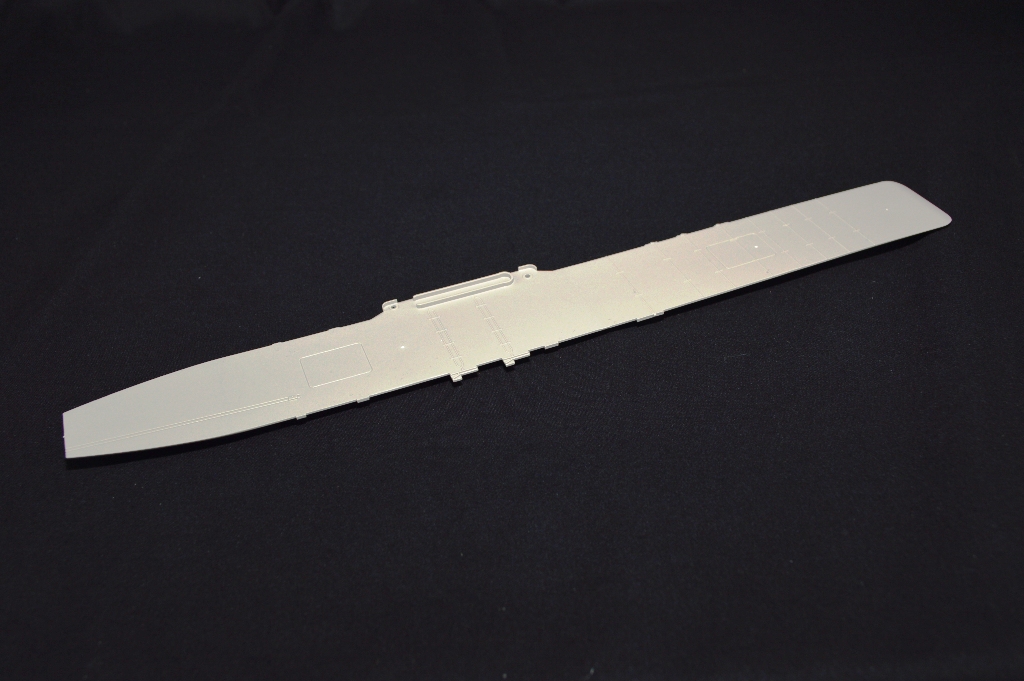

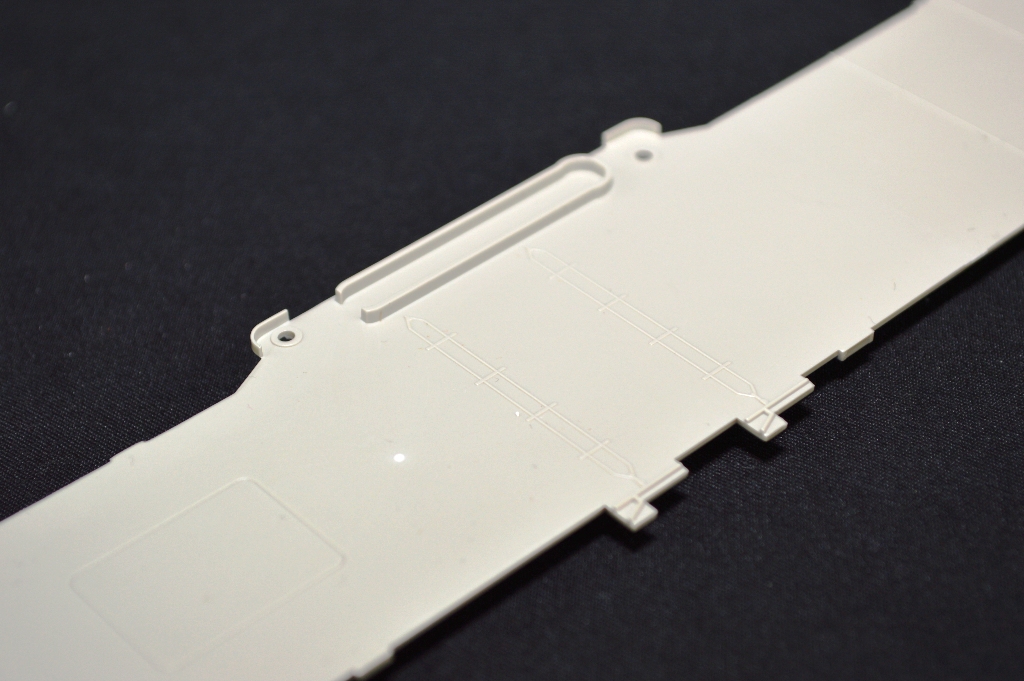

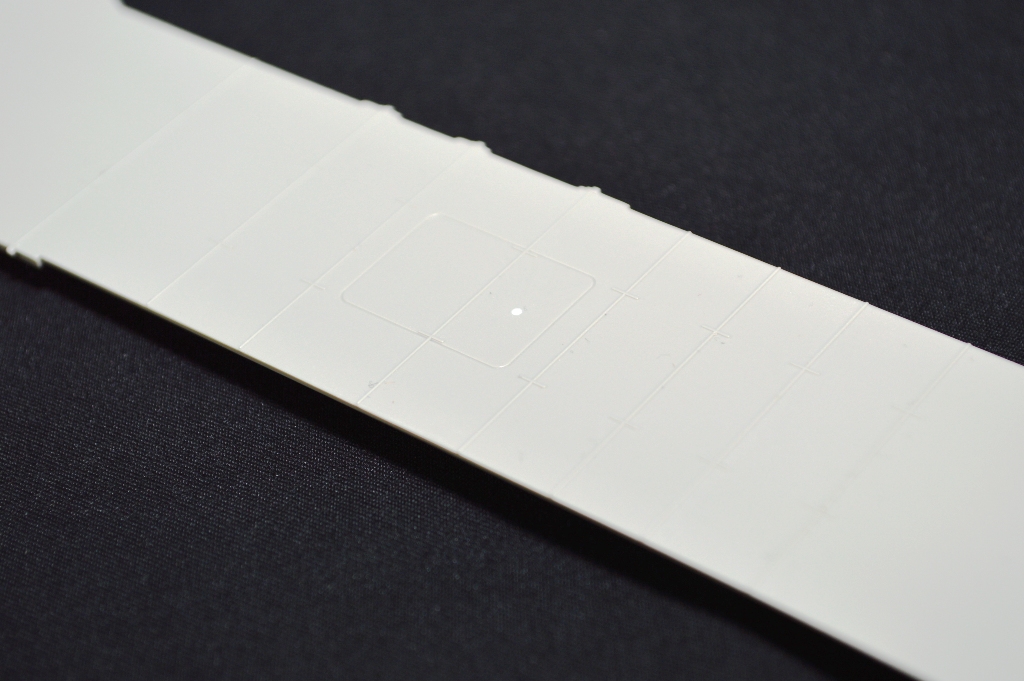

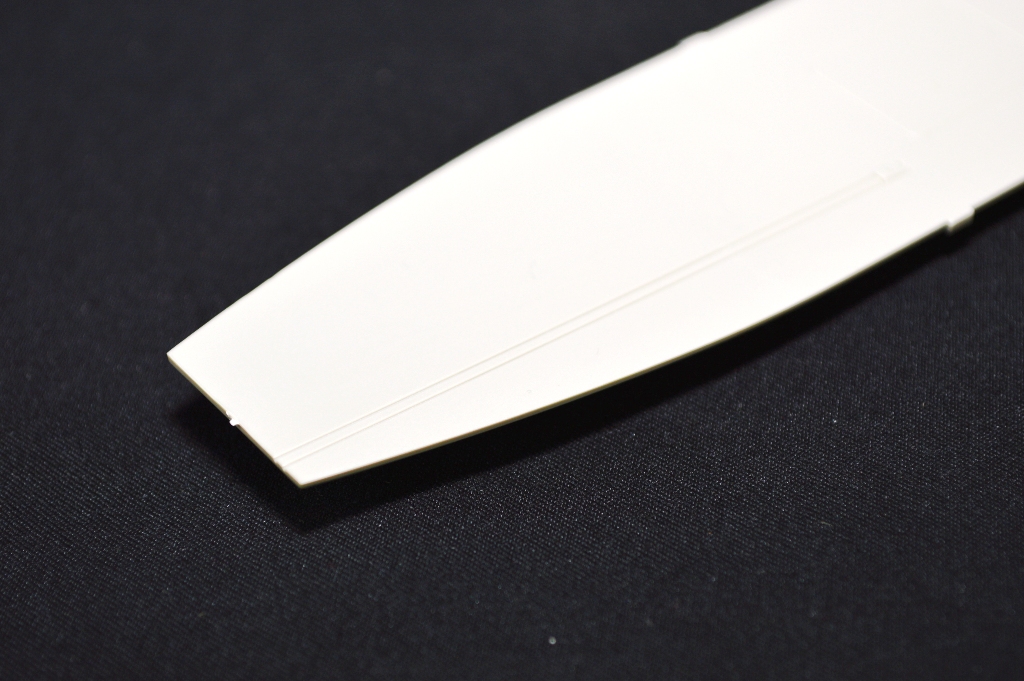

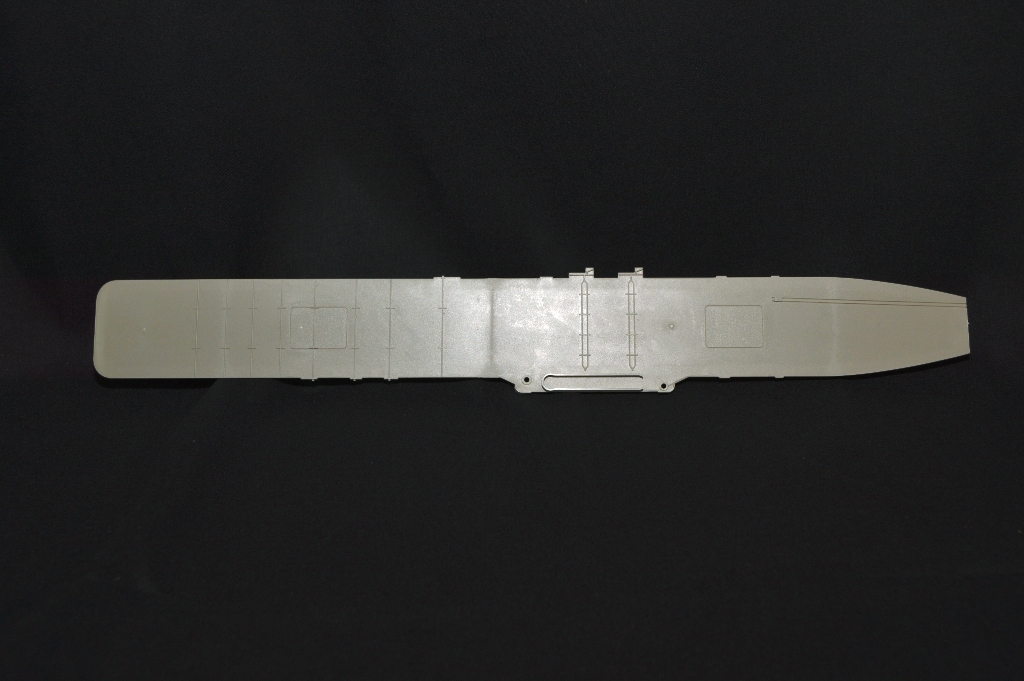

Flight Deck - The flight deck is the largest of the three decks.  The arrestor wires and crash barrier are molded as raised lines to the deck.   The catapult and elevators are engraved onto the deck.   The splinter shields on the edge of the deck are thin and look good.   There are a few spots on the deck that need to be cleaned up - maybe mold release points? - but they should be easy to remove.

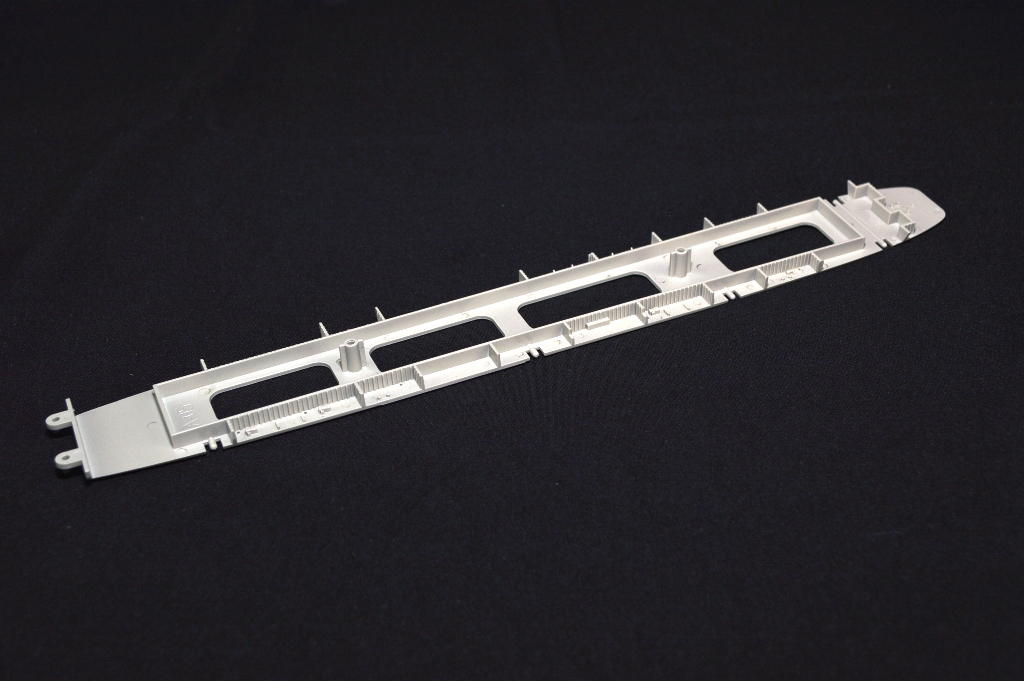

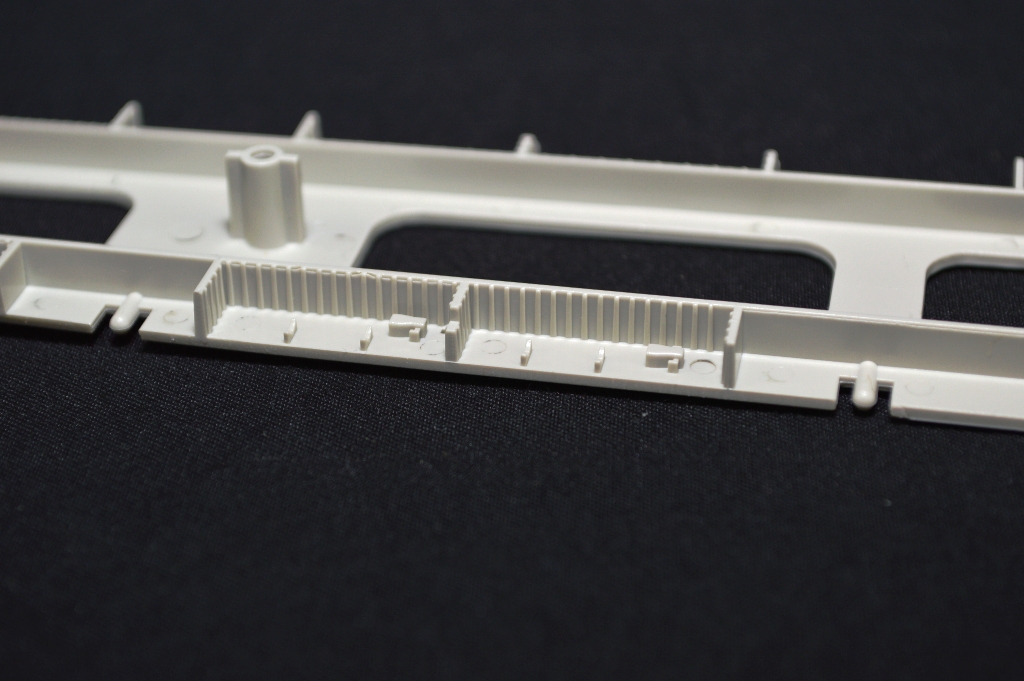

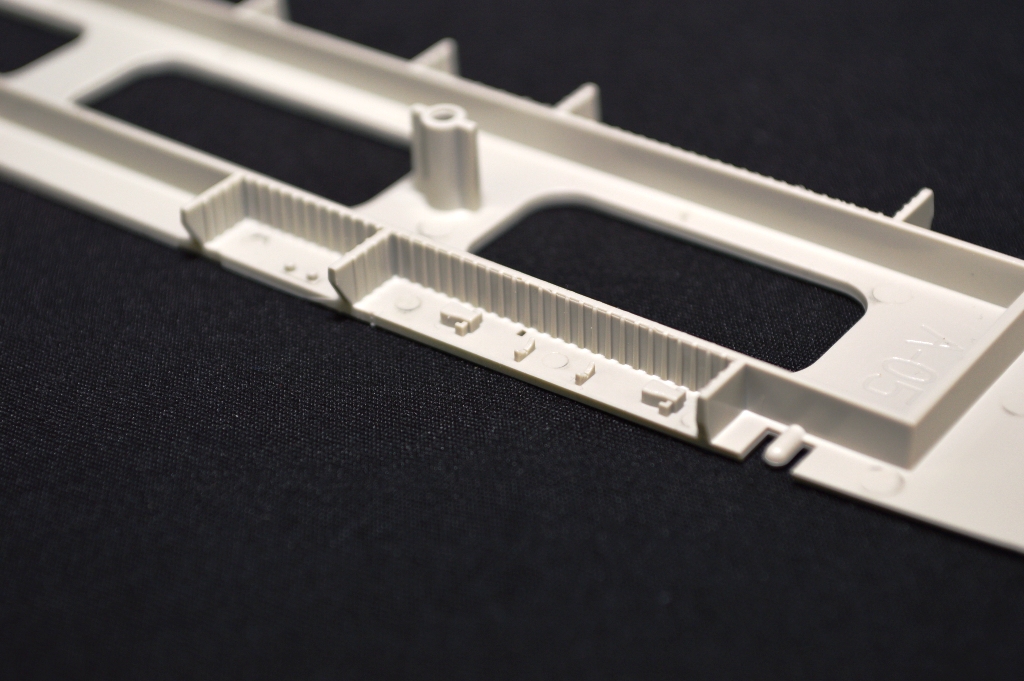

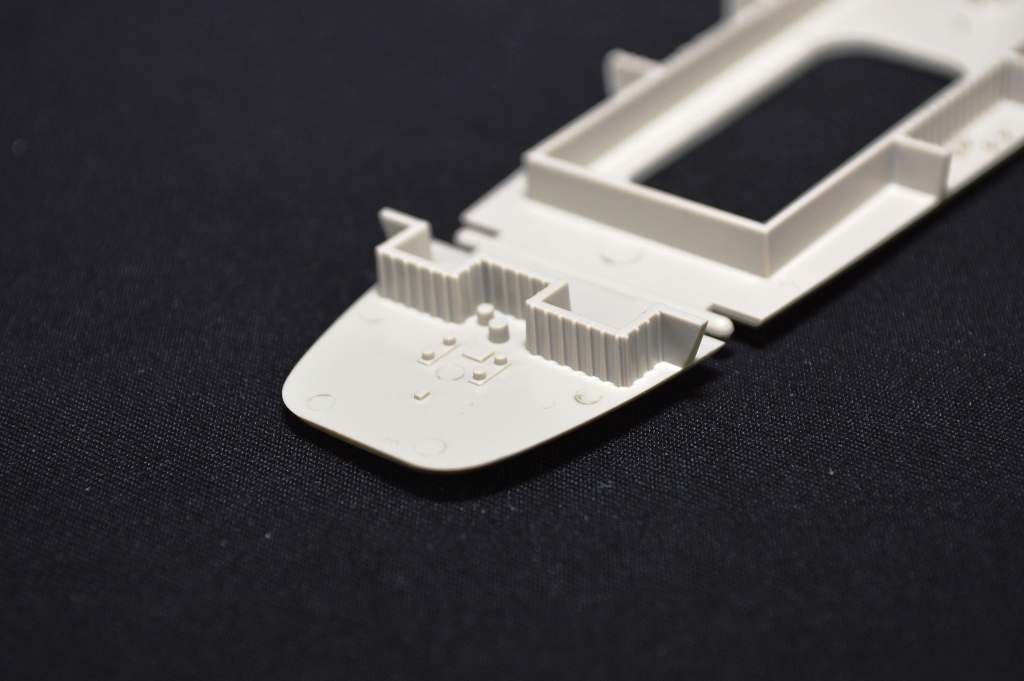

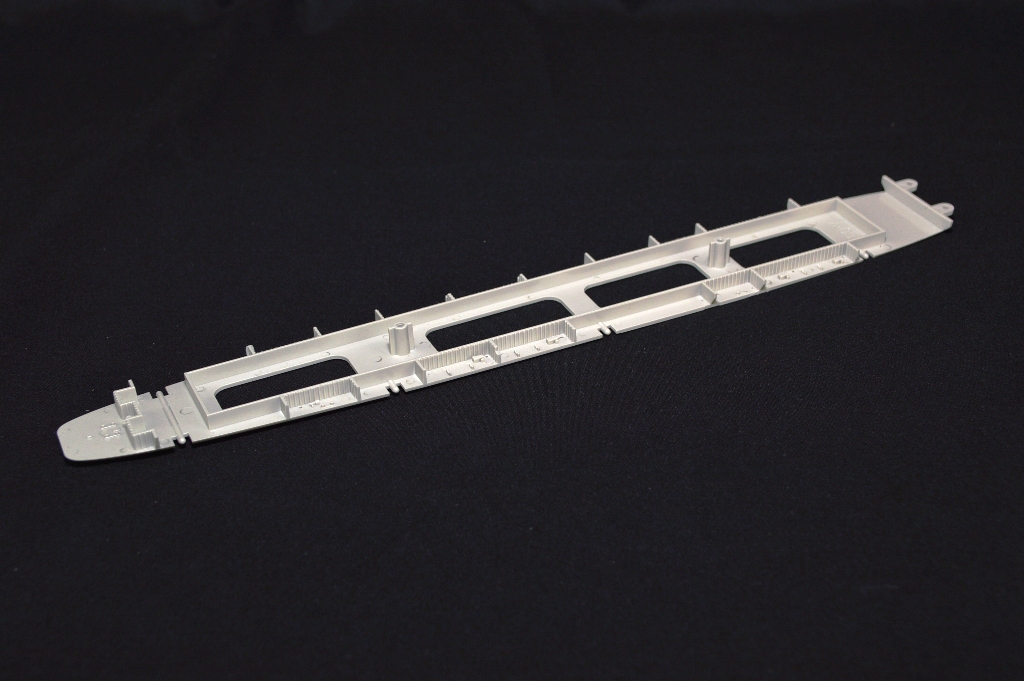

Boat Deck - The boat deck is the next largest of the decks.   The deck has cleverly been designed to click into the sides of the hull, so it fits perfectly and also supports the hull.   Each boat pocket has detail on the bulkheads and separate plastic inclined ladders.

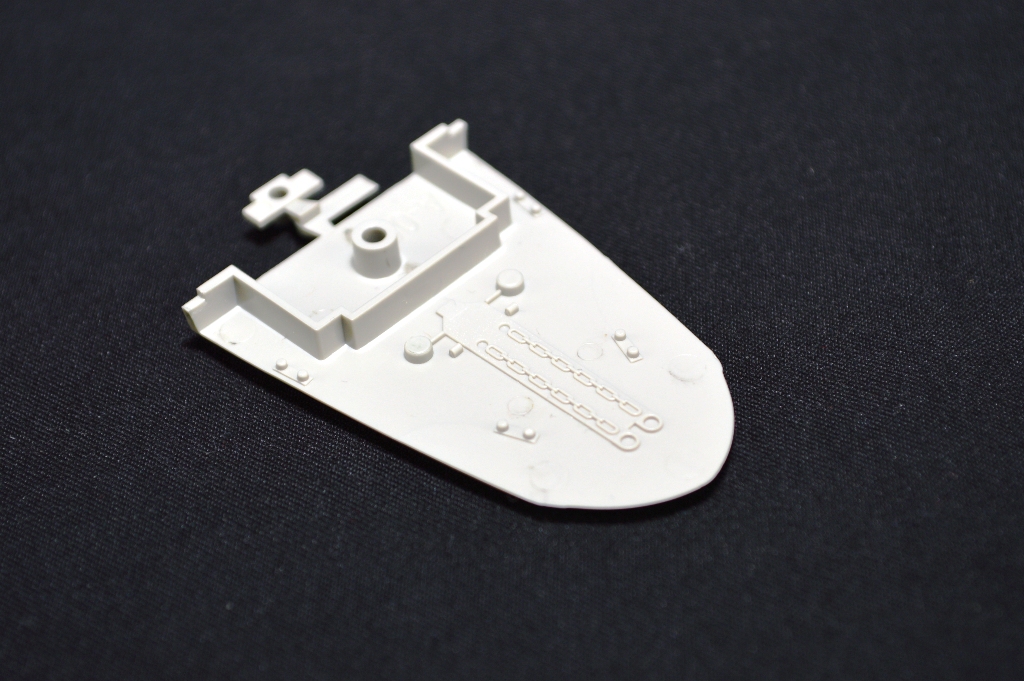

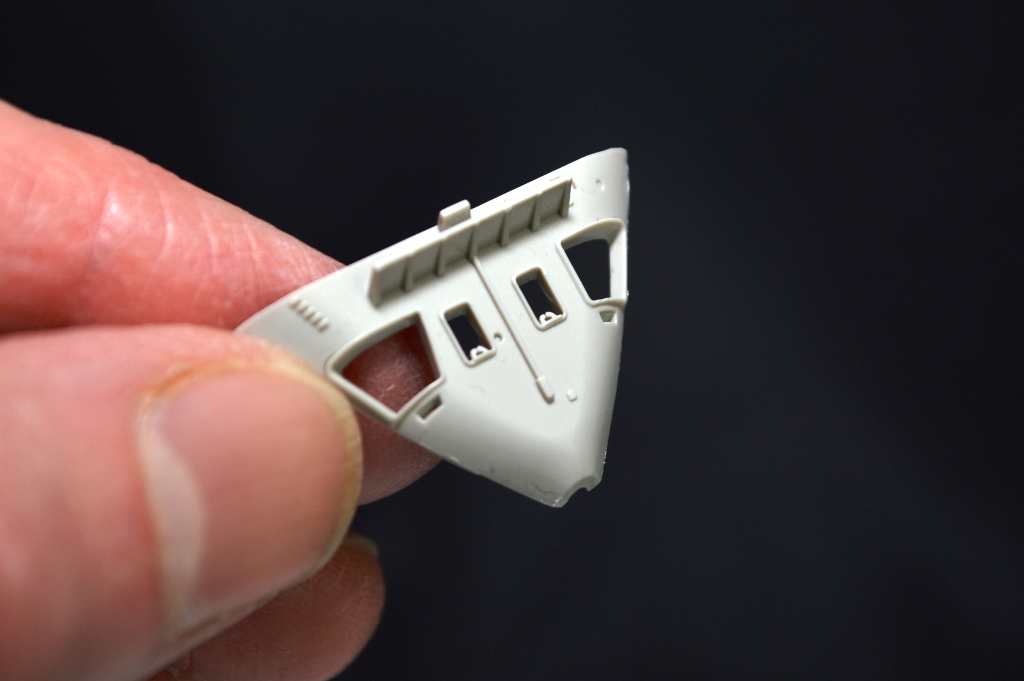

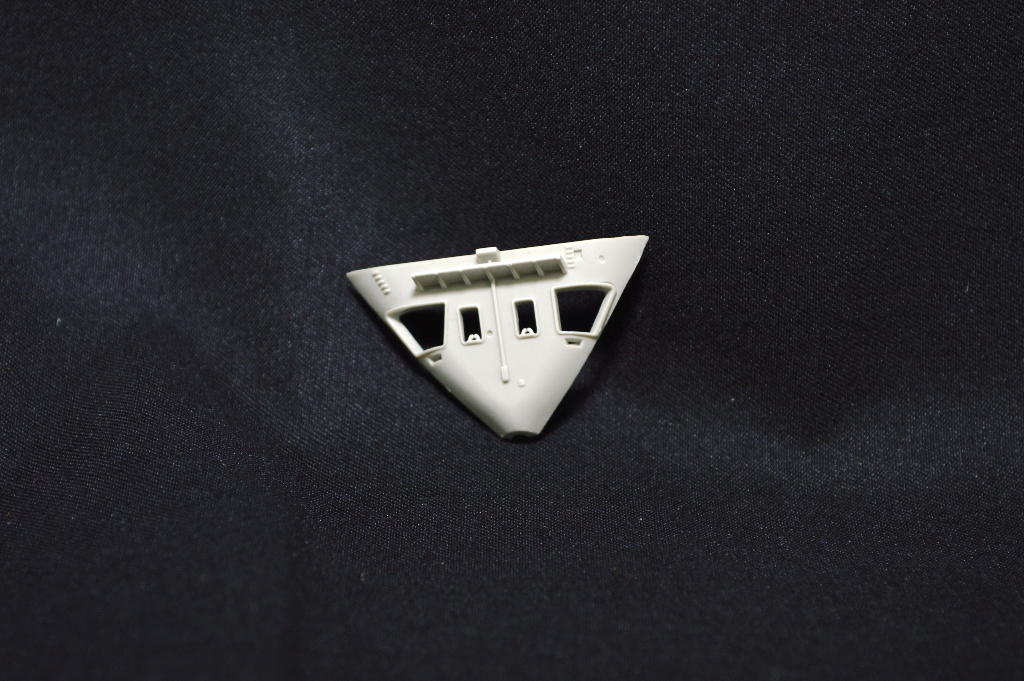

Foc'sle Deck - The smallest of the decks is the foc'sle, which has molded on anchor chain.   This part is going to be hard to see through the openings in the sides of the hull, so you won't notice the knock out pin marks on the deck.


ISLAND

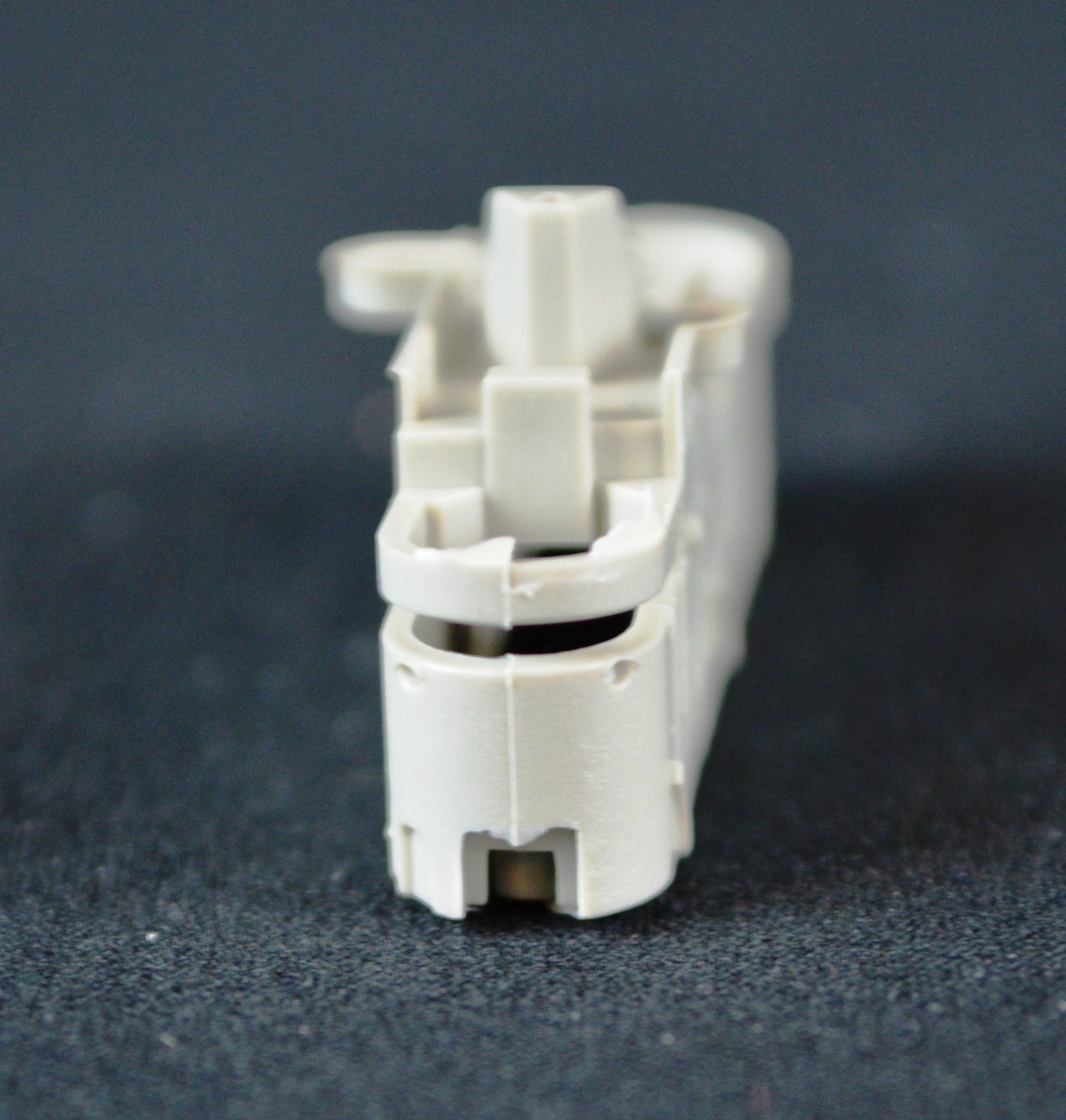

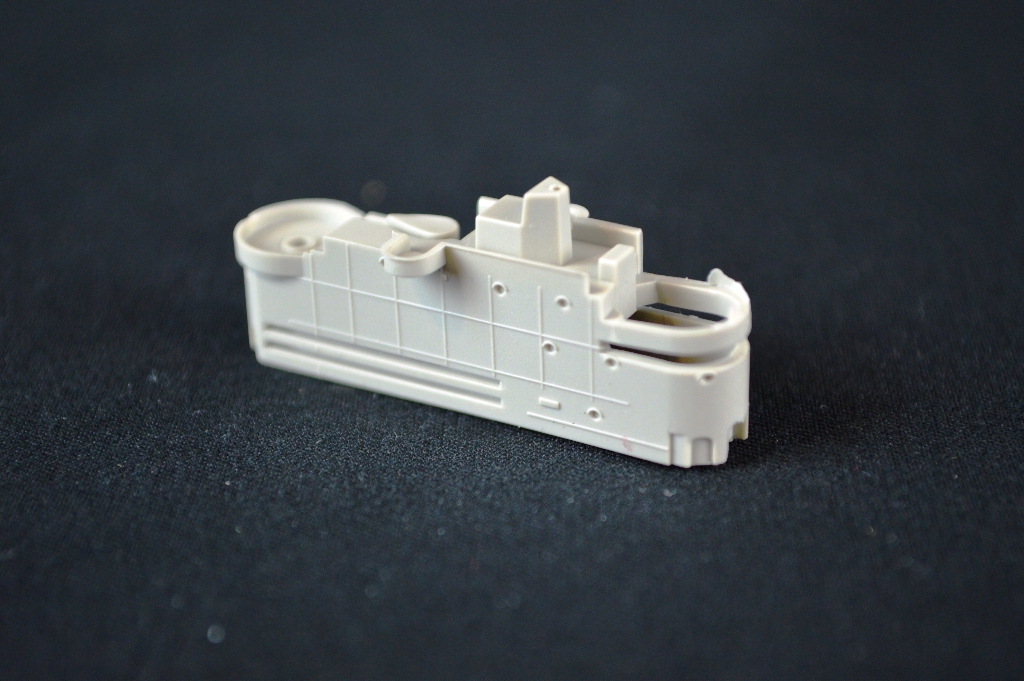

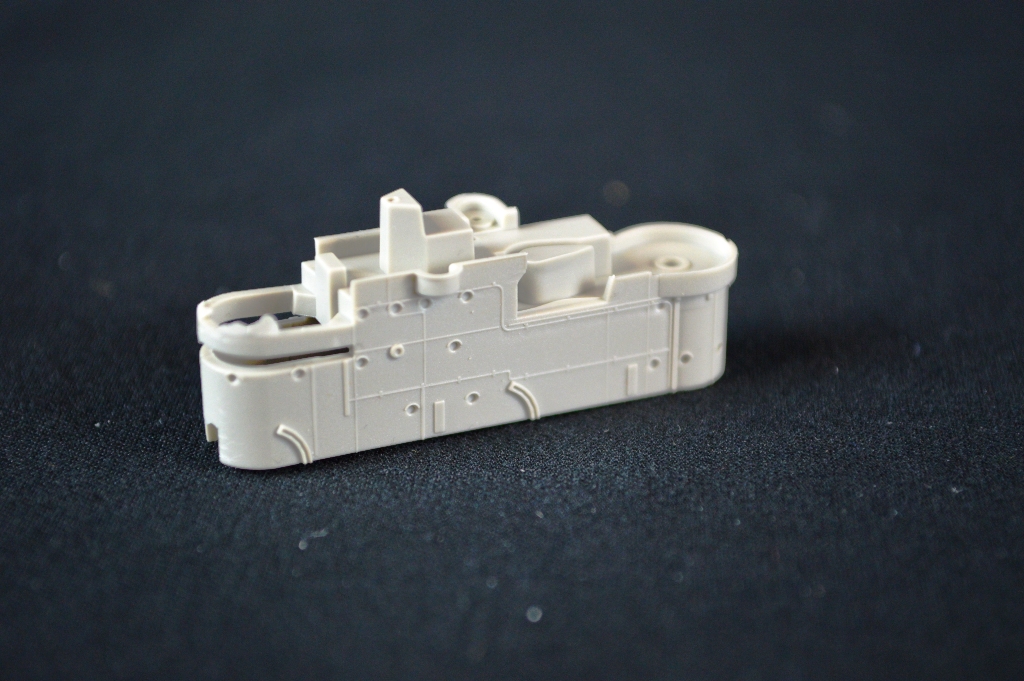

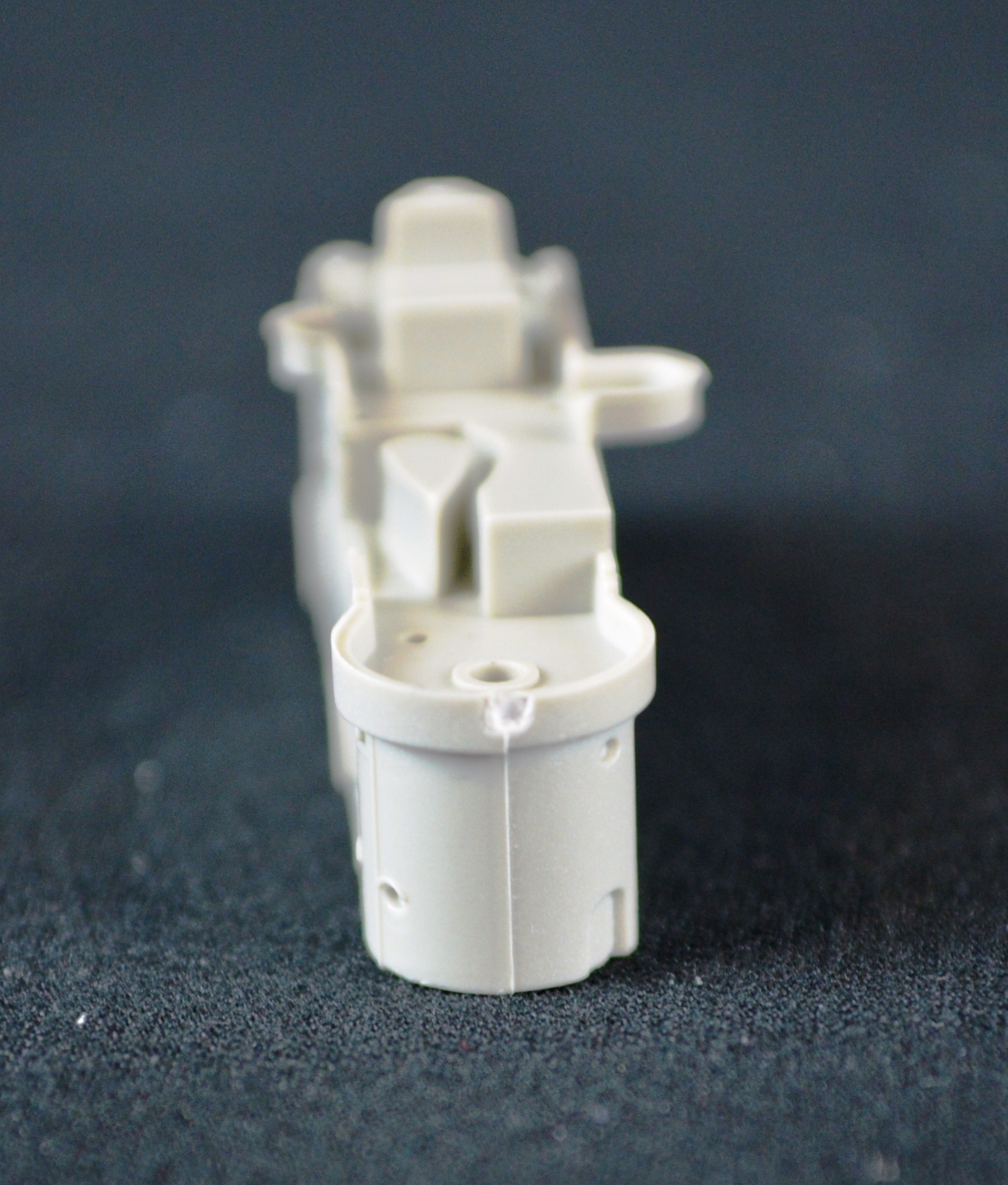

The island is a separate part. It features good details, with portholes and subtle piping.

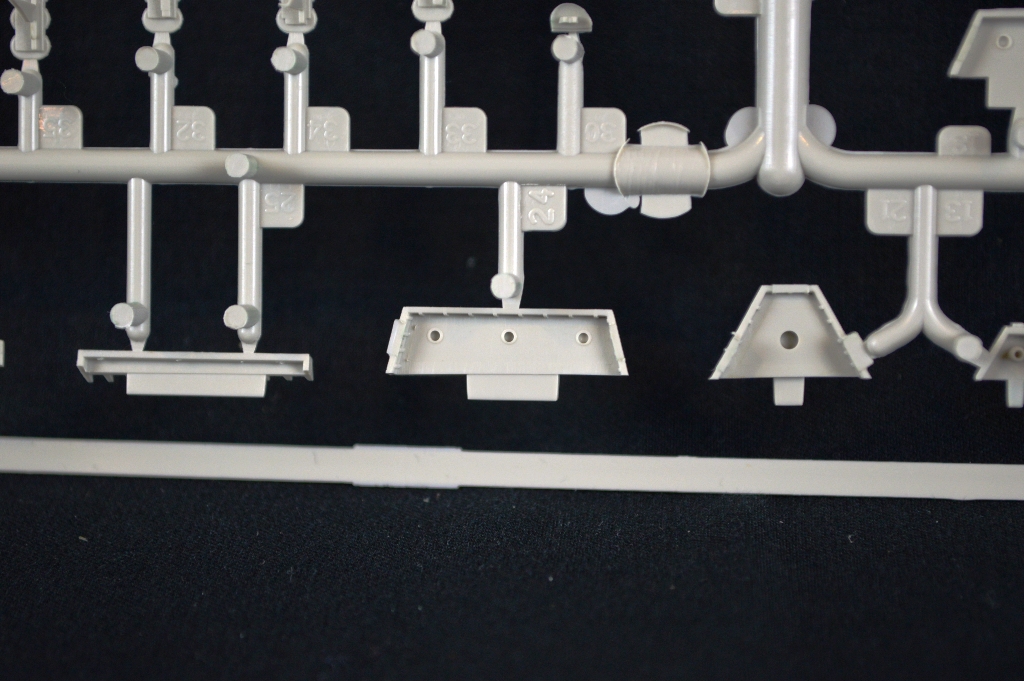

SPRUE B

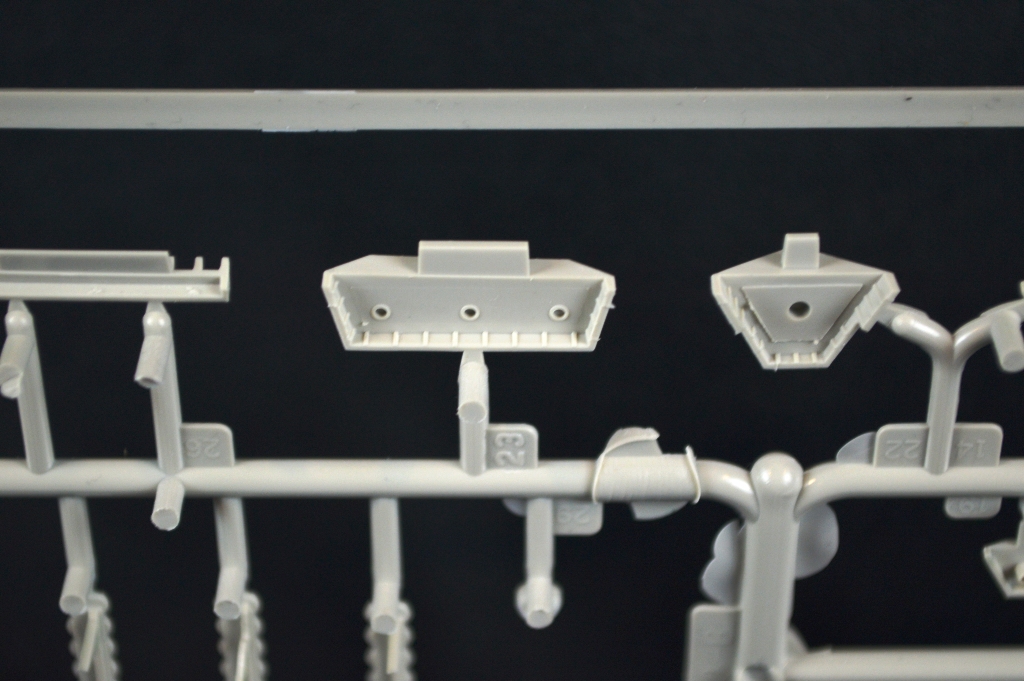

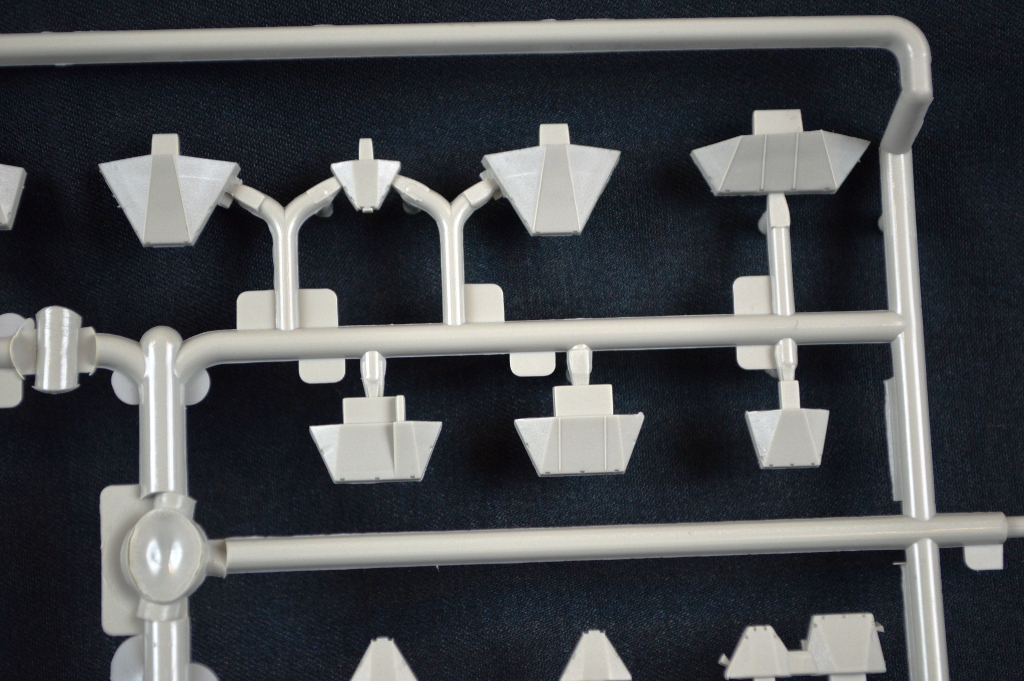

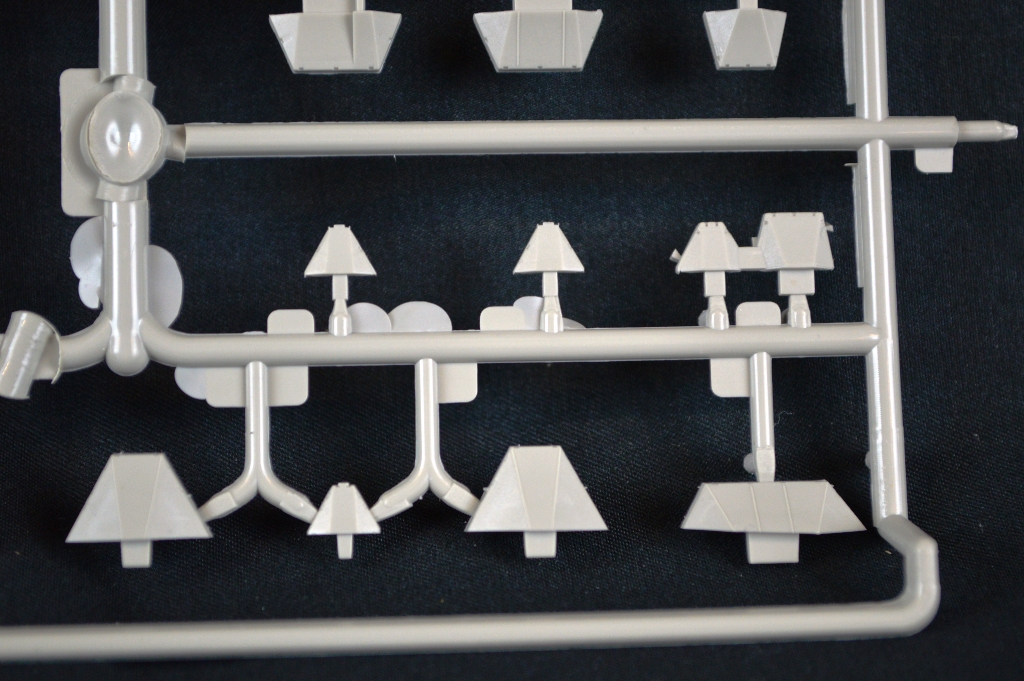

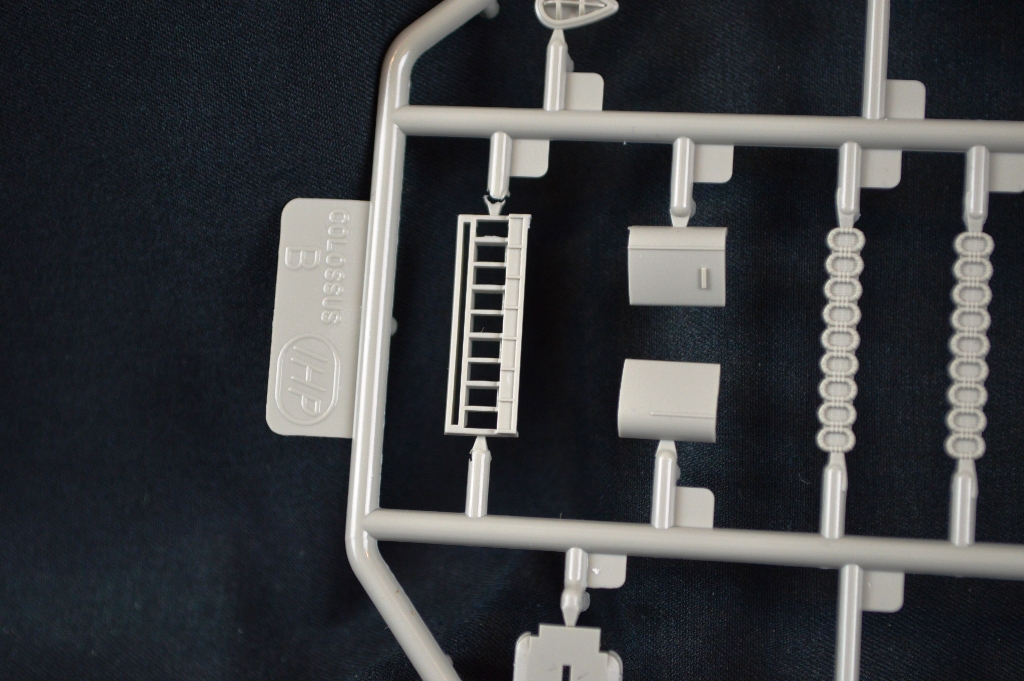

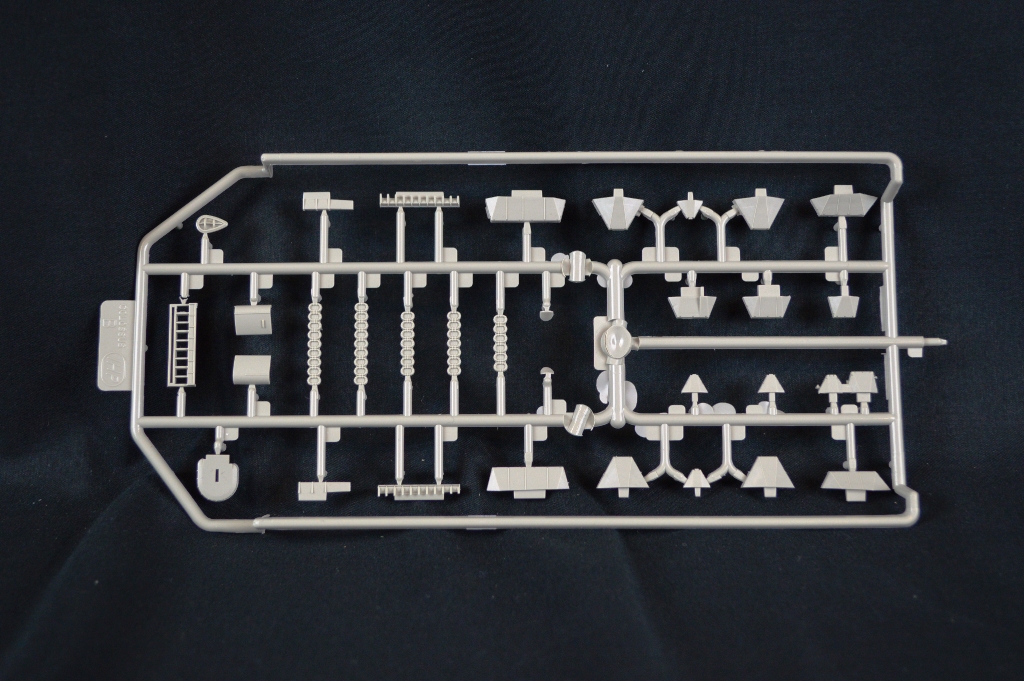

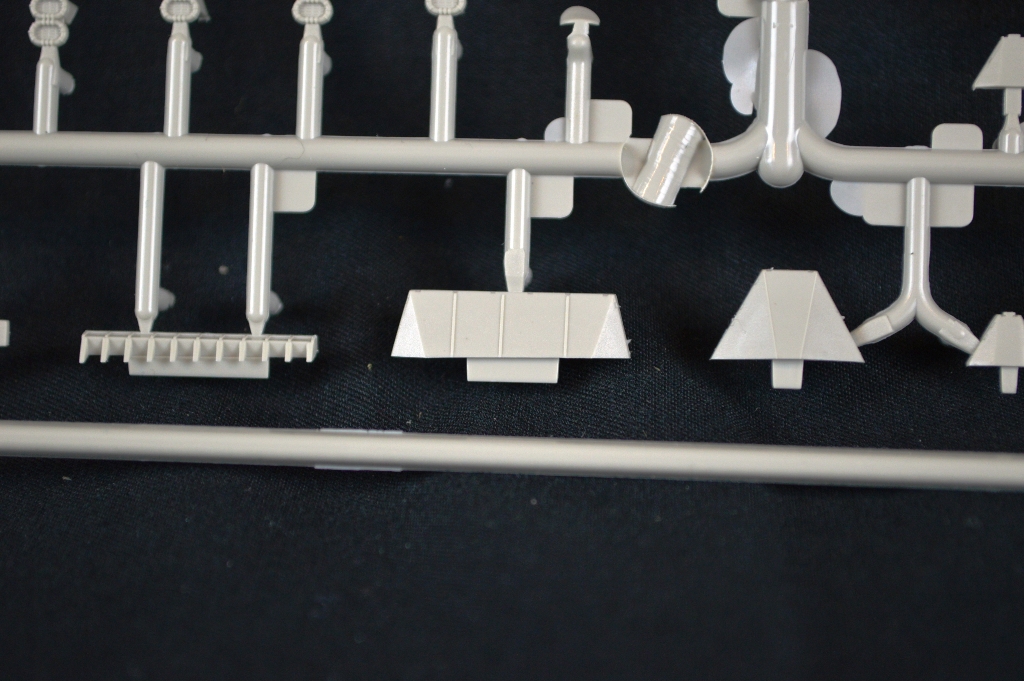

This largest of the sprues contains sponsons, rafts, the two sides of the funnel and the funnel cap.    Detail is good, especially on the sponsons, with bracing molded on the inside of some of the sponsor splinter shields.  The rafts look good, while funnel cap could stand for a photo-etch replacement.

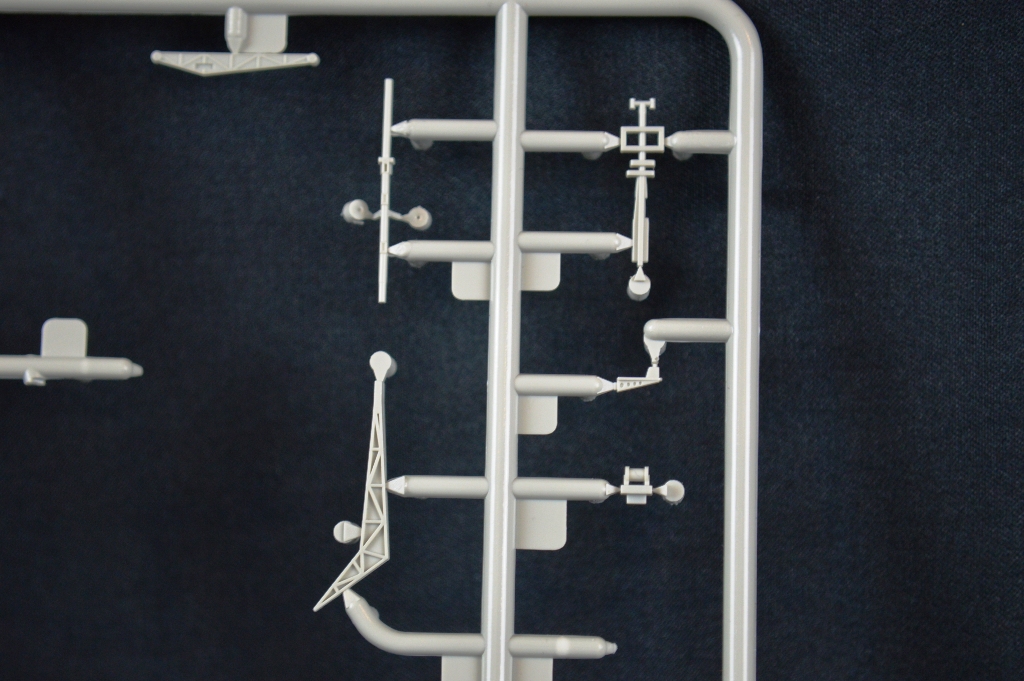

SPRUES C

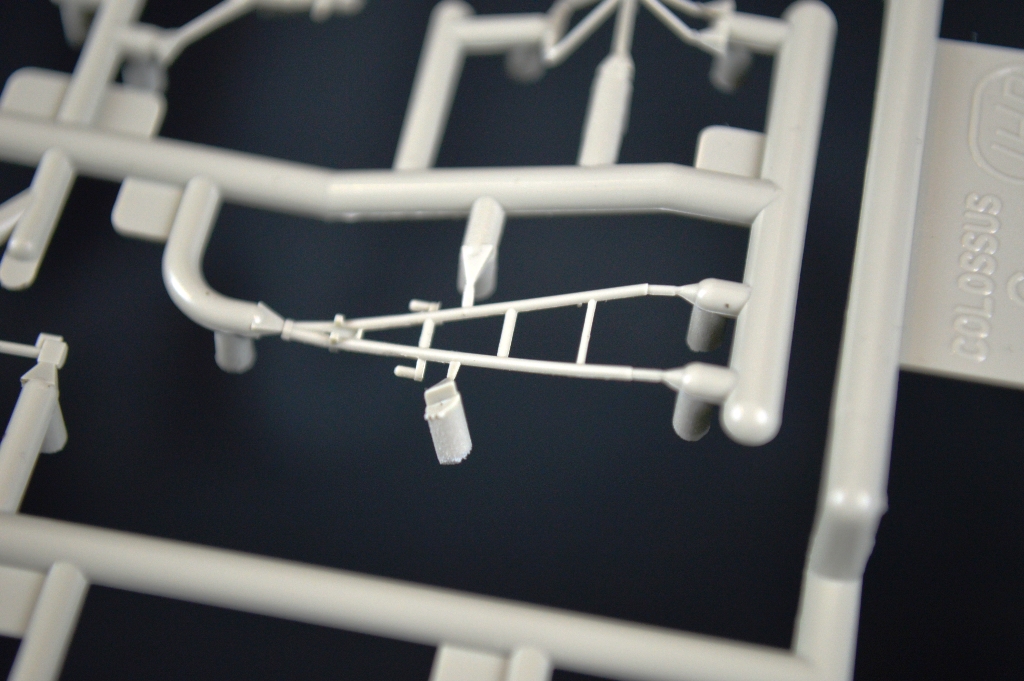

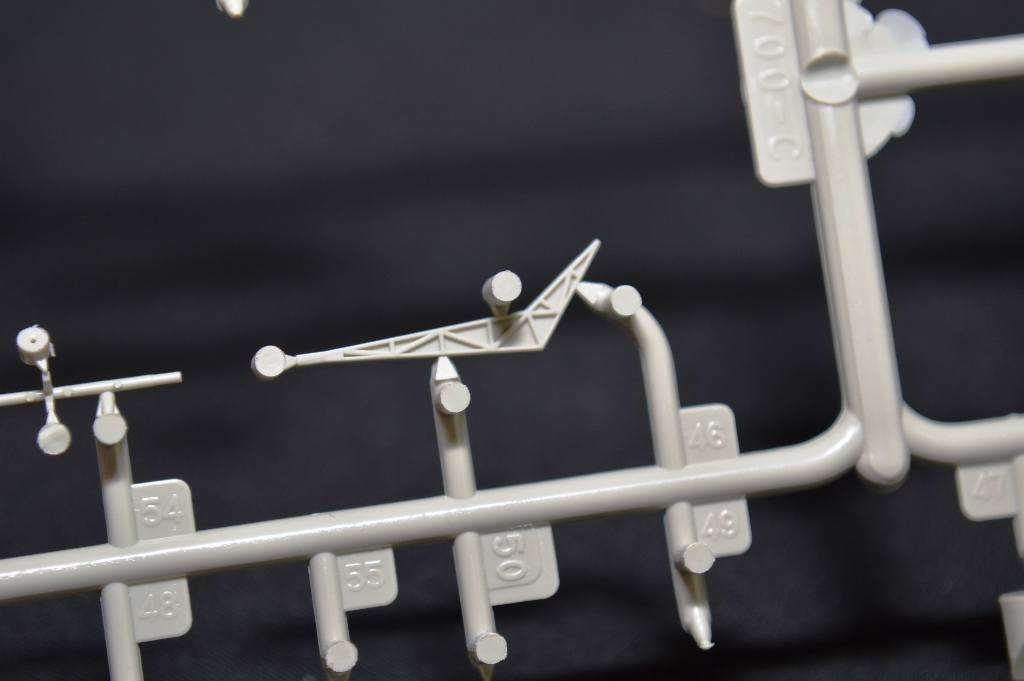

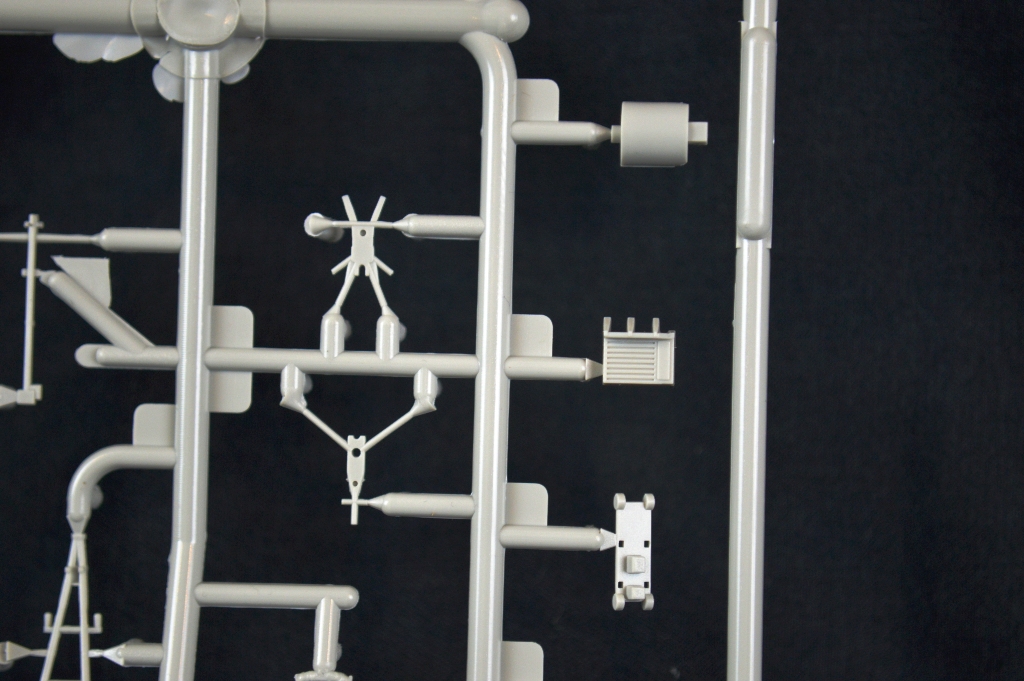

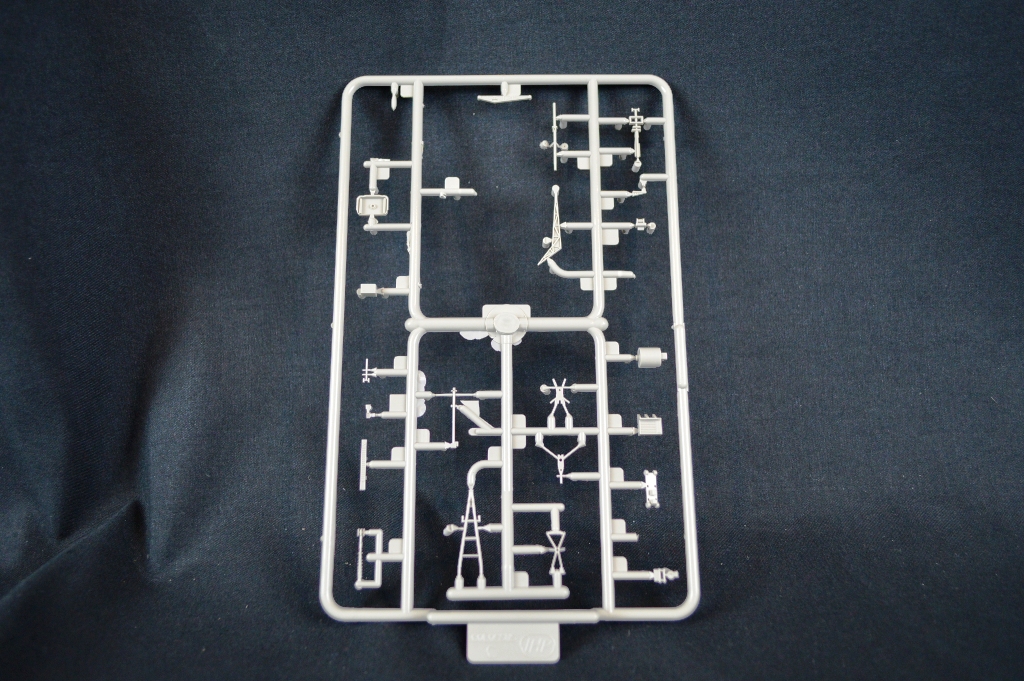

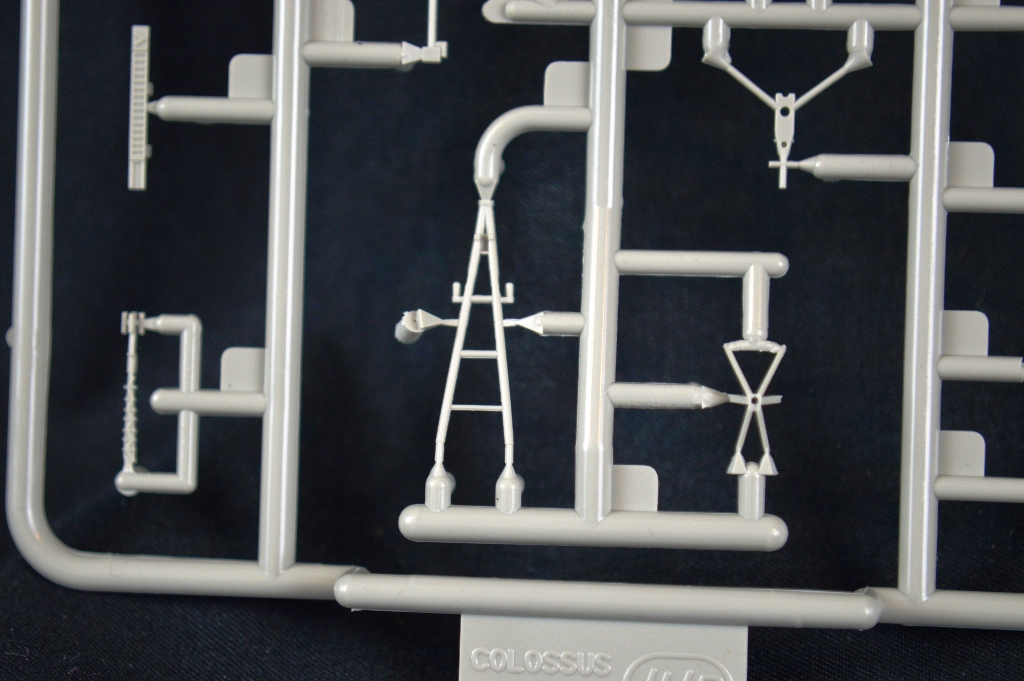

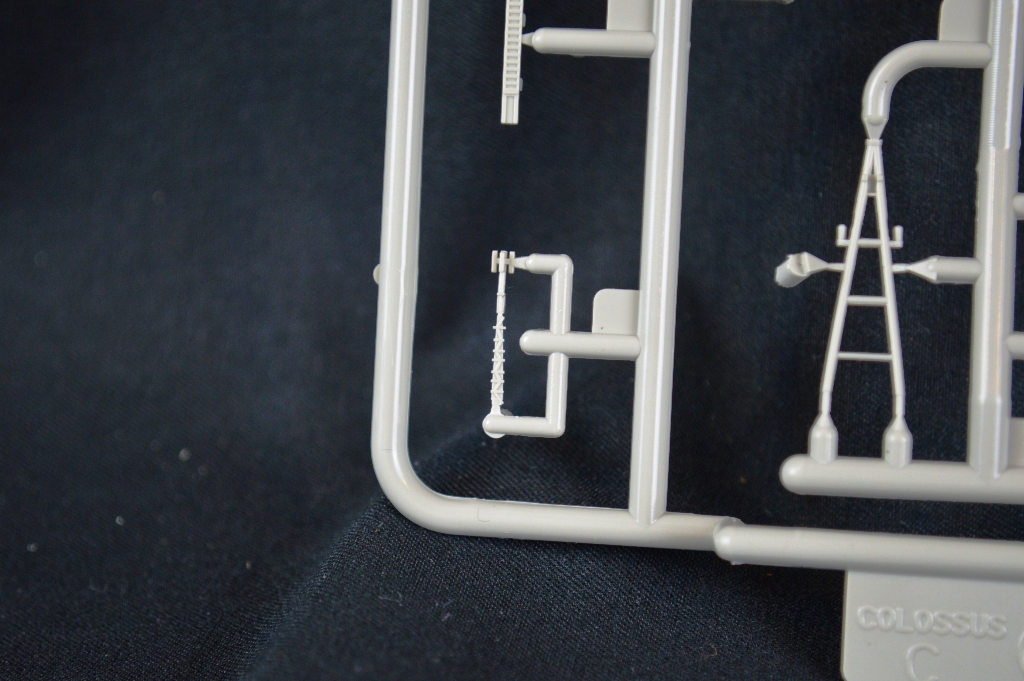

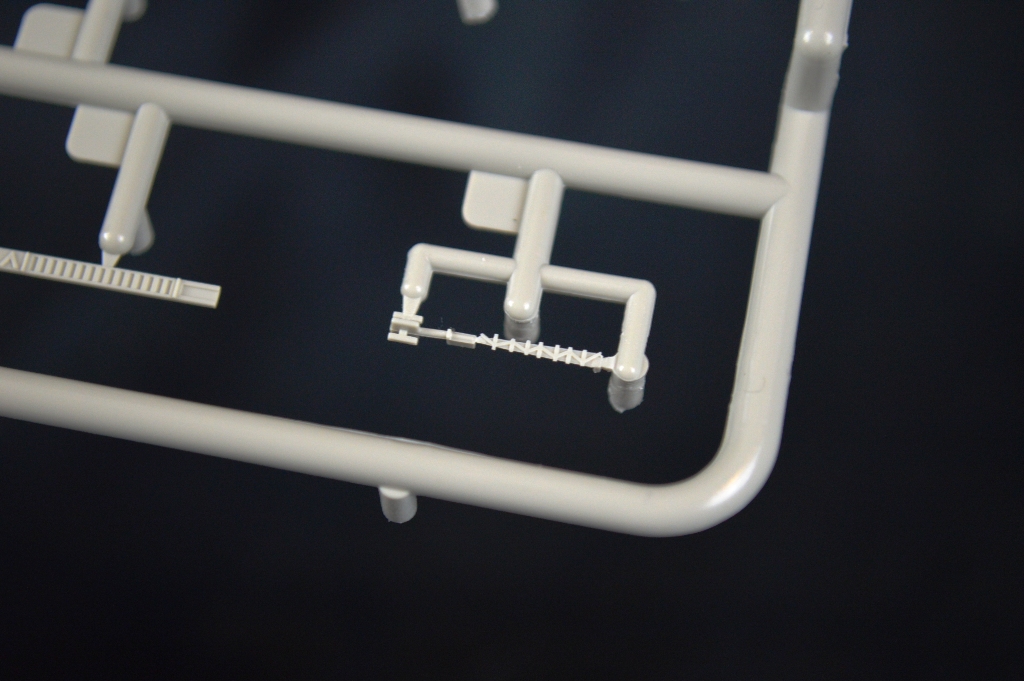

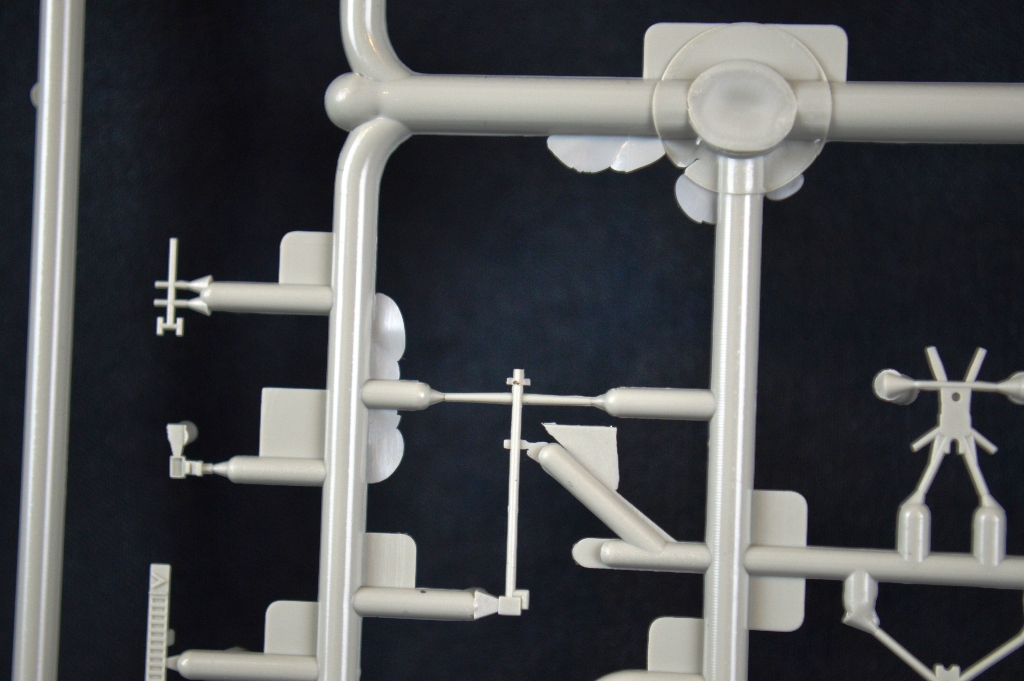

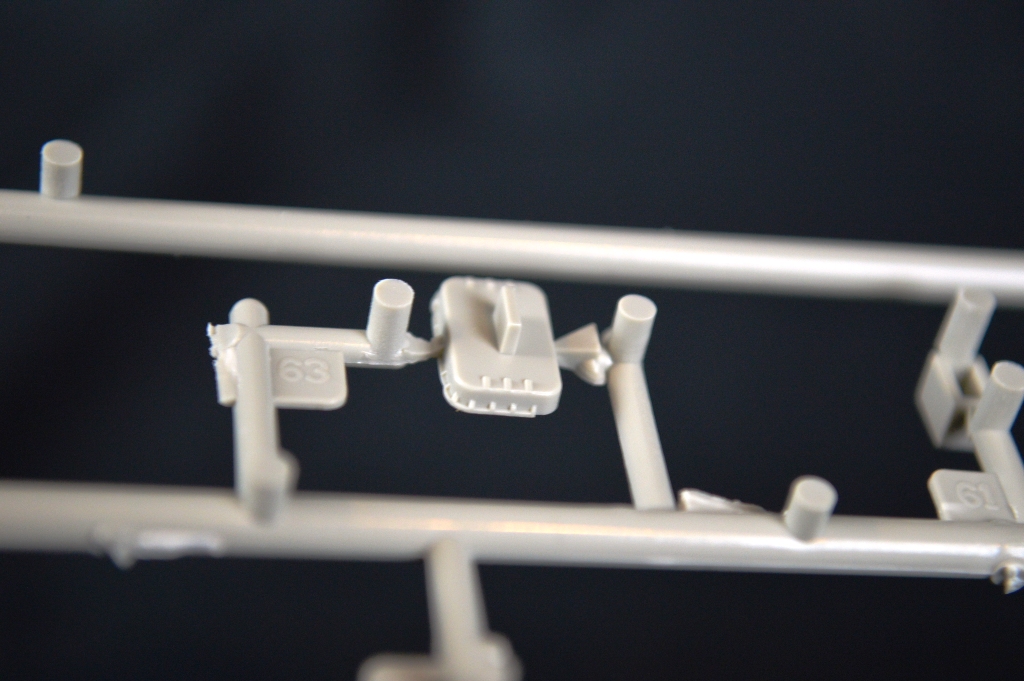

This sprue is slightly different than the one in Triumph, but almost identical. Here you'll find the main mast, cranes, antenna, radar, what looks like a deck tractor, and other assorted parts.  The mast is really good for plastic.  The cranes are good, but like the funnel cap, would probably look better as a photo-etch part.

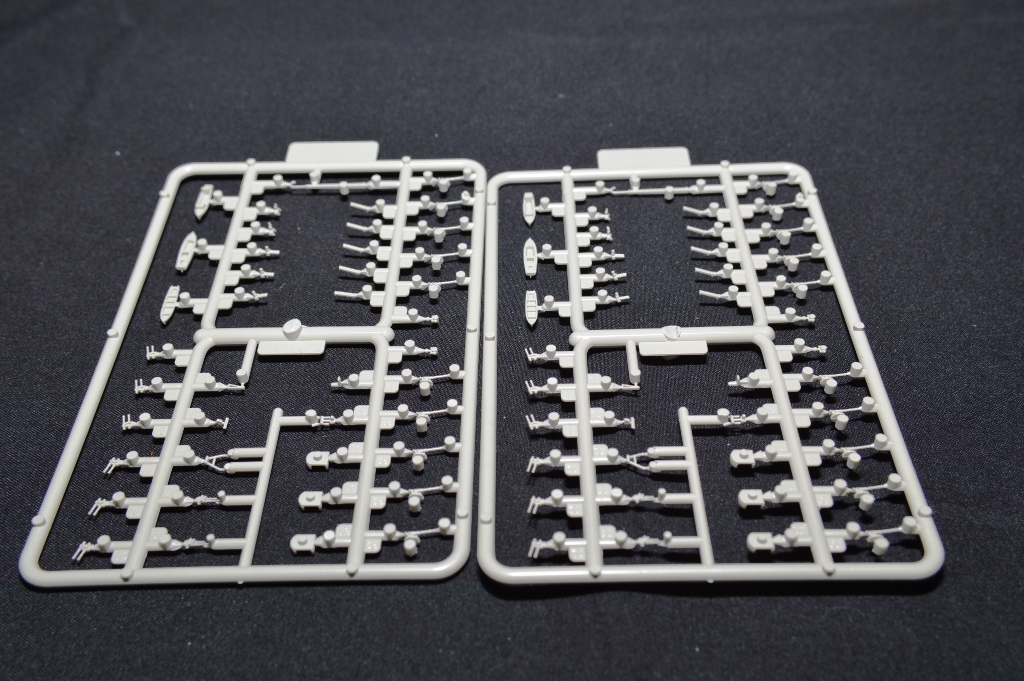

SPRUE D (X2)

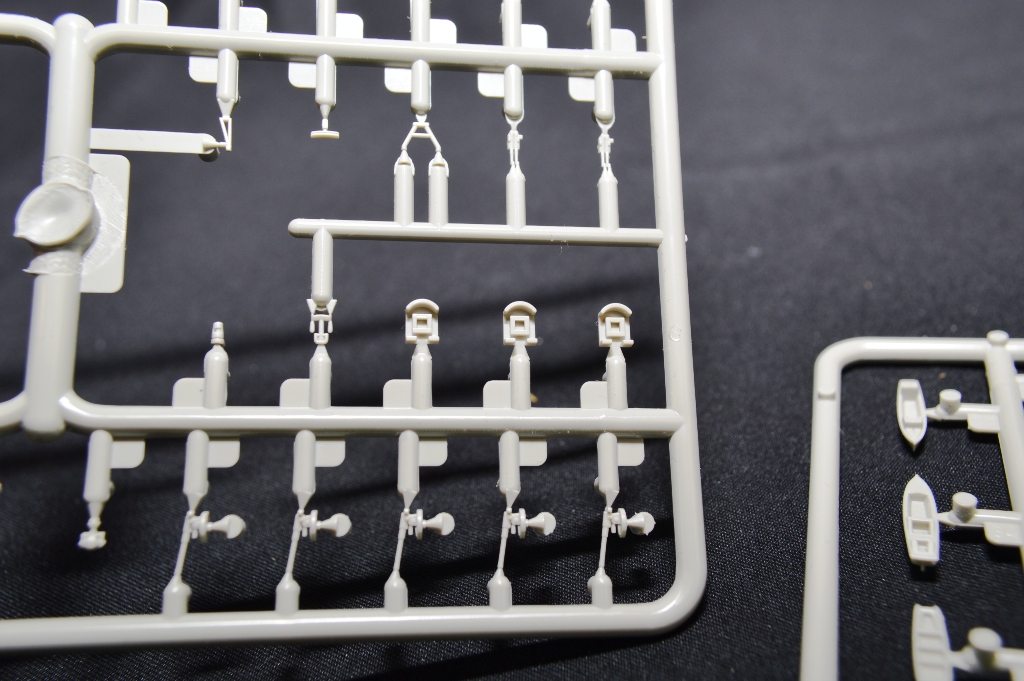

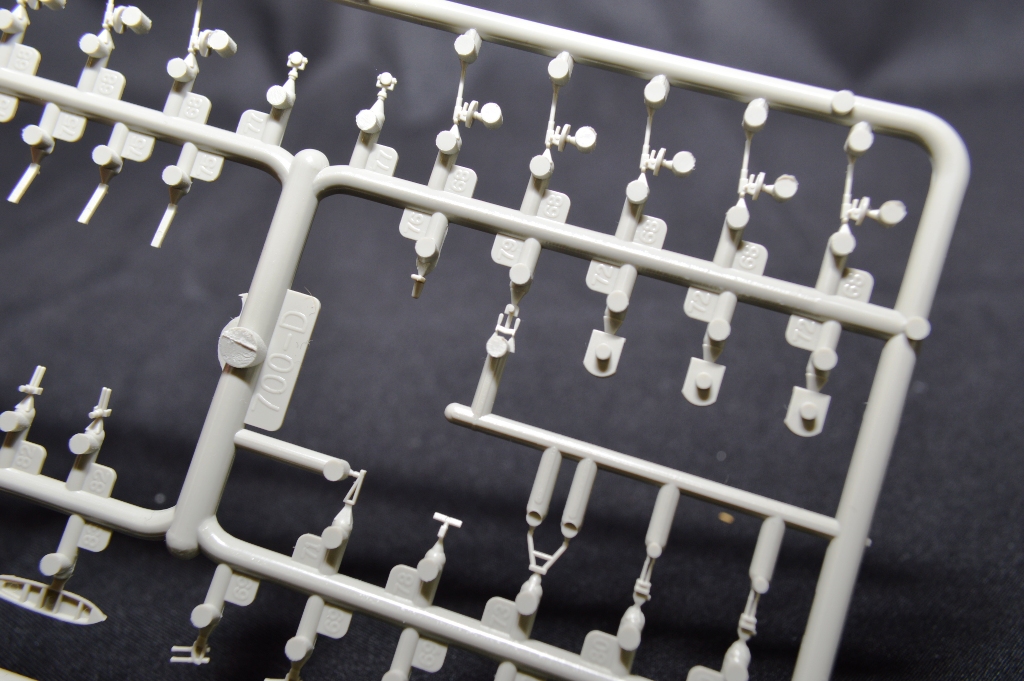

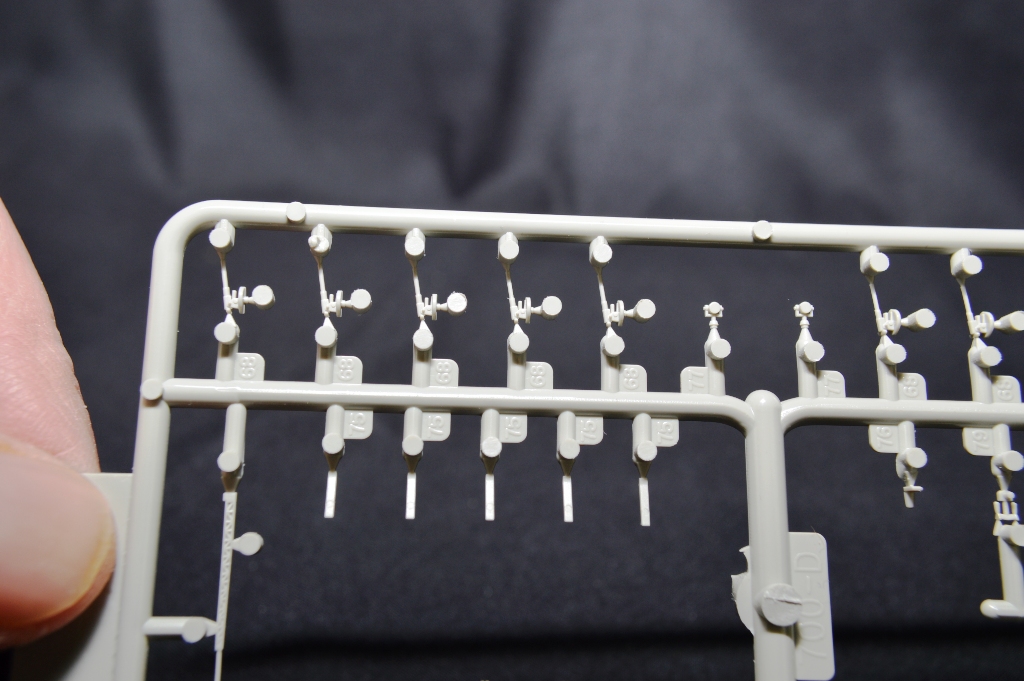

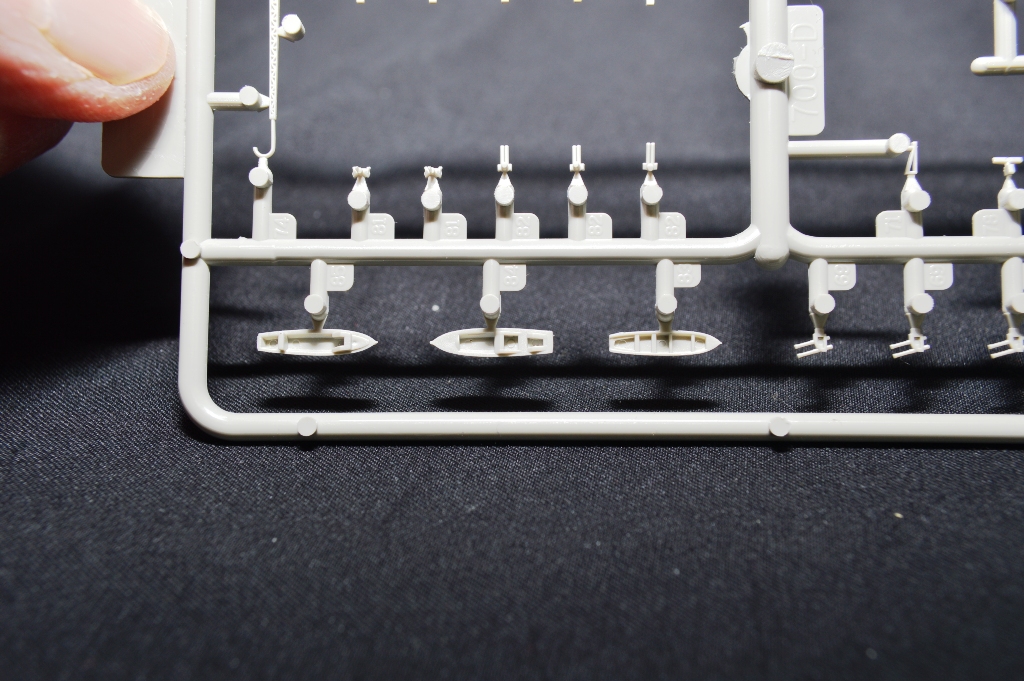

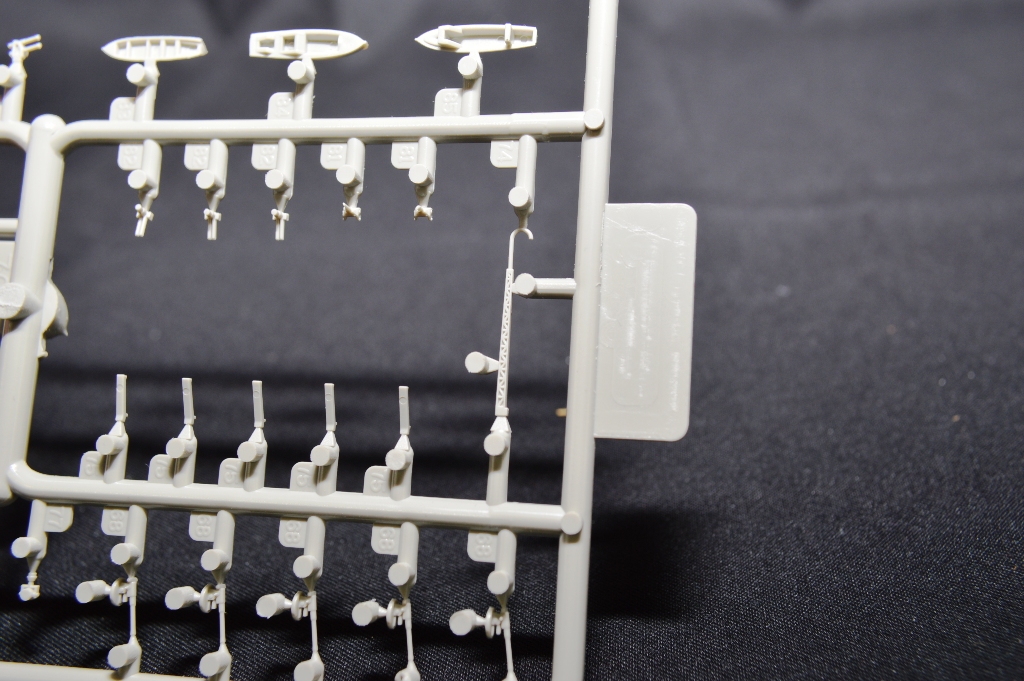

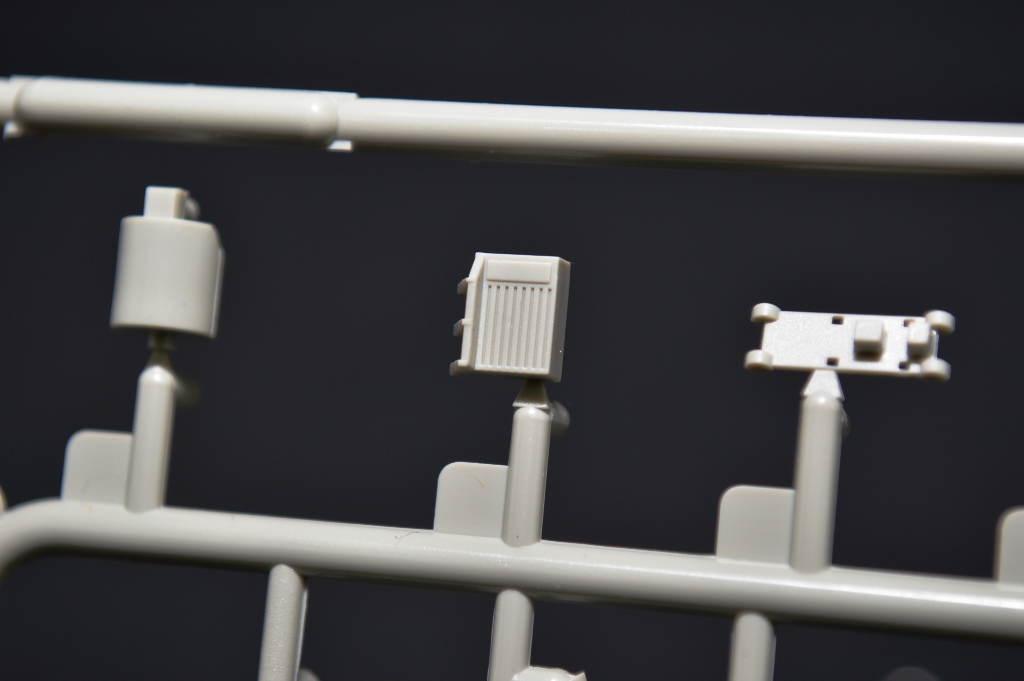

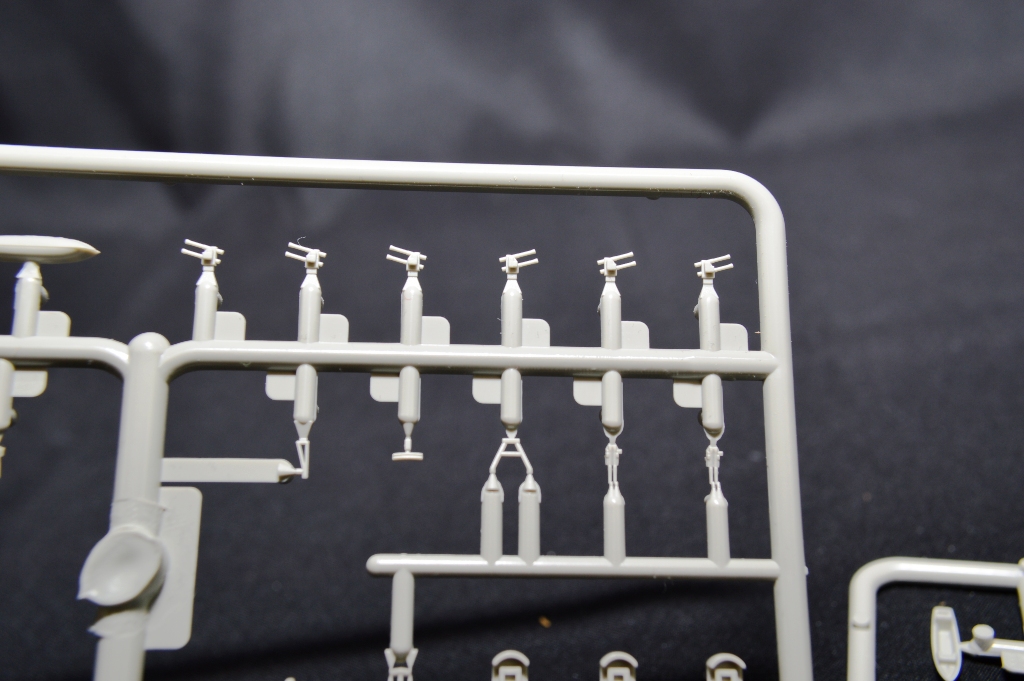

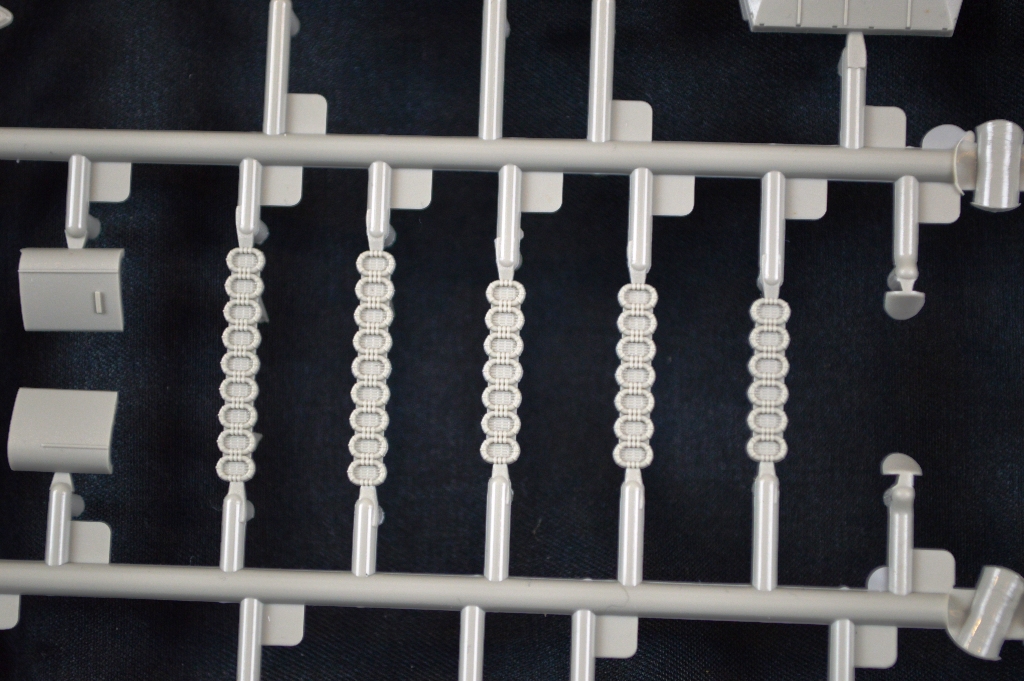

There are two of this sprue, which contain the ships boats, the plastic "inclined ladders", searchlights, more antenna and the weapons.   In may injections molded kits, small weapons and boats seem to be the part of the kits that is hardest to achieve fine detail, due to the limitations of injection molding.  These parts are pretty good.

TRIUMPH SPECIFIC SPRUES/PARTS

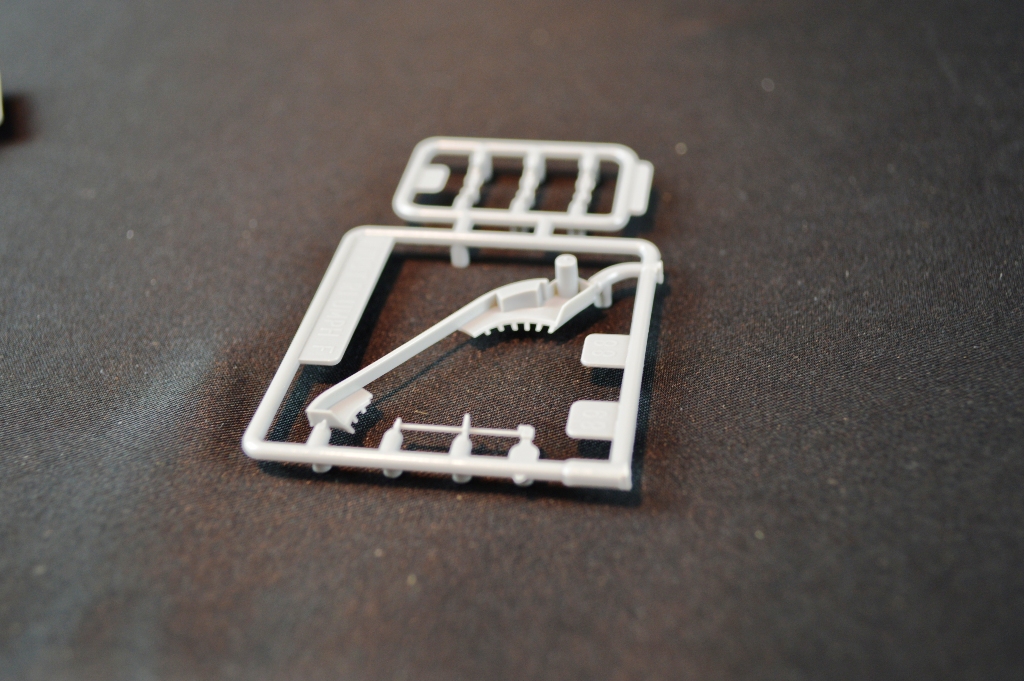

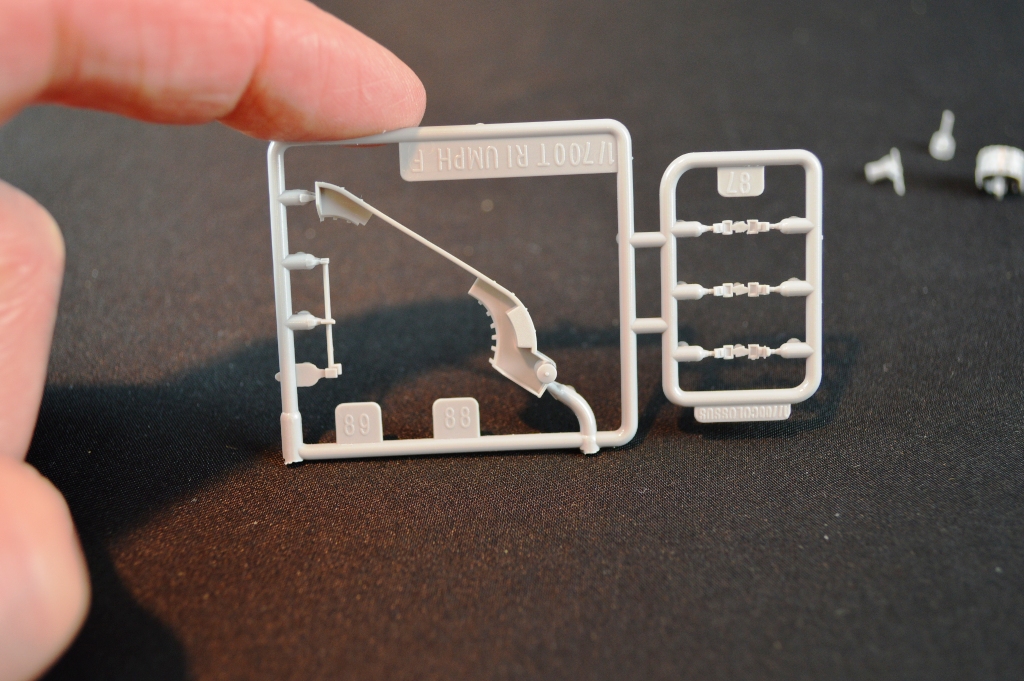

SPRUE C/SPRUE F

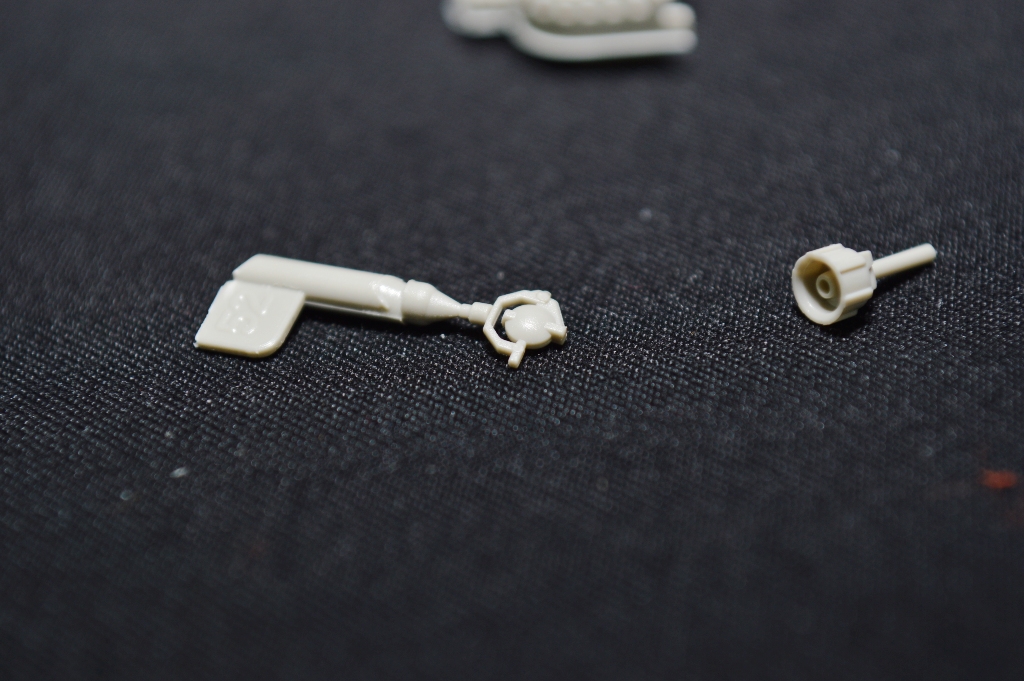

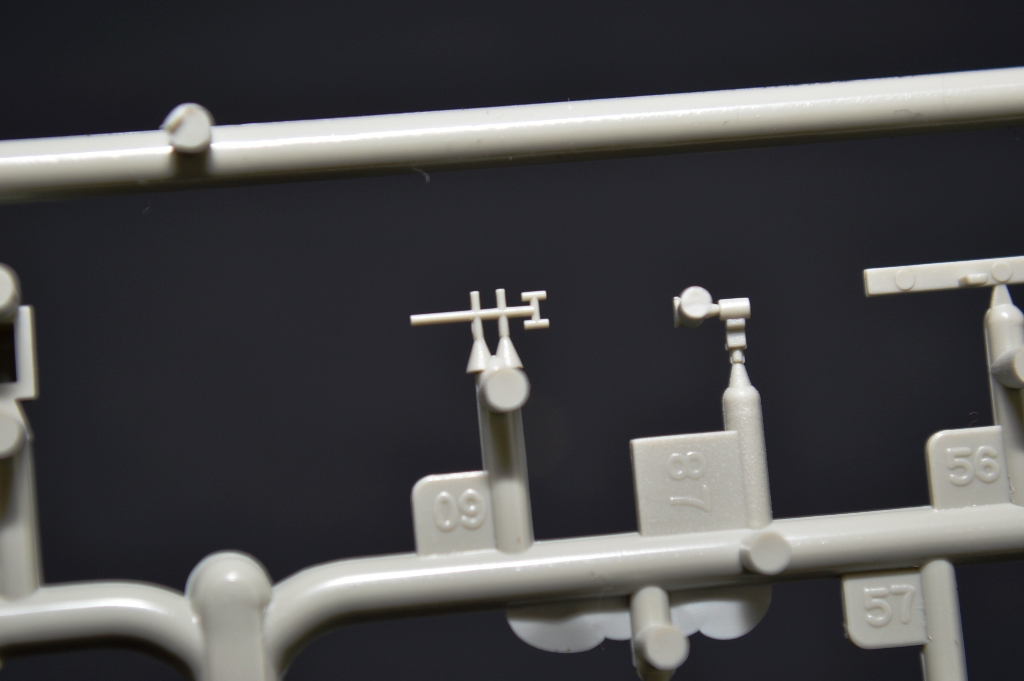

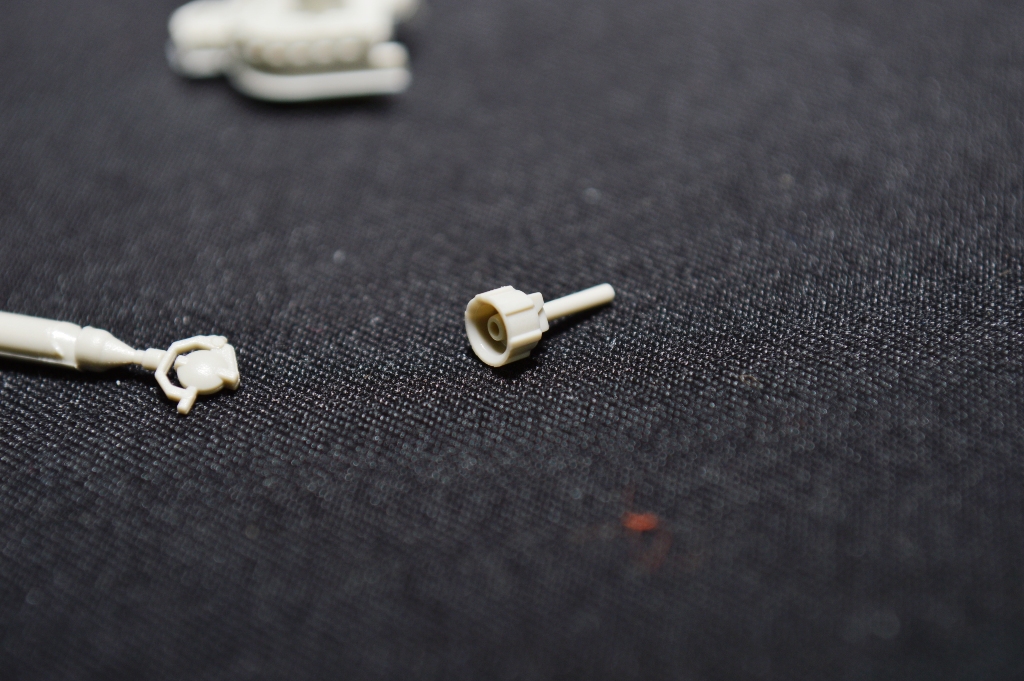

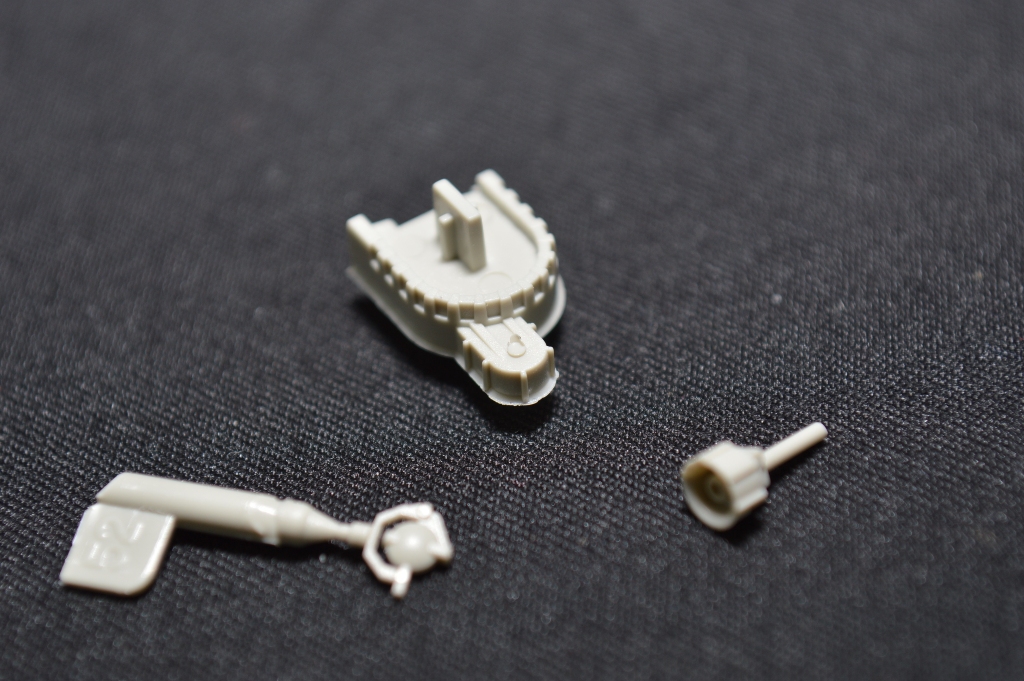

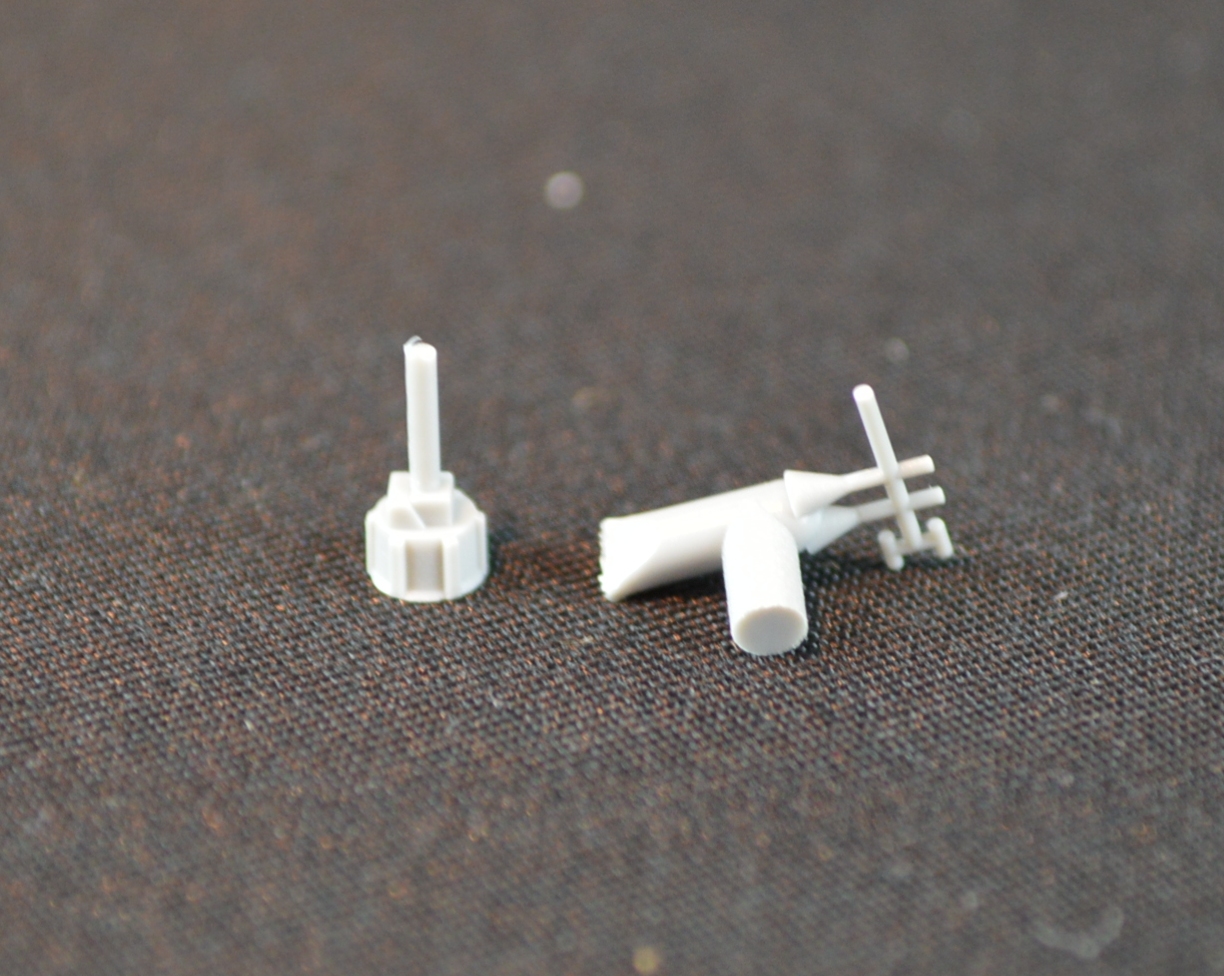

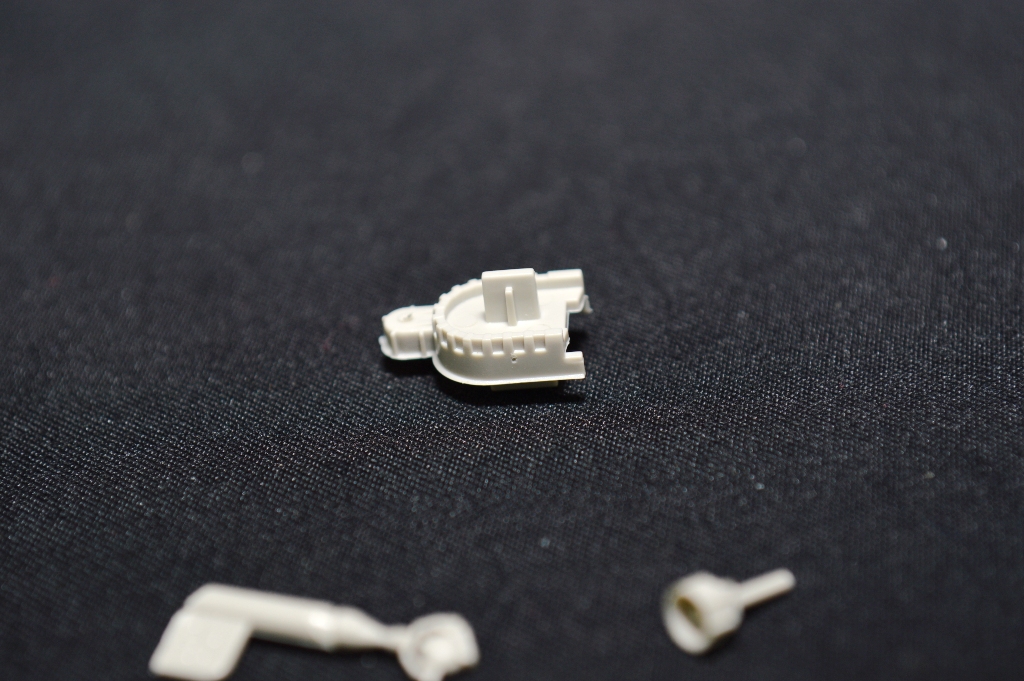

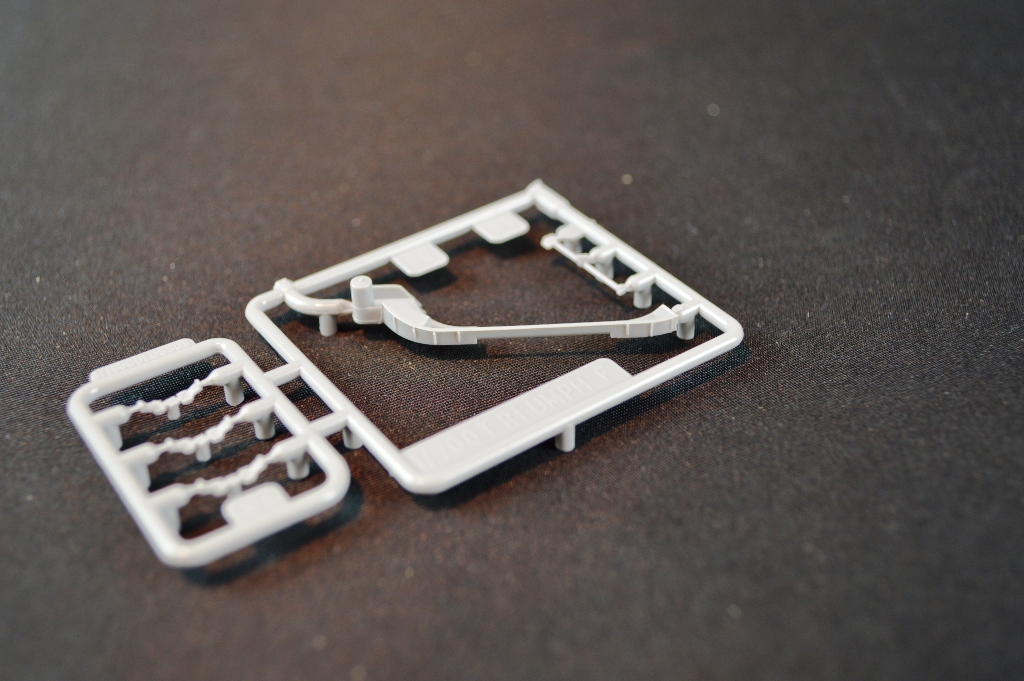

These two small sprues are joined together, so we will examine them together.   The smaller of the two is marked "C" on the parts manifest.  These include "Part 87", which look to be some sort of director.   They look nice, but be aware that on the instructions themselves, they appear to be listed as D87.   There is also a pair of loose parts in the same bag that these two sprues came in.   One part is a raised director tub, the other an antenna.   On the instructions, both are labeled at being part of sprue "C".

The second sprue if labeled "F".   On it is a catwalk for the aft end of the hull and a small antenna that goes on the port side of the funnel.


CLOSED BRIDGE

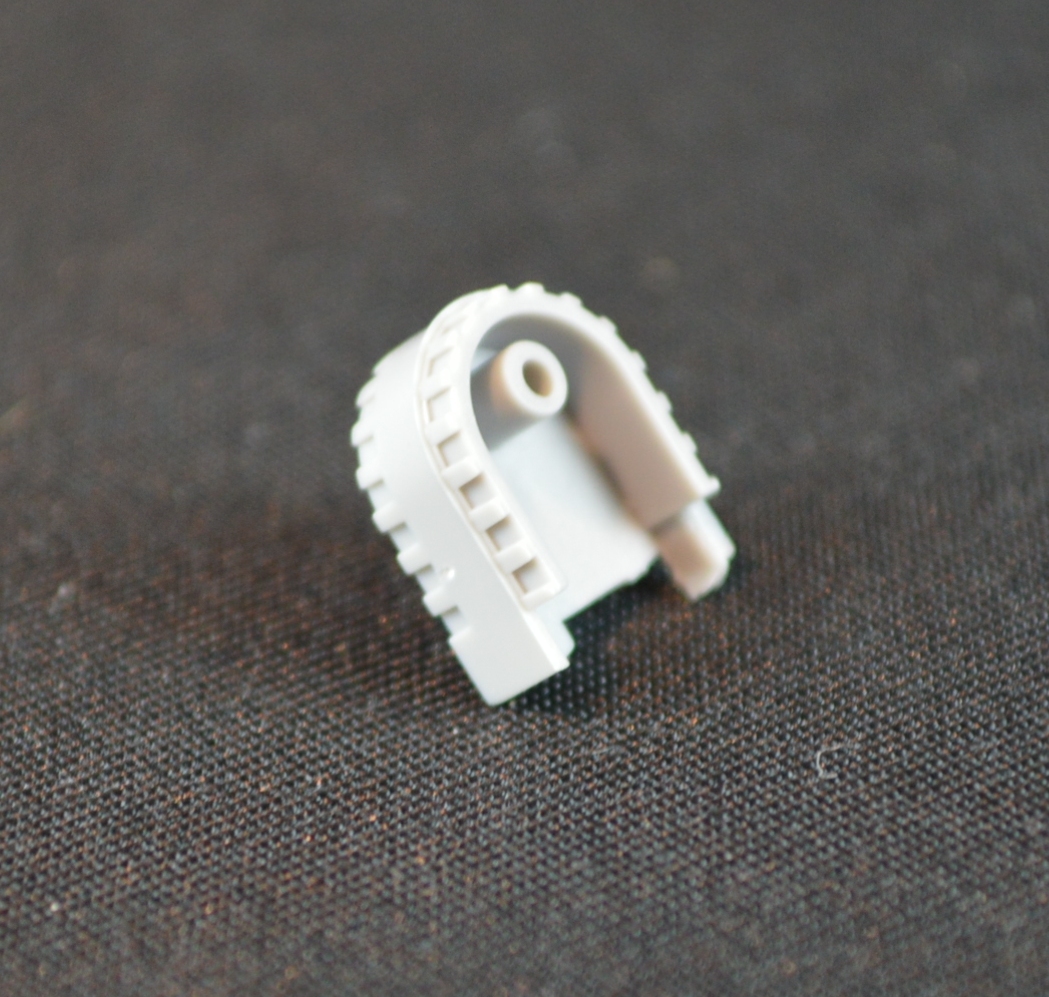

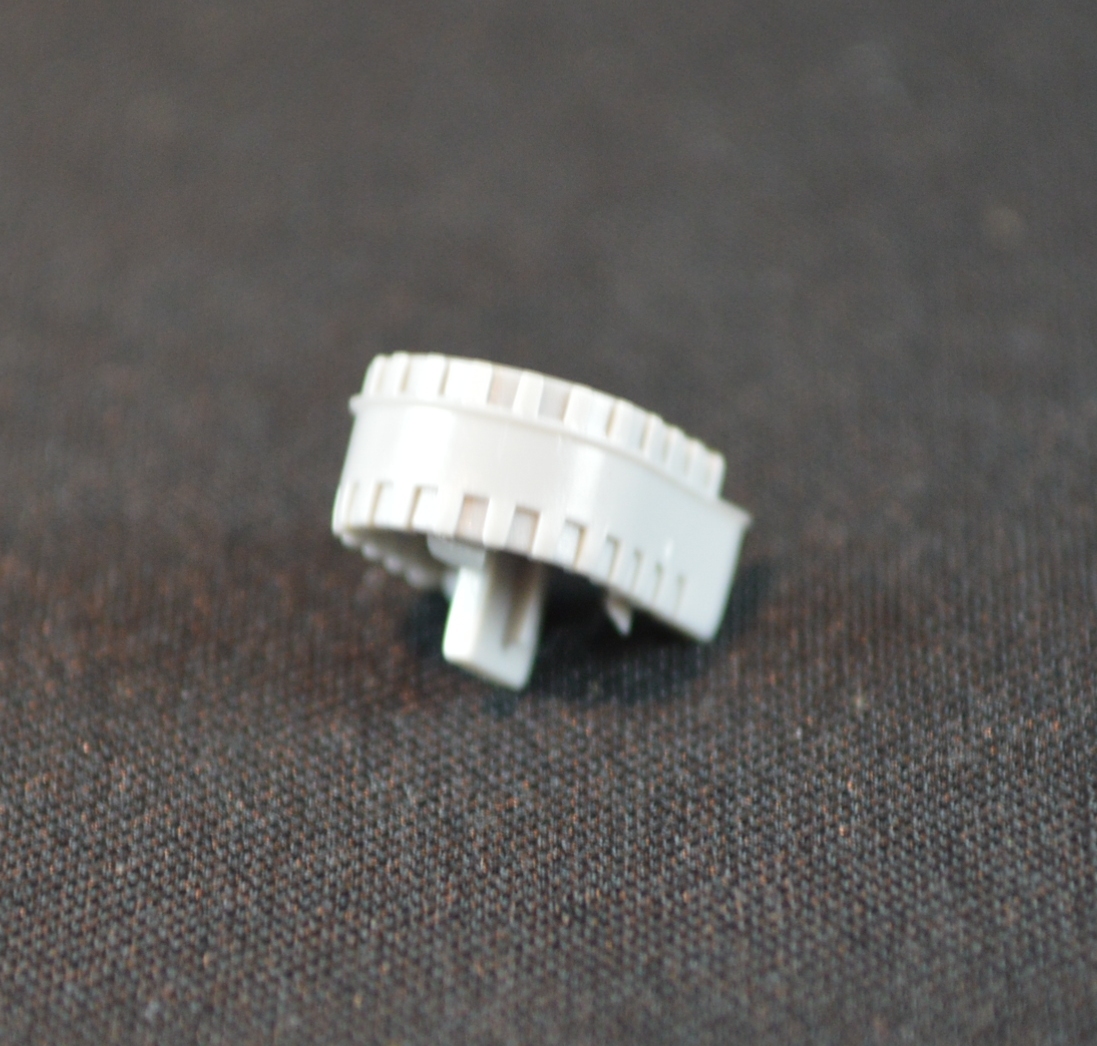

The enclosed bridge is a separate piece, loose in a bag with the above mentioned sprues.   This part is labeled C62 in the instructions.

AIRCRAFT

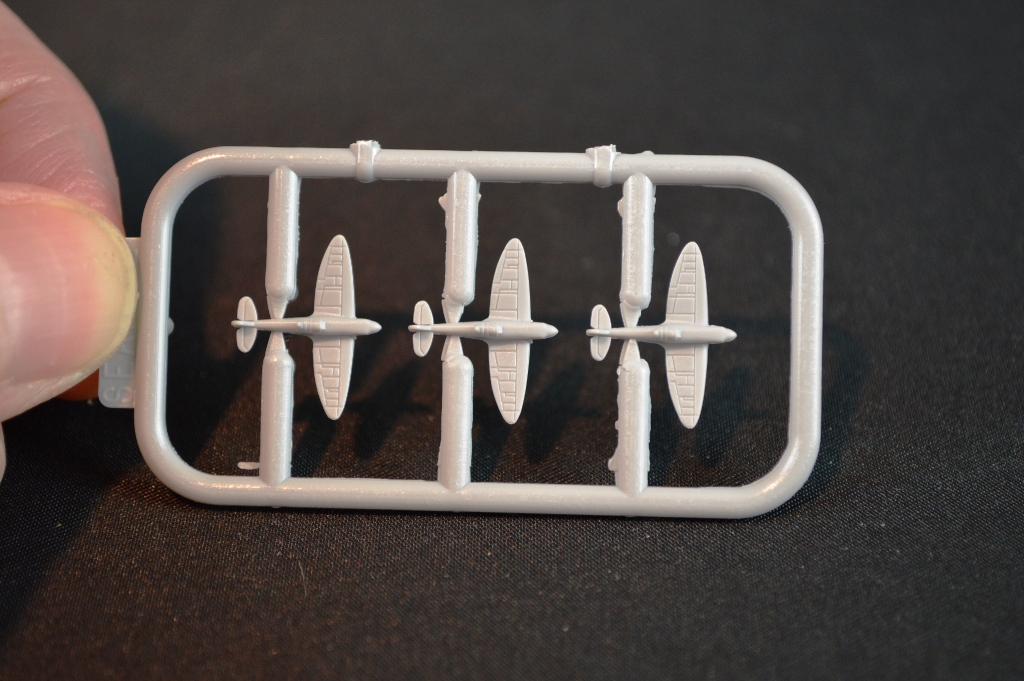

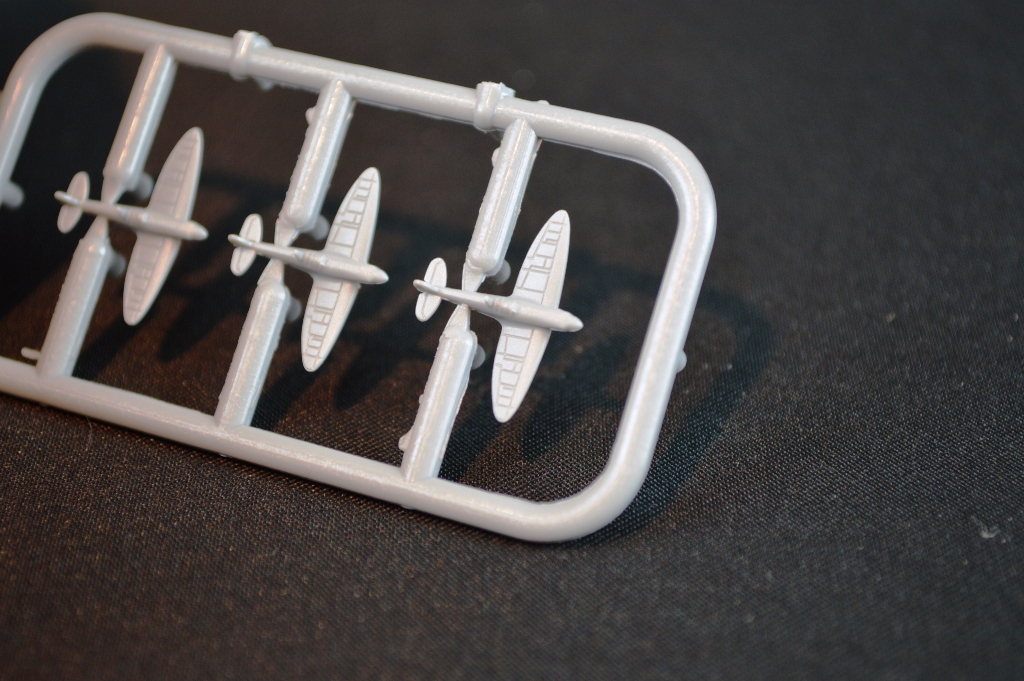

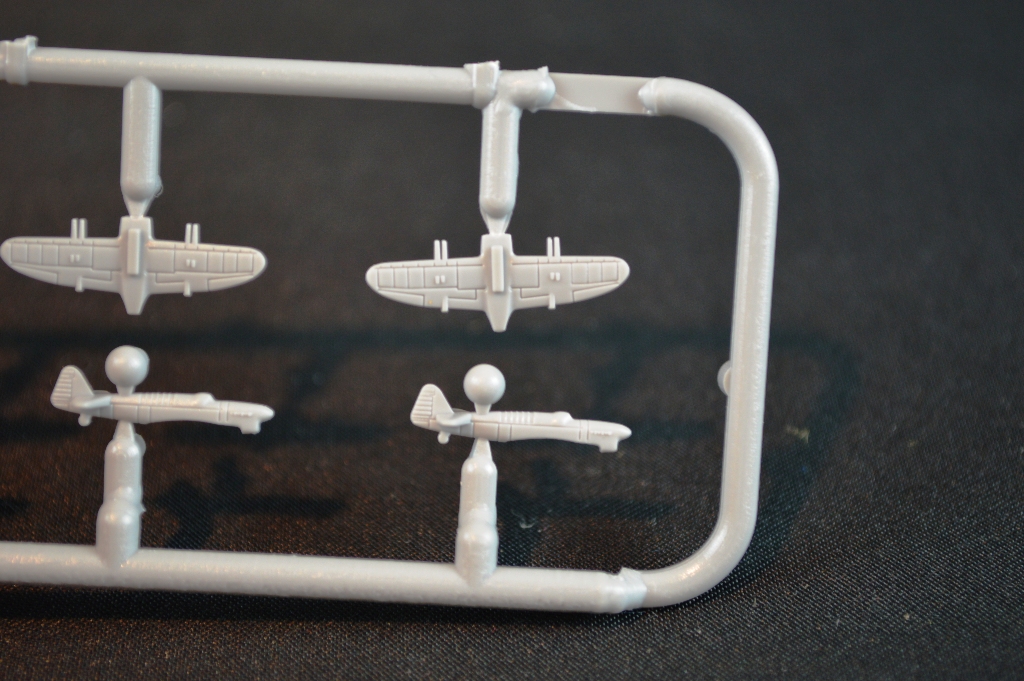

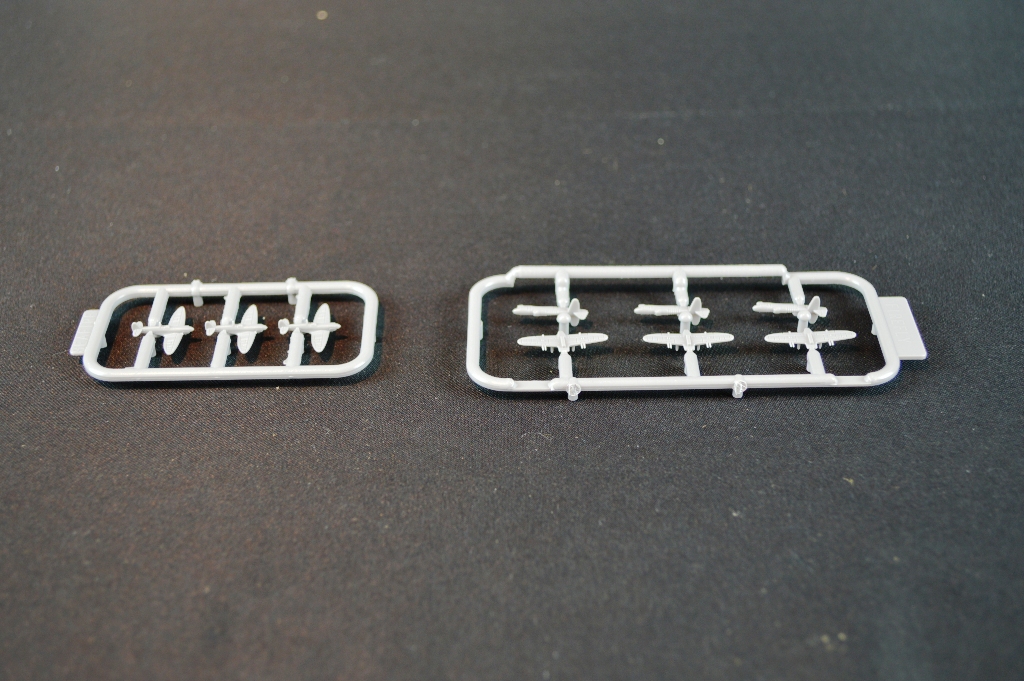

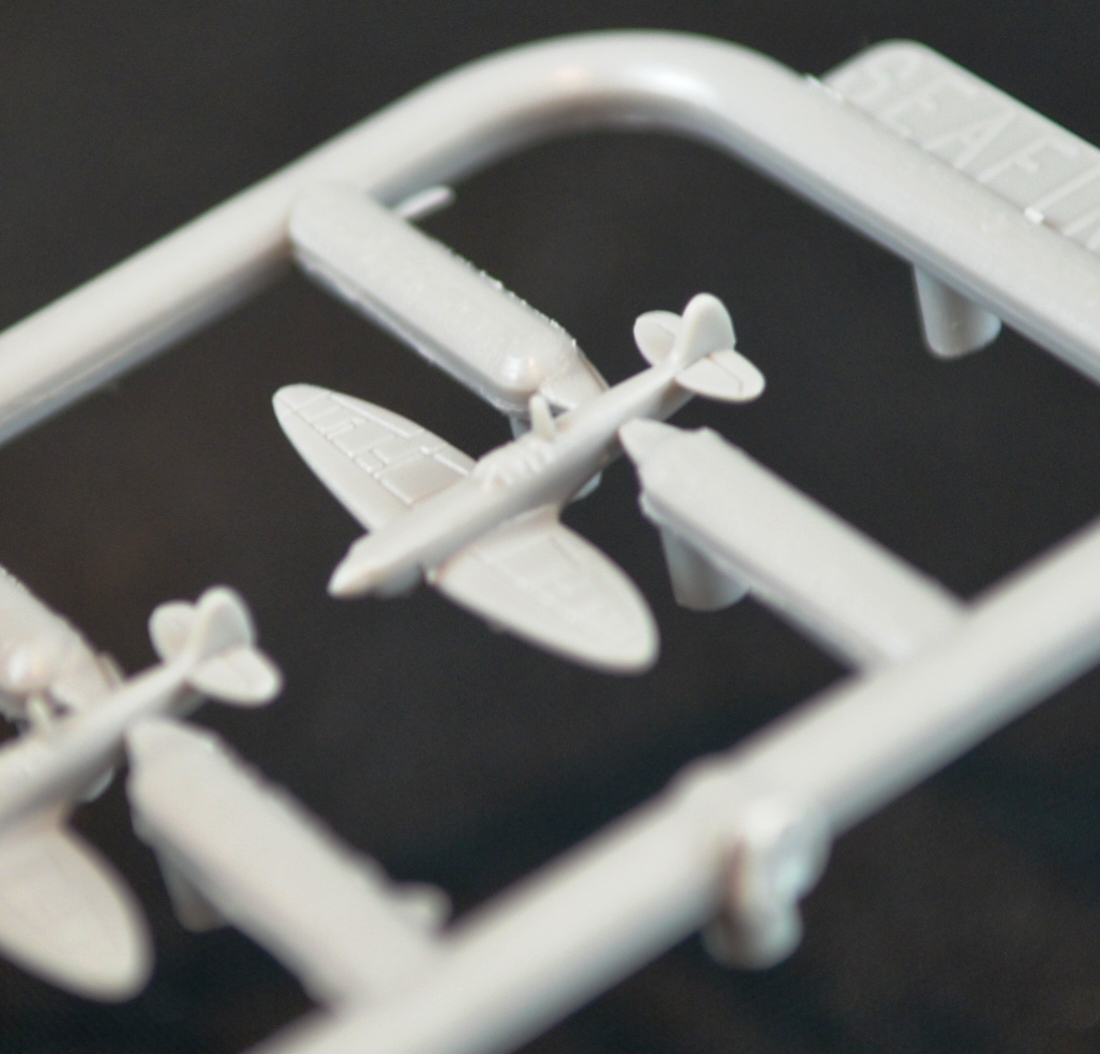

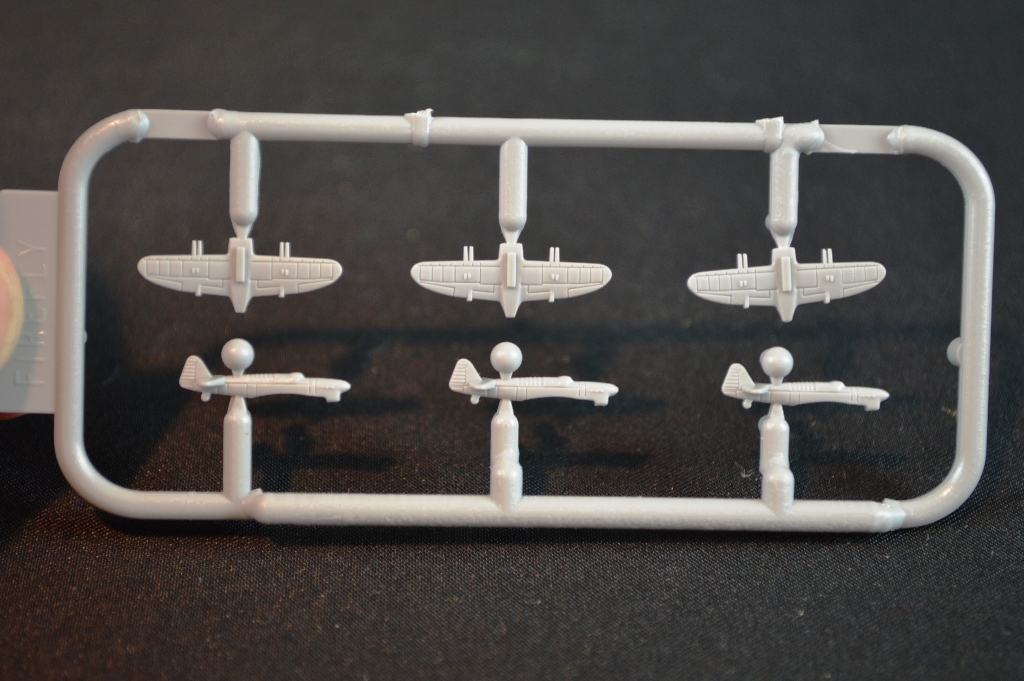

There are two sprues of aircraft in the box, one containing three Supermarine Seafires and another with three Fairey Fireflys.   The fighters are molded in one piece, while the Firefly's are two parts.  Overall, the aircraft look good, though the panel lines are a little heavy.  Also, you may want to replace or enhance the "post" landing gear with photo-etch.

PHOTO-ETCH
There is no photo-etch included with the kit.  However, Tom's Modelworks makes a very nice set:  7101 Colossus Class Carriers.
DECALS
The small decal sheet has deck markings for Triumph, along with decal for aircraft.  The decals are thin and look to be in register.

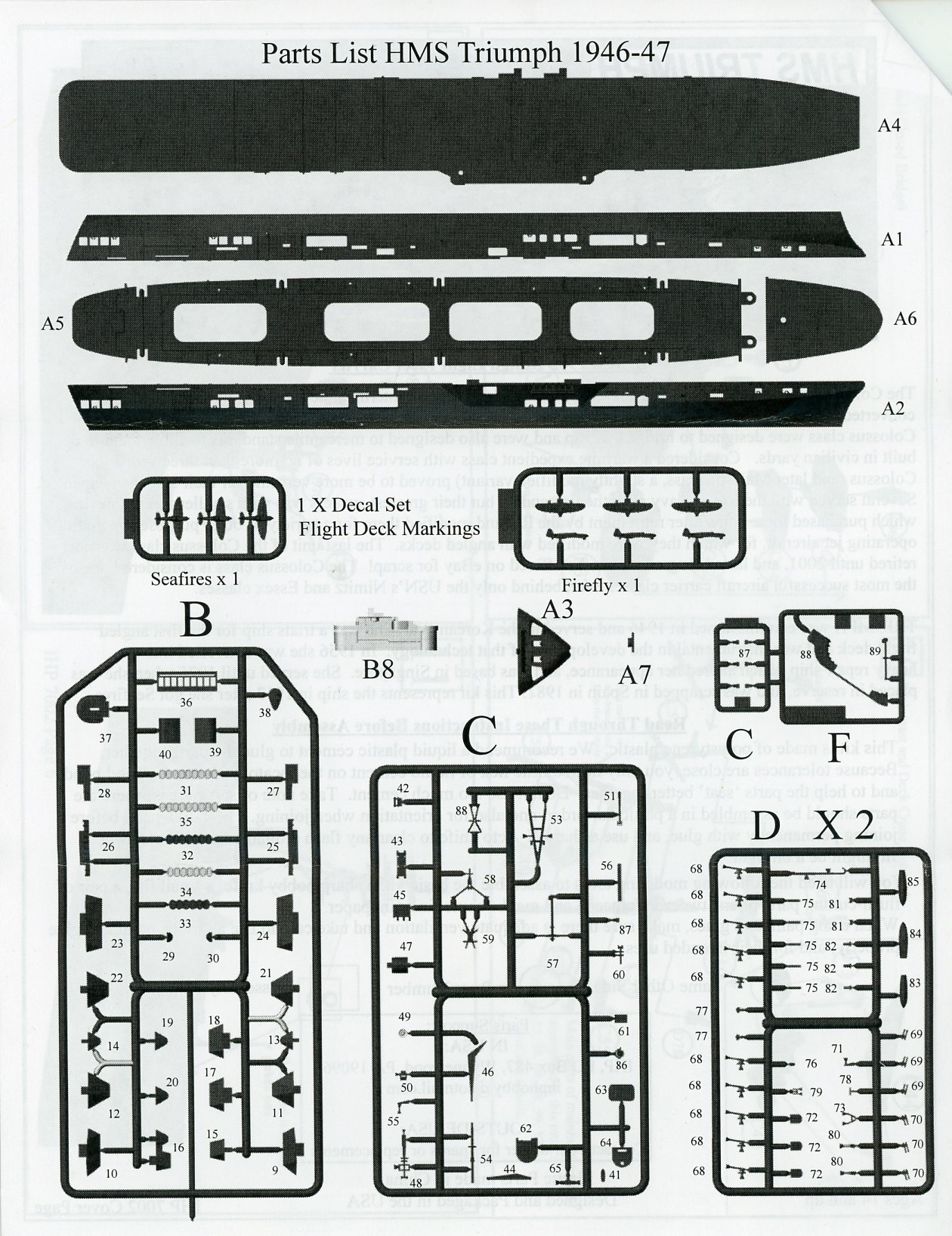

INSTRUCTIONS

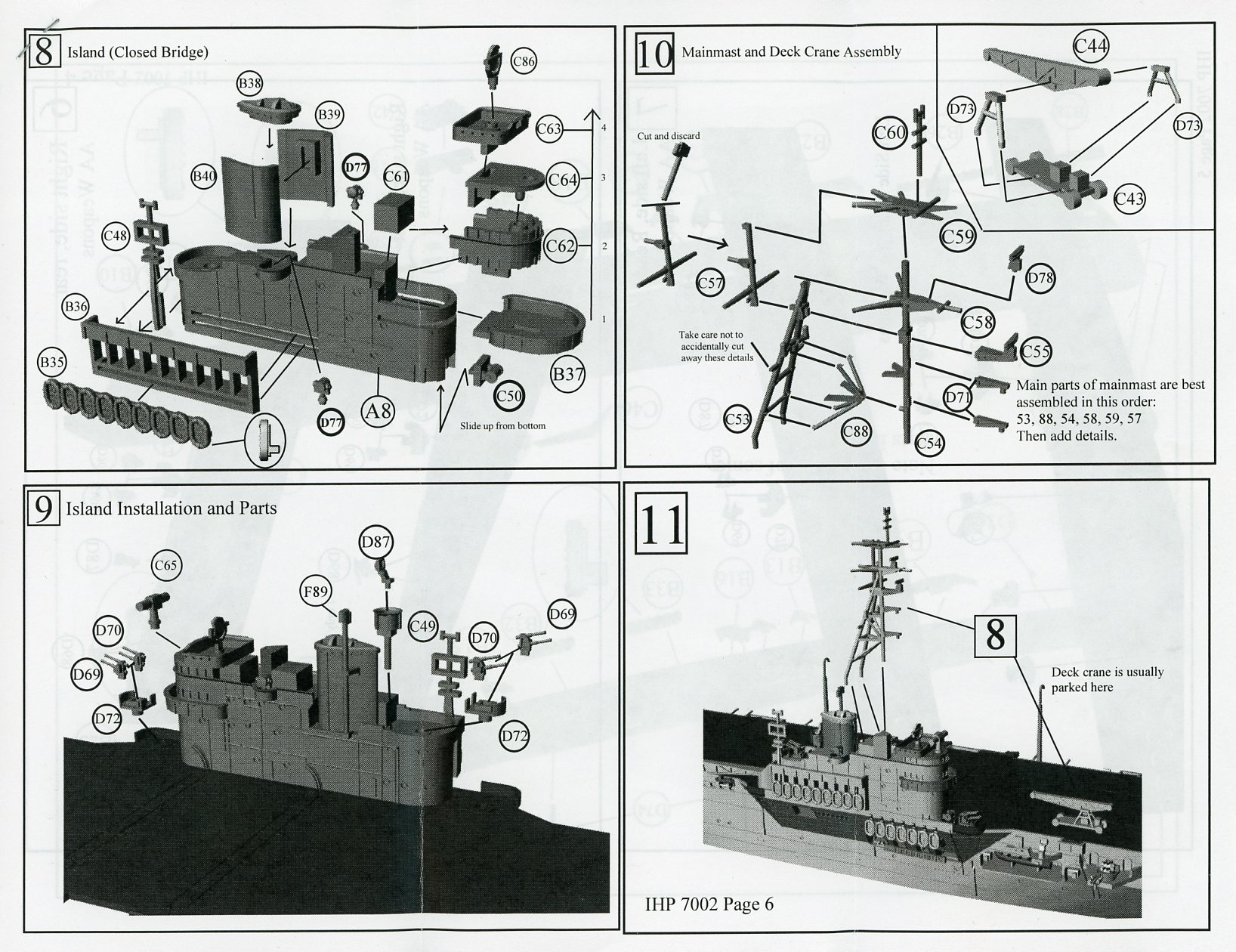

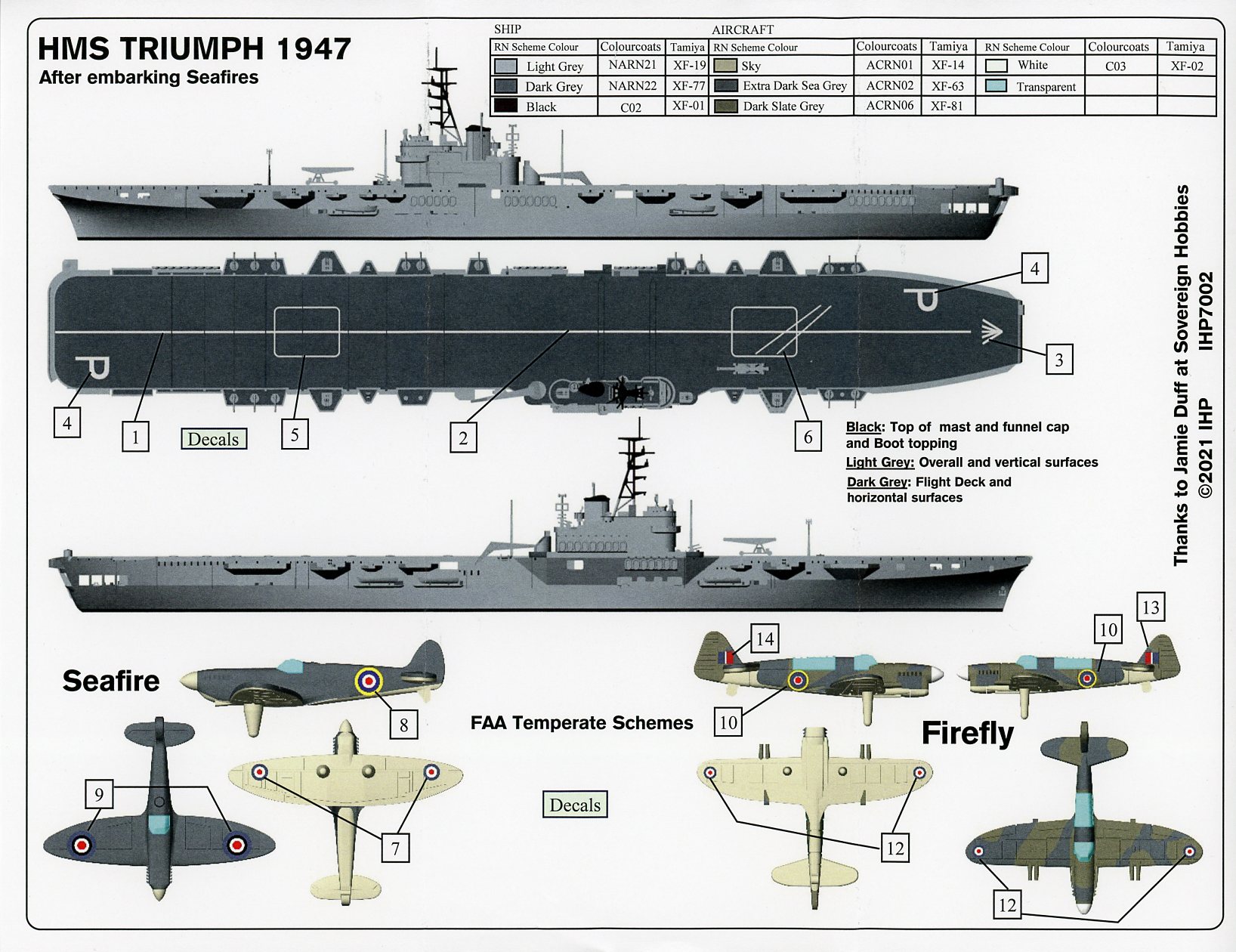

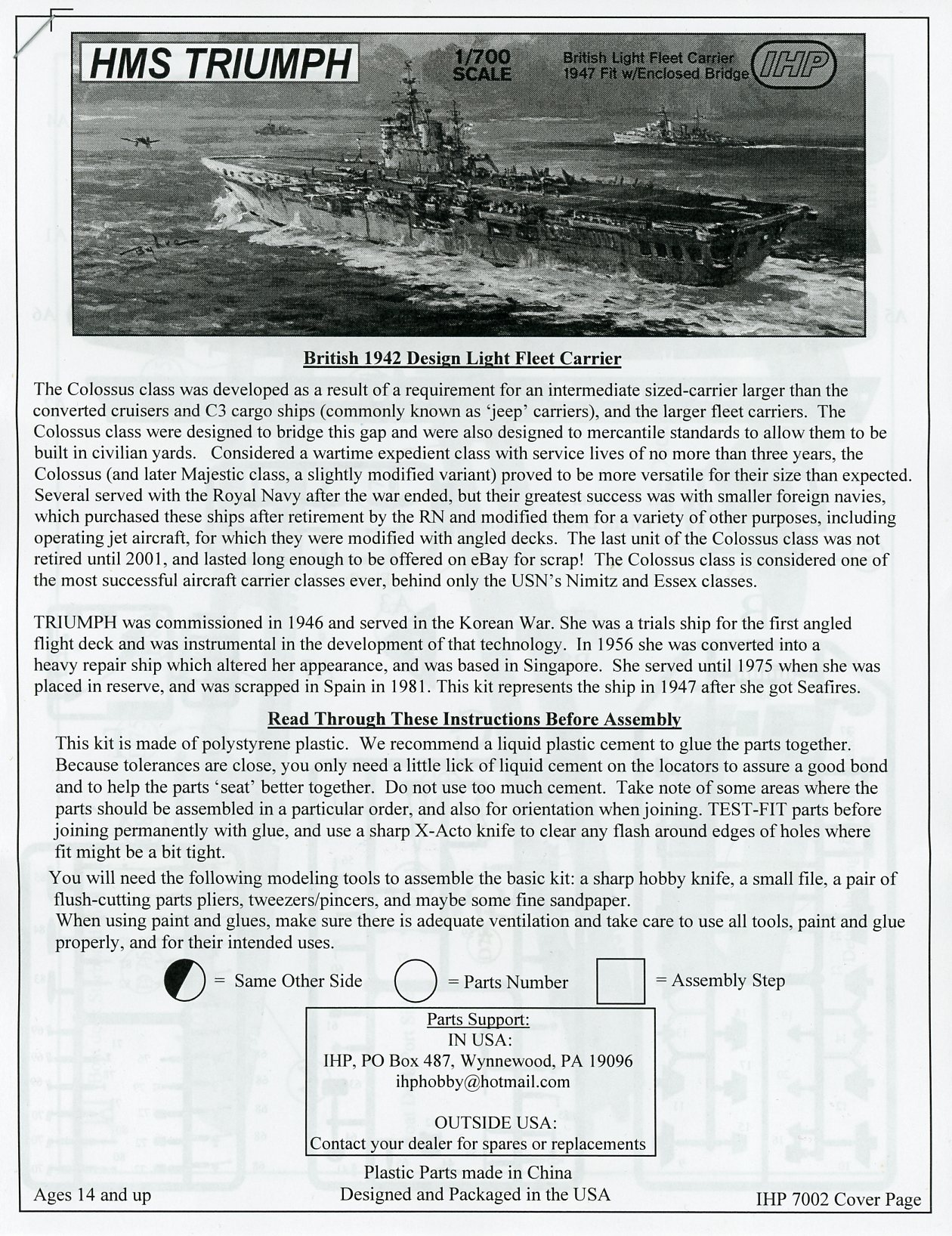

The instructions a total of nine pages, including the page for painting and markings.   The instructions are clear and look easy to follow.    The instructions are a near mirror image of the Colossus instructions, with some minor tweaks for Triumph specific parts on some pages, while pages 6 and 7 are completely revamped.   The painting depicts Triumph in 1947.

CONCLUSIONS
After the initial release of the HMS Colossus, Imperial Hobby Productions has continued to release variants of the class.   Triumph depicts the class during the Korean War, with an enclosed bridge and aft catwalk off the stern, among other minor changes.

Similar to my comments about the Colossus, I find this to be a unique subject that's very well done and cleverly engineered.  Other than the somewhat overstated strakes on the sides of the hull, this model stacks up well against kits from most other manufacturers.  It also appears that it will be a pretty straightforward and relatively simple build.   Highly recommend, especially for fans of the Royal Navy.

This is Imperial Hobby Productions 1/700 HMS Triumph, kit number IHP-7002.   The kit retails for $64.95, and is available from dealers worldwide, including some of our sponsors.  Thanks to IHP for the review sample.
