Reviewed by Martin J Quinn
September 2026

According to the NavWeaps.com website, the 2pdr QF Mk VIII guns were manufactured in large numbers throughout World War II, with total production being about twice the number of Bofors 40 mm guns used by the Royal Navy..

Also known as the "multiple pom-pom," this weapon was essentially a redesign of the 2-pdr Mark II to suit an eight gun mounting. The Mark VIII used the same barrel as the previous weapon, but the new design did have an improved automatic mechanism and replaced fabric belts with steel-links belts which reduced jamming. It has been speculated that the reason that the 2-pdr shell was selected for this weapon was because there were about 2,000,000 rounds left over from the First World War.

This weapon had a long development history. It started off when six 2-pdr Mark II guns were mounted on a common base on HMS Dragon during 1921-22. This was modestly successful, and as a result design work was begun by Vickers and Armstrong on various multiple-gun designs. Armstrong produced a design that allowed continuous fire while the Vickers design did not, but the Armstrong product was also a more complicated design. Vickers won the contract and presented an eight-gun mockup for examination in July 1923. Lack of funding delayed proving ground firing trials out to 1927, with sea trials aboard HMS Tiger not being held until 1928. Service introduction was delayed to the end of 1930 and consisted of a single mounting installed on HMS Valiant. Satisfactory completion of trials on Valiant encouraged the Treasury to increase funding and during 1931 Nelson, Rodney and Revenge each received one mounting while Hood received two. The following year saw Furious and Royal Sovereign each receiving two mountings while Renown received one. Production was slow up until just before the war started.

At the time of its service introduction in 1930 this was a very advanced weapon, but by 1939 the rapid improvements in aircraft design had rendered it obsolescent, as it had a low muzzle velocity, lacked a satisfactory explosive shell and no tracer ammunition was provided.

As originally introduced, this was a recoil operated, "controlled" (essentially semi-automatic) weapon which used a manually turned crank to operate the firing gear in the quadruple and octuple mountings (see note below for a further explanation). In 1939 the octuple mountings design was changed to allow fully automatic firing but this was not extended to the quadruple mountings which were only produced in controlled versions throughout the war. However, the quadruple mountings did replace the crank-turning crewmember with an electric motor sometime during the war.

The internal gun mechanisms were very complex and required much care and skilled maintenance to keep them in working condition. Jams and stoppages were frequent, although the linked ammunition proved to be more reliable in service than the older belt-fed guns.

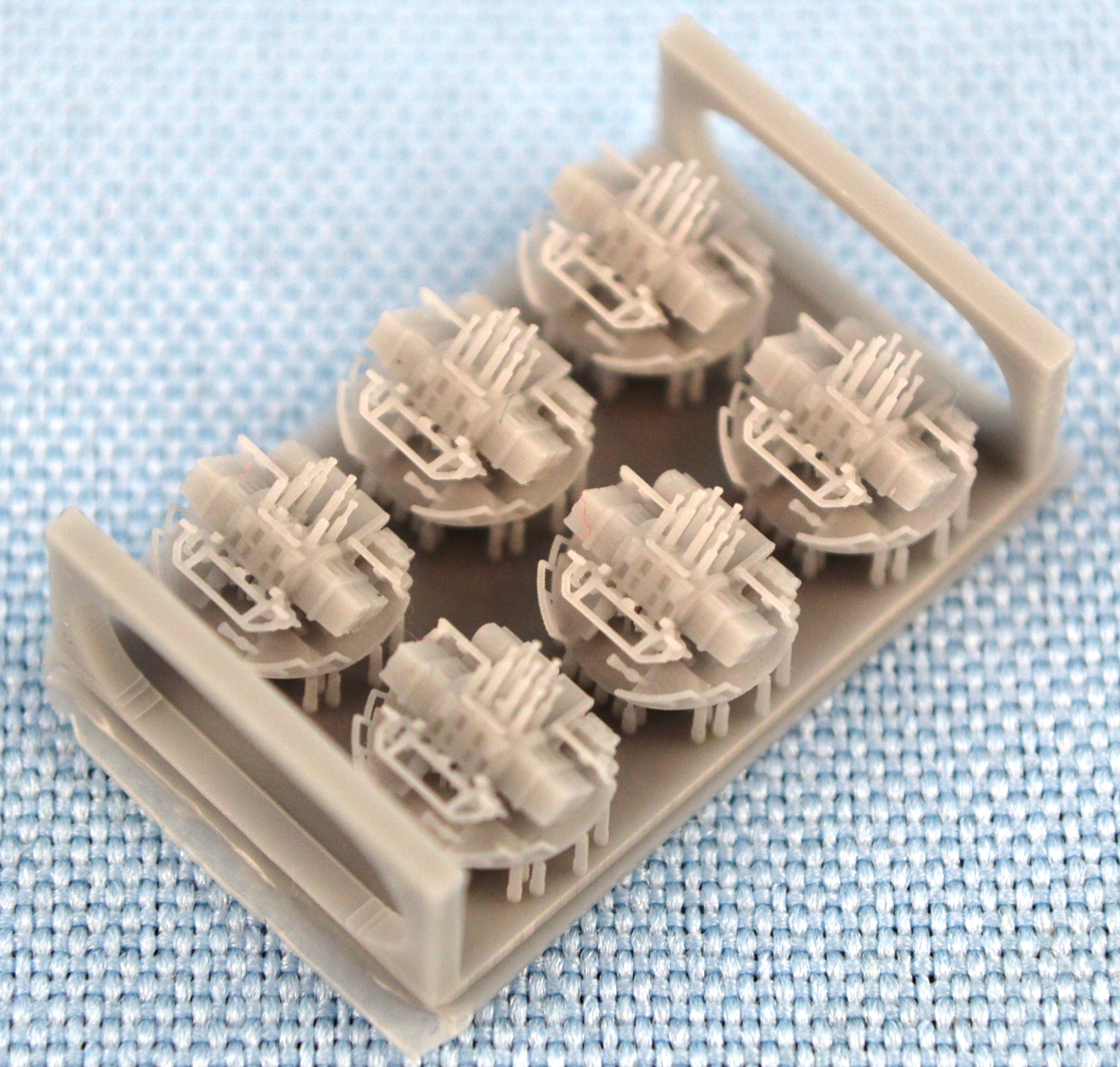

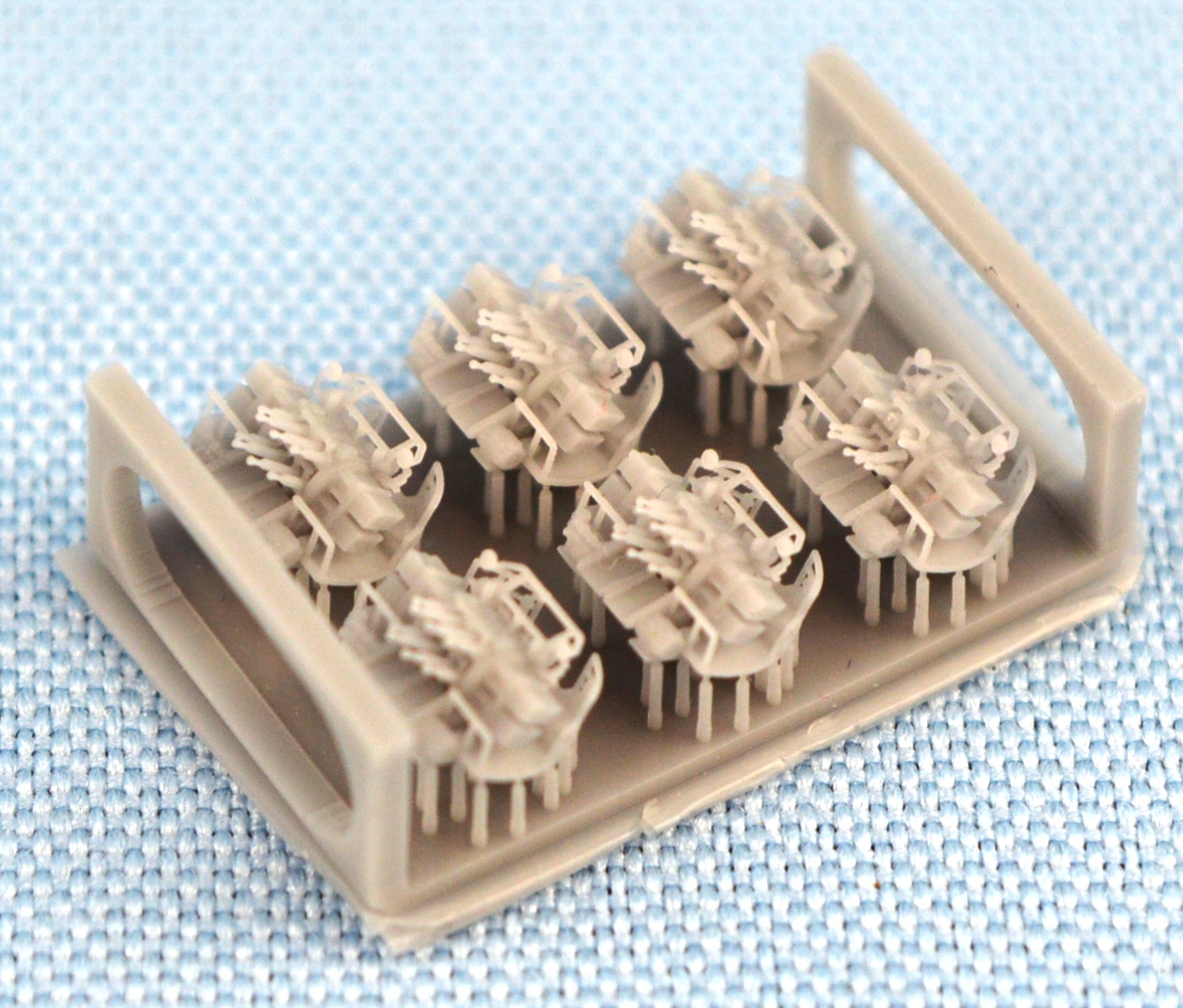

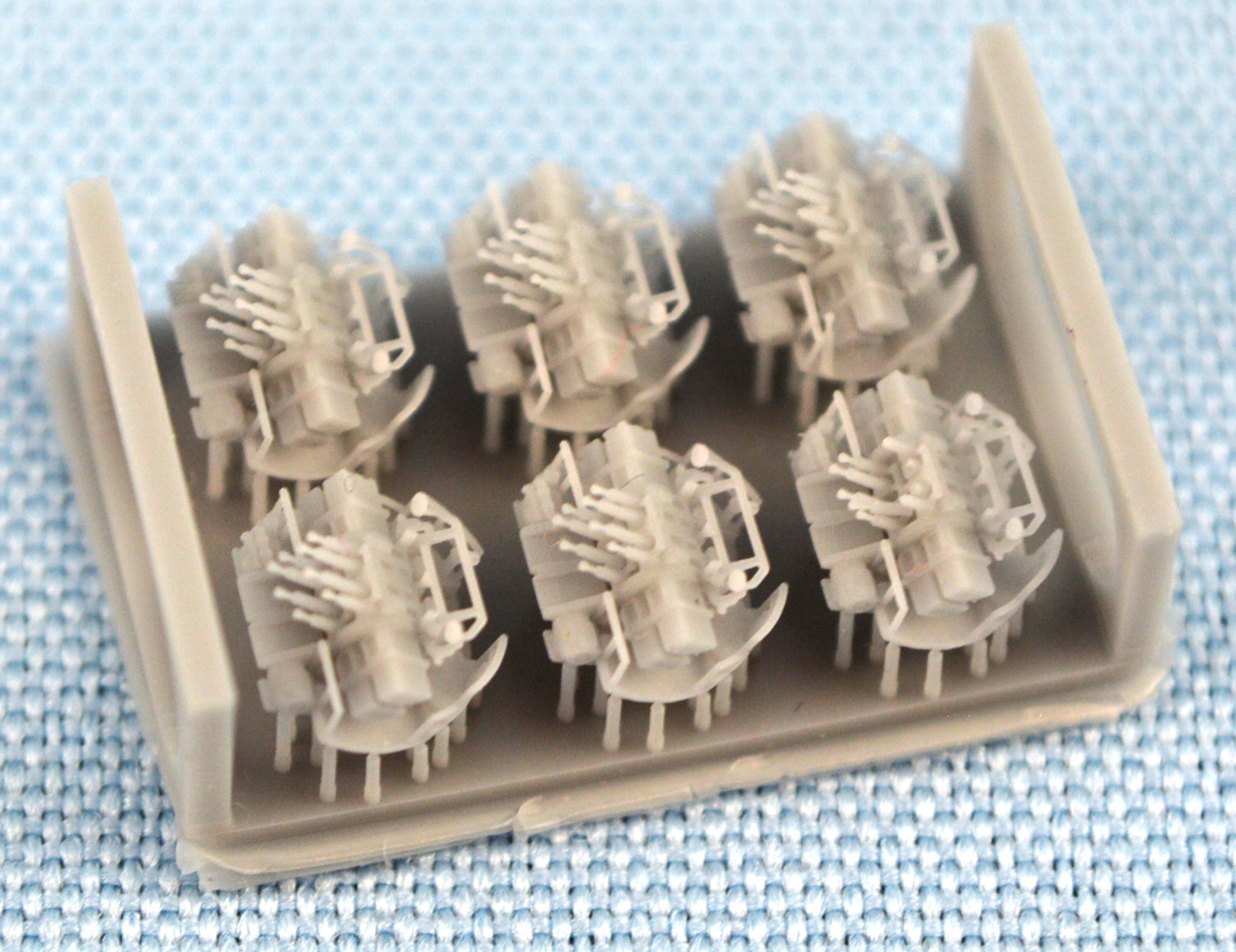

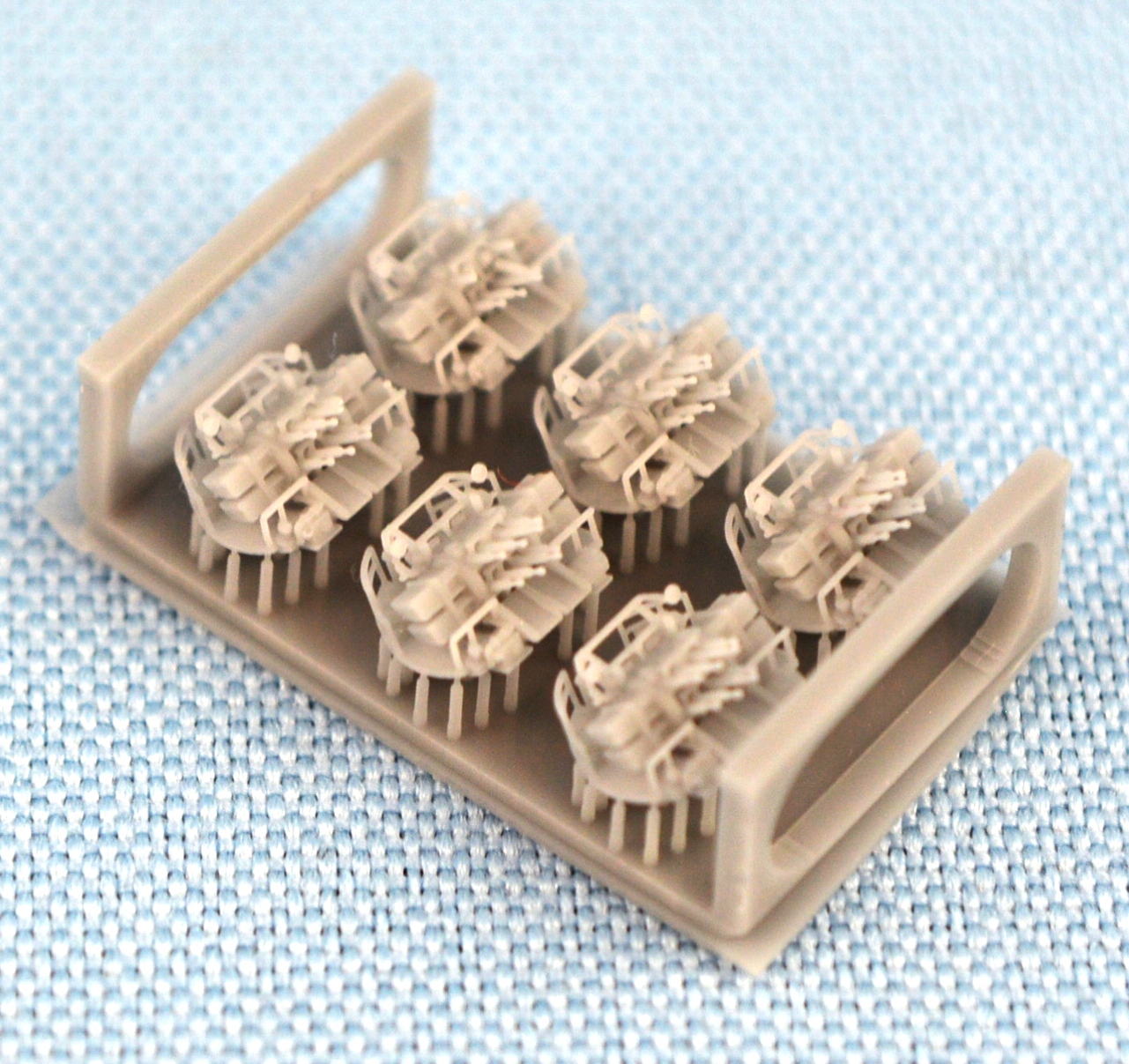

As mentioned, there are 6 octuple mounts included included.  They come as one part, no assembly is required.  That will make them easier to install, but perhaps more difficult to paint.

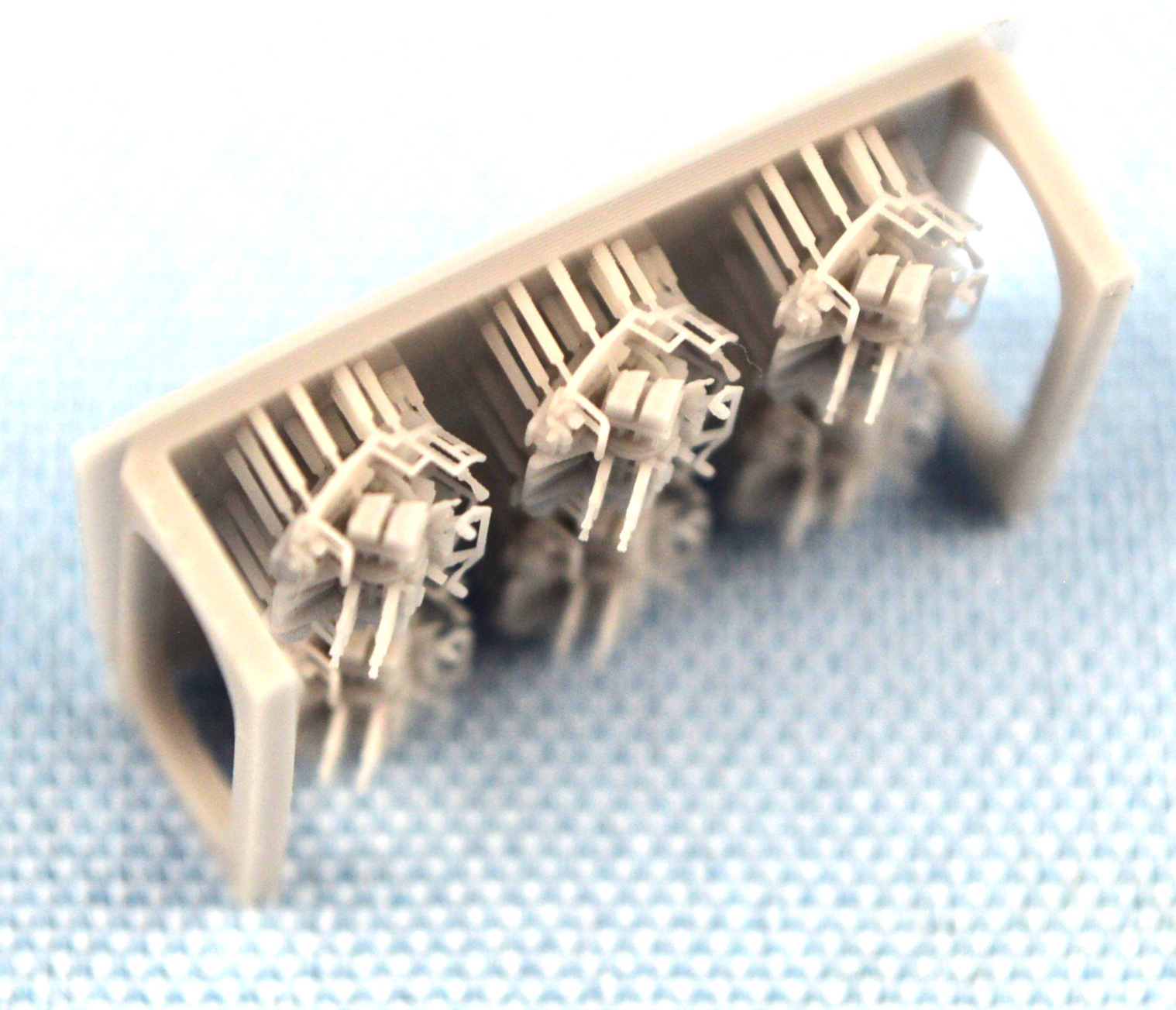

These weapons are small, very thin gun barrels (one mount had the center four barrels broken). There are handrails, ammunition feed rails, gunsights and more.  The "more" includes what almost looks like a voice tube, and right rear platform.  Incredible!  Detail overall is very delicate and very well done.

This is Black Cat Models set AC700043c, 2 pdr. Pom Pom Mk.VIII gun on octuple mount Mk.V (x6).  It retails for about $7.60 USD, and is available directly from Black Cat Models - who I'd like to thank for this review sample - or from some of our other fine sponsors.
