Black Cat Models
1/350 US Navy SK-2 Radar


Reviewed by Martin J Quinn
July 2021
Black Cat Models from France has sent us some of their latest products.   One of those to arrive is a set AC350091f, US Navy SK-2 Radar (x1)

According to various internet sources, by 1939, radar had evolved to the point where is was practicable to use it in combat. The British had given a great deal of thought as to how radar could be used effectively, and this research proved extremely valuable during the Battle of Britain.   Meanwhile, the Americans were pursuing their own, independent, research into radar.  From 1930 to 1940, the U.S. Naval Research Laboratory explored the use of radio for ranging and detection, and in 1935, the Committee on Naval Appropriations of the U.S. House of Representatives provided $100,000 to the Naval Research Laboratory for the development of radar. The research led to the first U.S. radar, the XAF, which was permanently installed on USS New York (BB-34) in 1939. By the time the Japanese attacked Pearl Harbor on 7 December 1941, 20 radar units had been installed on selected ships.*   In production, the XAF was designated as the CXAM radar.   The follow up was the CXAM-1, which included some enhancements.

SK was an improvement on the CXAM air search radar set. It was essentially an SC-2 radar set, with a larger antenna with 6×6 dipoles. The radar was capable of detecting a medium bomber at 10?000 feet and 100 nautical miles. There was no elevation control but elevation could be estimated roughly from positions of maximum, and minimum signal strength of the difference of the signals between the antenna rows. A later version was named SK-2 and used a large parabolic antenna fed by a dipole.+

Both the SK and the SK-2 were mainly used on larger units of the US Fleet.

*Partially sourced from Naval Heritage and History Command website.
+Partially sourced from the website.

Click to enlarge images

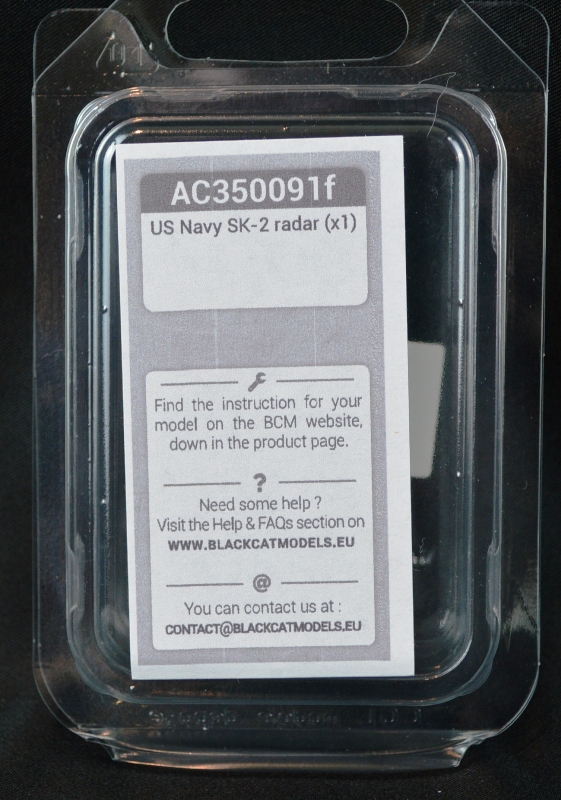

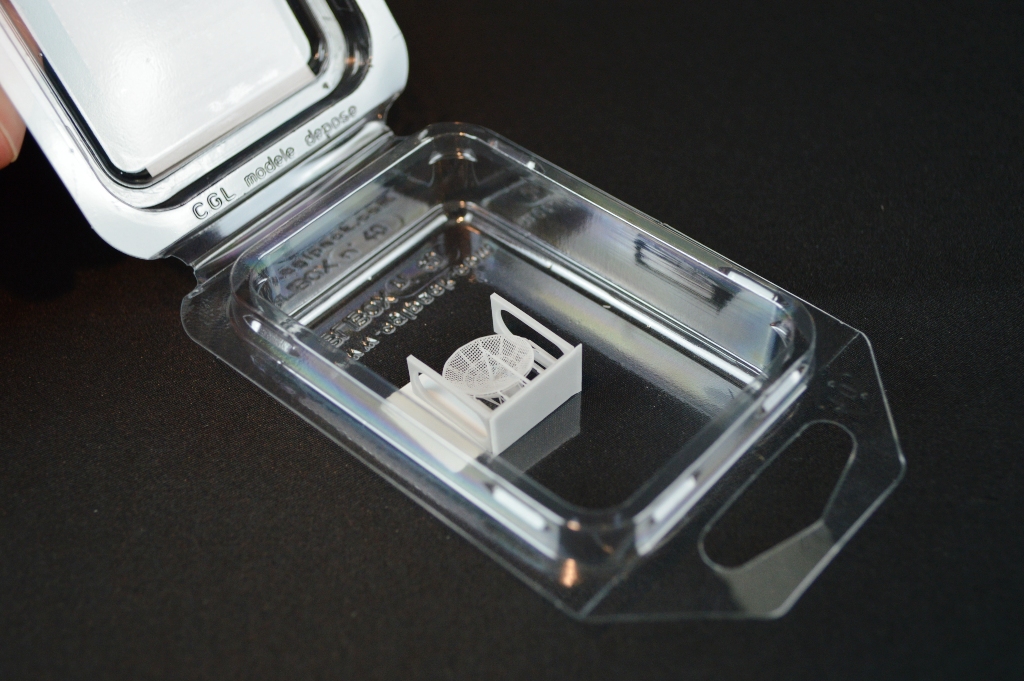

The packaging is the usual plastic clamshell container, with a single print raft attached to the bottom of the packaging with double sided tape.

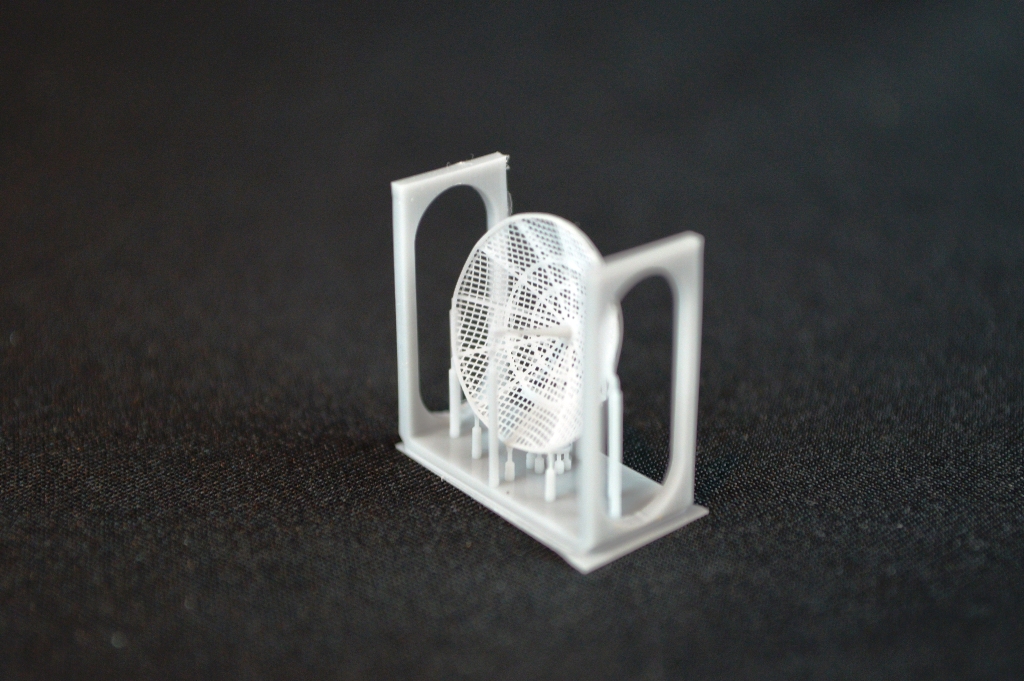

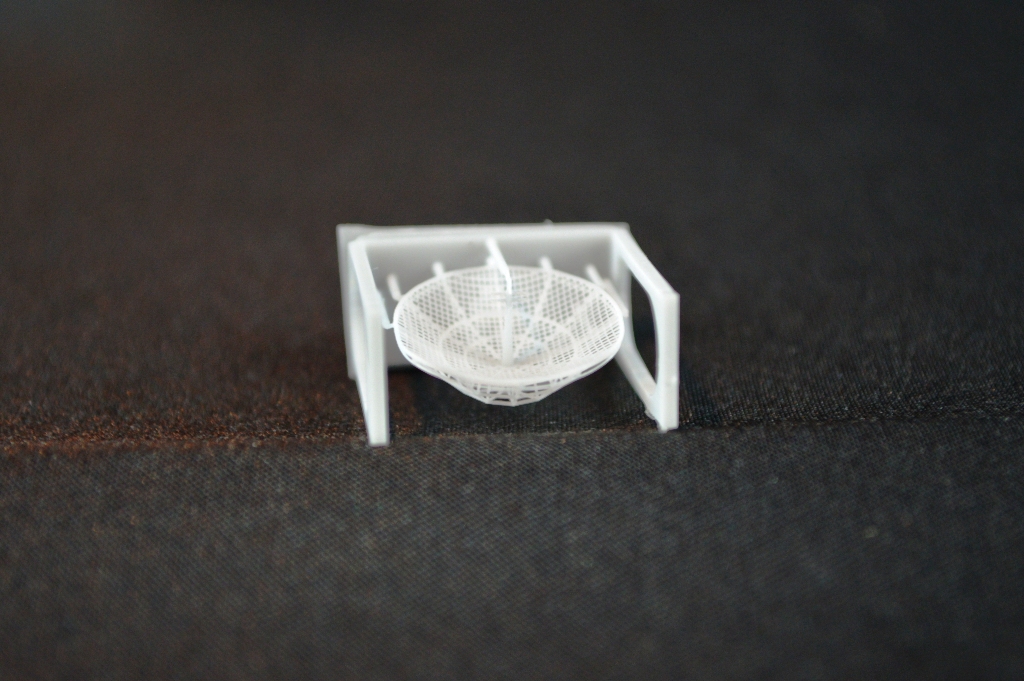

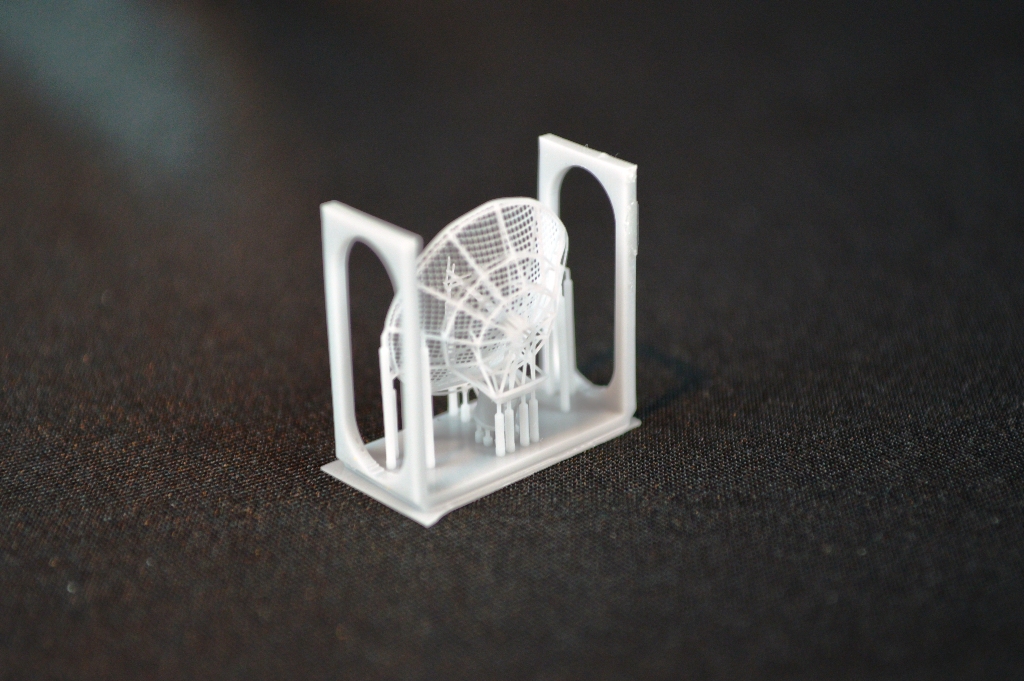

There is one SK-2 radar dish included.   The detail and fineness of the radar is, frankly, incredible.   The bracing for the radar is well defined, while the mesh of the radar screen is as fine as photo-etch.  The base to attach the radar to the mast is also printed integral to the part.  The two biggest concerns one will have using this radar is a)  painting with a light enough hand that you don't clog the mesh, and b) getting if off the print raft without breaking it.

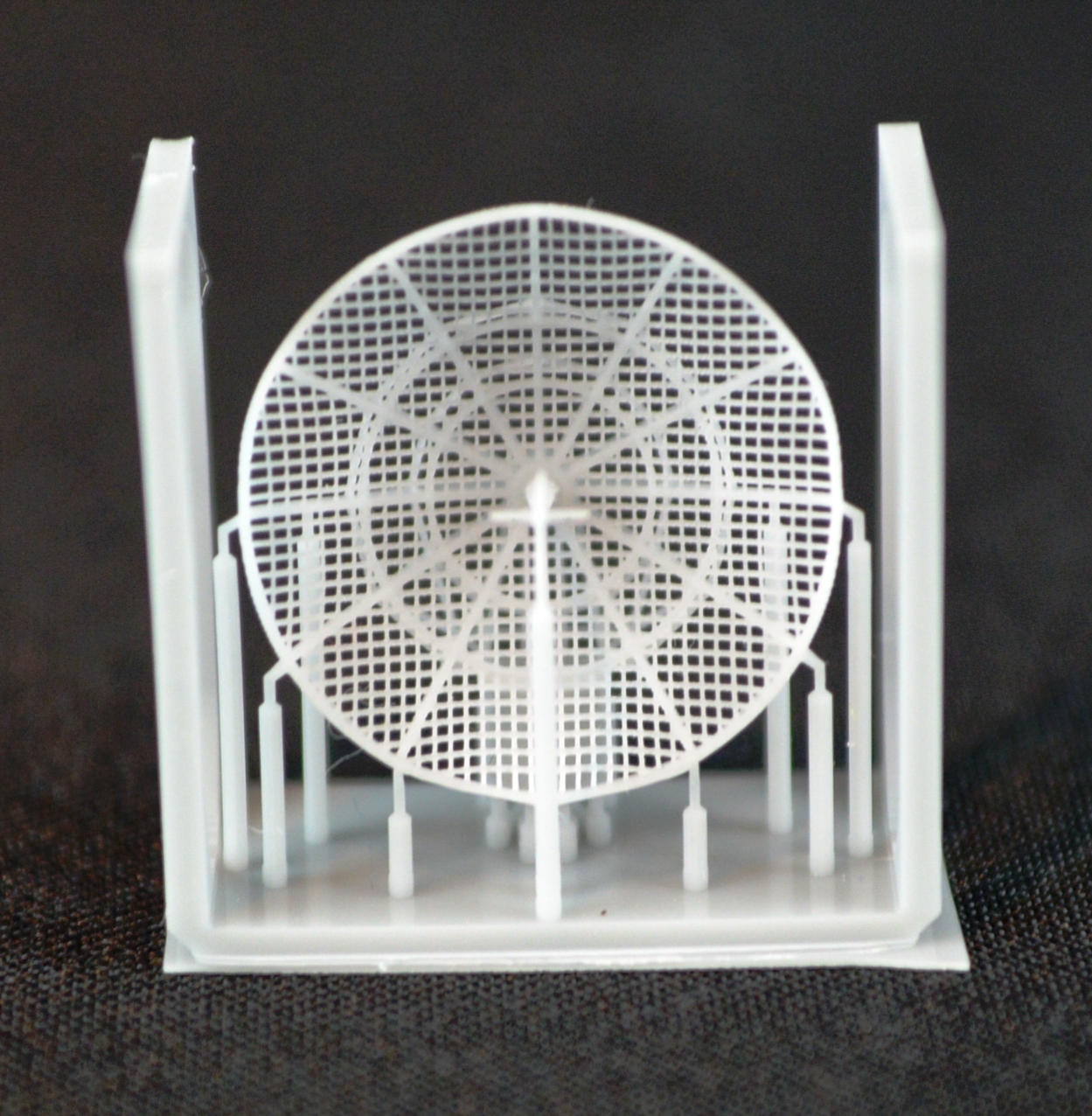

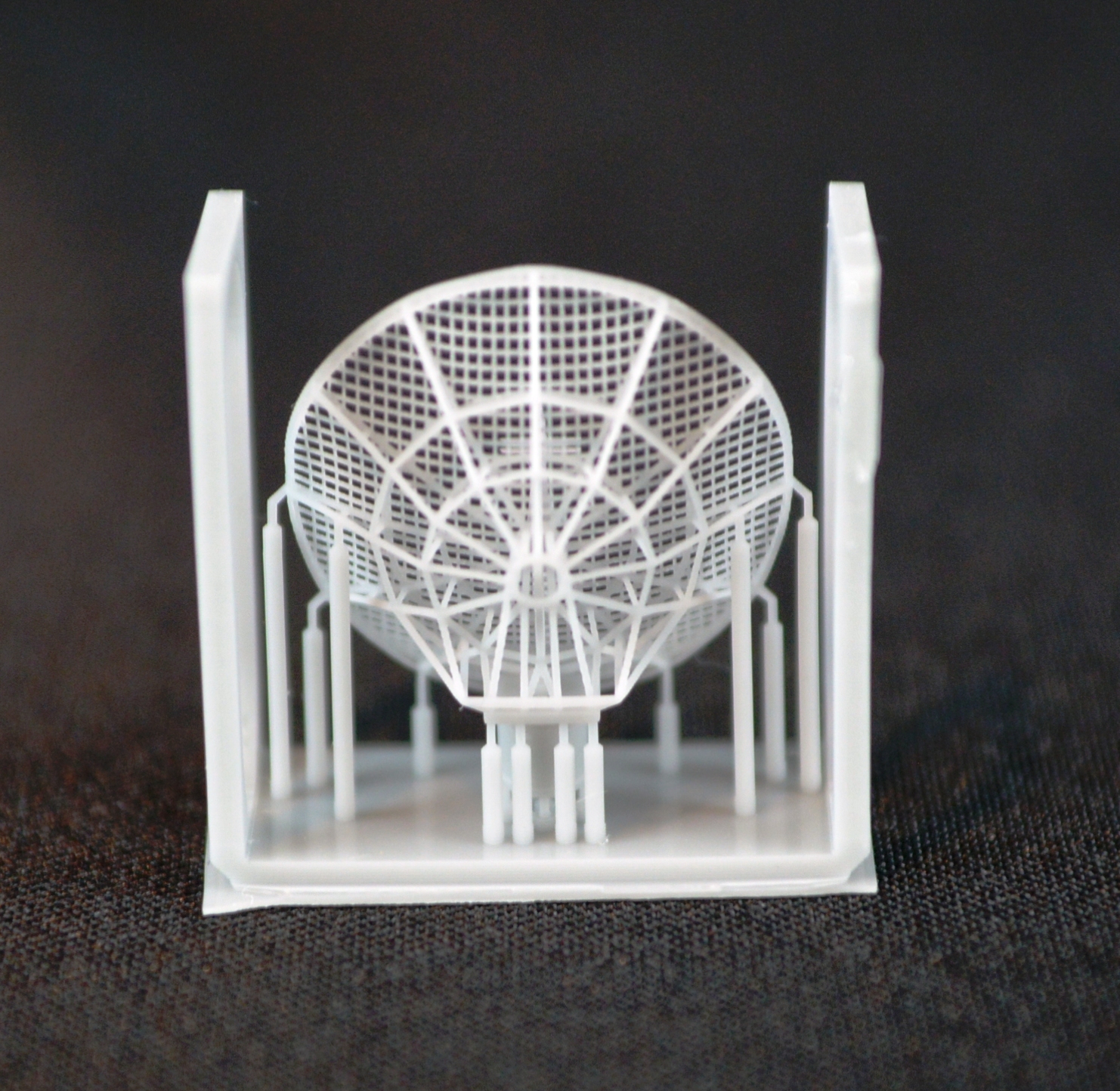

Close ups of some of the parts details.

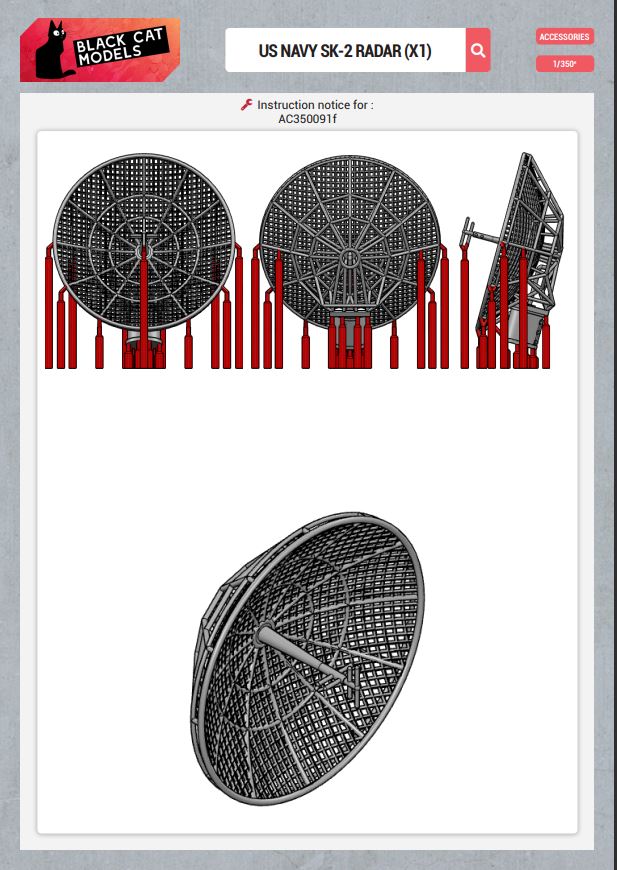

There are no instructions in the box, but the packing directs you to the Black Cat Models website.   There, on a data page for the particular item, you will find a PDF on how to remove the printed supports that are part of the 3D printing process.
This SK-2 radar is a home run for Black Cat.  Having had to assemble a photo-etch SK-2 radar once before, this product will eliminate the tedium and frustration involved with those complex assemblies, and look more realistic to boot.

 This is Black Cat Models set AC3500091f, US Navy SK-2 radar (x1).  It retails for about $10.00 USD, and is available directly from Black Cat Models - who I'd like to thank for this review sample - or from some of our other fine sponsors.   Highly recommended!
